Reproduction Privacy Mortise Lock with Thumbturn - 2 1/2-Inch Backset in Antique-By-Hand
Description

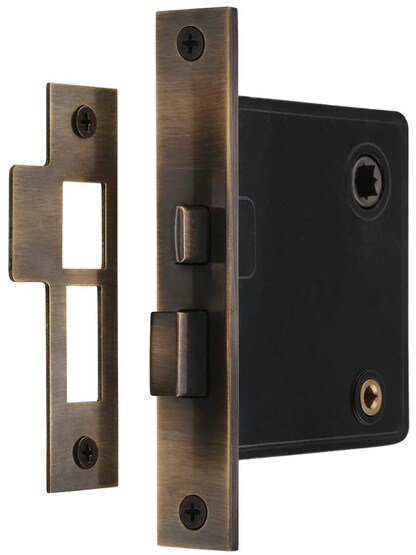

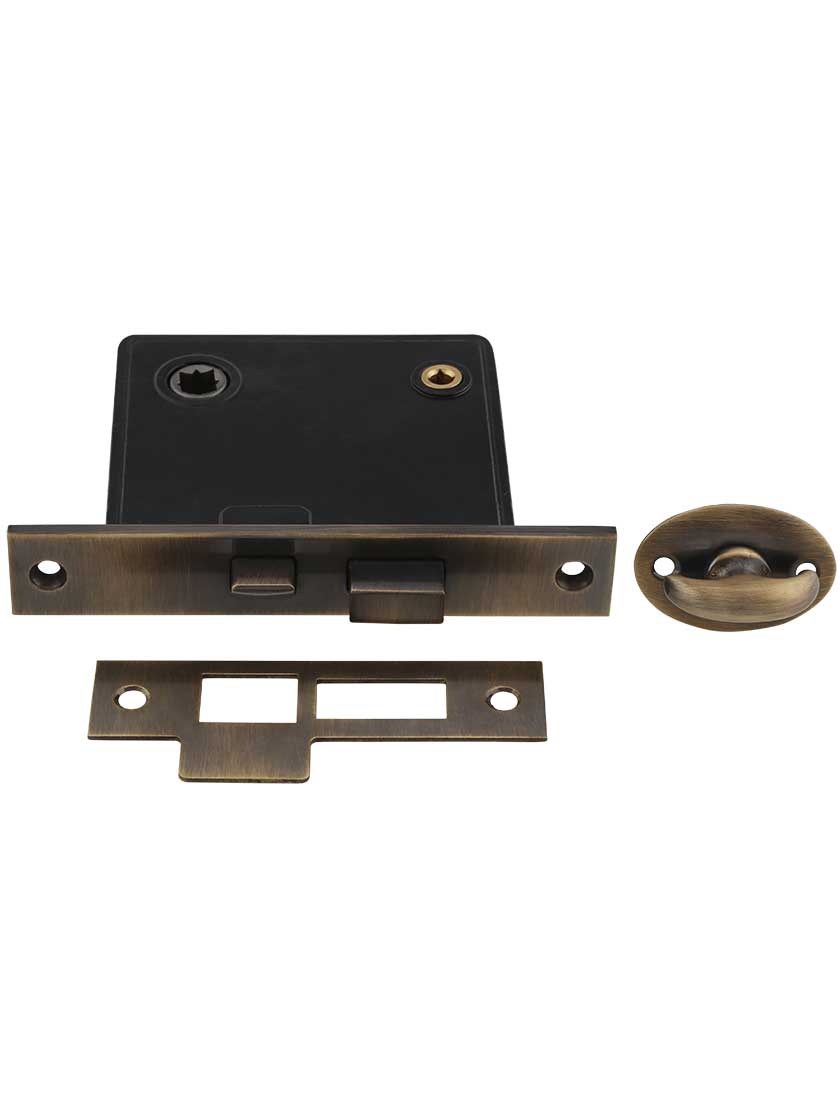

Our reproduction privacy mortise lock with thumbturn and 2 1/2-inch backset was inspired by those used during the early 20th century on bedroom and bathroom doors. It features a 5/32" thick solid-brass face plate with a steel case and interior components. Suited for almost any decor, this lock is finished with our living antique patina! The set includes a solid brass thumbturn with oval escutcheon but can also be used with privacy backplates. Reversible for left or right-hand doors.
When using this as a replacement lock, it is important to measure existing cutouts on your door, including the backset, face plate, and mortise pocket. Some modification of your cutouts may be required.

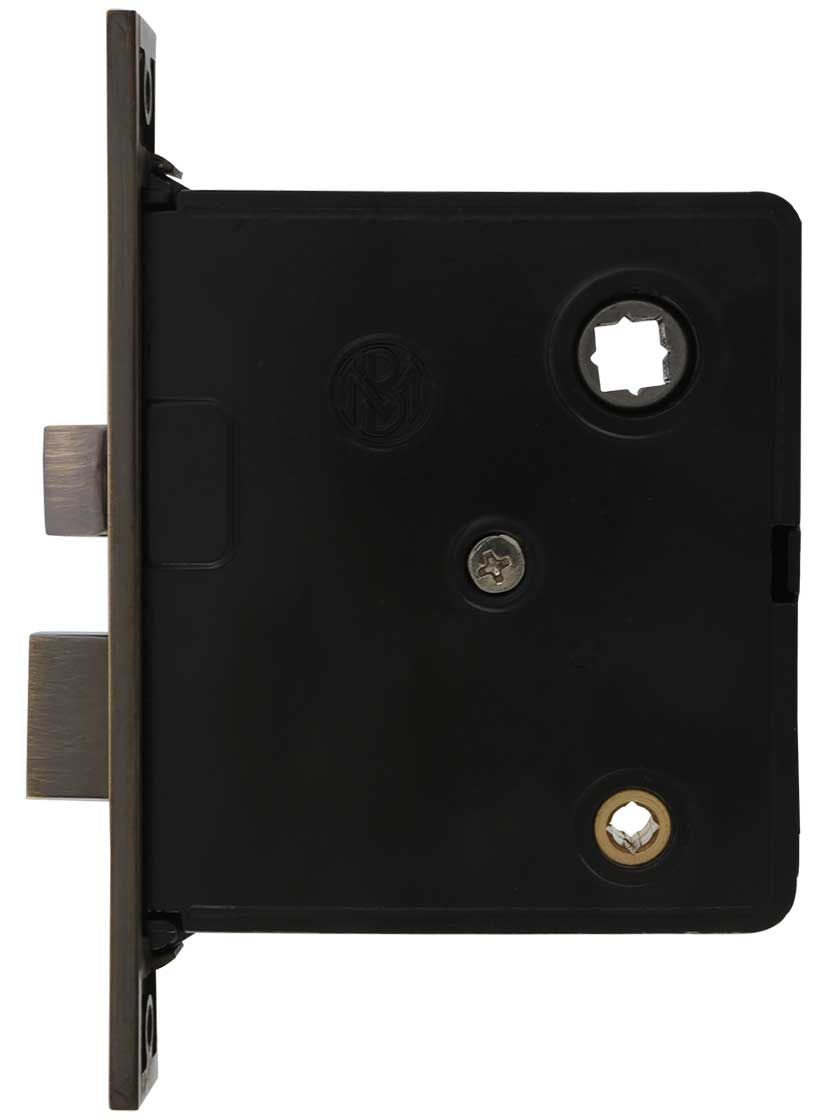

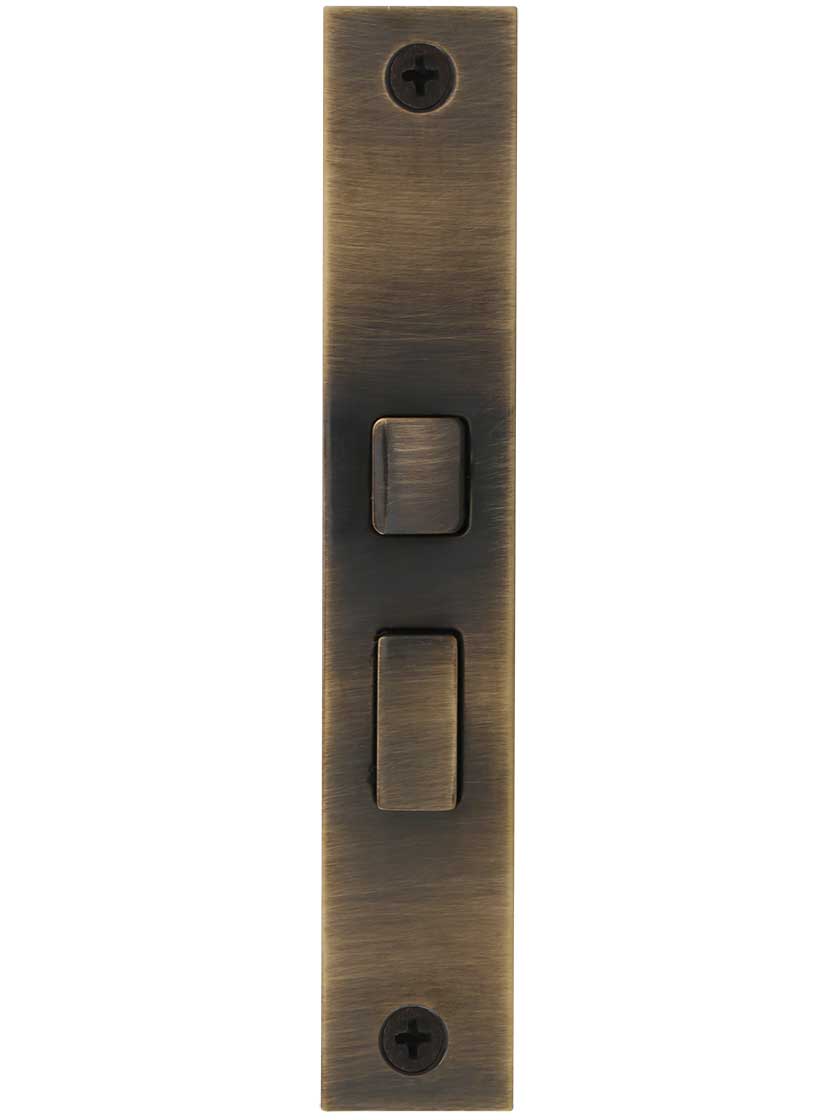

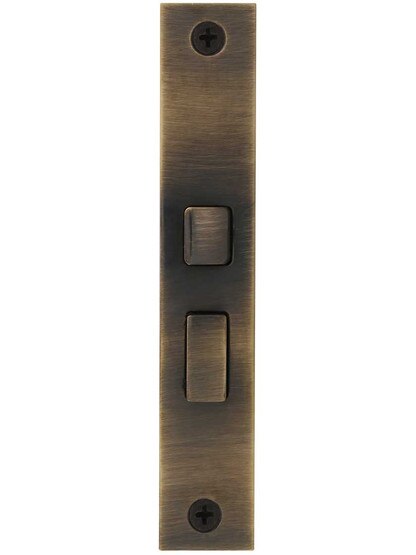

Dimensions: Faceplate: 5 1/4" T x 15/16" W x 3/16" thick. Strike Plate: 3 7/8" T x 15/16" W with 1/2" tongue. Lock Box: 3 9/16" T x 9/16" W x 3 1/8" D. The backset is 2 1/2". Thumbturn: 1 3/8" H x 3/8" Thick. Base: 1 3/4" H x 3/16" W x 1/16" Thick. Center to center spacing from thumbturn to knob hub: 2 1/4". Knob hub fits spindle sizes: 7mm, 8mm, and 9/32". Thumbturn hub fits a standard 3/16" spindle.
When using this as a replacement lock, it is important to measure existing cutouts on your door, including the backset, face plate, and mortise pocket. Some modification of your cutouts may be required.
Dimensions: Faceplate: 5 1/4" T x 15/16" W x 3/16" thick. Strike Plate: 3 7/8" T x 15/16" W with 1/2" tongue. Lock Box: 3 9/16" T x 9/16" W x 3 1/8" D. The backset is 2 1/2". Thumbturn: 1 3/8" H x 3/8" Thick. Base: 1 3/4" H x 3/16" W x 1/16" Thick. Center to center spacing from thumbturn to knob hub: 2 1/4". Knob hub fits spindle sizes: 7mm, 8mm, and 9/32". Thumbturn hub fits a standard 3/16" spindle.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
WARNING: California Proposition 65
Ratings & Reviews
4 reviews
3/11/2022 8:38:24 pm
It works!!!
Comments:
Restore a bathroom door to full operation
8/13/2022 12:41:14 am
Quality product and excellent service.
Comments:
Doing maintenance in a historic building. This product was pretty much an accurate reproduction of the original antique locks that were in the building.
10/23/2021 4:17:54 pm
Real nice
Comments:
I needed to replace a lock set. So glad I found what I needed. Looks great, works beautifully
2/17/2022 10:27:16 pm
Worked perfectly
Comments:
Really happy with this purchase. Successfully added thumb turn privacy locks to my 100 year old house. Nearly a drop in replacement.
