Reproduction Privacy Mortise Lock with Thumbturn - 2 1/2" Backset

Your Selection:

Select Your Finish:

$122.90 - $138.90
Quantity discounts available
Item #: R-01BM-8919X

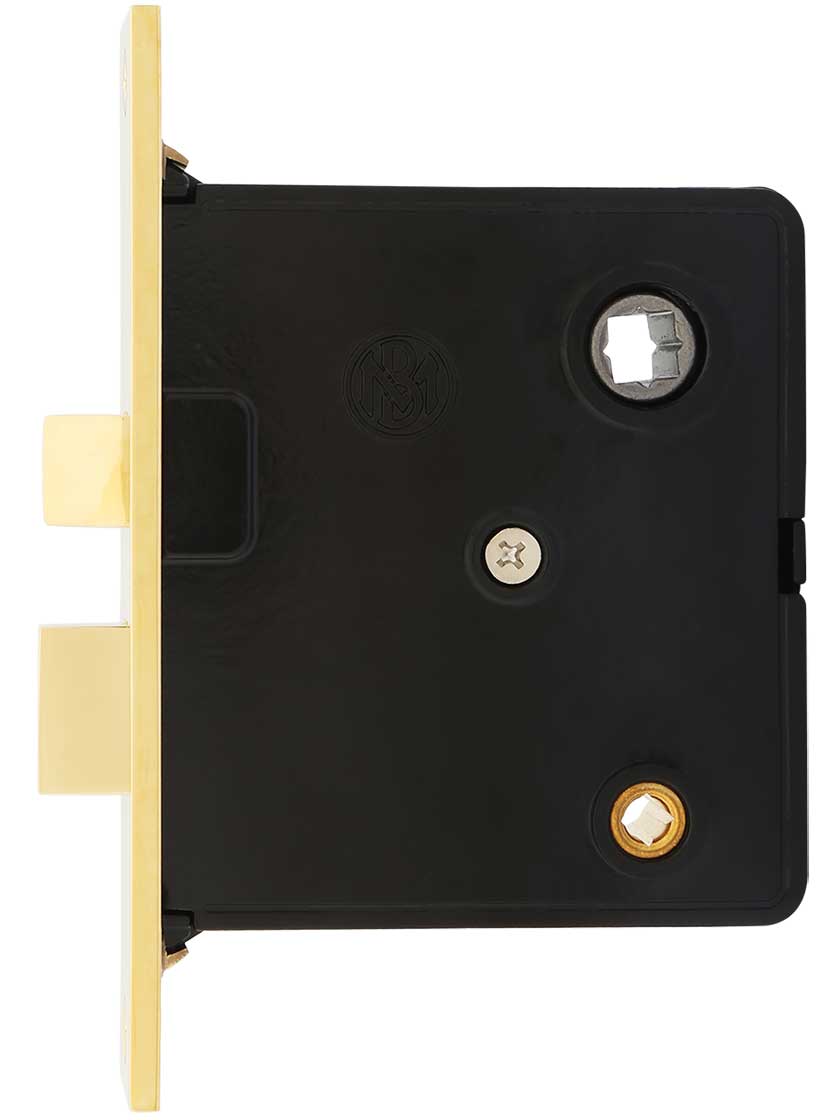

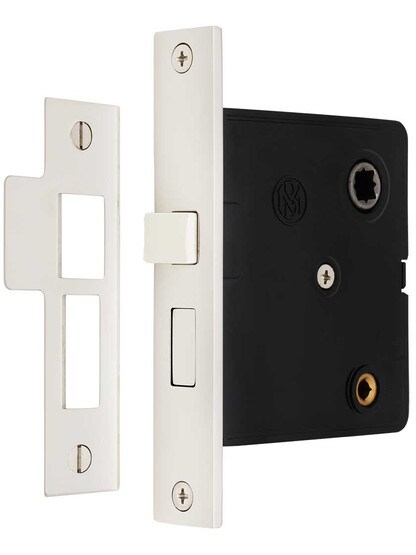

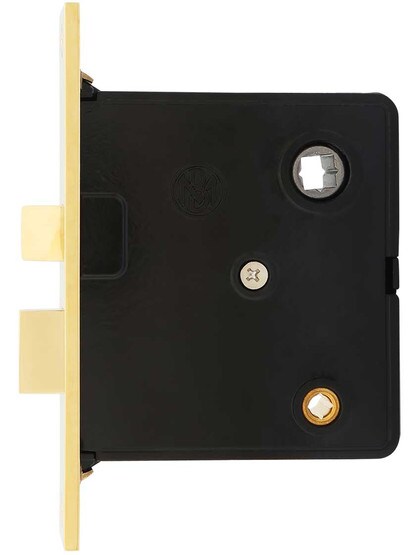

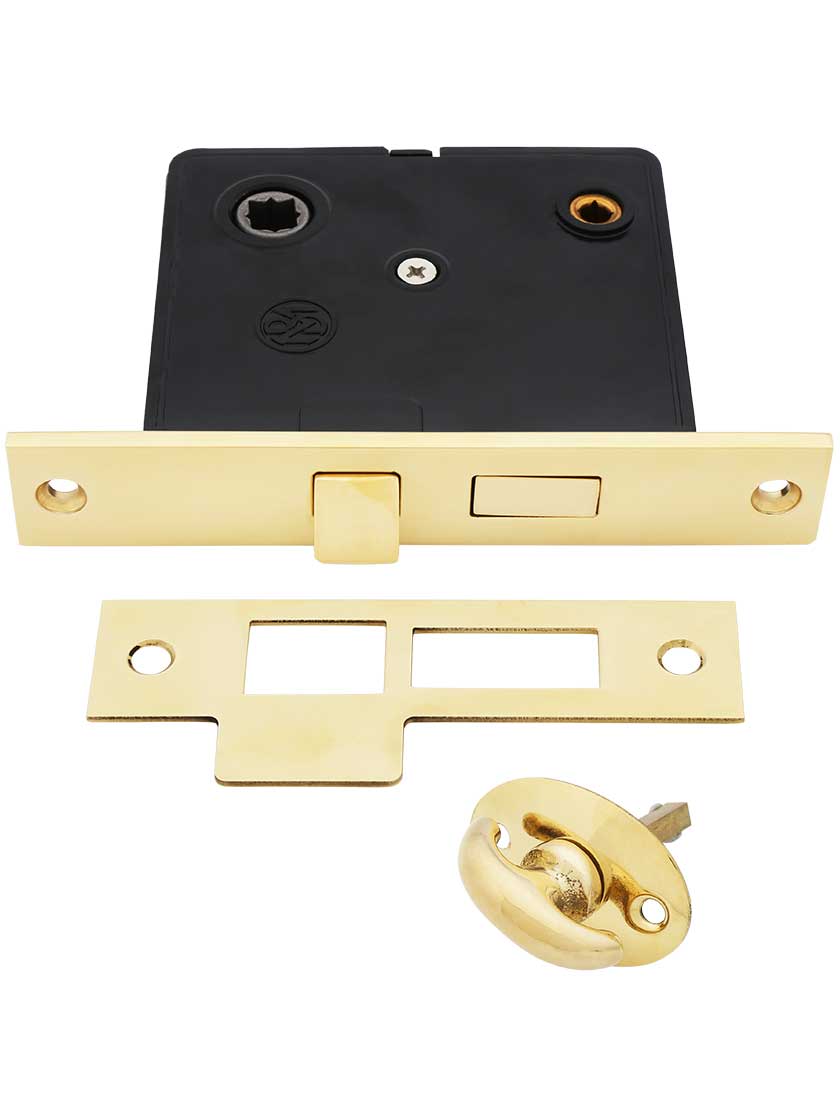

Our Reproduction Privacy Mortise Lock with Thumbturn and 2 1/2-Inch Backset was inspired by those used during the early 20th century on bedroom and bathroom doors. It features a 5/32" thick solid-brass face plate with a steel case and interior components. Available in an array of popular finish options, it is suited for almost any decor. The set includes a solid brass thumbturn with oval escutcheon but can also be used with privacy backplates. Reversible for left or right-hand doors.

When using this as a replacement lock, it is important to measure existing cutouts on your door, including the backset, face plate, and mortise pocket. Some modification of your cutouts may be required.

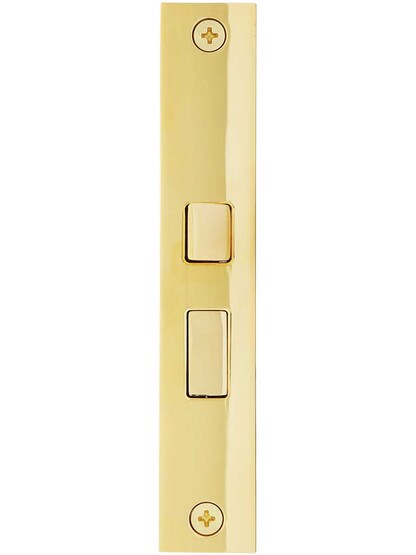

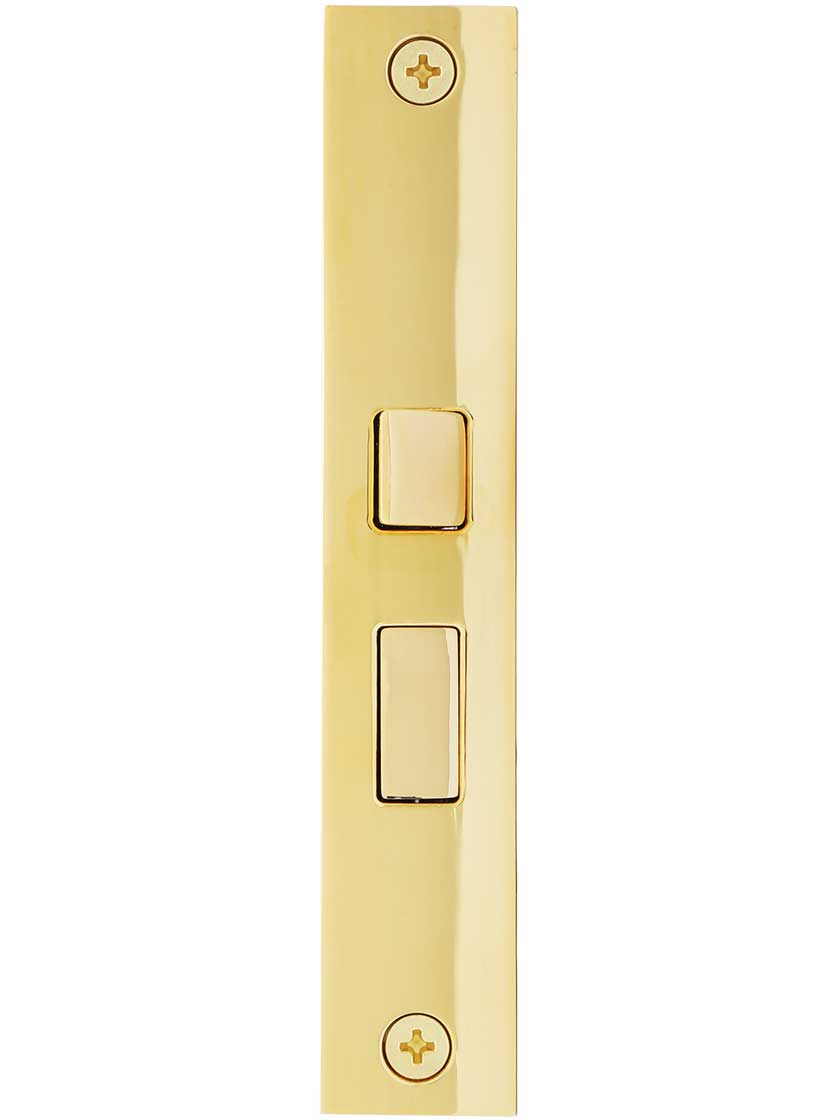

Dimensions: Faceplate: 5 1/4" T x 15/16" W x 3/16" thick. Strike Plate: 3 7/8" T x 15/16" W with 1/2" tongue. Lock Box: 3 9/16" T x 9/16" W x 3 1/8" D. The backset is 2 1/2". Thumbturn: 1 3/8" H x 3/8" Thick. Base: 1 3/4" H x 3/16" W x 1/16" Thick. Center to center spacing from thumbturn to knob hub: 2 1/4". Knob hub fits spindle sizes: 7mm, 8mm, and 9/32". Thumbturn hub fits a standard 3/16" spindle.


Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
