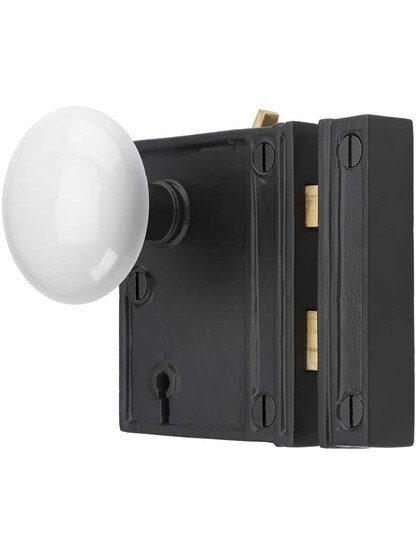

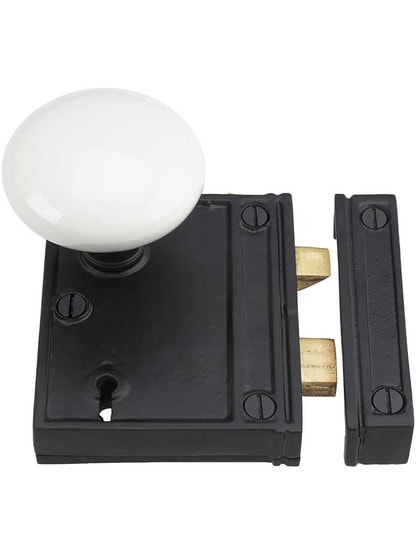

Cast Iron Vertical Rim Lock Set with White Porcelain Door Knobs

87 Reviews

Your Selection:

Select Your Finish:


$113.90 - $119.90
Quantity discounts available
QuantityPrice
Item #: R-01HH-1023V-WHTX

Description

Dating from the later 19th century, this handsome vertical rim lock suits Victorian, Craftsman or Colonial Revival interiors. Finely crafted from cast iron and available in two vintage finishes, it features mostly brass interior parts for long-lasting quality. Paired with classic white porcelain knobs, it's a period perfect set, ideal for both rustic and refined interiors. Comes complete with two fancy brass skeleton keys. In addition to the key-operated dead bolt, there is a handy privacy lock (toggle on top of case). Easily reversible for right or left handed doors.

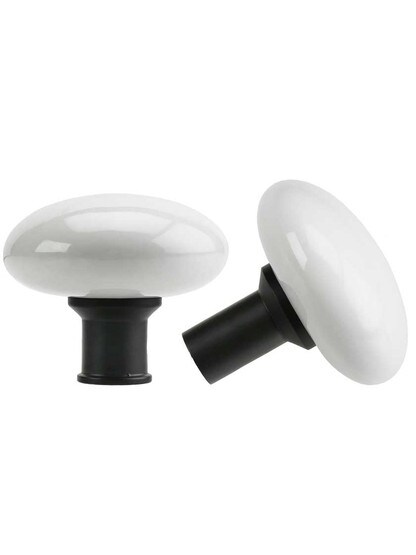

Dimensions: Lock body: 3 3/16" W x 3 3/4" H x 3/4" Thick. Keeper: 3/4" W x 3 3/4" H x 3/4" Thick. Knobs: 2 3/8" Diameter. Rosette: 1 7/8" Diameter. Keyhole Cover: 15/16" W x 1 11/16" H. Backset: 2 1/4".

Door Thickness: 1" to 1 3/4". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1" to 1 1/2" thick doors, use 4" for 1 5/8" to 1 3/4" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.

Please note: the privacy latch can not be disengaged from outside the room.

Door Sets

Door Set Functions
FunctionDescriptionIncludes

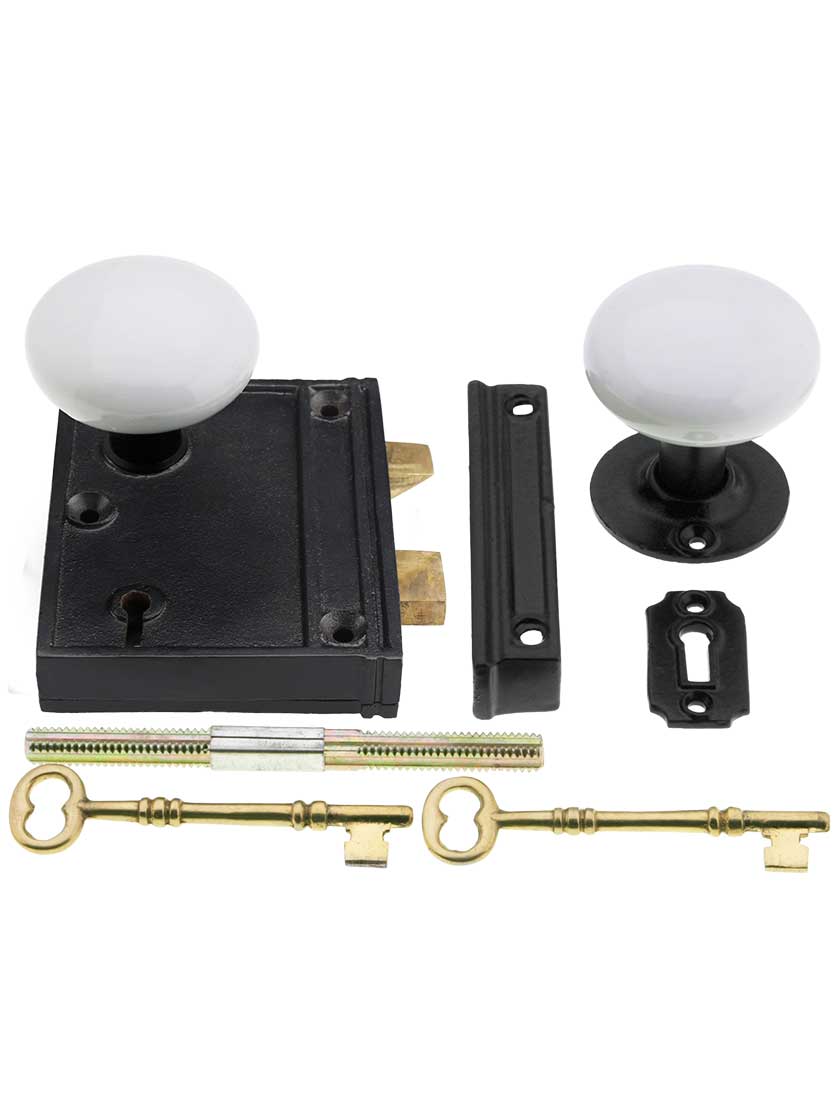

Skeleton Key
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.
  • 2 Knobs
  • 1 Rosette and 1 keyhole cover
  • 1 Skeleton key rim lock
  • 1 Matching rim keeper
  • Matching screws
  • 1 Spindle and 2 keys

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock.
WARNING: California Proposition 65

Ratings & Reviews

87 reviews

  • 5 stars
  • 67 reviews
  • 4 stars
  • 10 reviews
  • 3 stars
  • 3 reviews
  • 2 stars
  • 2 reviews
  • 1 star
  • 5 reviews

6 lock sets just received from UPS

Comments:

I own a 112 year old home that is on the National Register of Historic Places. I am in the process of reversing an unwise ""modernization"" done in 1967. Beautiful paneled doors and transoms were remove and ugly slab doors were installed. Next week new authentic, period correct, paneled doors, transoms and trim is scheduled to be delivered. These six lock sets will be placed on the new doors as was the arrangement on the original doors. I held my breath and reveresed one for left hand operation per the instructions I found on this web site. Worked like a charm. These lock sets look very similar to the three I still have in the house.

A little too stiff - and some modern give-a-ways

Comments:

This door handle assembly looks the part overall. and most people will not notice that it is a repro. however, the allen wrench-type screws that hold the knob in place are a little too obvious for my liking. You can't always adjust them to go on the bottom. The old one have flat-head screws. Also, shape of the knob shaft has no flair like an original. The painted finish should probably be a little flatter.... small details I could go on. The knob is stiff and wiggles to the wrong way, so you often quarter turn it the wrong way before you remember and turn it the right way. I'm hoping it will loosen up, as a bought a similar item last summer, and that one loosened up.

A perfect match to my origionals

Comments:

Added a powder room to our old farm house and the rim lock set matches the origionals in the house perfectly. The quality is very impressive. I will be dealing with The House of Antique Hardware in the future.

aDOORable product

Comments:

We have owned our 1880's Victorian for over 43 years. During that time we have tried to keep everything as original as possible. We have looked for replacement parts to fix our rim lock door hardware at every antique store we come across to no avail. We finally found this website and decided to give these a try. We only ordered 3 to start. After installing those we ordered the rest. The installation only required enlarging the key hole in the door minimally with a rasp. Everything else lined up with the door perfectly. Except for the gold finish on the interior lock tab you can't tell the difference from the original ones.

Antique door lock at value

Comments:

Best value found in this kind of product, getting Victorian era feel to match what's in the rest of the house. Size is a little different from the originals, but not far off.

Antique Door Locks with Skeleton Keys

Comments:

We had a project we were doing for a family on a home built in the 1800's they wanted the new addition to look like the original house, right down to the doors and door knobs. It took me about an hour until I located your locks on the web and ordered them. They are a little pricey for the average person but they are well worth the price.

Antique rim locks

Comments:

Love these handles, I live in a historic town where antique hardware is not only aesthetically pleasing but historically accurate these are good solid handles that function perfectly and match the 100 year old originals beautifully

ask Q&A before replaceing existing lock

Comments:

I liked the product. Since I was replacing an existing lock in a very old bldg. I just wish the nail holes were the same as older locks. That the lock lever was the same color as the rimlock and that the screws provided were longer to go through to the wood, it feel off the first day. Unfortunately its hard to find black screws as long as needed. I had to paint the new screws. Detail tweaking needs to be done...Still I recommended to friends.

attention to detailes

Comments:

working parts inside need more attention to the machineing of the parts. they do not move smoothly when operated.had to smooth edges to make it function smoothly,lube needed.

Authentic Reproduction Hardware

Comments:

Hanging salvaged, restored double-arch lit door on Victorian era home.
