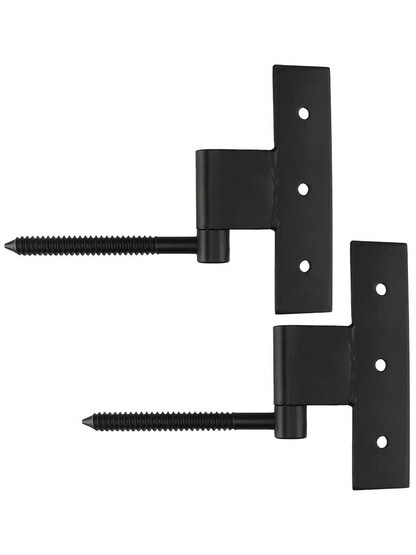

Pair of Suffolk Style Stainless-Steel Middle Hinges with Lag Pintles - No Offset

Currently Unavailable - ETA: 10/18/2022
$77.95
Quantity discounts available
QuantityPrice
Item #: R-09EH-EHHSS000-SET

Description

Our Suffolk-Style No Offset Middle Hinges offer traditional Colonial style. Constructed from stainless steel, they feature a rust-resistant and durable black powder-coated finish. They can be mounted to show either when the shutters are open or closed. Length from end of lag to center of pintle rod is 4 3/4". The lag bolt is 3/8" diameter. Easily mounted to masonry with the included lag bolt (anchors recommended - not included).

Dimensions. Strap: 5 11/16" H x 1 3/8" W stile. Reveal 1 1/2". Thickness: 1/8". Screws: 6 each #8 x 3/4" Panhead Phillips Black SS
Lag bolt: 4 3/4"from tip to center of pintle rod. Bolt diameter: 3/8" Pintle rod diameter: 1/2".

Technical Info with Diagram

Hardware Tip

The offset on shutter hinges is approximately the depth measurement from the back of the strap to the center of the pintle hole. Sometimes the offset measurement does not include the strap thickness.
