Features
  • Forged Solid Brass for Crisp Detail
  • Match any Decor with an Array of Finish Options
  • Inspired by Traditional Design
  • Heavy-Duty Spring Assisted Knobs
  • Designed for Pre-Drilled Doors
Details
Style Colonial / Arts & Crafts
Item Sold As Complete Set for One Door
Included Hardware All Necessary Mounting Accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers



Quantity:




Description & Dimensions

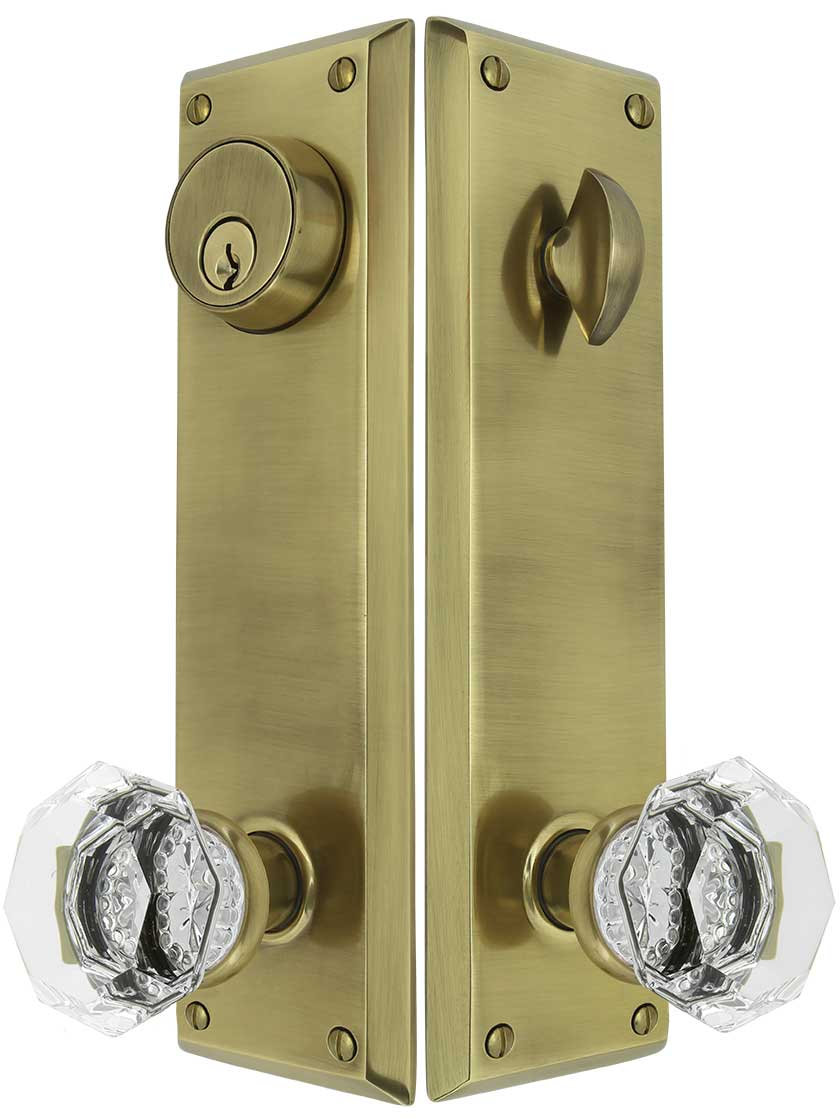

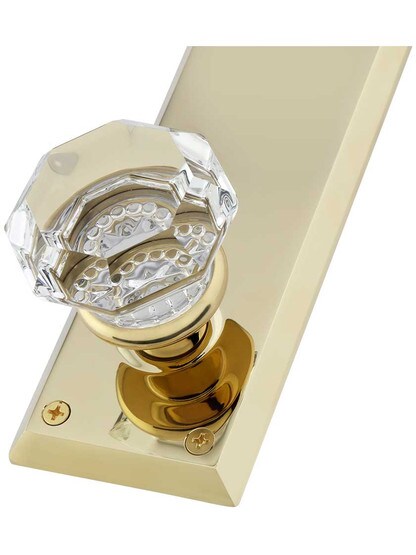

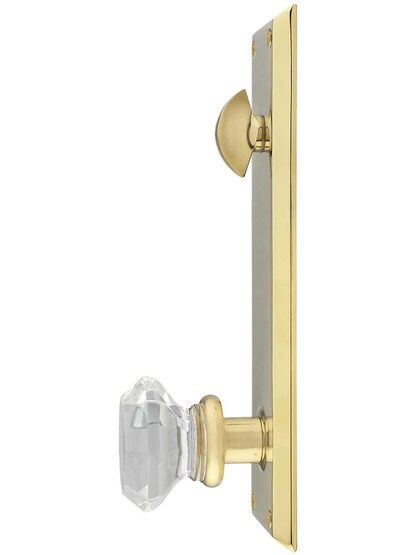

Clear octagonal knobs lend a sparkling accent to this tailored and understated Quincy Entry Set with Old-Town Crystal Glass Knobs. Whether your style is Victorian, Craftsman, or Mid-Century modern, this classic design will fit right in. Substantial forged brass parts provide enduring quality, backed by our five year warranty.

Dimensions: Old town clear knobs are 2 1/4" D. Backplates measure 9" H x 2 5/8" W. Plate thickness: 3/8".

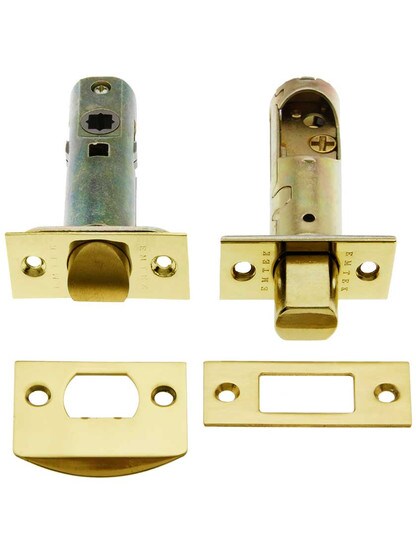

Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.

This set will fit doors from 1 1/4" - 1 3/4" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 2 3/4" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob styles, are available by special order. Please call to order.



Hardware Tip:
Entry Handle: A door handle usually mounted on a large back plate which is used for dummy doors or doors that do not latch. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories
