Franklin Tubular Entry Handleset with Choice of Interior Knob
Description

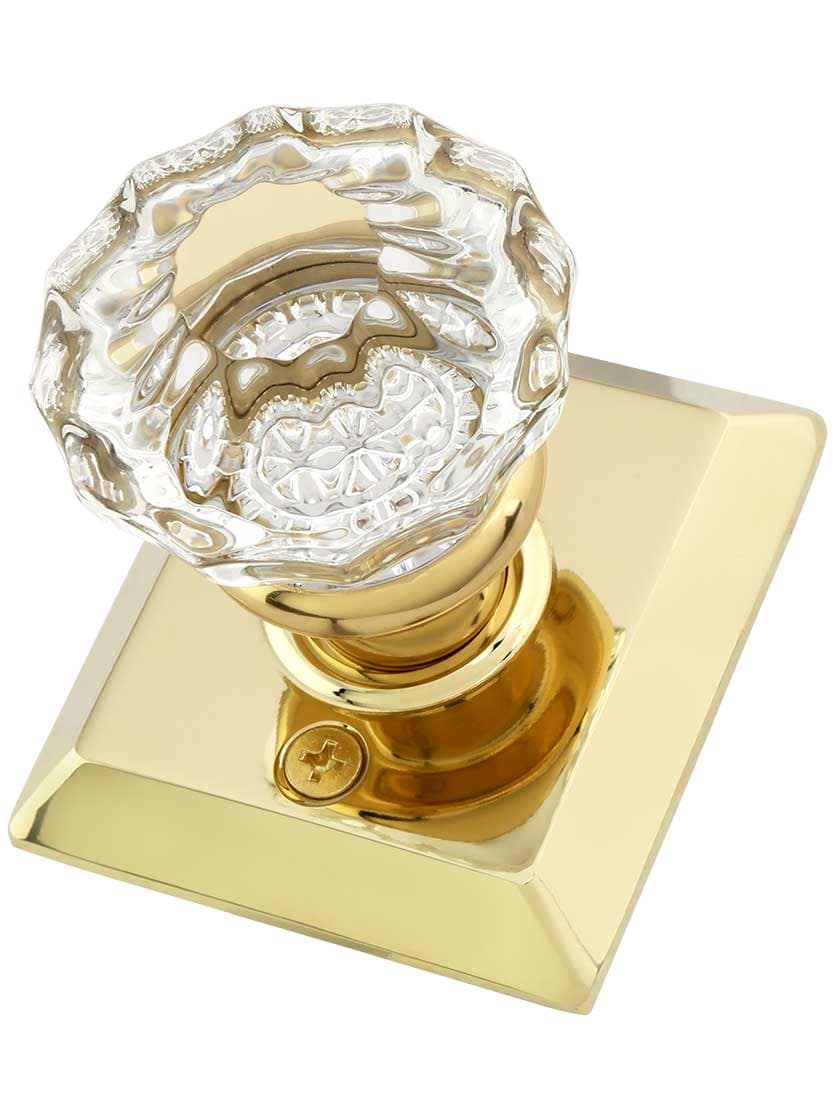

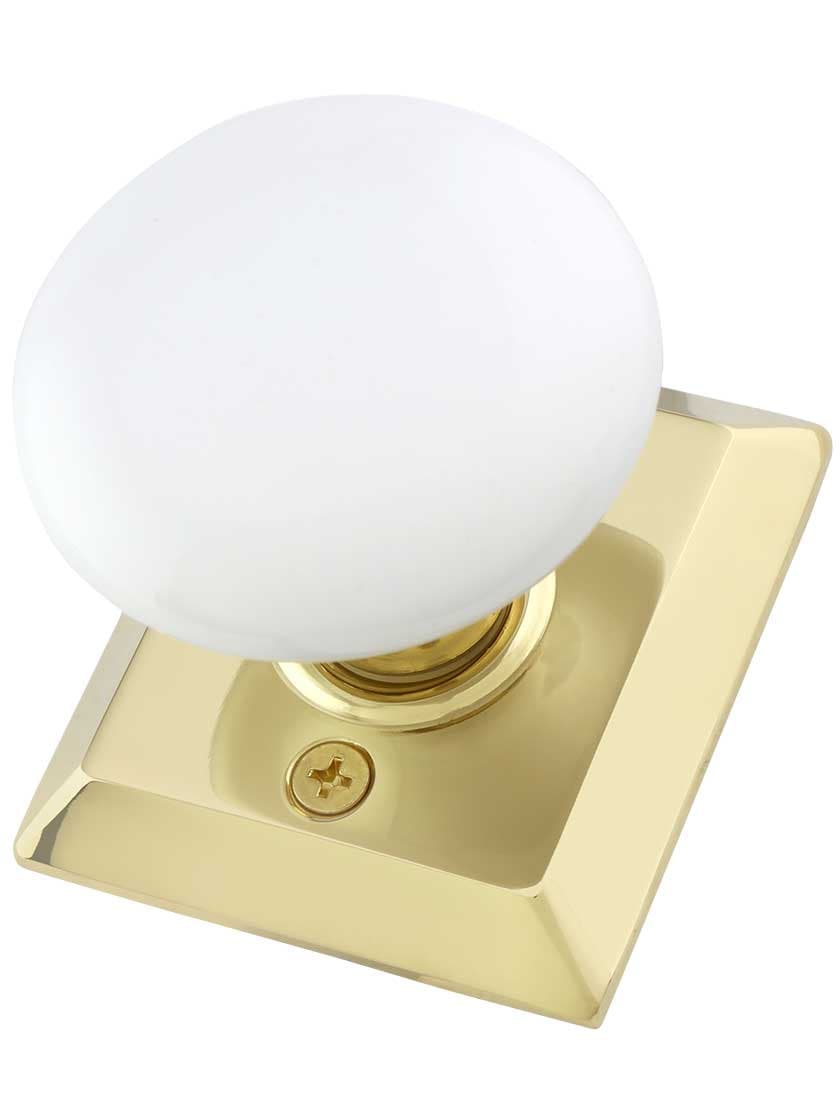

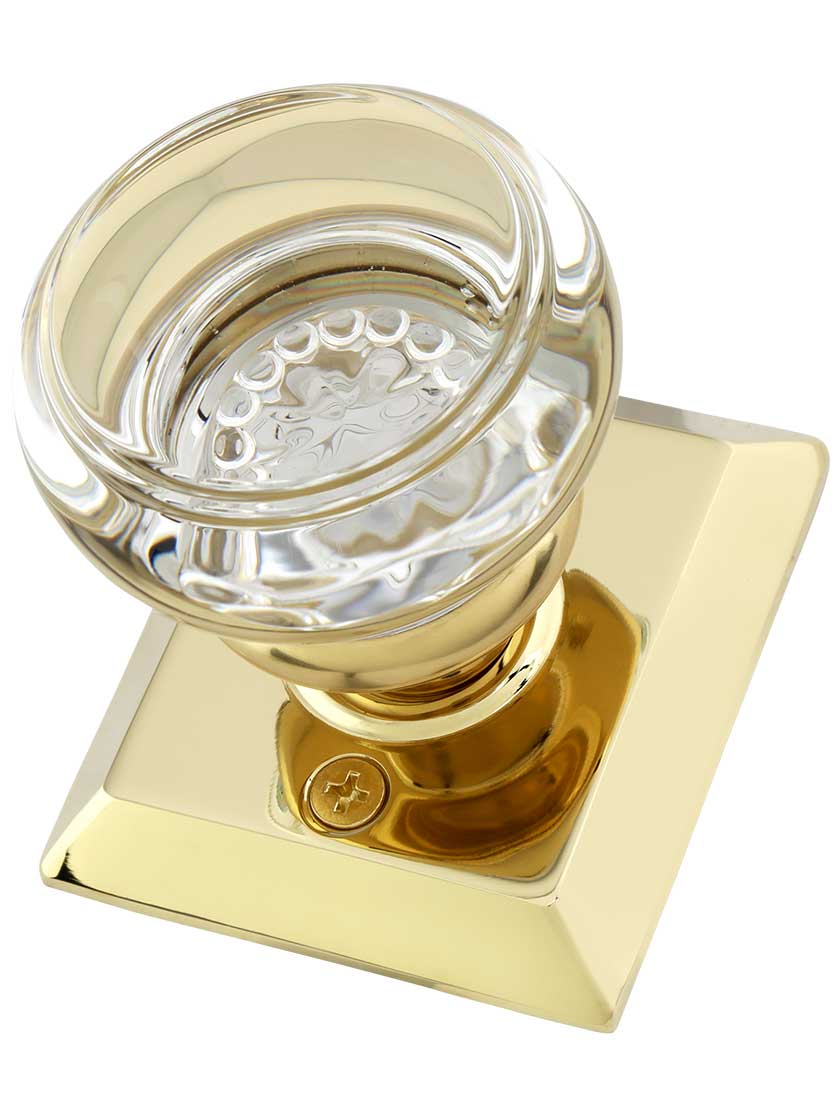

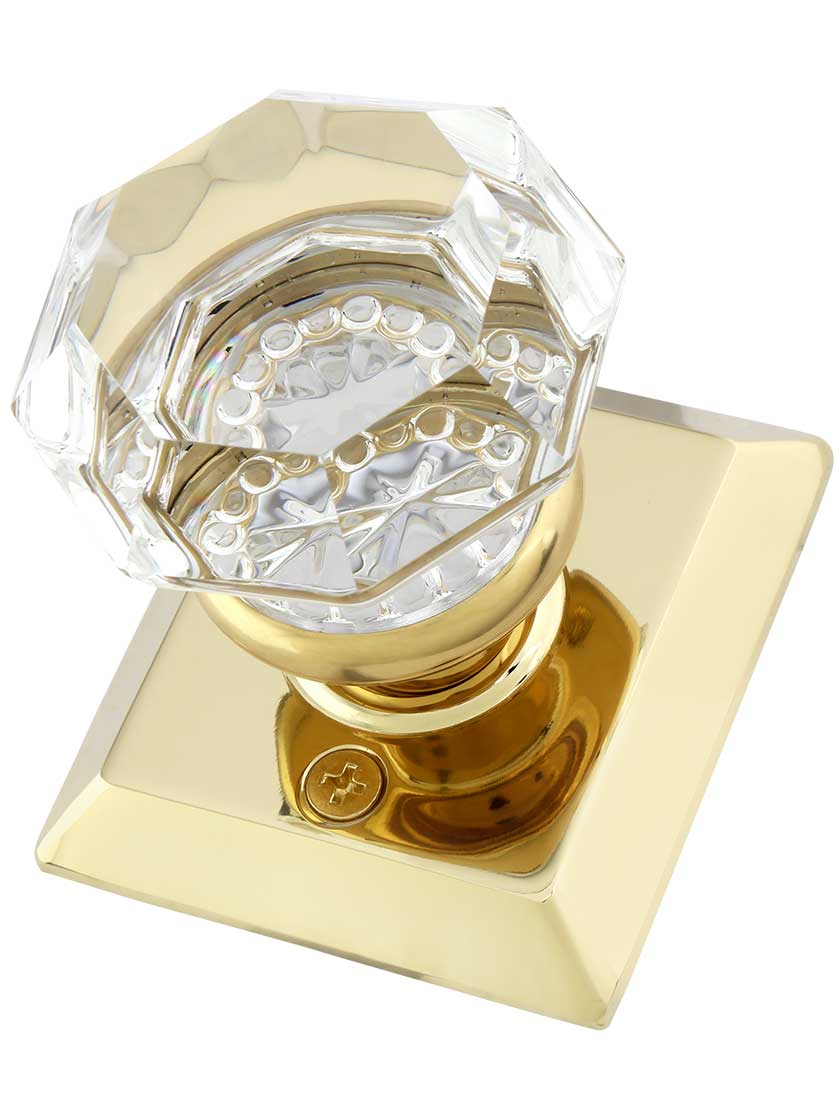

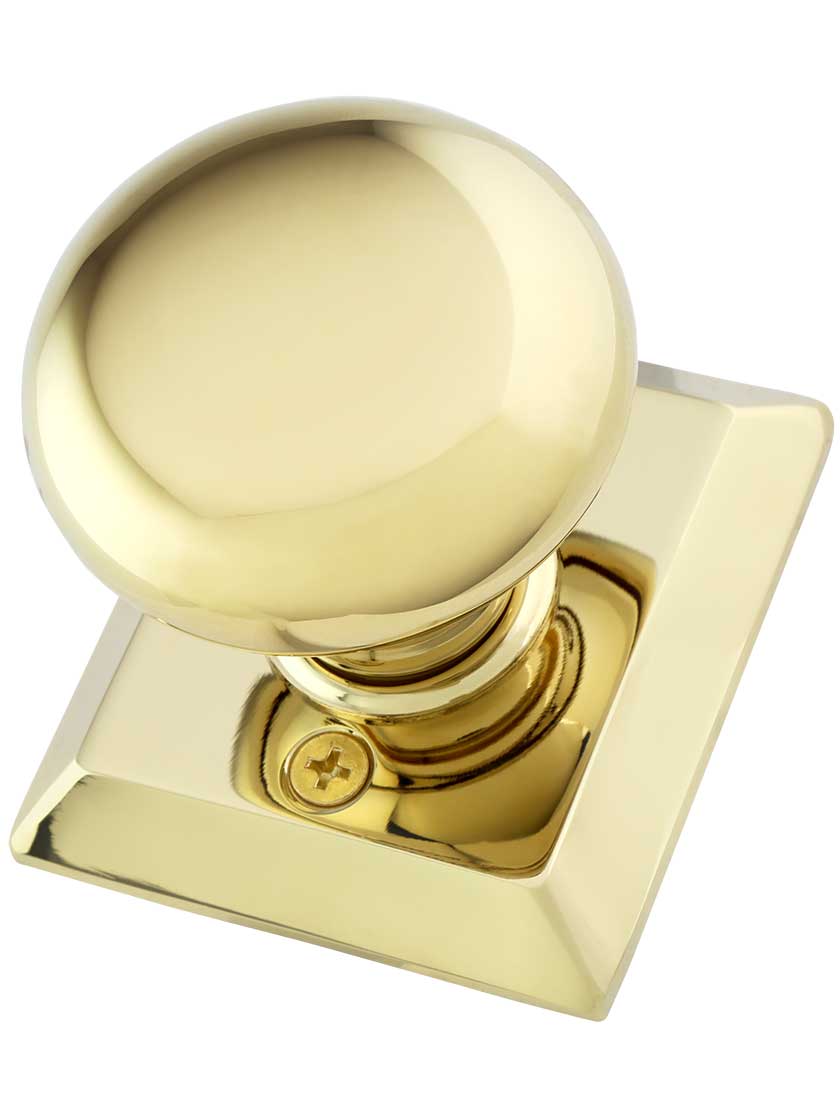

Give your door a traditional look with the Franklin Tubular Entry Handleset with Choice of Interior Knob. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs made of glittering lead crystal, solid brass or porcelain - so many ways to express your unique style!
Door set dimensions: Exterior is 13 1/8" H x 2 3/4" W, top plate 4 1/2" H, bottom plate 2 1/4" H. Exterior Projection: 2 11/16". Interior backplate is 2 1/2" H x 2 1/2" W. Plate thickness: 1/2".

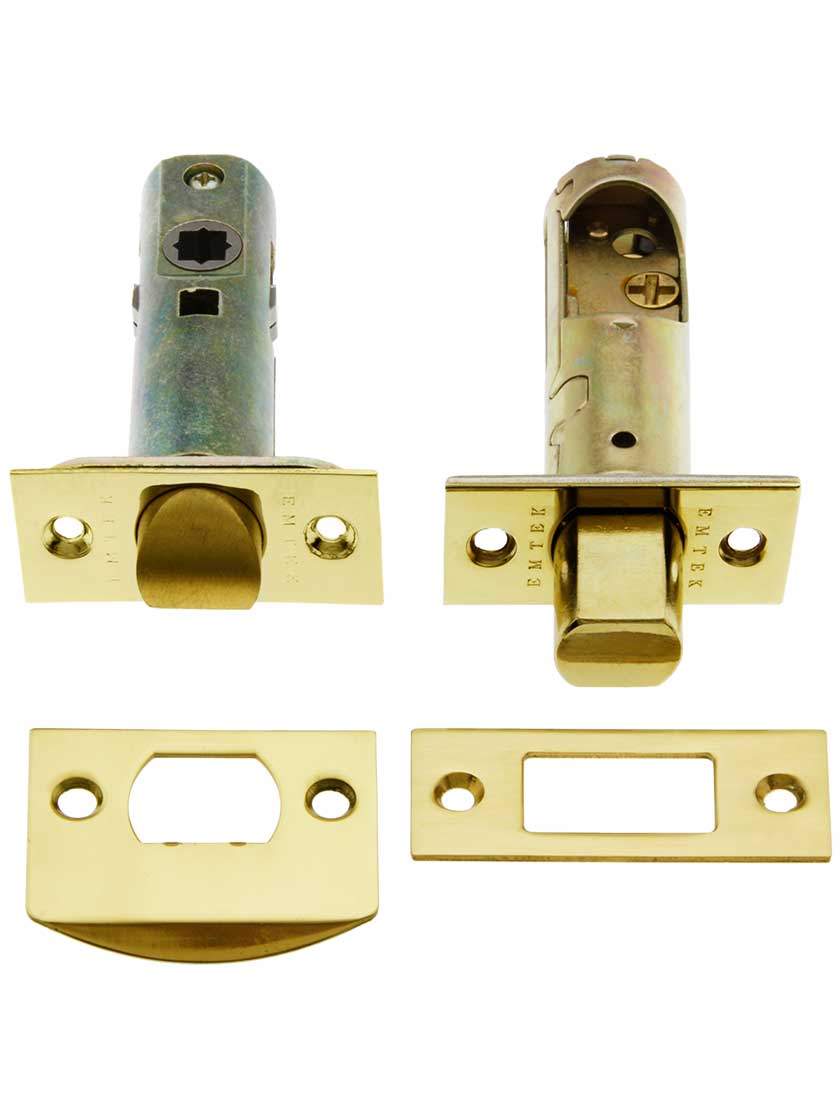

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Rosettes: 2 1/2 x 2 1/2". Decorative face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/8" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 3" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door set dimensions: Exterior is 13 1/8" H x 2 3/4" W, top plate 4 1/2" H, bottom plate 2 1/4" H. Exterior Projection: 2 11/16". Interior backplate is 2 1/2" H x 2 1/2" W. Plate thickness: 1/2".
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Rosettes: 2 1/2 x 2 1/2". Decorative face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/8" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 3" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door Sets
Door Set Functions | ||
Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in Dark Bronze. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
Specs
Product Specifications
Dimensions, specifications and detailed product info
