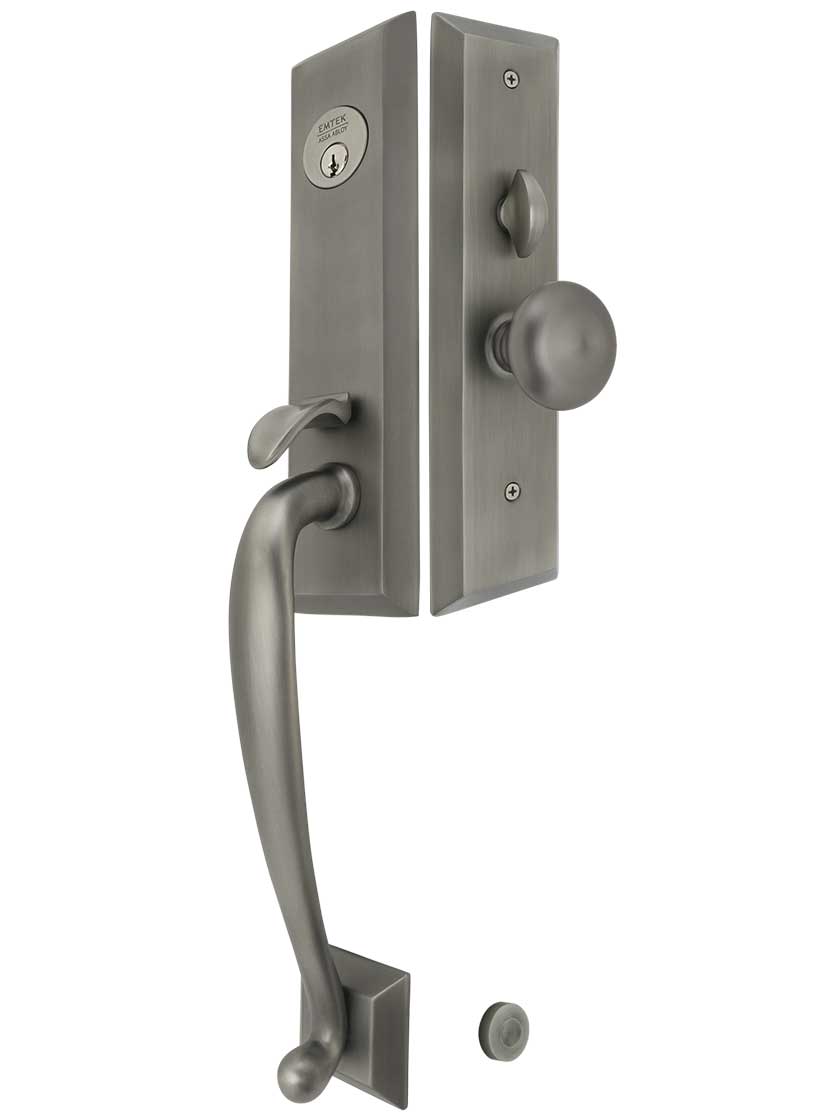

Harrison Rectangular Thumb-Latch Mortise Entry Set with Choice of Interior Knob
Description

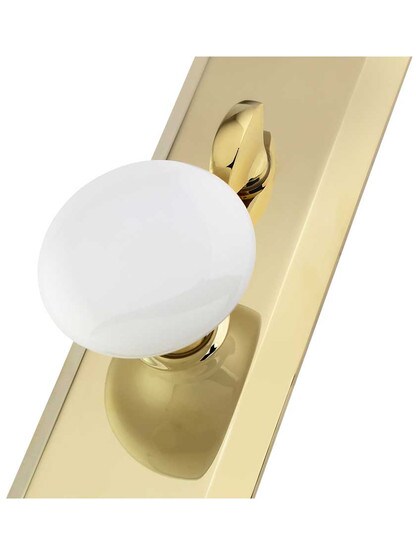

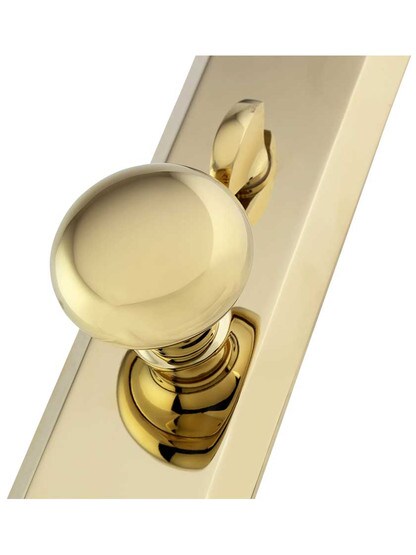

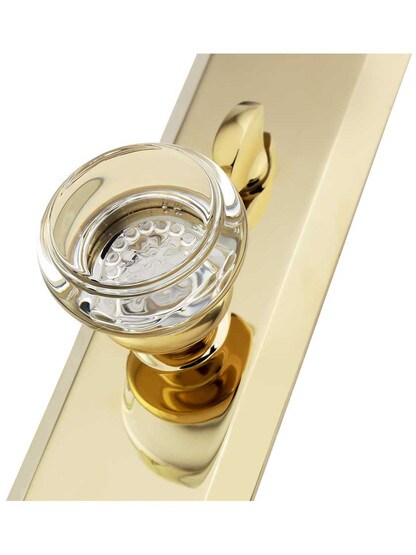

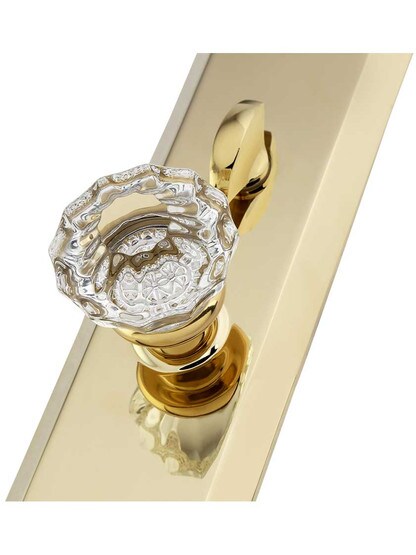

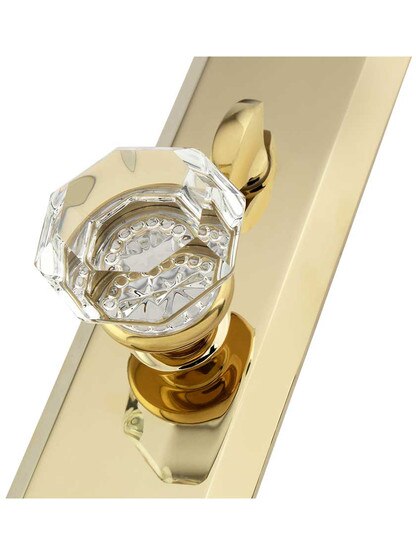

Give your door a traditional look with the Harrison Rectangular Thumb-Latch Mortise Entry Set. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs made of glittering crystal glass, solid brass or porcelain - so many ways to express your unique style!

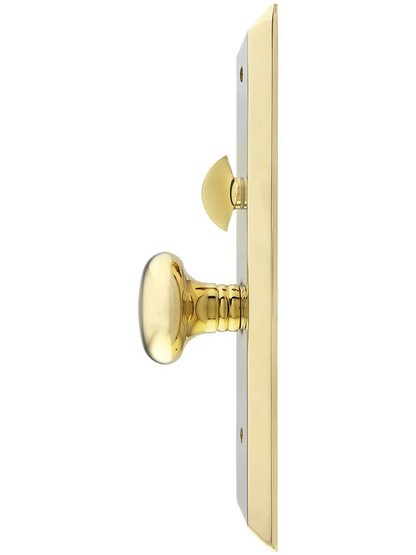

Door set dimensions: Exterior handle backplate is 10" H x 2 11/16" W. Interior backplate is 10" H x 2 11/16" W. Exterior Projection: 2 3/4". Plate thickness: 1/2".

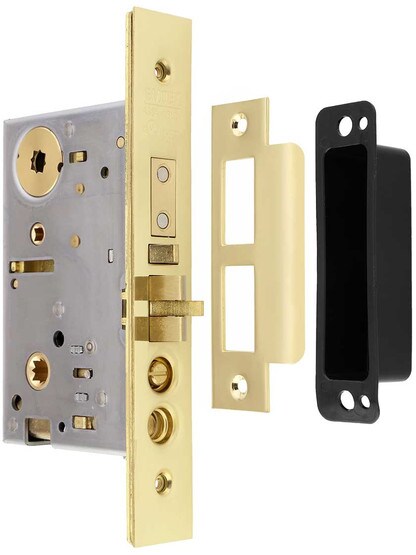

Mortise lock dimensions: Backset is 2 1/2". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door set dimensions: Exterior handle backplate is 10" H x 2 11/16" W. Interior backplate is 10" H x 2 11/16" W. Exterior Projection: 2 3/4". Plate thickness: 1/2".
Mortise lock dimensions: Backset is 2 1/2". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in Polished Brass Lifetime Finish.
Installation
Installation Instructions
How to install this product in a typical situation.
Specs
Product Specifications
Dimensions, specifications and detailed product info
