Quincy Door Set With Waverly Knobs
Description

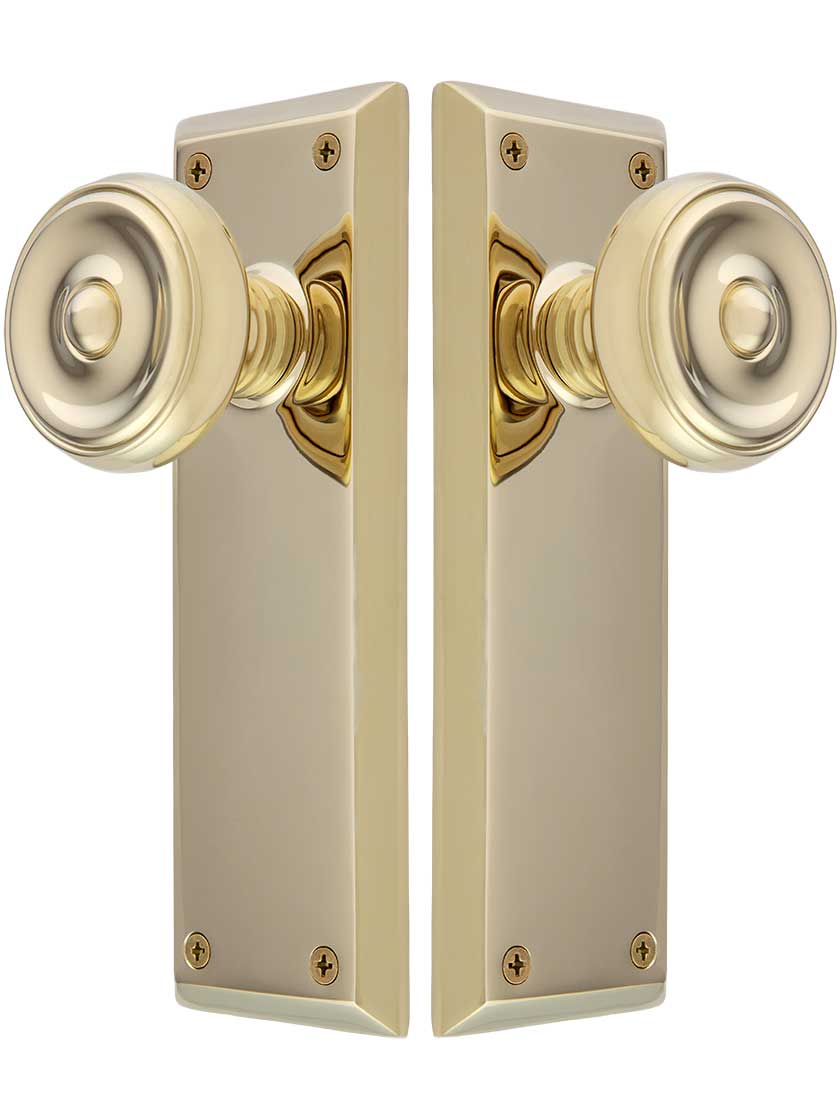

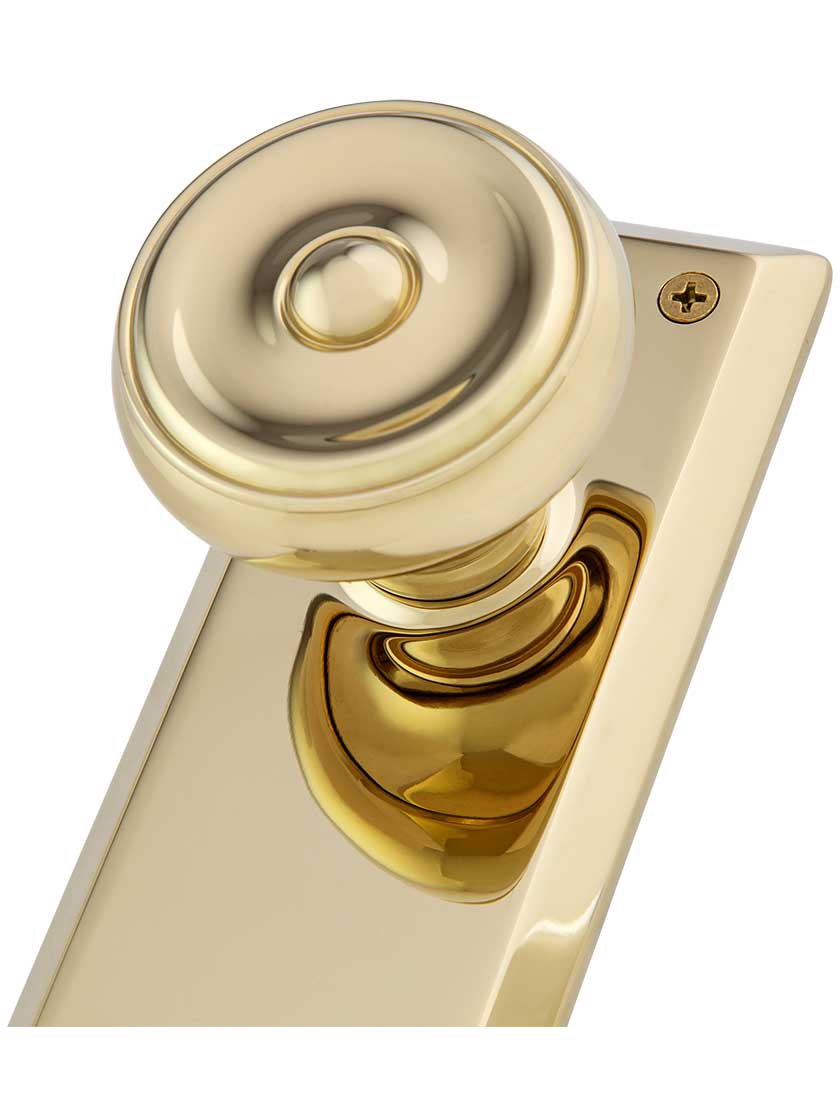

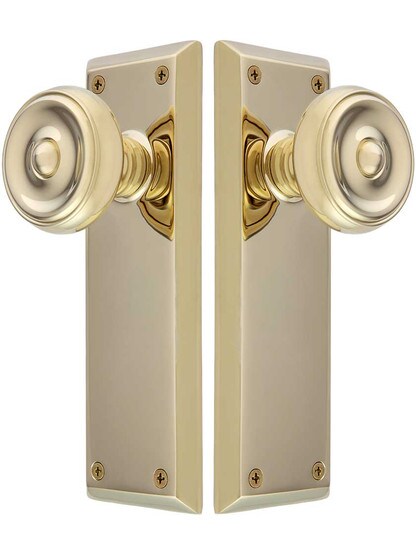

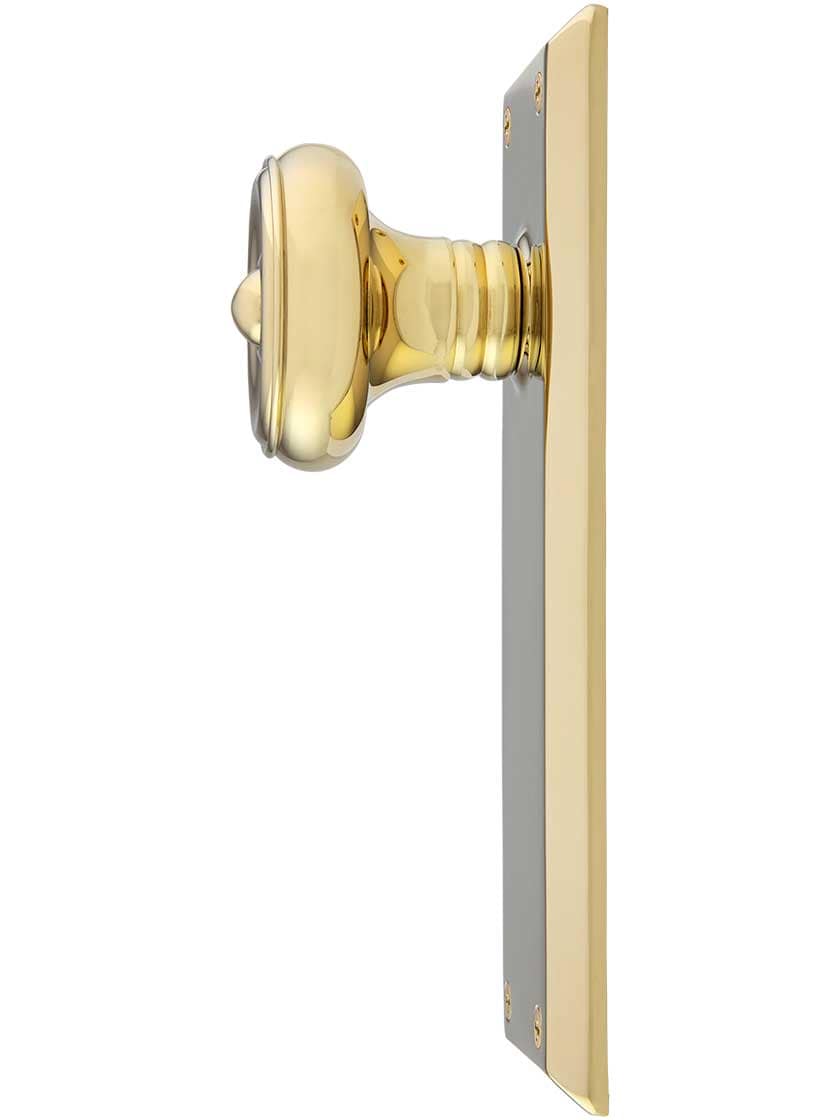

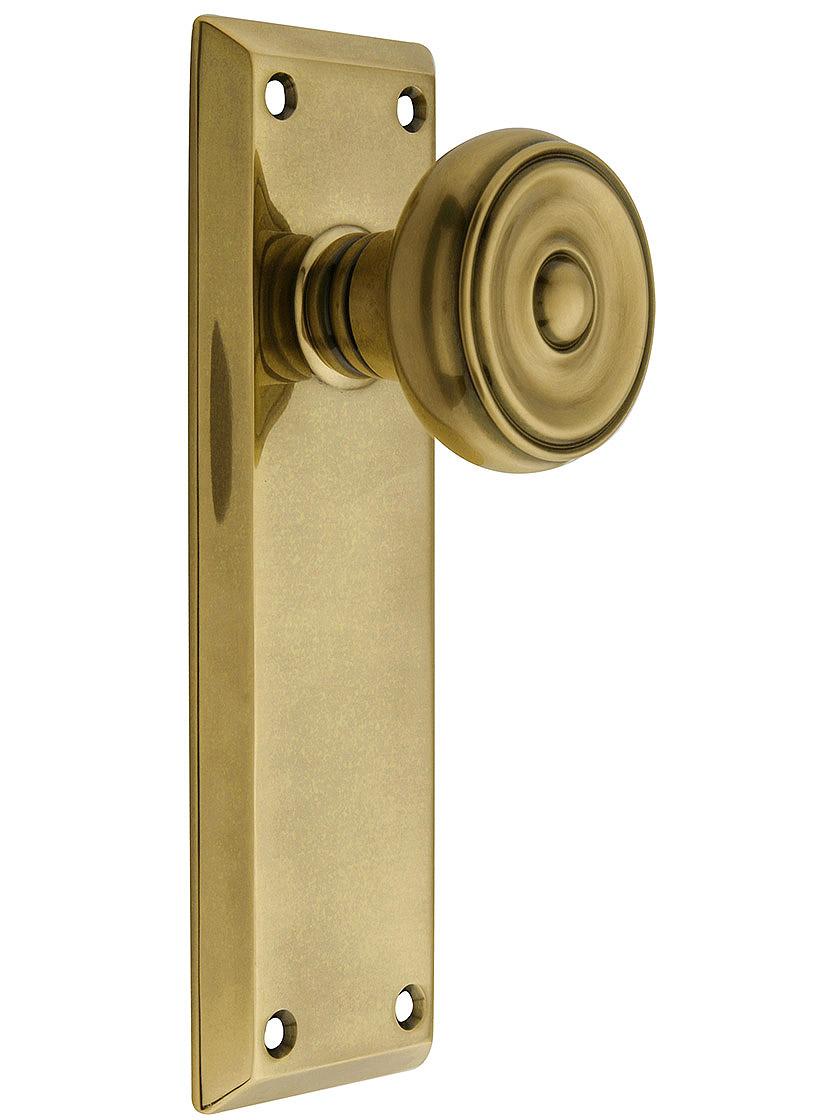

Door set dimensions: Brass knobs measure 2 1/4" in diameter. Back plates measure 7 1/8" H x 2 3/8" W.

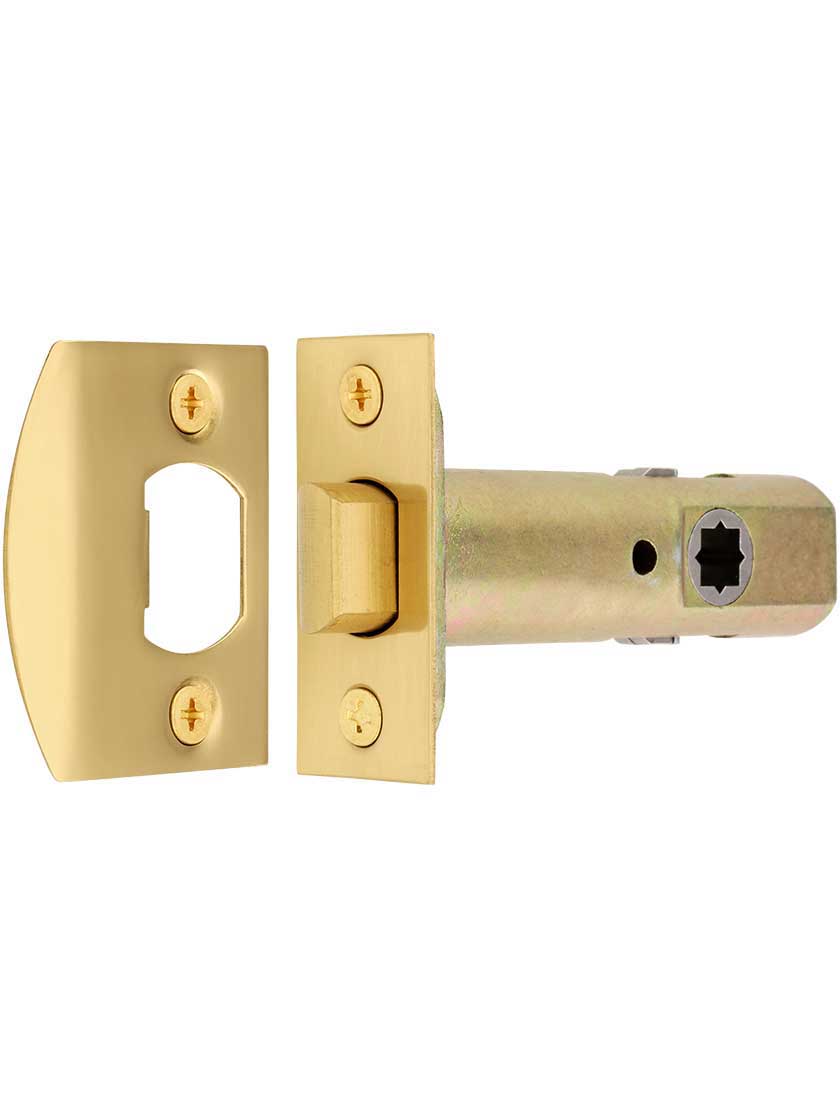

Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.
Standard door range: 1 1/4" to 2" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The knobs turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the knobs on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Installation
How to install this product in a typical situation.
Hardware Tip
WARNING: California Proposition 65Ratings & Reviews
3 reviews
Love this in matte black
Comments:
I have a 120 year old house with original hardware and had to replace one door, and it had to be tube latch instead of mortise like the old hardware. I was so happy to find this close of a match to the other door in the same room, and now I want to replace that one too since the smooth operation is such an improvement over the old hardware.
Update of poor reveiw
Comments:
After posting my review House of Antique contacted me. The Door Set was under warranty & they had the Manufacturer sent me a new latch & springs. It's working fine now. Thanks H of A for your concern & follow-up.
Wonderful Door Knob Set that is easy to install.
Comments:
Overall I was very pleased with the quality of the door sets that I had ordered. They are very solidly built. The only stamped-metal parts are the door jamb strike plate and the latch plate - understandably so. All the other parts are thickly casted brass (i ordered the Antique Brass finish). The installation was rather easy. You do need to have some basic chisel skills to mortise out for the latch plate and jamb strike plate. Make sure you have a sharp 1"" as well as a 1 1/2"" chisel. I would also recommend using fostner bits when drilling the hole on the face of the door for the door knob. Likewise, I would recommend again using a fostner bit to start the one-inch hole on the edge of the door for the latch barrel - then finish the hole off with a one-inch spade bit. The fostner bits give far less wood tare-out when drilling than spade bits. One thing that I noticed was that the finish on the door set - while beautifully applied - seemed somewhat delicate. I did get some scratches on one of the door sets while installing. After that first install I just made sure that I was extra careful when doing the installs so as not to scratch the finish on the knobs or plates.
