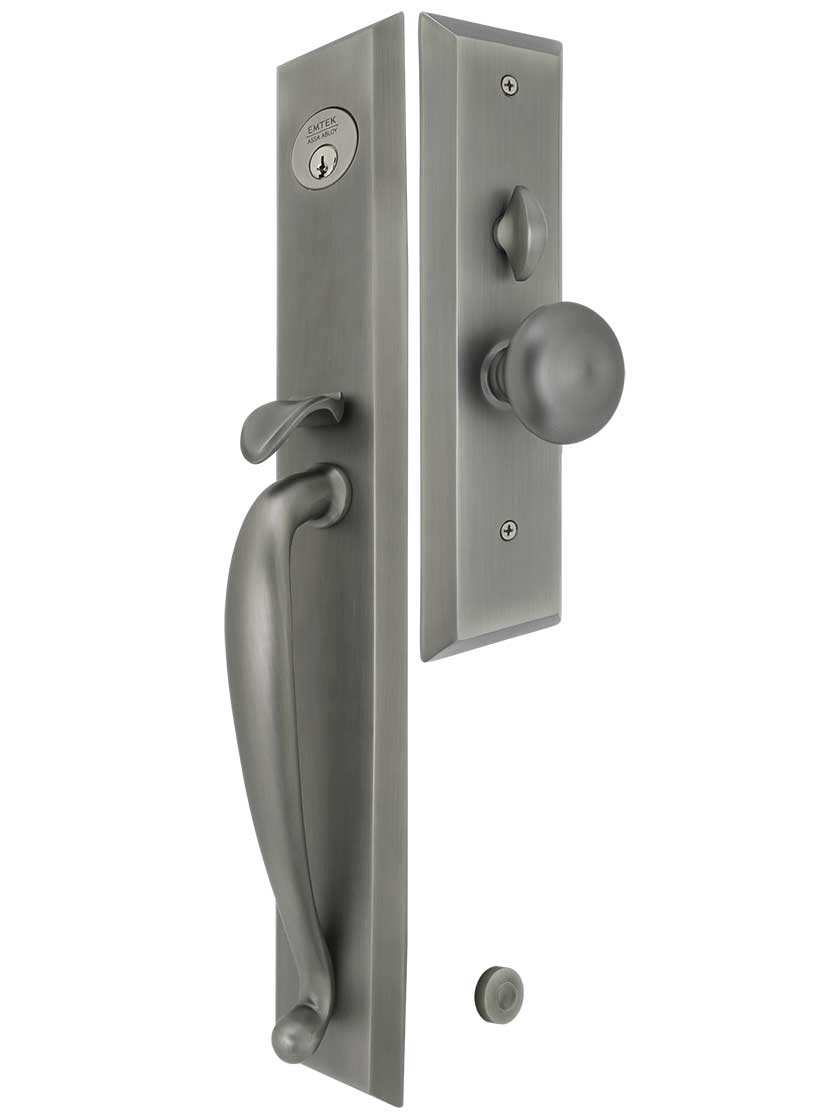

Middleton Rectangular Thumb-Latch Mortise Entry Set with Choice of Interior Knob

Select Your Finish:



Select Your Knobs - Handing:


Item #: RS-05EM-3352X
$844.90
Quantity discounts available
QuantityPrice

Description

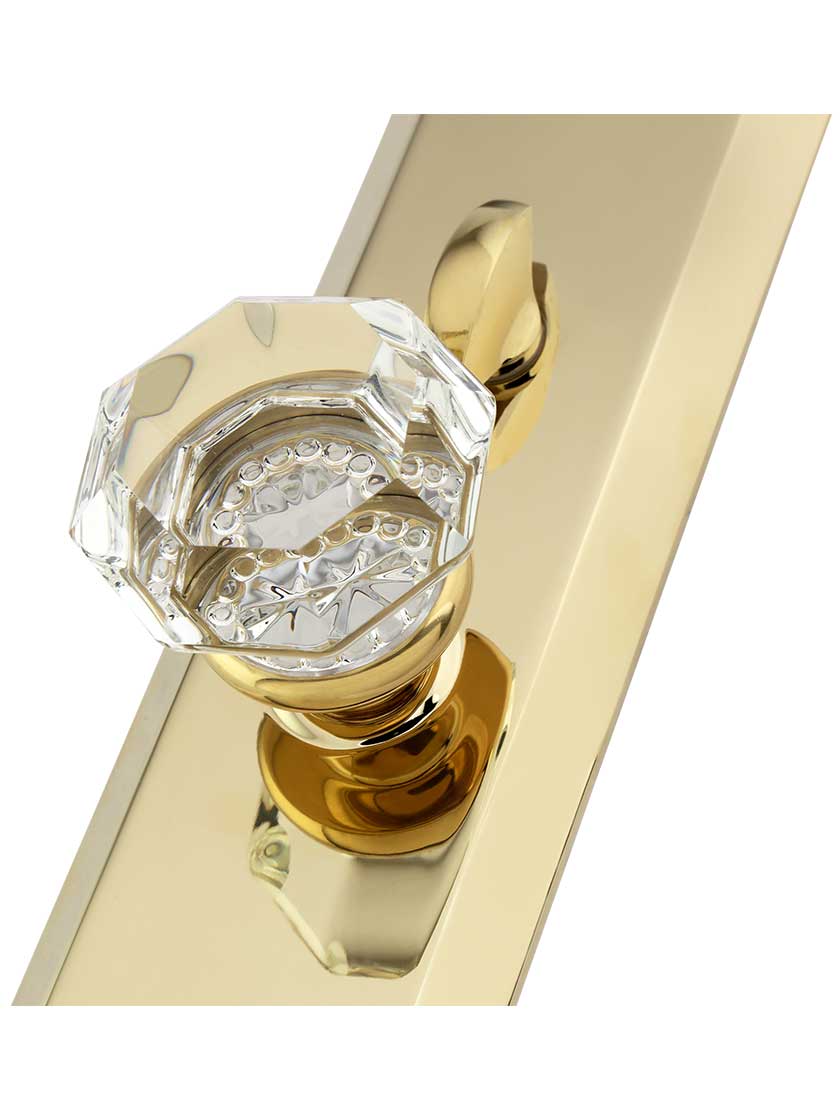

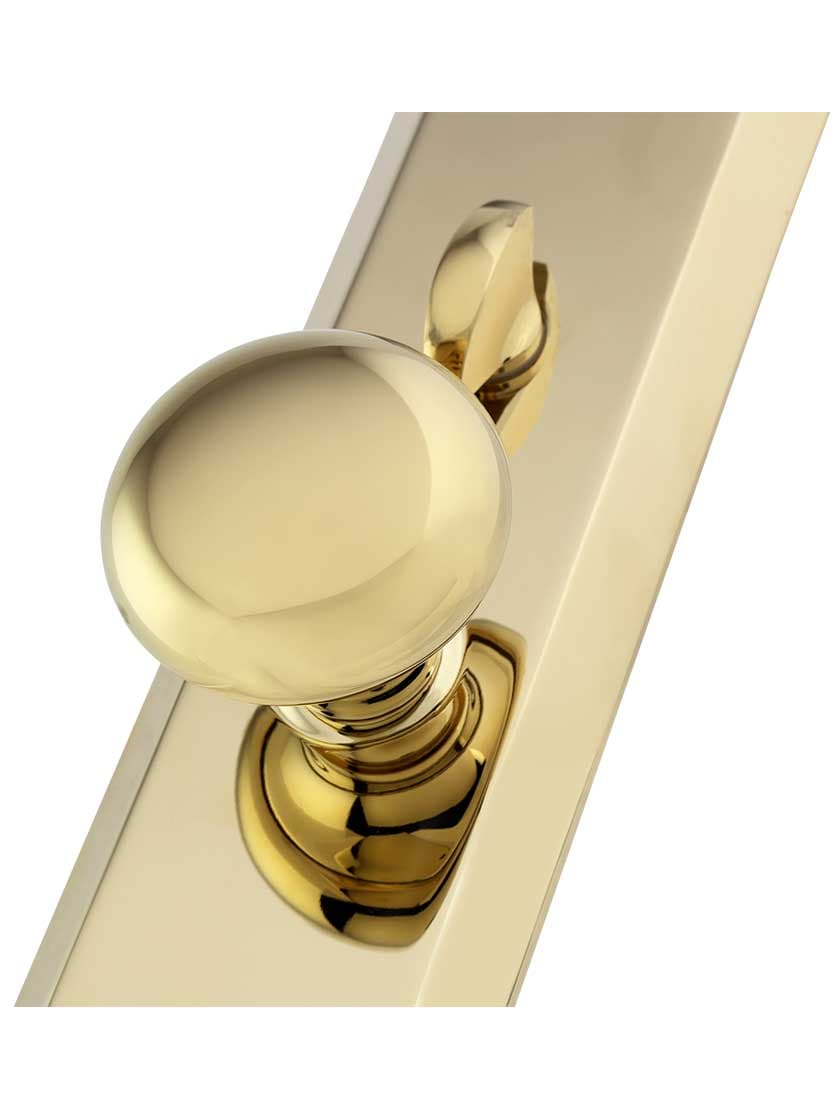

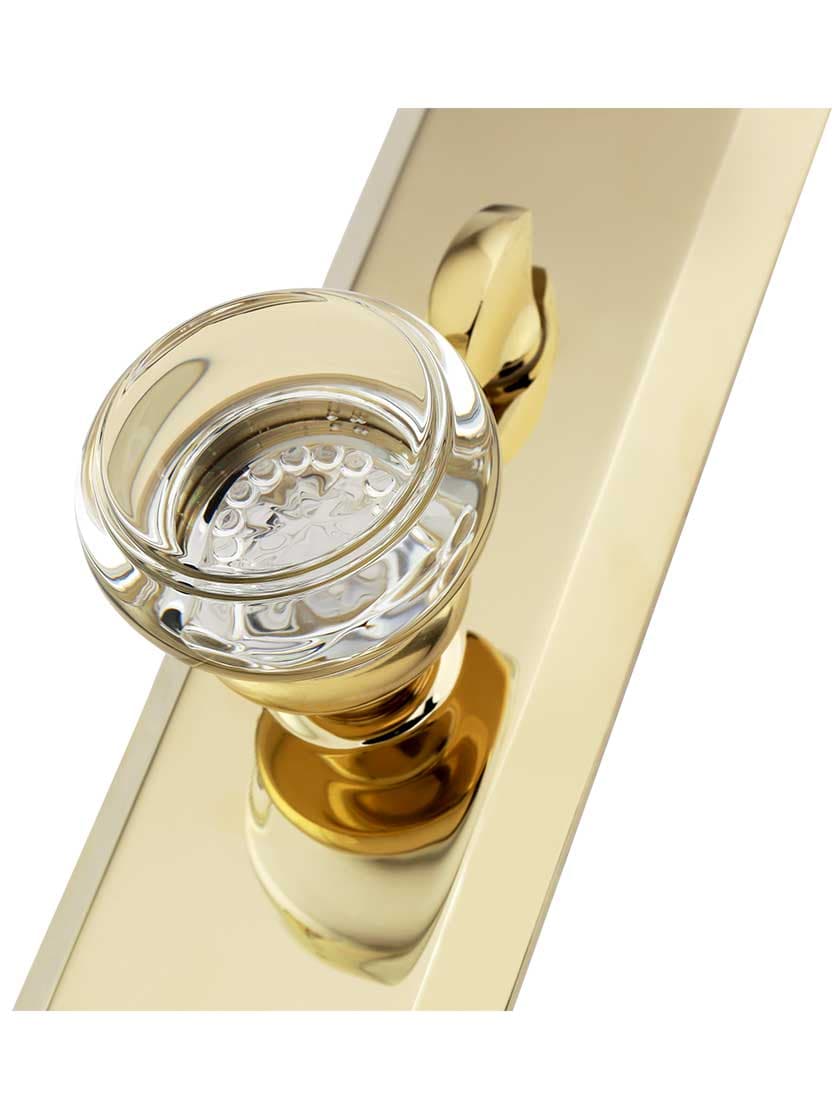

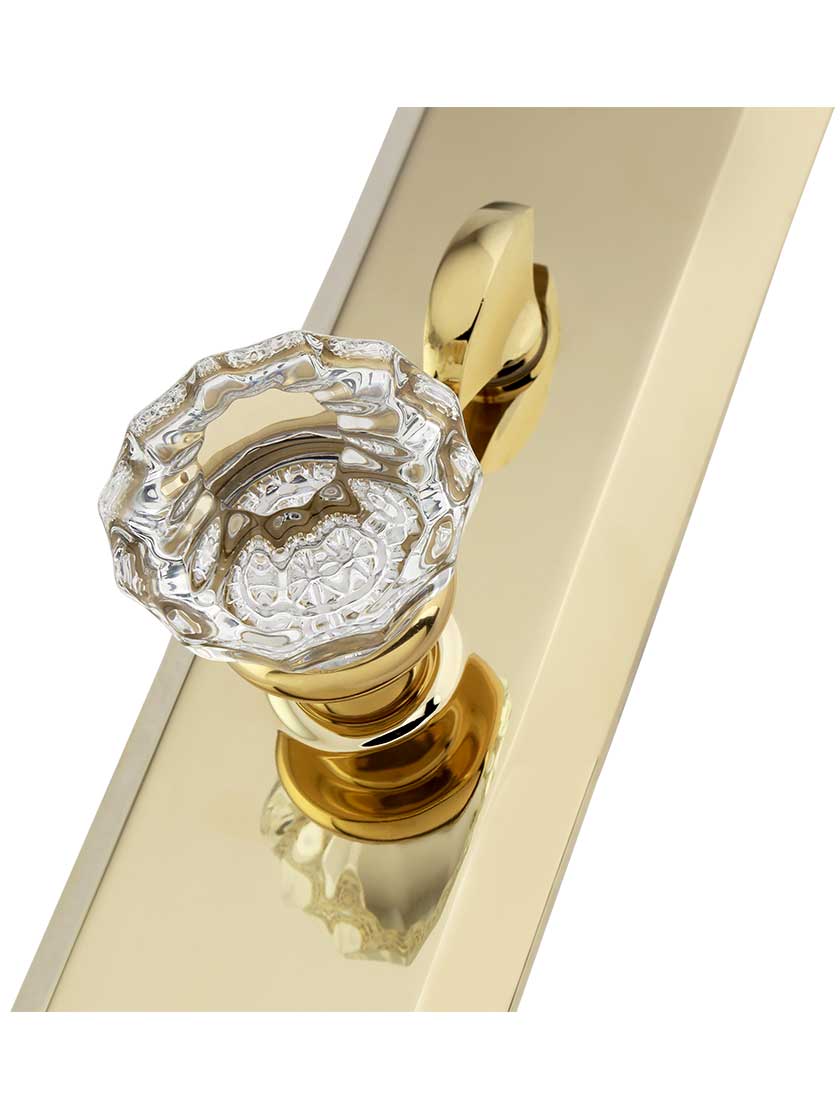

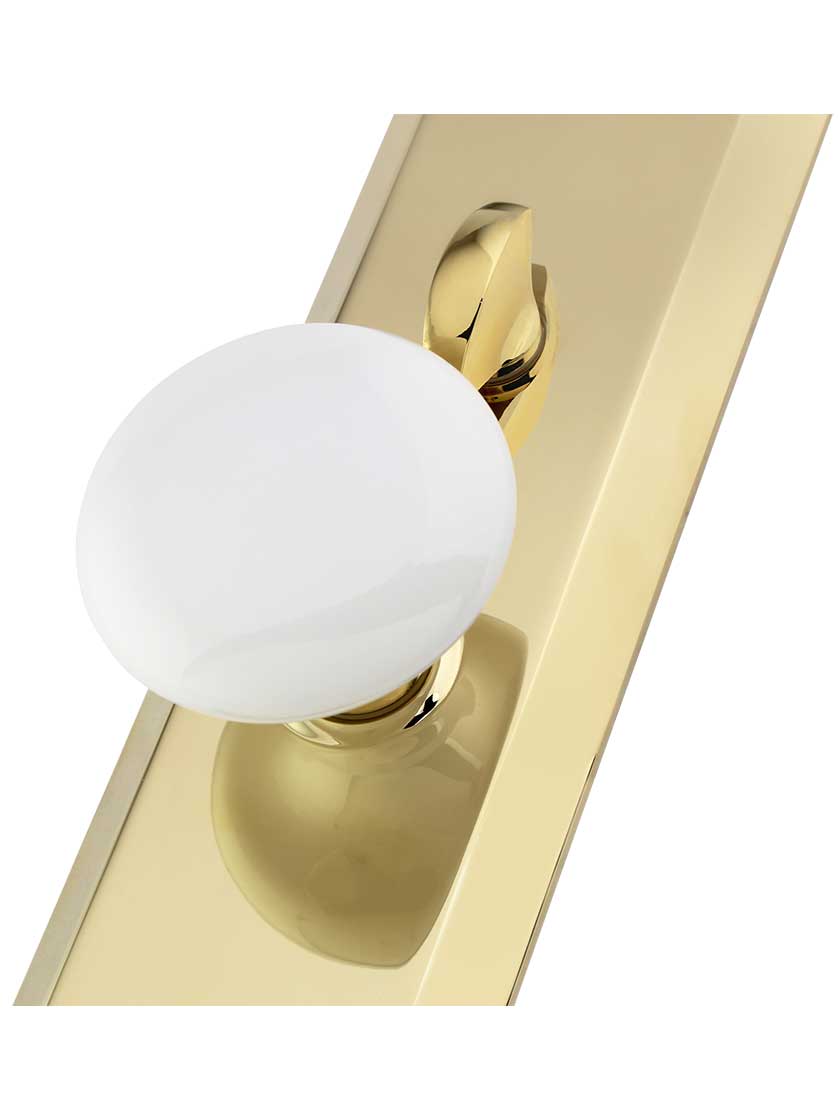

Give your door a traditional look with the Middleton Rectangular Thumb-Latch Mortise Entry Set. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs made of glittering lead crystal, solid brass or porcelain - so many ways to express your unique style!

Door set dimensions: Exterior handle backplate is 18 3/4" H x 2 11/16" W. Interior backplate is 10" H x 2 11/16" W. Exterior Projection: 2 3/4". Plate thickness: 1/2".

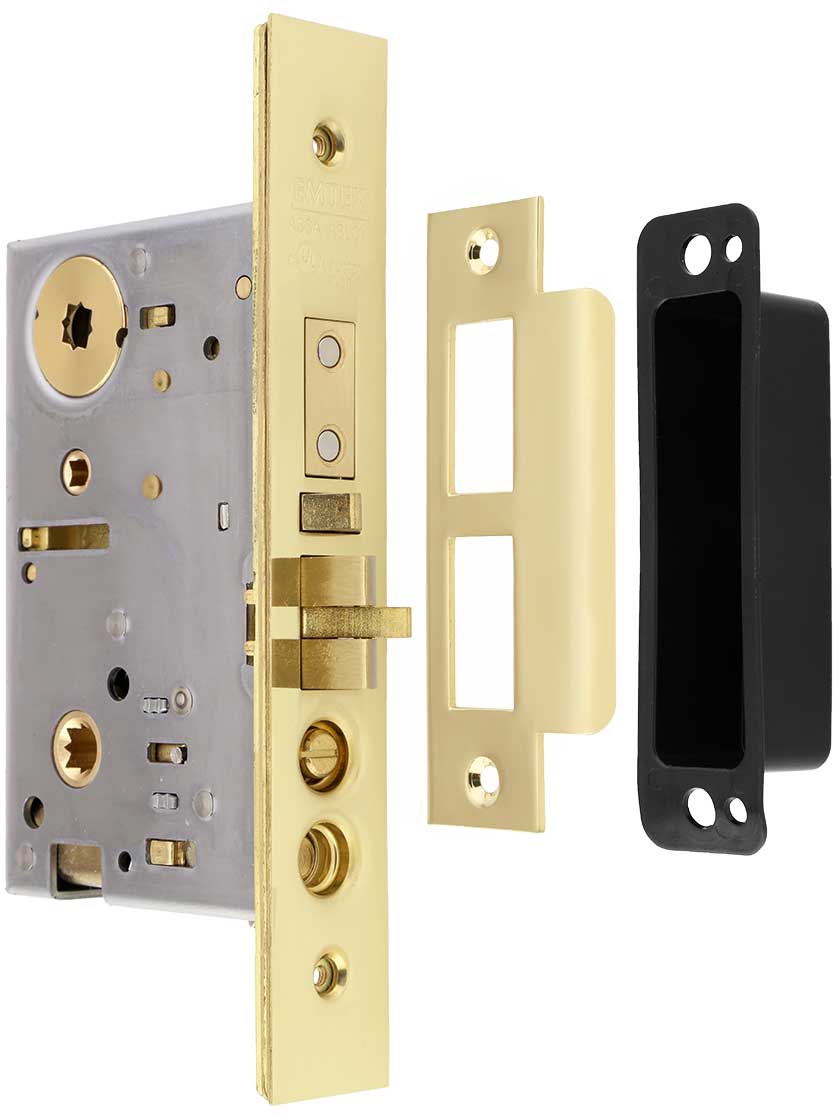

Mortise lock dimensions: Backset is 2 1/2". Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.

Specs

Product Specifications

Dimensions, specifications and detailed product info
