Polished Brass Polished
Brass
Antique Brass Antique
Brass
Polished Chrome Polished
Chrome
Satin Nickel Satin
Nickel
Oil-Rubbed Bronze Oil-Rubbed
Bronze
Antique Pewter Antique
Pewter
Matte Black Matte
Black
ZOOM LARGE/ALTERNATE VIEWS
Features
  • Forged Solid Brass for Crisp Detail
  • Match Any Decor with an Array of Popular Finish Options
  • Inspired by Traditional Design
  • Heavy-Duty Spring Assisted Levers and Knobs
Details
Style Colonial / Arts & Crafts
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers




Quantity:




Description & Dimensions

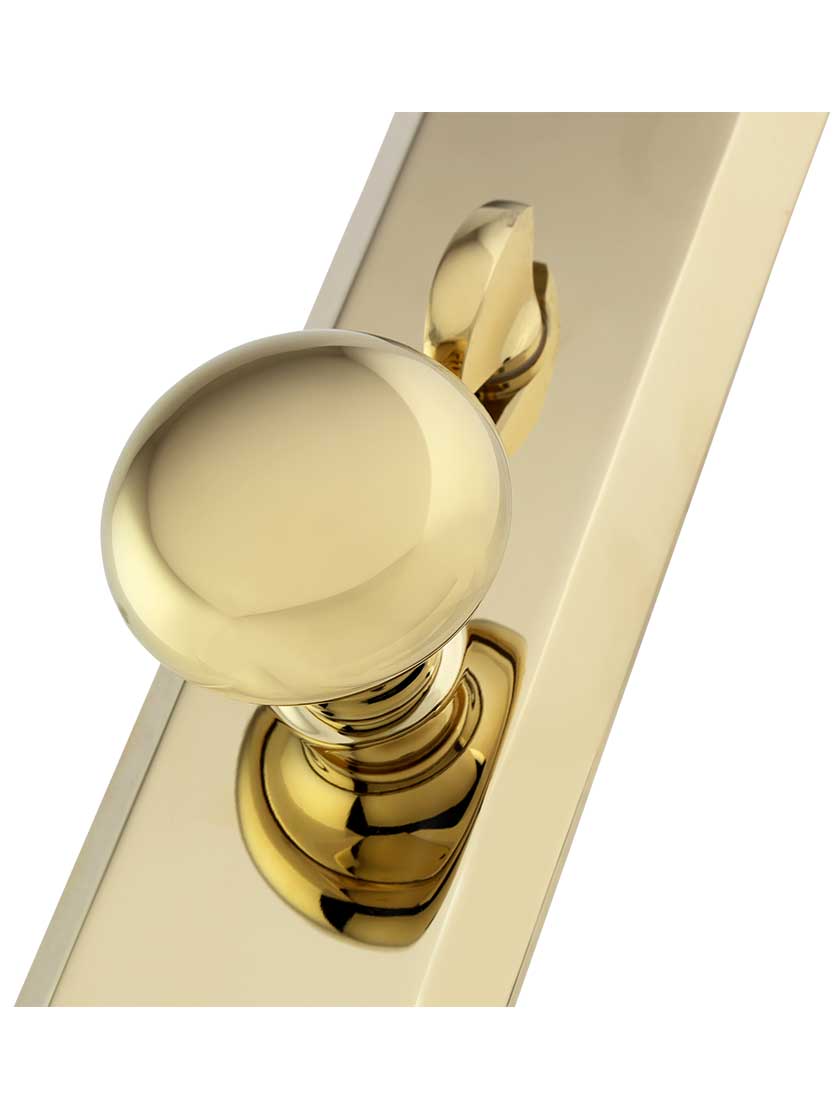

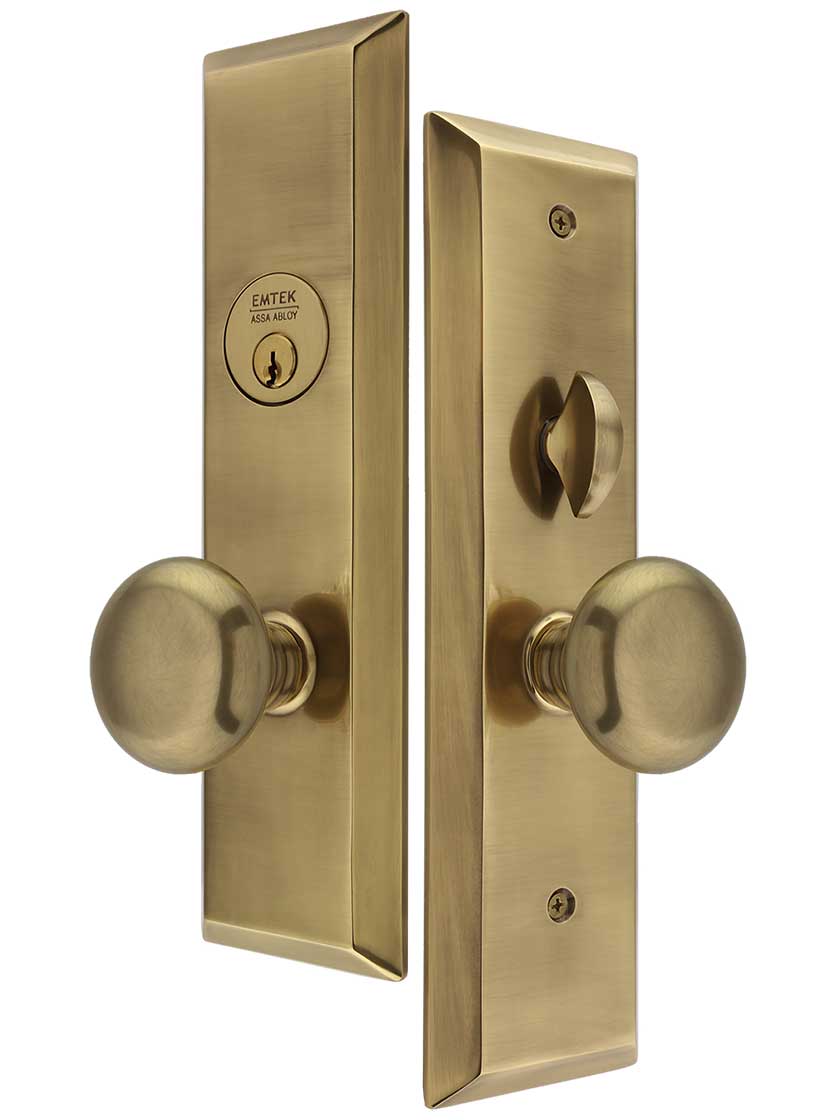

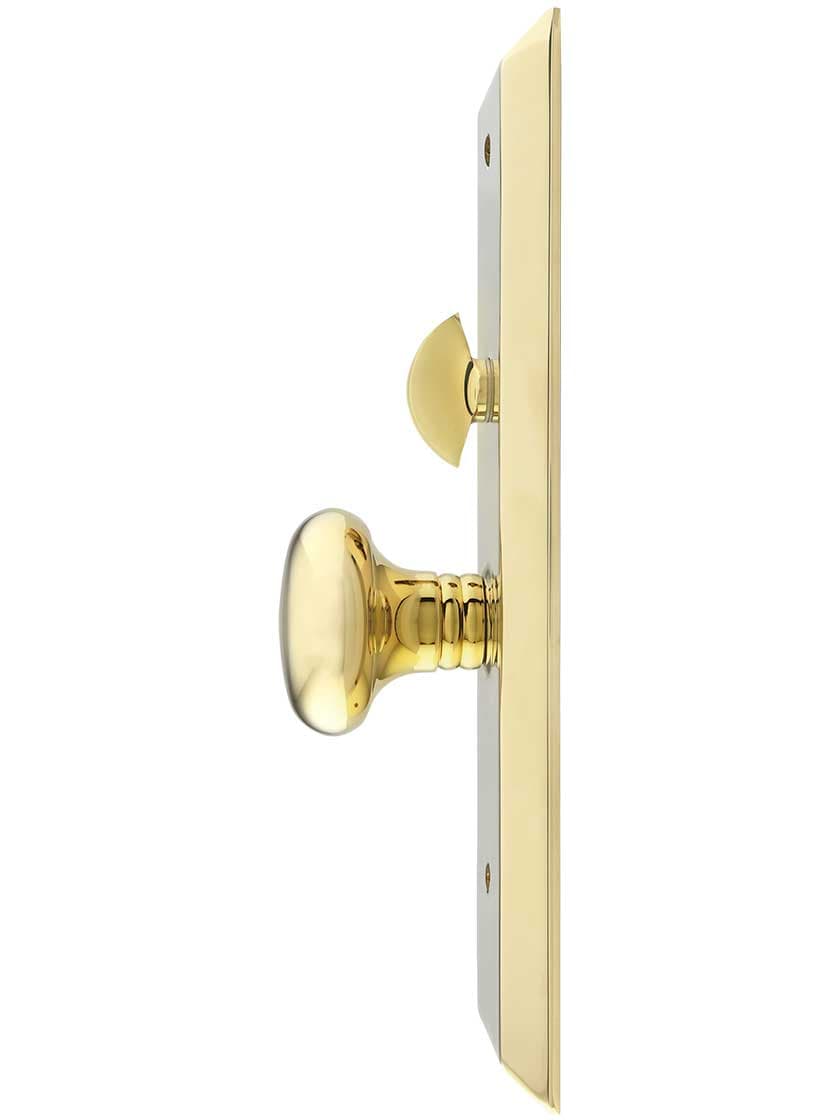

Give your door a traditional look with the Harrison Mortise Entry Set with Providence Knobs. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from a host of popular finish options.

Doorset dimensions:
Providence knob: 2 1/4" D
Backplates: 10" H x 2 11/16" W

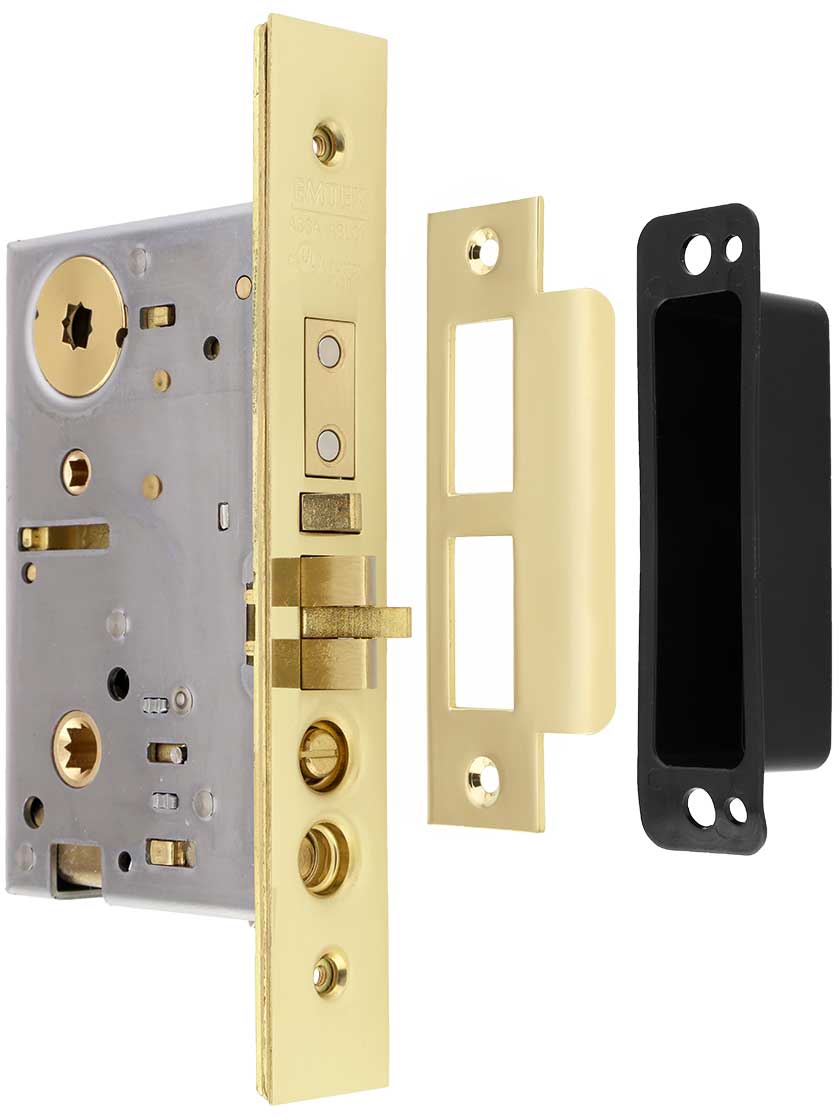

Mortise lock dimensions:
Backset: 2 1/2" or 2 3/4"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick
Lock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W
The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.



Hardware Tip:
Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories
