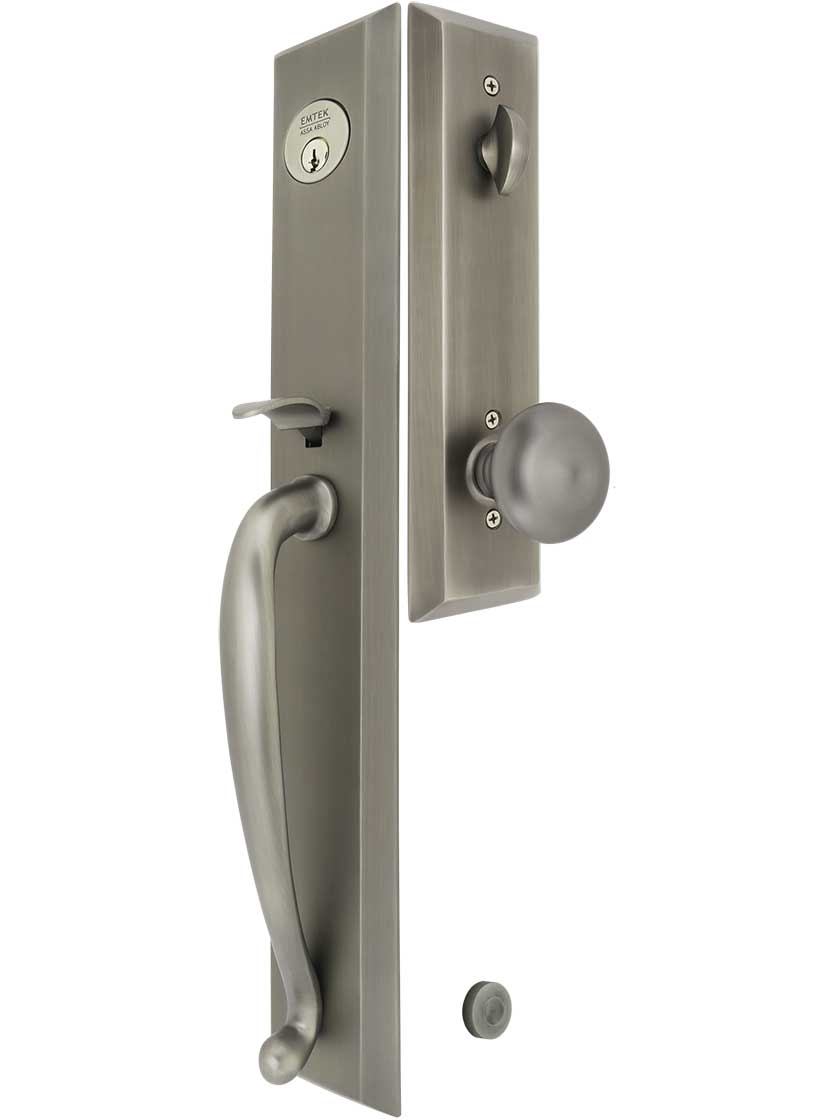

Jefferson Tubular Entry Handleset with Choice of Interior Knob

Select Your Finish:



Select Your Knobs - Handing:


Item #: RS-05EM-4415X
$489.90
Quantity discounts available
QuantityPrice

Description

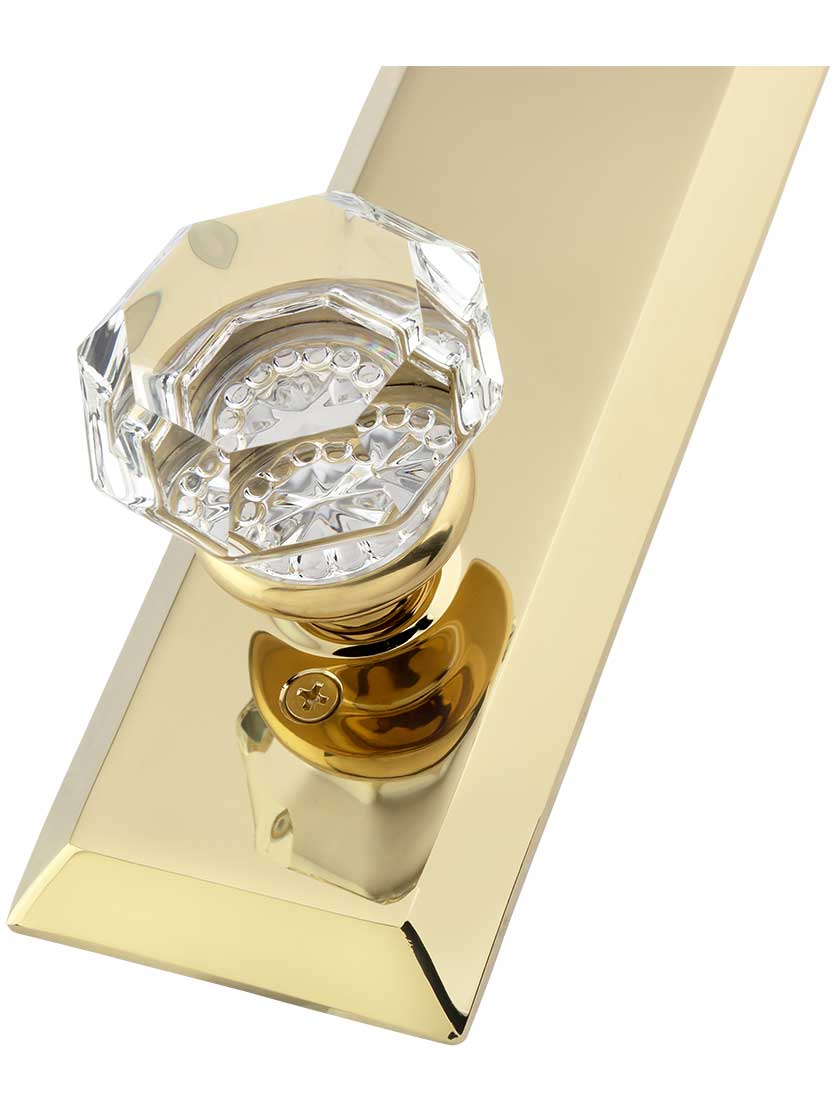

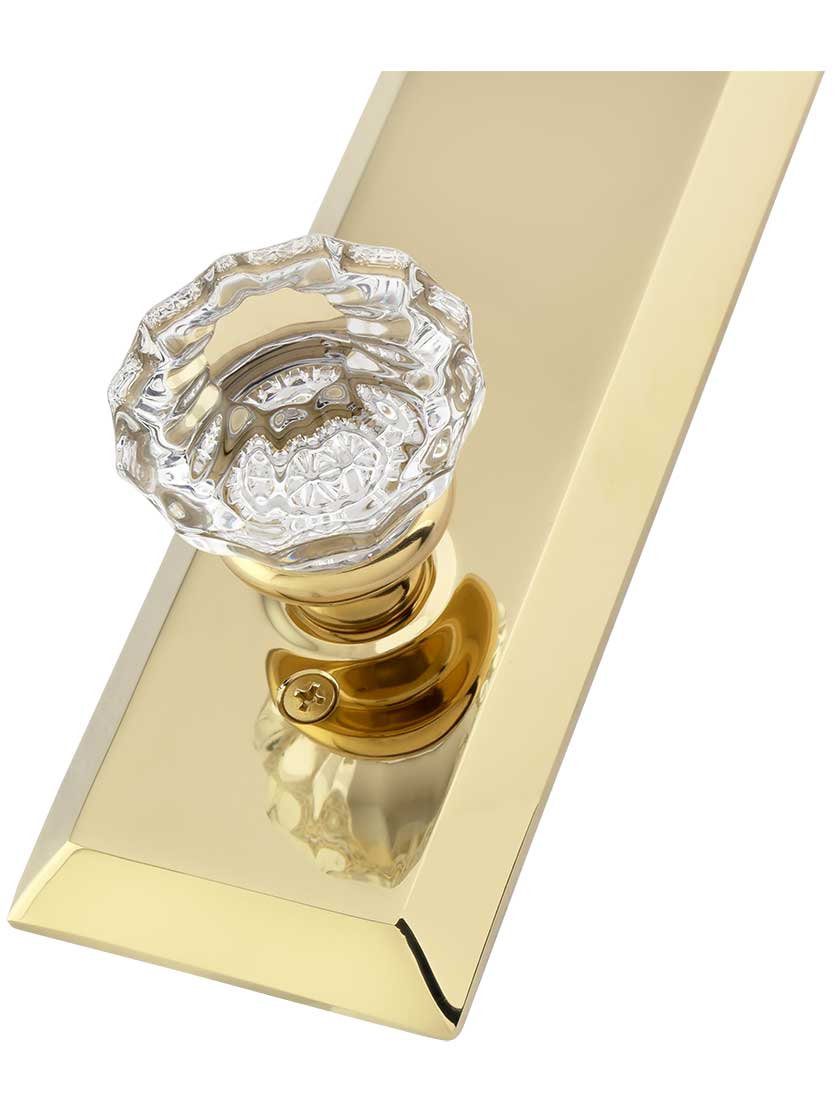

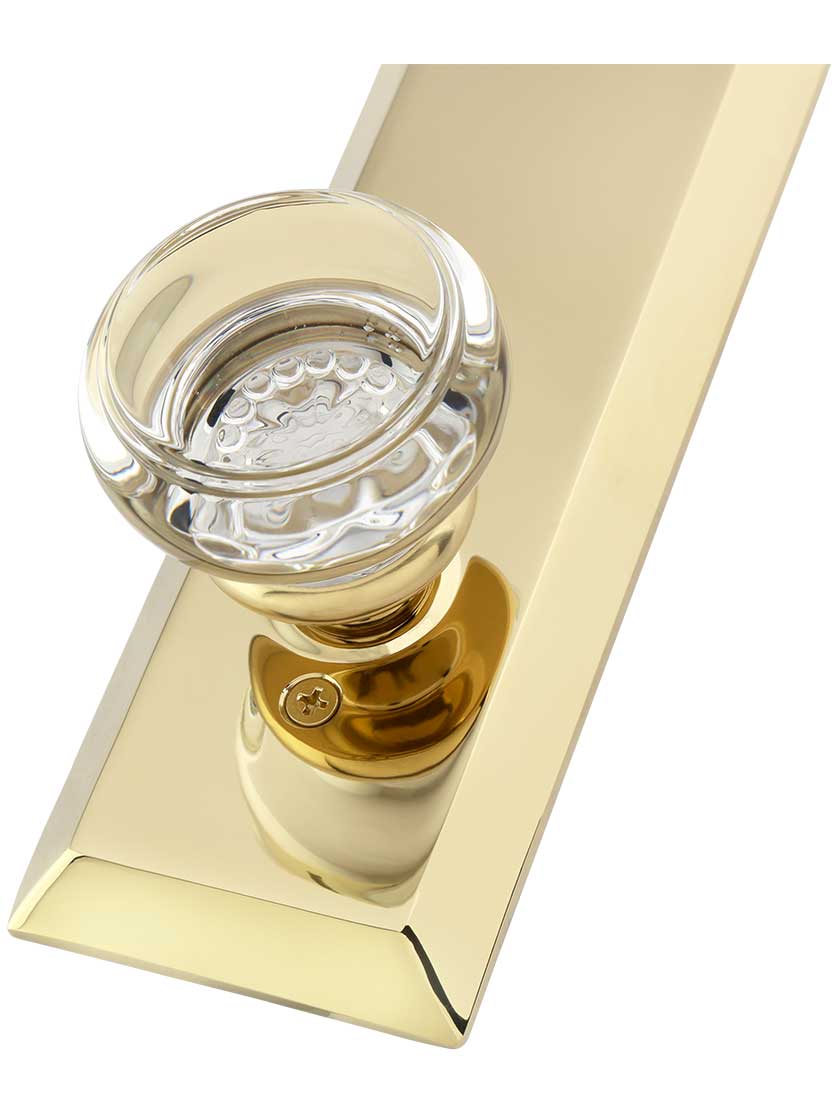

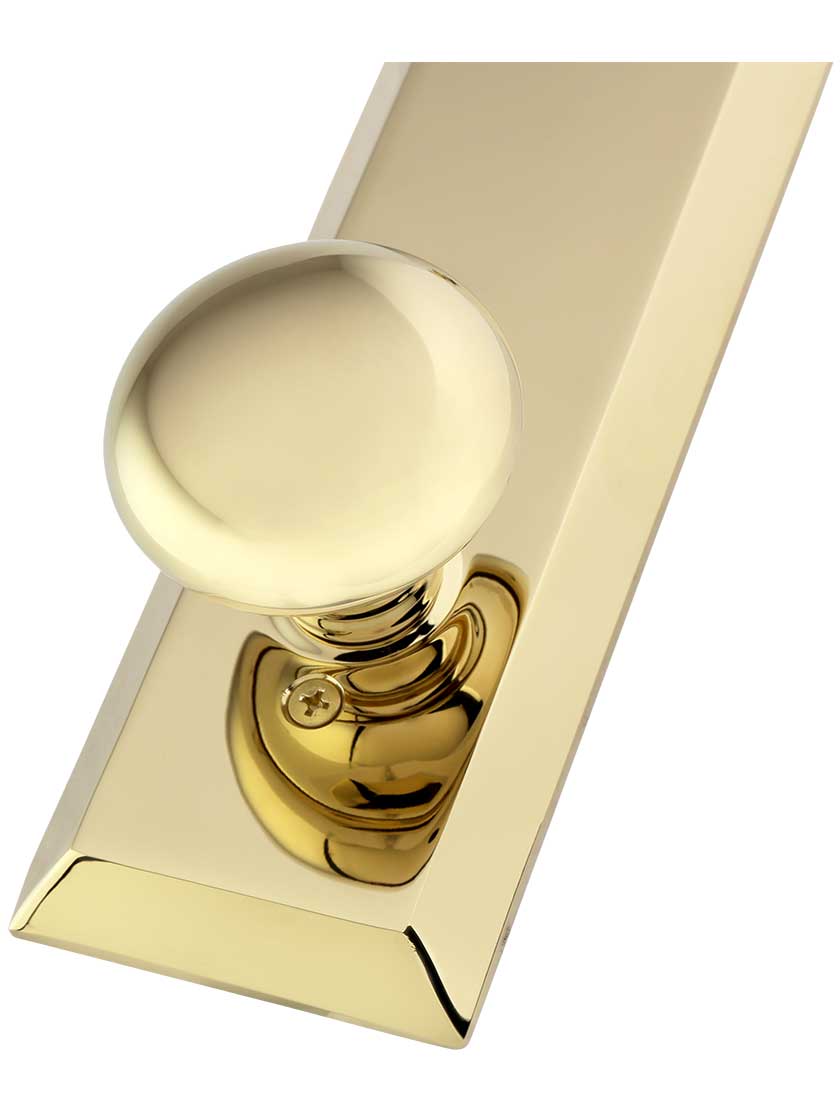

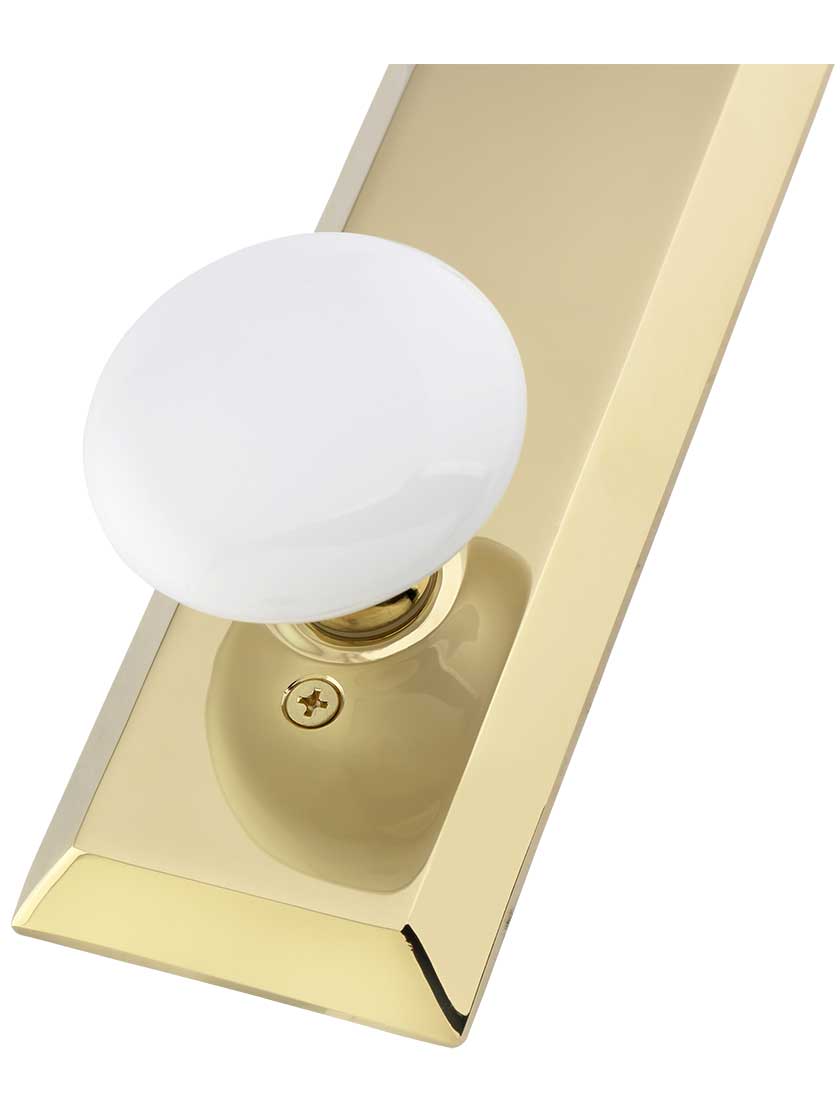

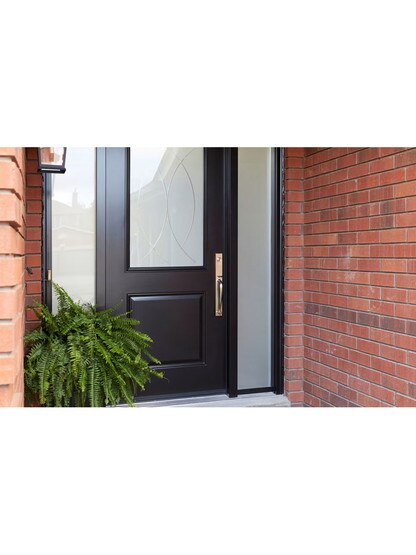

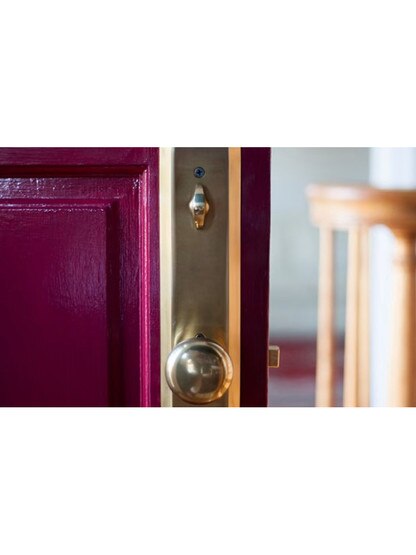

Give your door a traditional look with the Jefferson Tubular Entry Handleset with Choice of Interior Knob. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs made of glittering lead crystal, solid brass or porcelain - so many ways to express your unique style!

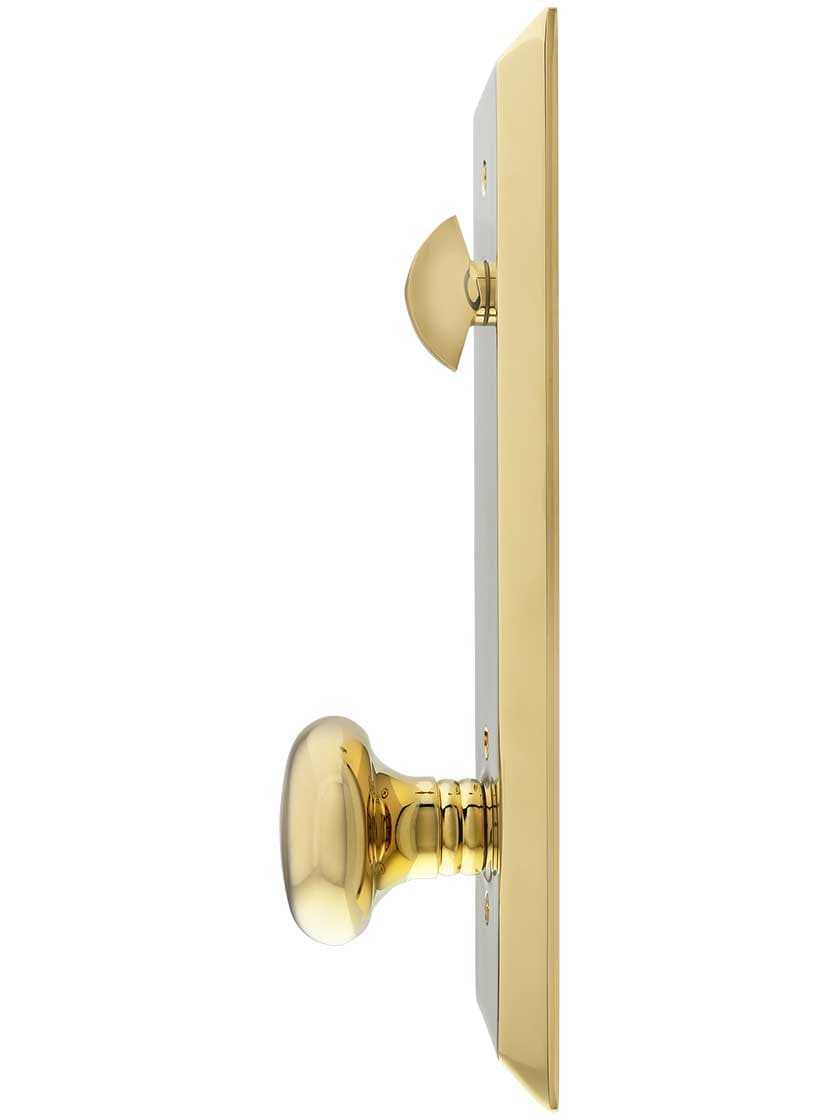

Door set dimensions: Exterior is 18 3/4" H x 2 3/4" W. Exterior Projection: 2 3/4". Interior backplate is 10" H x 2 3/4" W. Plate thickness: 1/2".

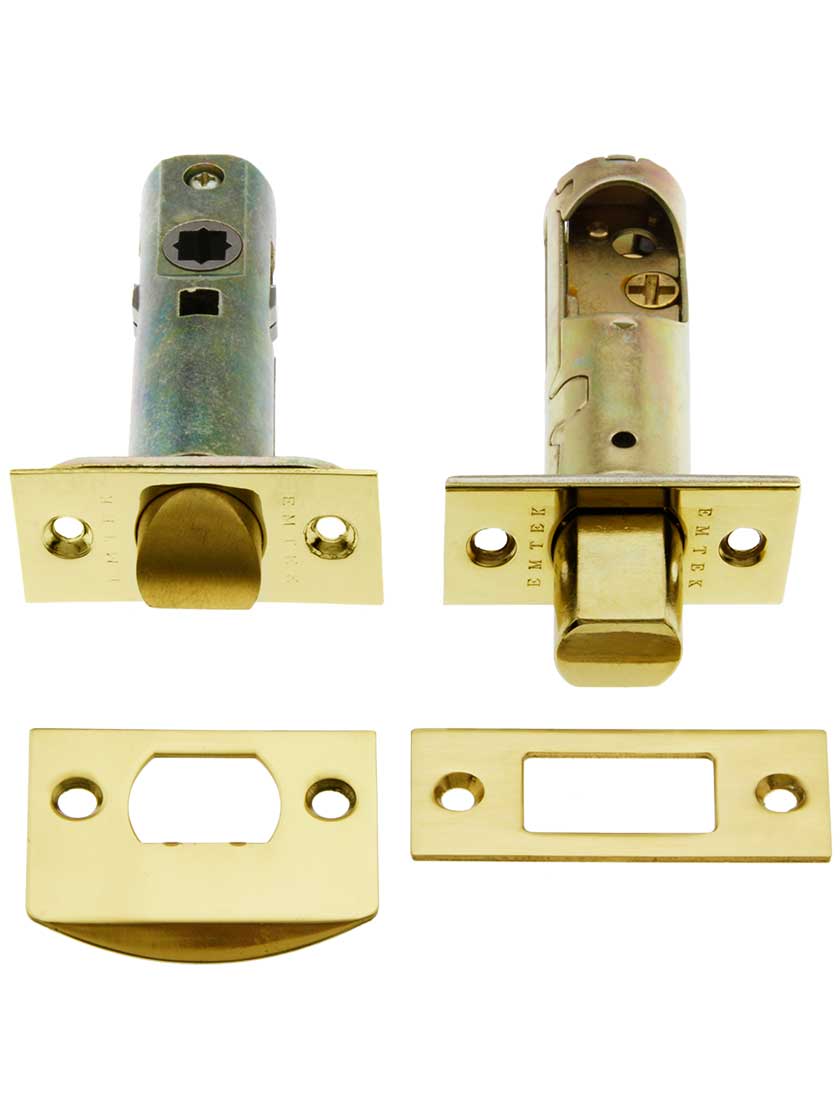

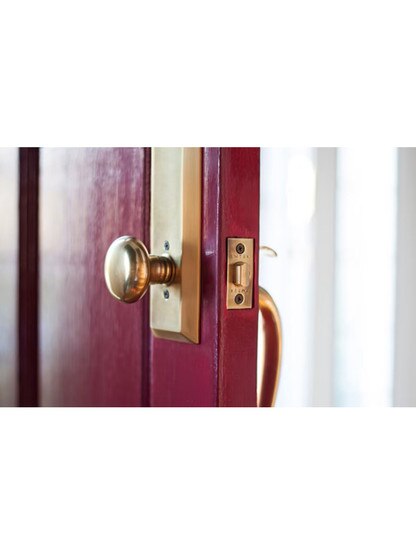

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Decorative face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.

This set will fit doors from 1 3/4" - 2 1/8" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 3" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.

Specs

Installation Instructions

How to install this product in a typical situation.
