"Acme" Black Cast-Iron Mortise Shutter Hinges - 4 1/2" x 2 7/8"
Description

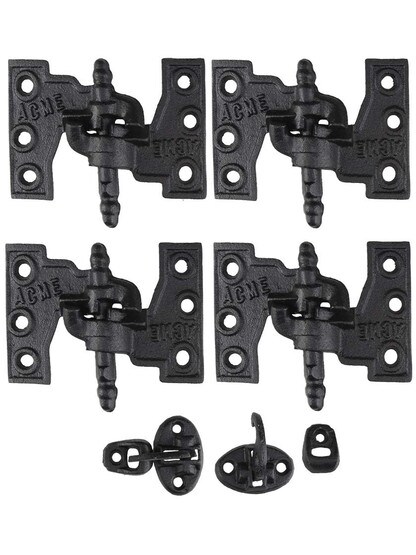

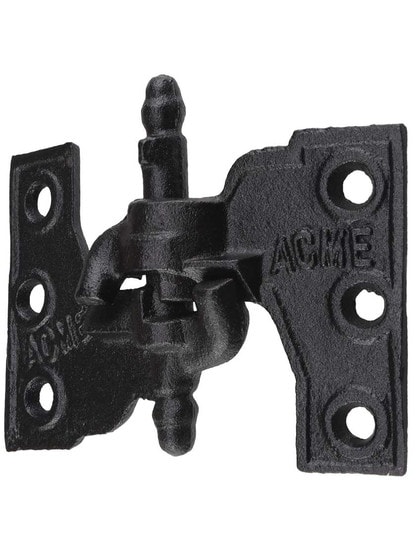

This set of Victorian-style Acme Black Cast-Iron Mortise Shutter Hinges (4 1/2-Inch x 2 7/8-Inch) is used in applications when enough wood trim is exposed within the window opening to mount the shutters. Unlike surface mounted straps, they are mortised into the edge of the shutter and the inside edge of the window frame (much like an interior door hinge). Mass produced by Lull & Porter in the mid-nineteenth century, the Acme hinge features a patented locking pintle design where the outer leaf rises slightly when opening then sets down to lock in place in the fully open or shut position, preventing lift-off from strong winds. When needed, the shutters are easily lifted off by hand without removing the hardware. Made of heavy duty cast iron, they feature a black weather-resistant powder-coated finish. The set includes two right-hand hinges, two left-hand hinges and two sill-mounted fasteners - enough to complete one window.
Dimensions:
Hinge: 4 1/2" W x 2 7/8" H leaf, 3 3/8" H w/ pintle
Leaf: 15/16" W. Throw: 2 3/4". Offset: 1 3/8". Fasteners: #10 x 1" wood screws.

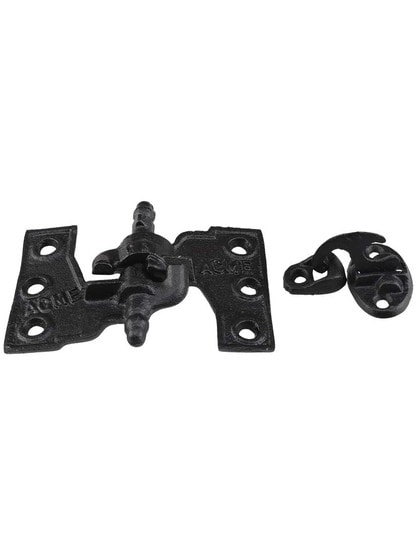

Catch hatch and latch: 1 1/8" H x 1 3/4" W . Projection 1 1/2". Keeper: 1 1/8" x 13/16". Fasteners: #8 x 1" wood screws.
Technical Info with Diagram
Dimensions:
Hinge: 4 1/2" W x 2 7/8" H leaf, 3 3/8" H w/ pintle
Leaf: 15/16" W. Throw: 2 3/4". Offset: 1 3/8". Fasteners: #10 x 1" wood screws.
Catch hatch and latch: 1 1/8" H x 1 3/4" W . Projection 1 1/2". Keeper: 1 1/8" x 13/16". Fasteners: #8 x 1" wood screws.
Technical Info with Diagram
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
For best performance and to prevent rust, iron and steel hardware should be regularly maintained. After installation check for scratches or chips in the surface and re-coat periodically as needed.
