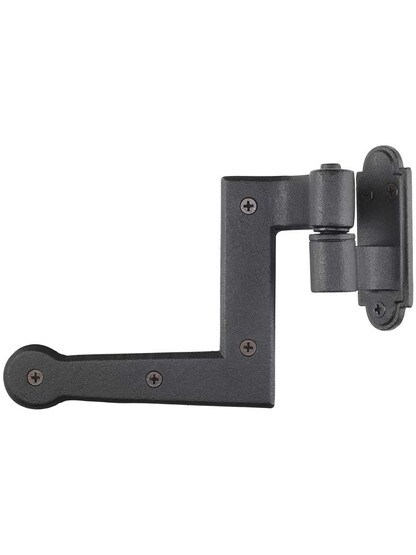

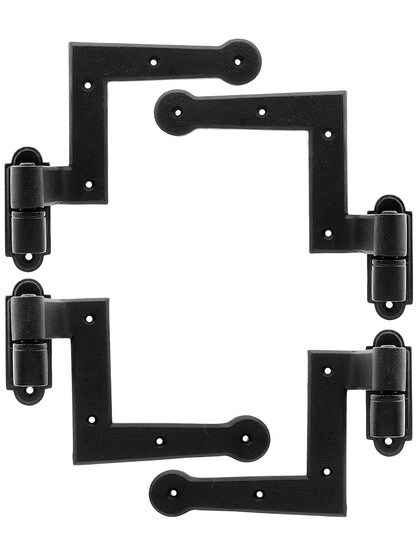

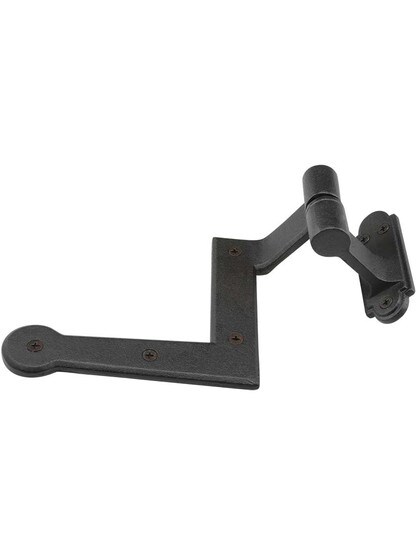

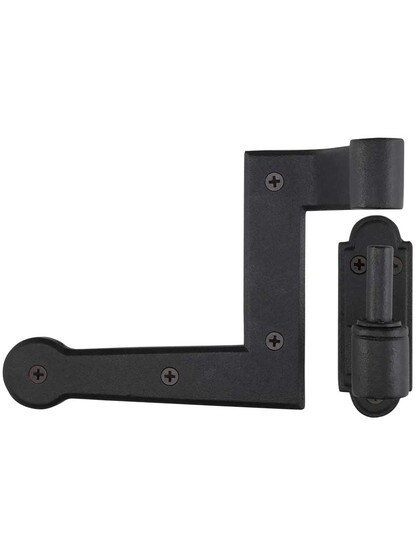

Set of Cast Iron New York Style Shutter Hinges With 2 1/4" Offset

Quantity discounts available
Item #: R-09JW-512


Authentic colonial style and a rough black finish make these classic New York strap hinges a great choice for period restorations. These very sturdy hinges lift off for easy maintenance and have a 2 1/4" offset (4 1/2" throw). Made from 1/4" thick cast iron, they are powder coated to resist rust.

Strap: 4 5/16" H x 5 1/8" W. Thickness: 1/4"
Offset: 2 1/4" (from back of strap to center of pintle)
Throw: 4 1/2"
Mounting plate: 3 3/8" H x 1 1/4" W x 1/4" thick
Pintle pin: 3/8" D
Fastener/s: #6 x 1" wood screws

Technical Info with Diagram


Installation Instructions

How to install this product in a typical situation.

Hardware Tip

For best performance and to prevent rust, iron and steel hardware should be regularly maintained. After installation check for scratches or chips in the surface and re-coat periodically as needed.


Shutter Hardware Details

How to install this product in a typical situation.
