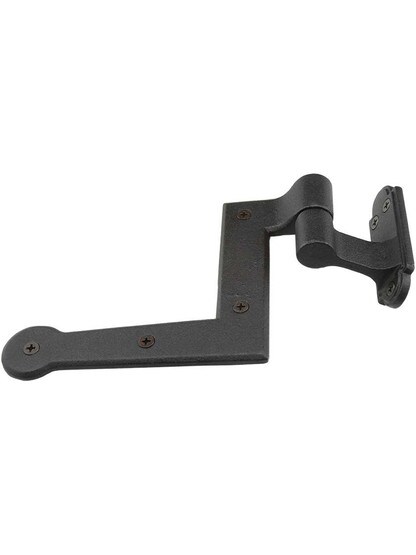

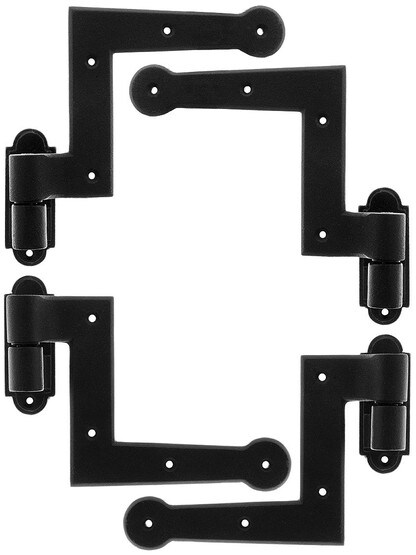

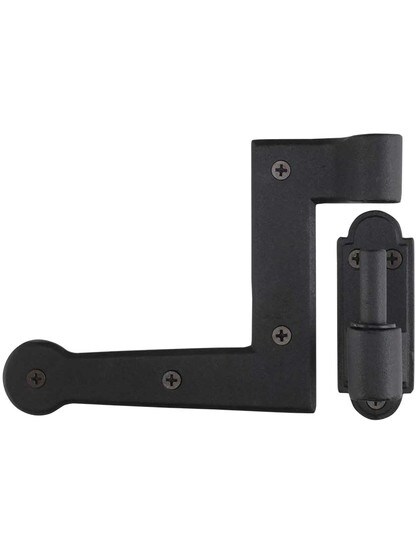

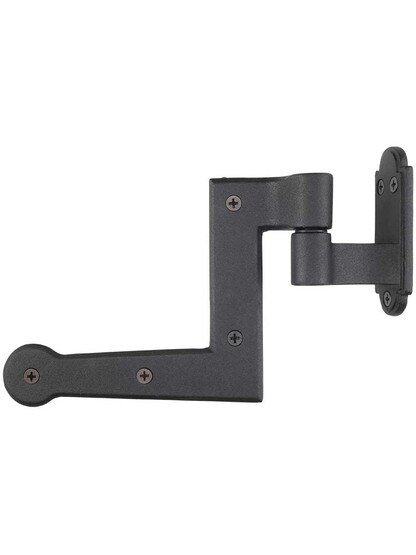

Set of New York Style Shutter Hinges For New Construction

Item #: R-09JW-514
$57.95
Quantity discounts available
QuantityPrice

Description

Colonial style shutter hinges for your new home! These hinges are powder coated black and are offset mounted to fit most modern window styles. These very sturdy hinges lift off for easy maintenance and have a 2 1/4" throw. Made from 3/16" thick cast iron, they are powder coated to resist rust.

Dimensions:
Strap: 4 5/8" H x 6 1/4" W. Thickness: 3/16".
The pintles have a 1 7/8" offset and the hinges are offset by 3/8". Throw is 2 1/4".
The pintle mounting plate measures 3 5/16" tall by 1 1/4" wide and 3/16" thick.
The pintle rod is just under 3/8" in diameter.

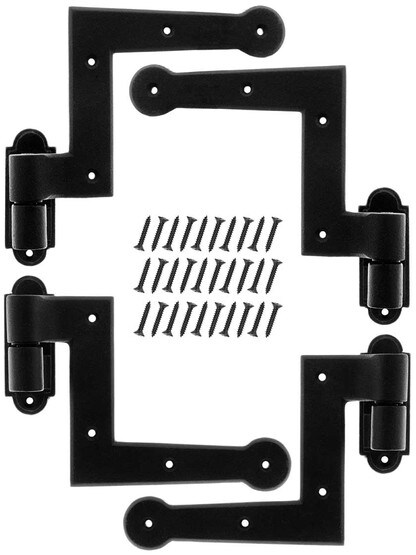

Fastener/s: #6 x 1" wood screws

Technical Info with Diagram

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

For best performance and to prevent rust, iron and steel hardware should be regularly maintained. After installation check for scratches or chips in the surface and re-coat periodically as needed.

Specs

Shutter Hardware Details

How to install this product in a typical situation.
