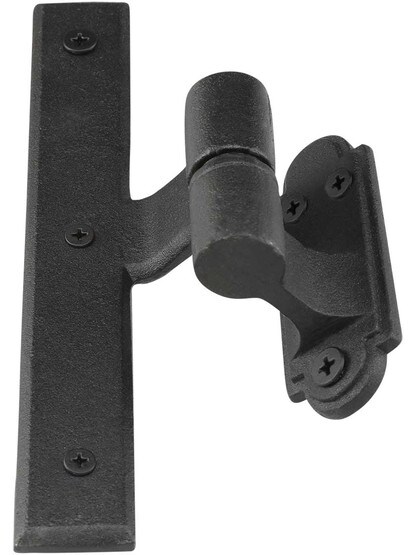

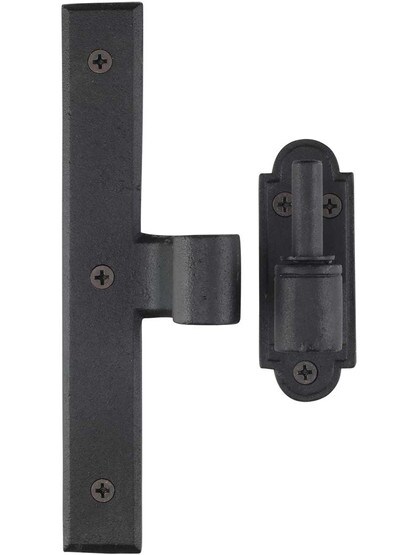

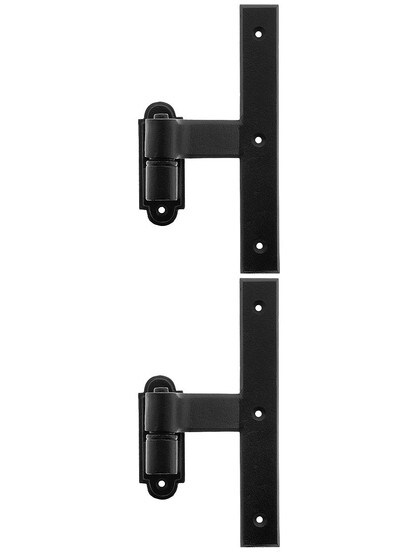

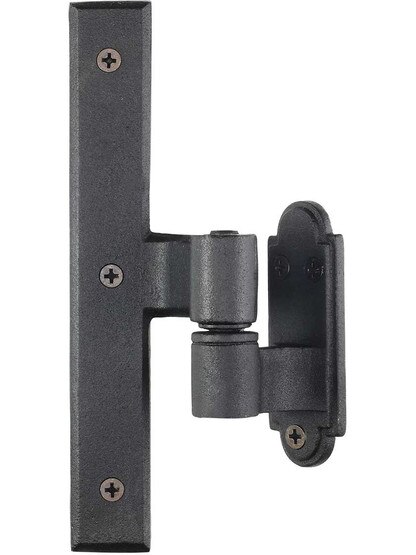

Pair of Vertical or Middle Strap Shutter Hinges With 1 1/2" Offset
Description
These vertical shutter straps are not only distinctive in appearance - they're ideal for shutters too narrow for horizontal straps. They can also be used with New York style hinge sets on tall shutters as a middle support hinge. These very sturdy hinges lift off for easy maintenance and have a 1 1/2" offset (3" throw). Made from 3/16" thick cast iron, they are powder coated to resist rust. Reversible.
Dimensions: Strap: 7" H x 2 3/8"W. Stile: 1" W. Thickness: 3/16"
Offset: 1 1/2" (from back of strap to center of pintle). Throw: 3"
Mounting plate: 3 5/16" H x 1 1/4" W x 1/4" thick. Pintle rod: 3/8" Diameter x 1 1/2" offset.
Fastener/s: #6 x 1" wood screws
Technical Info with Diagram
Dimensions: Strap: 7" H x 2 3/8"W. Stile: 1" W. Thickness: 3/16"
Offset: 1 1/2" (from back of strap to center of pintle). Throw: 3"
Mounting plate: 3 5/16" H x 1 1/4" W x 1/4" thick. Pintle rod: 3/8" Diameter x 1 1/2" offset.
Fastener/s: #6 x 1" wood screws
Technical Info with Diagram
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
For best performance and to prevent rust, iron and steel hardware should be regularly maintained. After installation check for scratches or chips in the surface and re-coat periodically as needed.
Specs
Shutter Hardware Details
How to install this product in a typical situation.
WARNING: California Proposition 65Ratings & Reviews
3 reviews
Great for tall shutters
Comments:
Bought these to add middle support to five sets of 6' tall shutters. At first I wasn't sure if they were necessary, but really glad we got them, they add stability; the shutter installation has proven sturdy even in high winds. They also add historic charm and visual depth, paired with the cast iron New York style hinges. Really happy with the results!
They were just what I was looking for
Comments:
Nice and solid. I upgraded the screws as the ones provided for the connection to the house were fairly short.
Very satisfied with these quality hinges.
Comments:
We have a 150 year old stone house and these look great with our shutters--simple, with quality.
