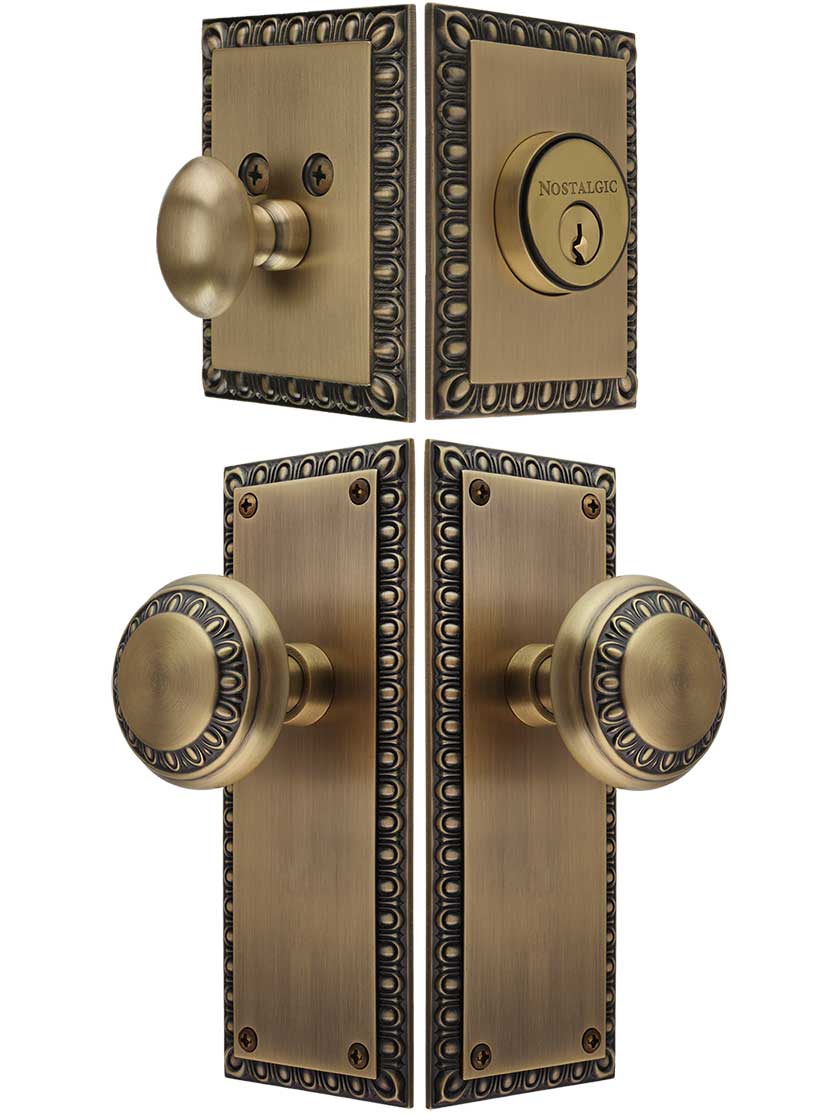

Ovolo Entry Door Set with Matching Knobs

Your Selection:

Select Your Finish:


$332.90
Quantity discounts available
QuantityPrice
Item #: RS-05NW-CP-AEDAEDX

Description

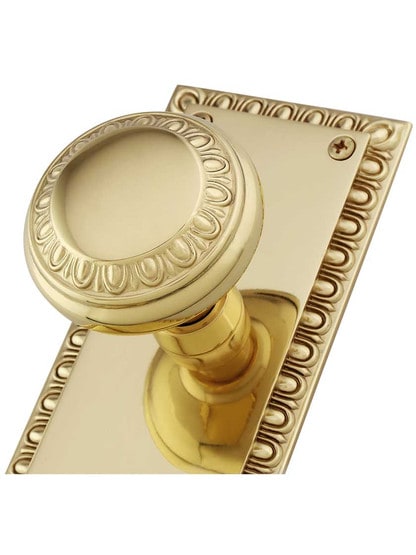

Painstakingly recreated from an antique original, our Ovolo Entry Set with Matching Knobs adds instant elegance to your doors. Inspired by a circa 1900, neo-classical design, each back plate and knob features vintage egg and dart borders, along with solid-brass forging for crisp pattern detail. Enduring quality, simple installation, and our five-year warranty make this an excellent choice for restoration and new construction.The deadbolt has a pick-resistant Schlage C keyway. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.

Door set dimensions: Doorknobs: 2 1/4" D. Back plates: 7 1/8" H x 2 5/8" W.
Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W.

Deadbolt dimensions: 3 5/8" H x 2 5/8" W. Thumbturn: 1" x 1 1/2" x 1 1/2" projection. The bolt has a throw of 1".
Door thickness: 1 3/4" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

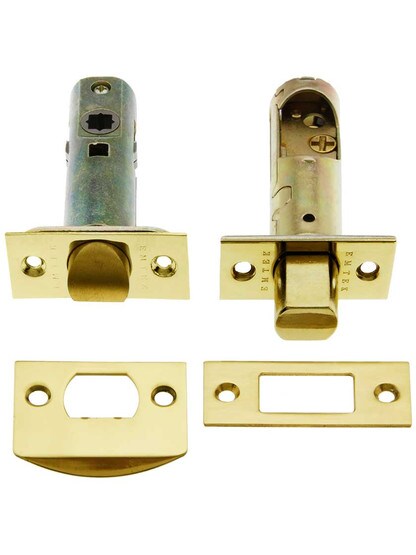

Included Hardware

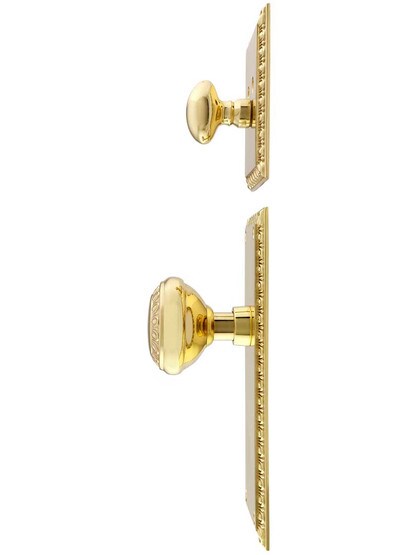

Pictured in Polished Brass. Your hardware will match the finish selected.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle.

Specs

Installation Instructions

How to install this product in a typical situation.
