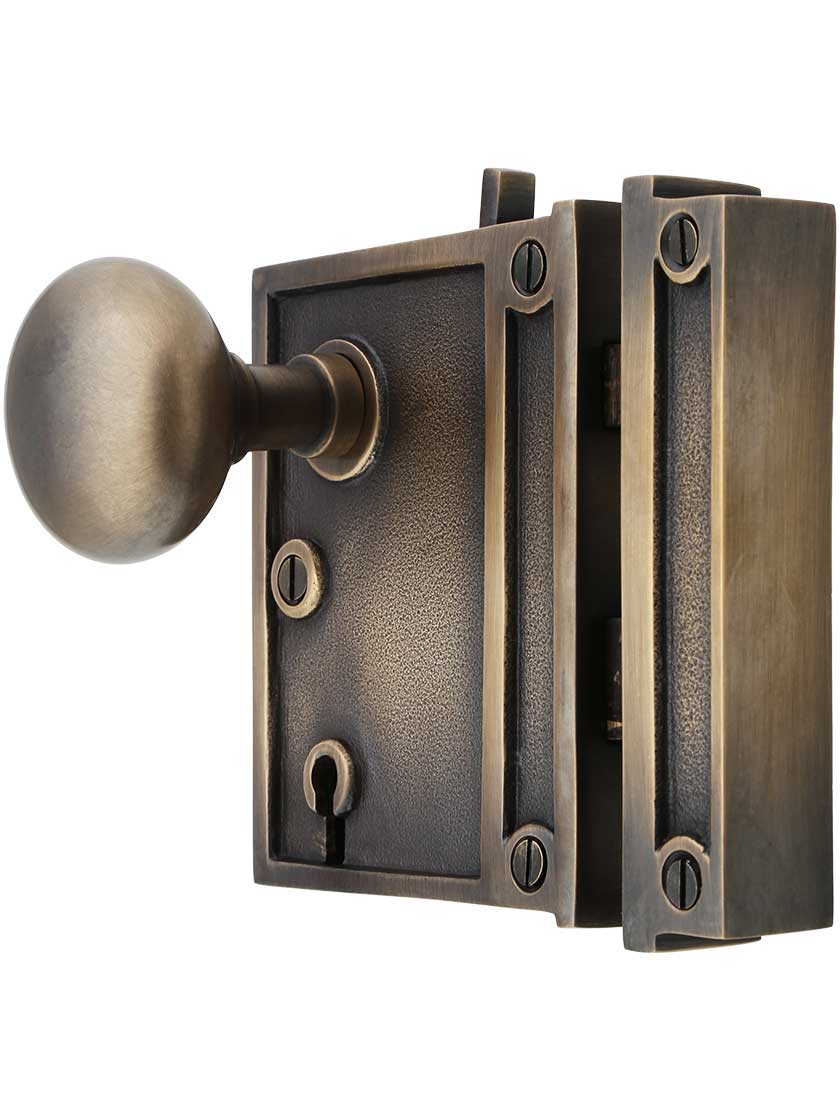

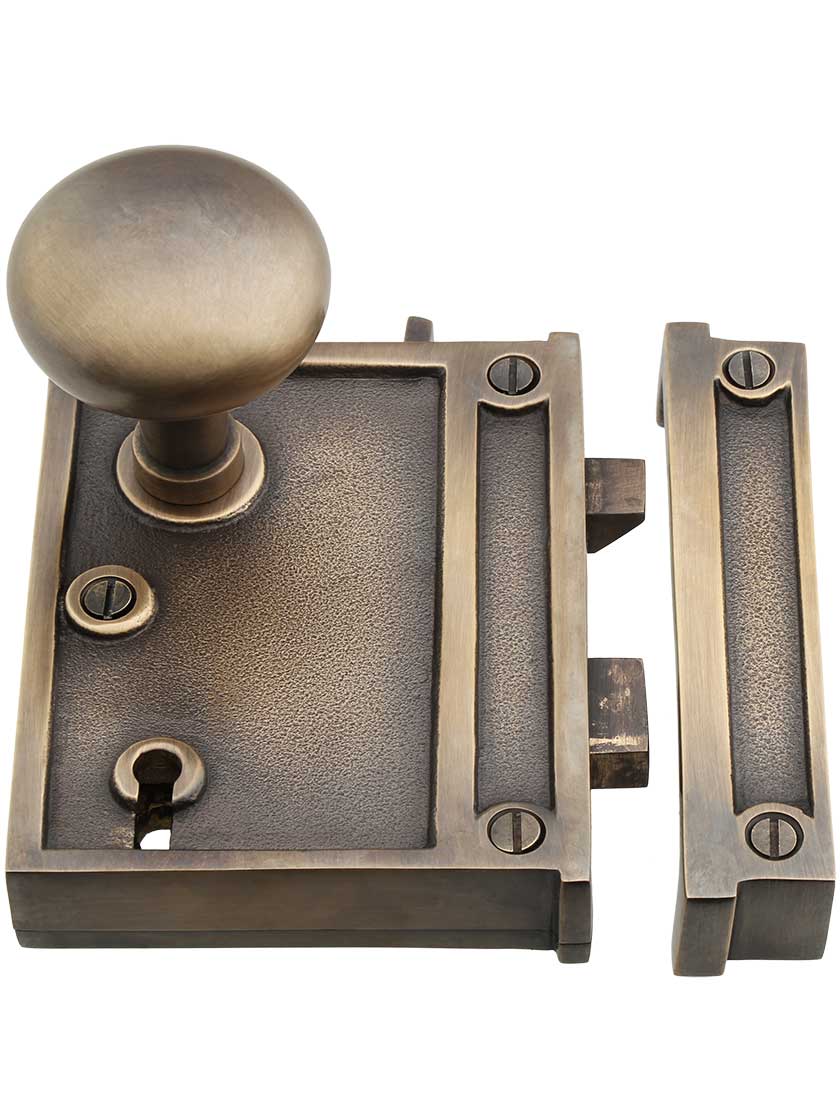

Solid Brass Vertical Rim Lock Set with Small Round Knobs In Antique-By-Hand Finish

Currently Unavailable - ETA: 9/21/2022
$174.90
Quantity discounts available
QuantityPrice
Item #: R-01HH-1022V-153-ABH

Description

Our hand-applied antique patina is the finishing touch to this early Victorian style rim lock. The simple and authentic design features a sturdy brass lock with solid brass knobs, rosette and tassel style keyhole cover. Heavy-duty interior parts ensure smooth operation and lasting performance. The antique finish is not lacquered, and will develop natural highlights with use. In addition to the key-operated dead bolt, there is a handy privacy lock (toggle on top of case). Easily reversible for right or left handed doors.

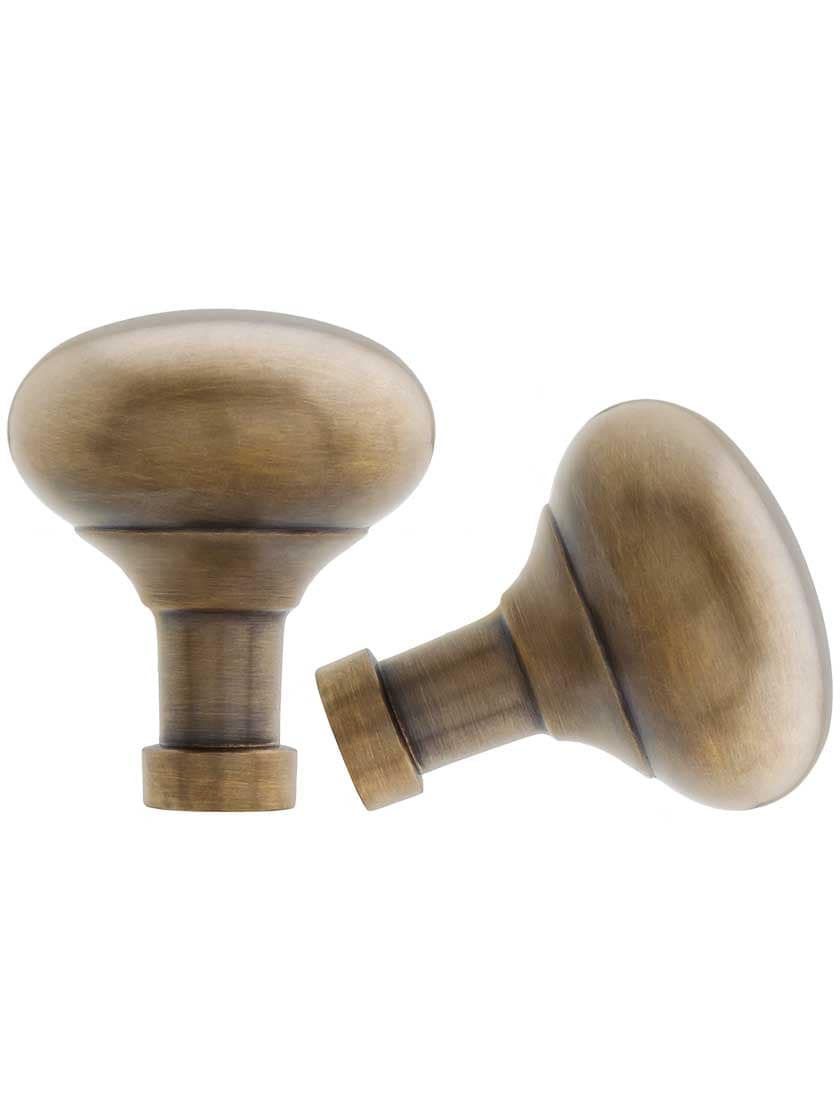

Dimensions: Lock body: 3 1/4" W x 4 1/8" H x 3/4" Thick. Keeper: 3/4" W x 4 1/8" H x 3/4" Thick. Knobs: 1 7/8" Diameter. Rosette: 1 7/8" Diameter. Keyhole Cover: 2 1/2" H x 1 1/8" W. Backset: 2 3/8". Spindle: 20 TPI measuring 4" L x 9/32".

Door Thickness: 1" to 1 3/4". Includes an Allen wrench and set screws for mounting knobs to spindle.

Please note: the privacy latch can not be disengaged from outside the room.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Skeleton Key
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.

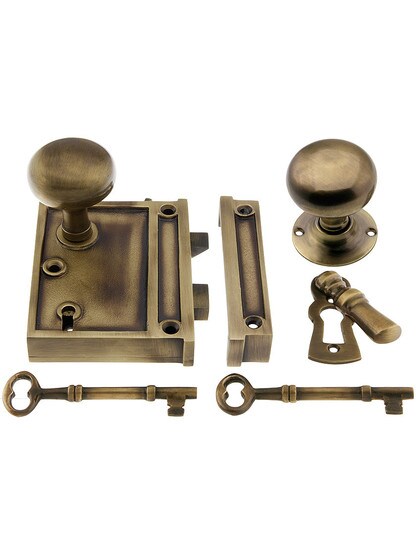

  • 2 Knobs
  • 1 Rosette and 1 keyhole cover
  • 1 Skeleton key rim lock
  • 1 Matching rim keeper
  • Matching screws
  • 1 Spindle and 2 keys

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock.
