Solid Brass Horizontal Rim Lock Set with White Porcelain Knobs
Description

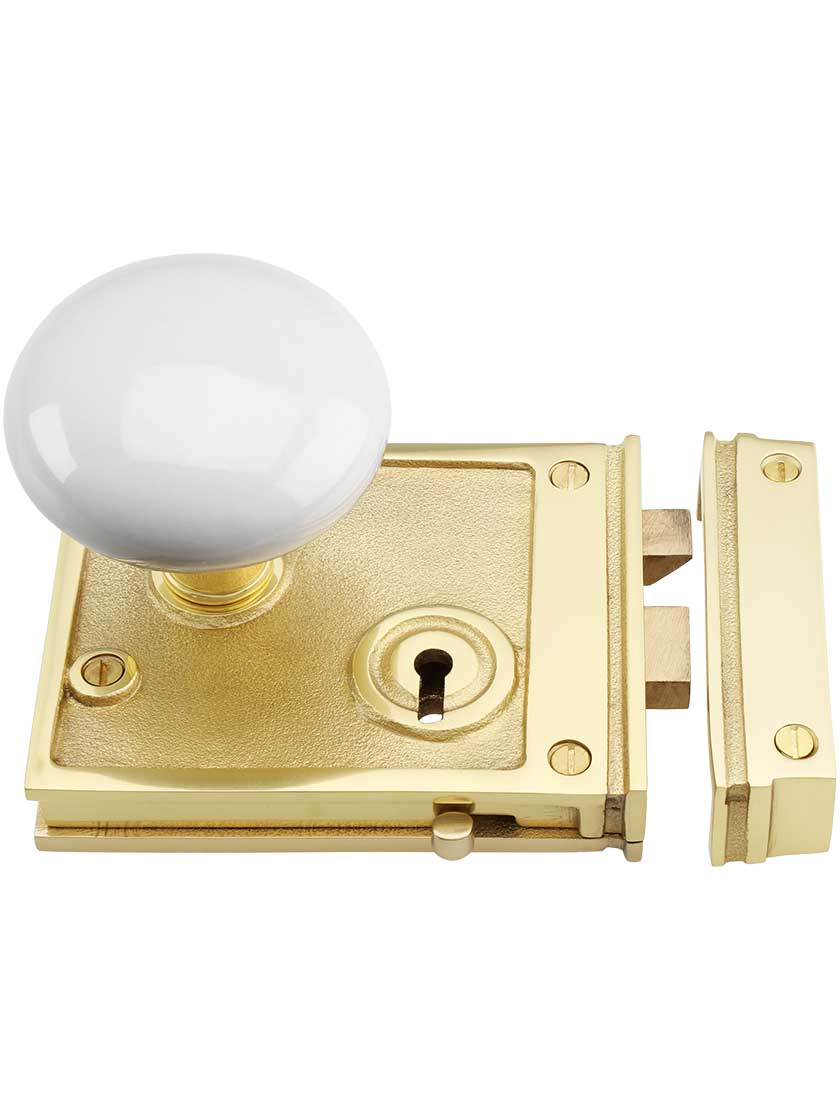

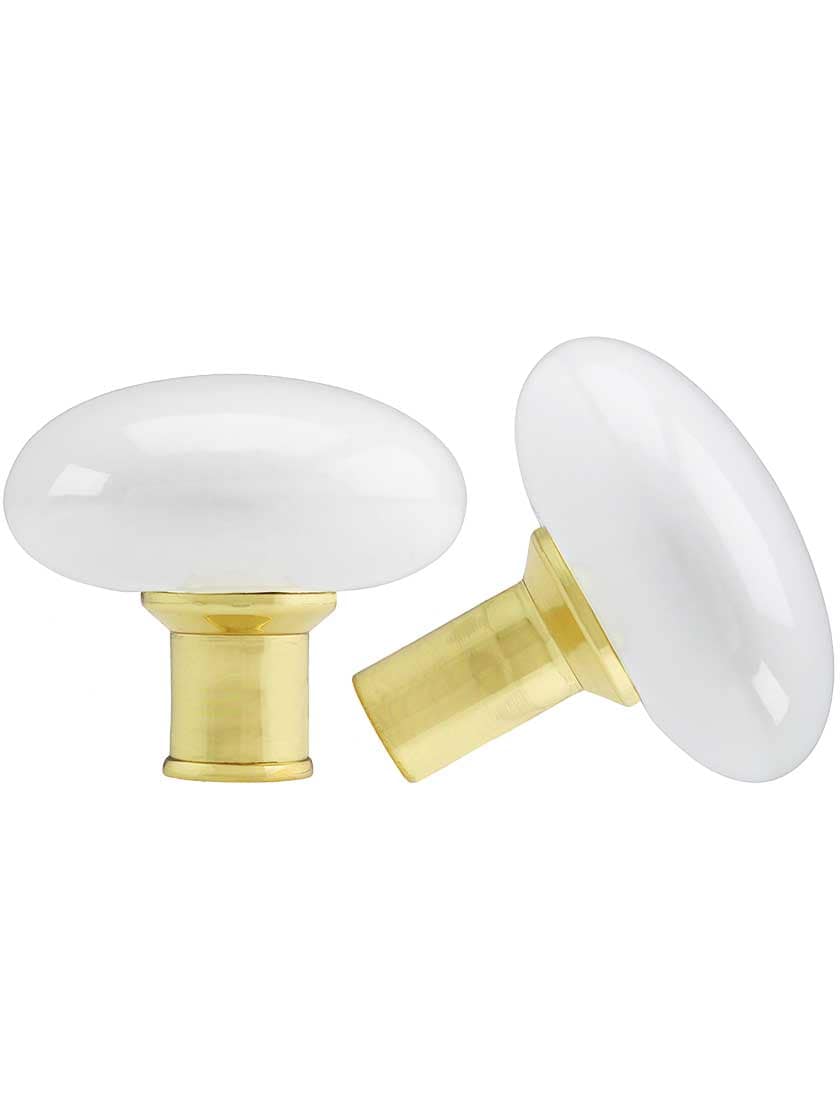

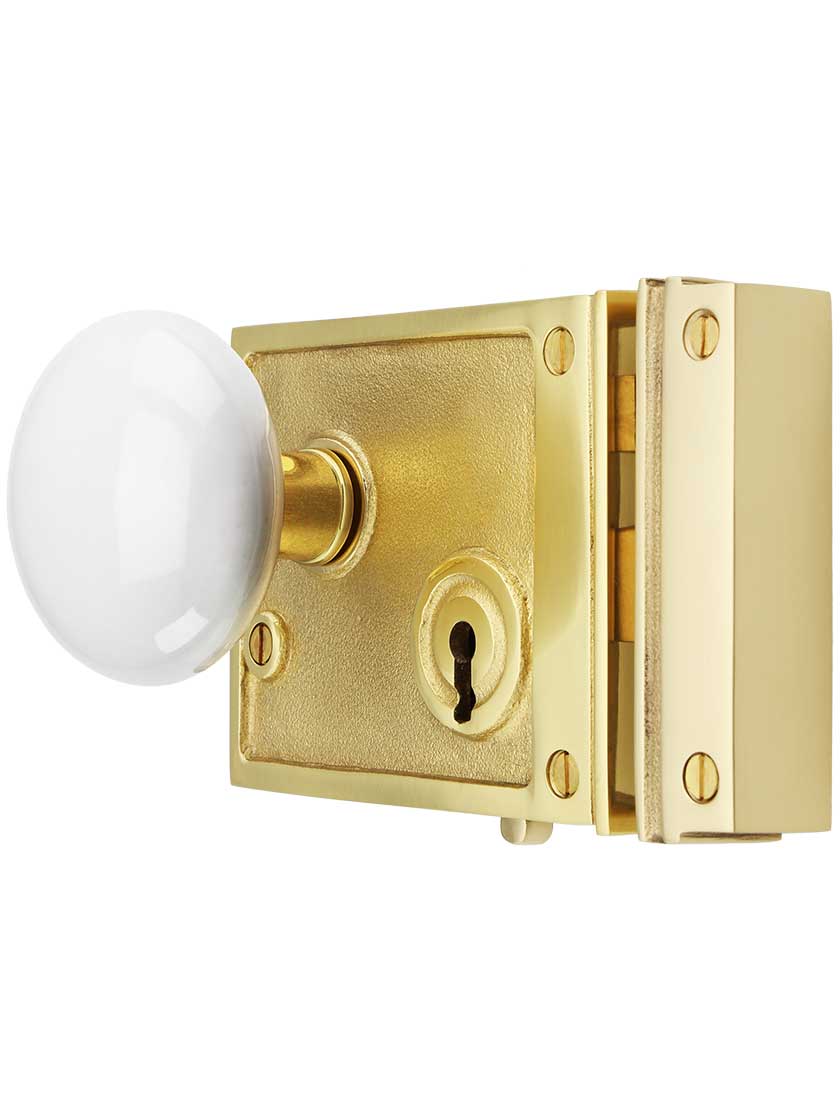

This handsome Victorian era rim lock set suits homes from the 1850s through the early 20th century. The simple and authentic design features gleaming white porcelain knobs, as well as a brass rosette, keyhole and skeleton keys. The case and matching trim are solid brass with a choice of antiqued or polished finish. Heavy-duty interior parts ensure smooth operation and lasting performance. In addition to the key-operated dead bolt, there is a handy privacy lock (sliding tab on bottom of case). Easily reversible for right or left handed doors.
Dimensions: Lock body: 4 1/8" W x 3 1/4" H x 3/4" Thick. Keeper: 3/4" W x 3 1/4" H x 3/4" Thick. Knobs: 2 3/8" Diameter. Rosette: 1 7/8" Diameter. Keyhole Cover: 15/16" W x 1 11/16" H. Backset: 3".
Door Thickness: 1" to 1 3/4". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1" to 1 1/2" thick doors, use 4" for 1 5/8" to 1 3/4" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.
Please note: the privacy latch can not be disengaged from outside the room.
Dimensions: Lock body: 4 1/8" W x 3 1/4" H x 3/4" Thick. Keeper: 3/4" W x 3 1/4" H x 3/4" Thick. Knobs: 2 3/8" Diameter. Rosette: 1 7/8" Diameter. Keyhole Cover: 15/16" W x 1 11/16" H. Backset: 3".
Door Thickness: 1" to 1 3/4". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1" to 1 1/2" thick doors, use 4" for 1 5/8" to 1 3/4" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.
Please note: the privacy latch can not be disengaged from outside the room.
Door Sets
Door Set Functions | ||
Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock.
