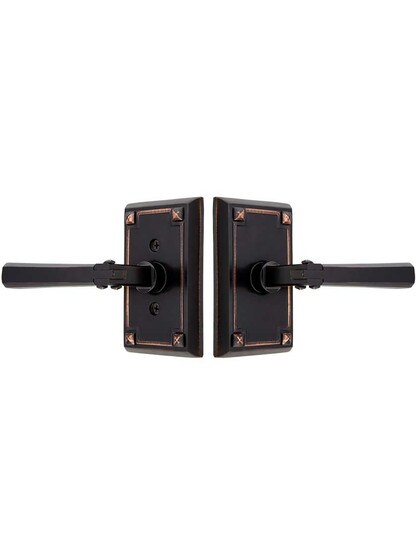

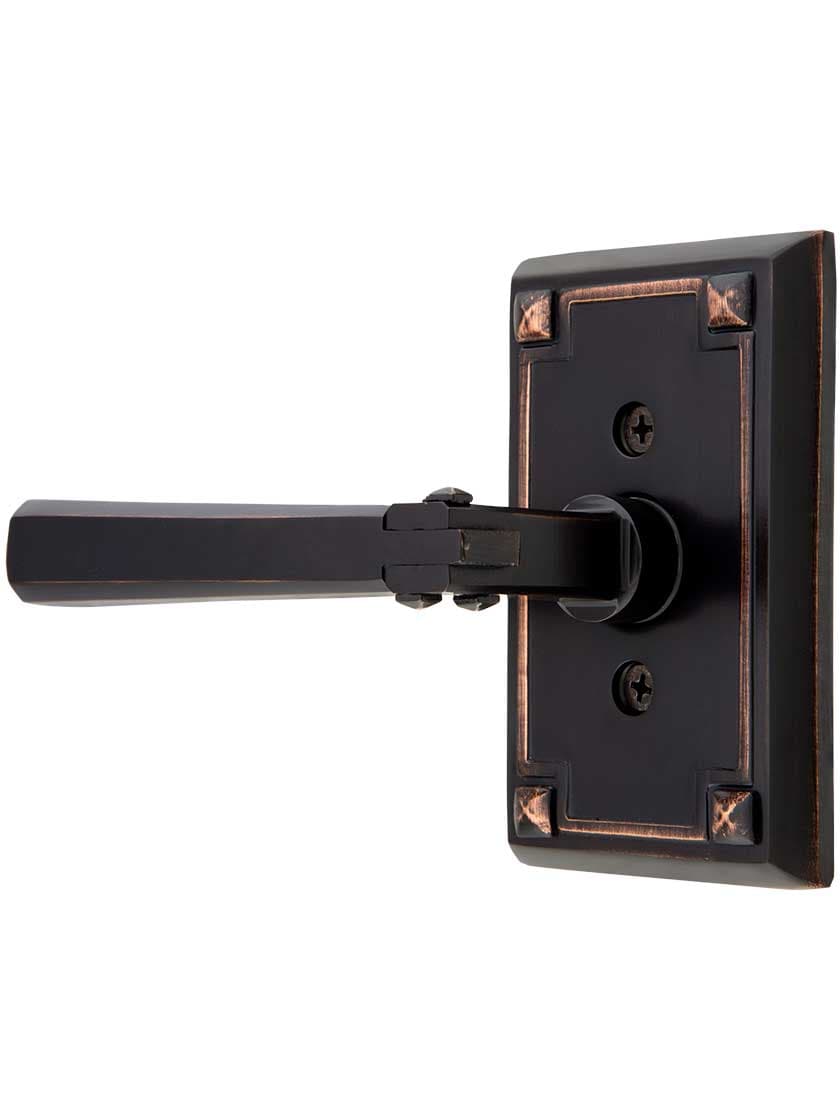

Craftsman Style Lever Door Set With Rectangular Rosettes

Your Selection:

Select Your Finish:


$171.90
Quantity discounts available
QuantityPrice
Item #: RS-01EM-5105ACX

Description

Sturdy and spare, yet thoughtfully designed, this handsome door set recalls the artisanal hardware of the Arts & Crafts movement. The slightly irregular pattern and pyramid "nail heads" reinforce the hand-worked look. Designed to work with pre-bored doors, this Craftsman set is ideal for new construction. Finely crafted from forged brass, and available copper plated and antiqued, or nickel plated and satin relieved.

Door set dimensions: Levers are 4 1/4" L. Rectangular rosettes measure 4 1/16" H x 2 9/16" W.

Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.
Standard door range: 1 1/4" to 2" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Passage
Latch but no lock - The levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
  • 2 Levers
  • 2 Rosettes
  • 1 Passage Latch with matching face plate
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Privacy
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
  • 2 Levers
  • 2 Rosettes
  • 1 Privacy Latch with matching face plate and privacy pin
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Double Dummy
No latch or lock - the levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
  • 2 Levers
  • 2 Rosettes
  • Matching Screws
  • All necessary mounting accessories

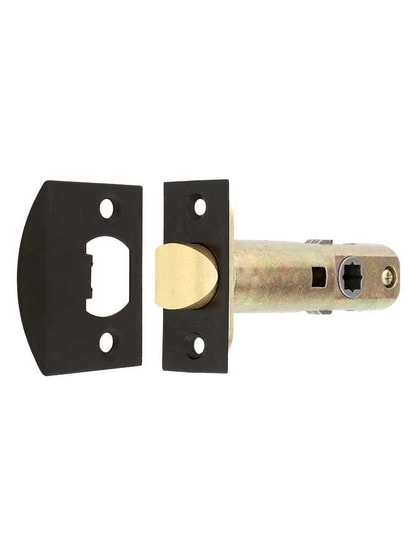

Included Hardware

Pictured in Oil-Rubbed Bronze. Your hardware will match the finish selected. Hardware not included with Dummy Sets.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle.

Specs

Product Specifications

Dimensions, specifications and detailed product info
