Set of "Clarks Tip" Cast Iron Shutter Hinges With 3 1/4" Throw

Currently Unavailable - ETA: 8/17/2022
Quantity discounts available
Item #: R-09JW-323

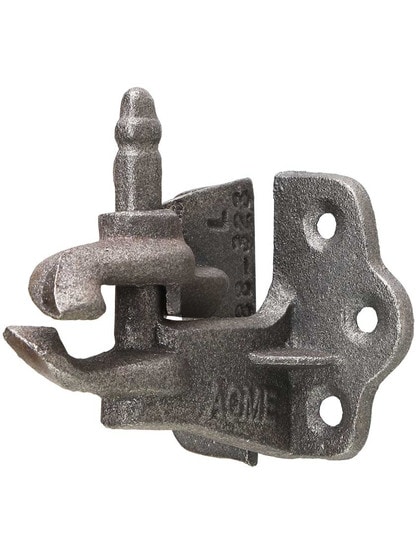

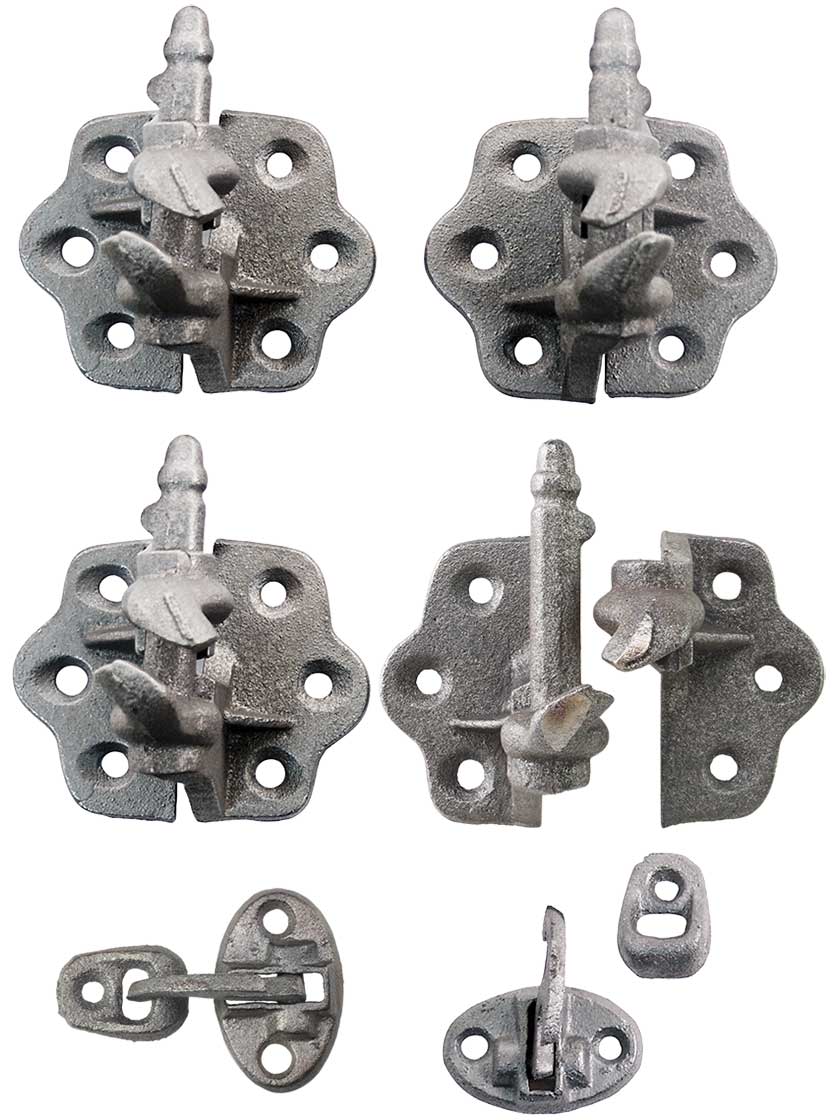

These charming, acorn tip hinges were commonly found on Victorians and early 20th century colonials. The hinges are surface mounted and "lift off", making it easy to install or remove your shutters. The 3 1/4" throw is optimal for brick veneered homes. Made of raw, cast iron, they must be primed and painted to prevent rusting. The set includes 2 right hand hinges, 2 left hand hinges and two fasteners - enough to complete one window. Screws are not included.

Dimensions (each hinge): 2 1/2" H leaf, 3 1/8" H w/ pintle x 3 1/8" W . Leaf: 1 1/2"W. Throw: 3 1/4". Offset: 1 5/8".

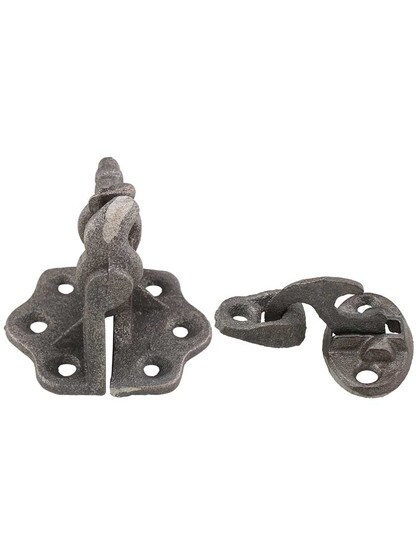

Catch hatch and latch: 1 1/8" H x 1 3/4" W . Projection 1 1/2". Keeper: 1 1/8" x 13/16".

Technical Info with Diagram


Installation Instructions

How to install this product in a typical situation.

Hardware Tip

For best performance and to prevent rust, iron and steel hardware should be regularly maintained. After installation check for scratches or chips in the surface and re-coat periodically as needed.


Shutter Hardware Details

How to install this product in a typical situation.
