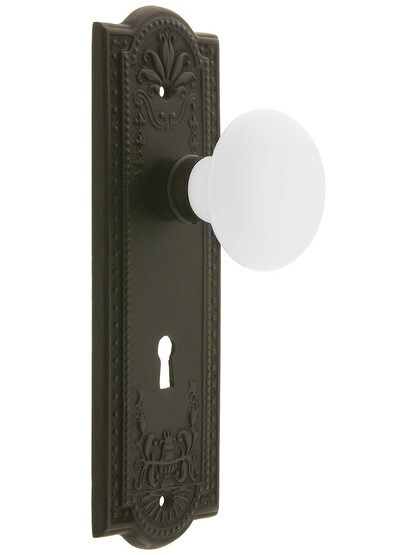

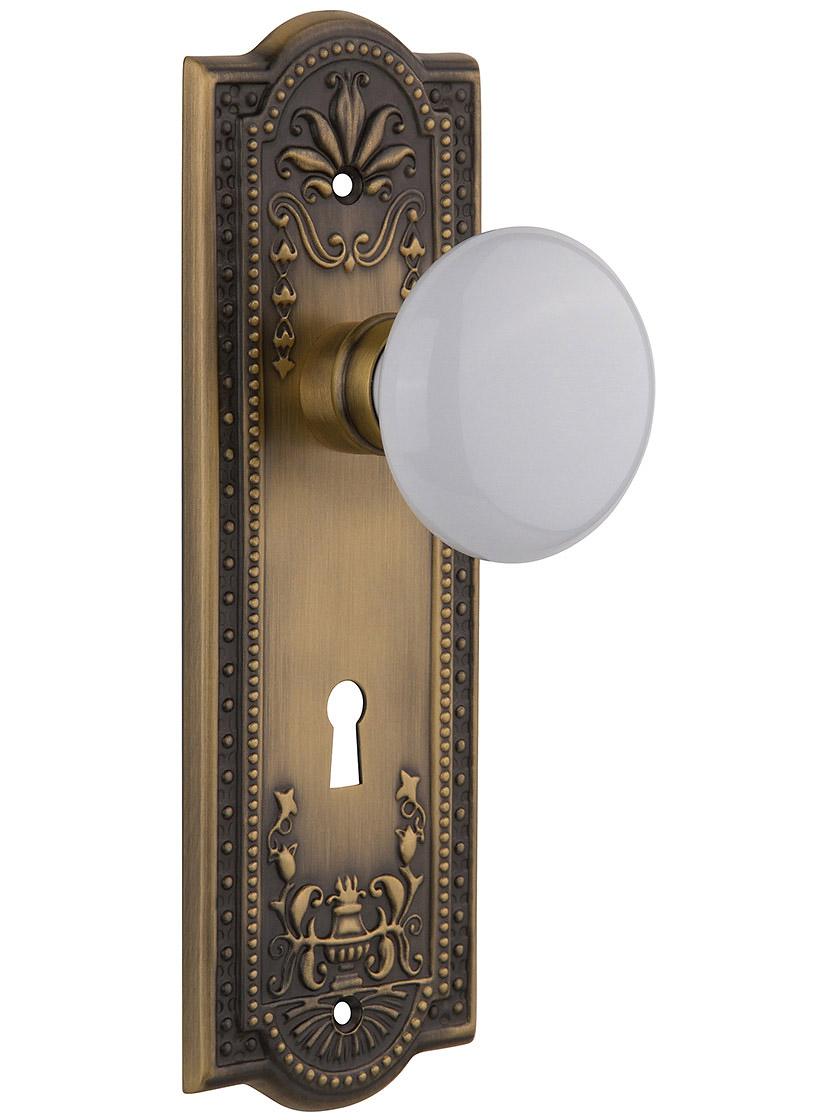

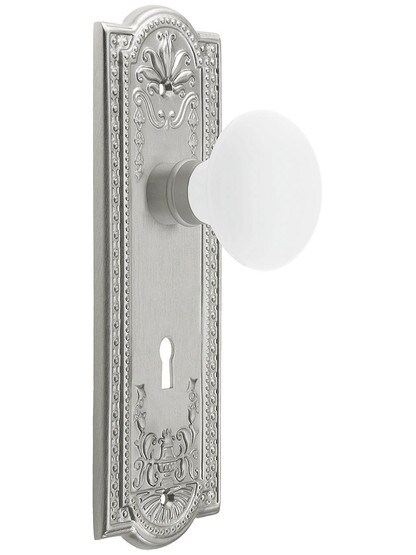

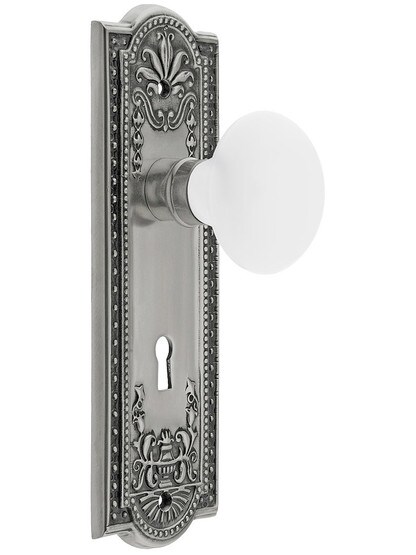

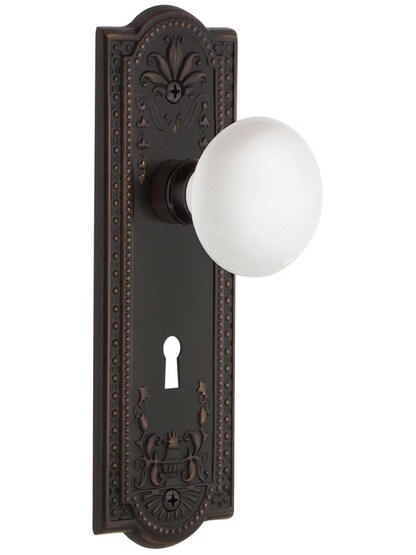

Meadows Design Mortise Lock Set With White Porcelain Door Knobs
Description
Pure white porcelain knobs add a sweet Victorian touch to this lovely Meadows door set. The classical revival design, with its beaded borders and graceful foliage, recalls P. & F. Corbin's circa 1905 "Como" Pattern. Originally produced in stamped, plated steel, our modern recreation is made of top quality forged brass, designed for lasting quality and performance. A heavy-duty mortise lock and two skeleton keys completes the set. Made to the highest standards, this lock guarantees you trouble-free operation and reliable privacy.
Door set dimensions: doorknobs measure 2 1/4" in diameter. Back plates are 7 3/4" H x 2 1/2" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: doorknobs measure 2 1/4" in diameter. Back plates are 7 3/4" H x 2 1/2" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

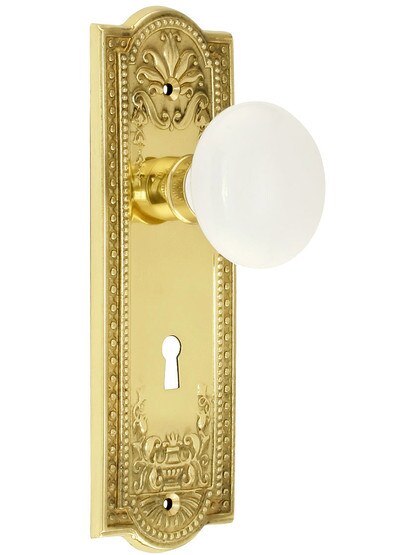

Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
WARNING: California Proposition 65Ratings & Reviews
1 review
Just enough elegance, yet reserved
Comments:
After I installed this lockset on one door as a test I realized that not only does it add much needed elegance to the door but also ""visual weight"" if you will. The door is solid wood but the addition of this lockset gave the door a more solid visual appearance I was not expecting but quite enjoy. The fact that the previous HW was small and thin may contribute to this visual effect. I plan on replacing the remainder of the interior doors (10) with this set. I like shiny brass HW but not too much,... the white porcelain knob helps in this regard by reducing the amount of brass. The color also matches the door.
