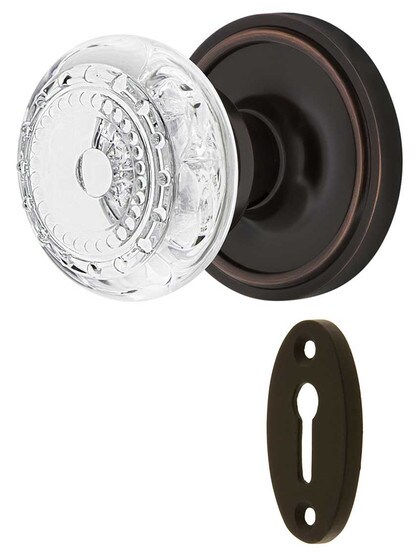

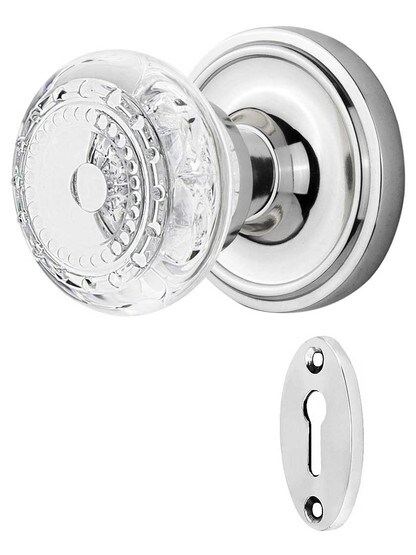

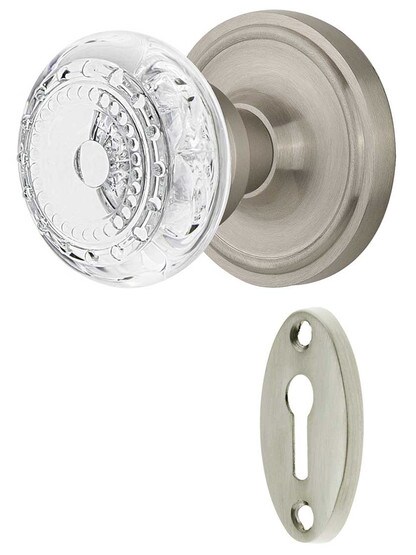

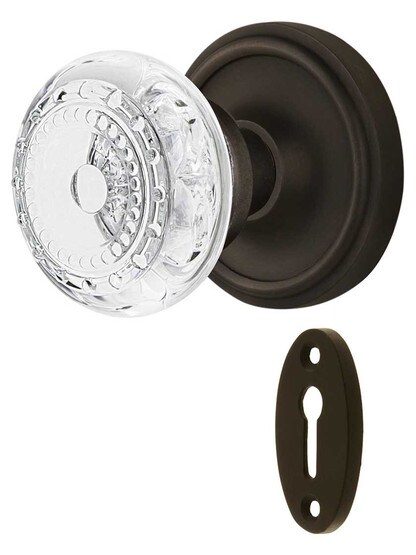

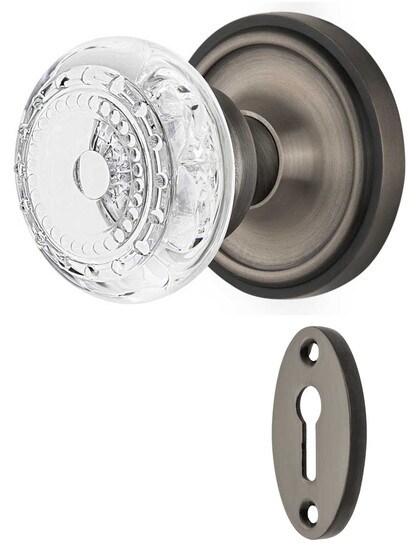

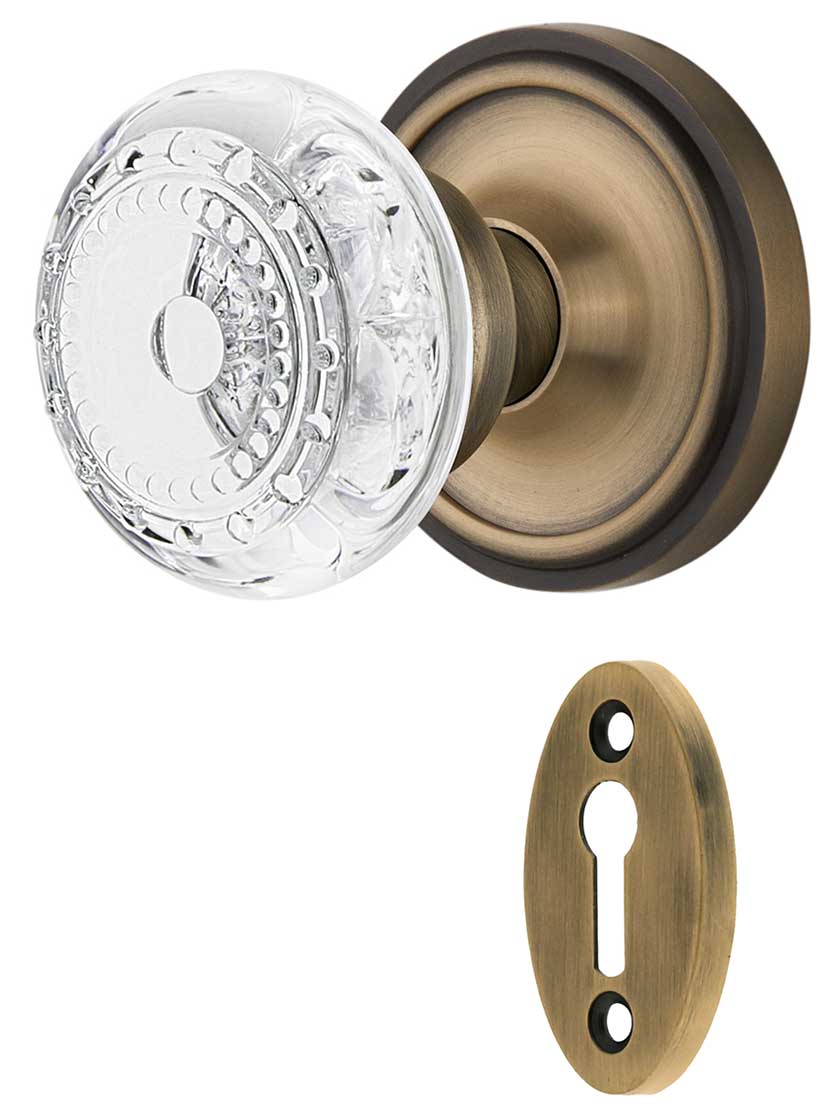

Classic Rosette Mortise-Lock Set with Meadows Crystal-Glass Knobs

Select Your Finish:

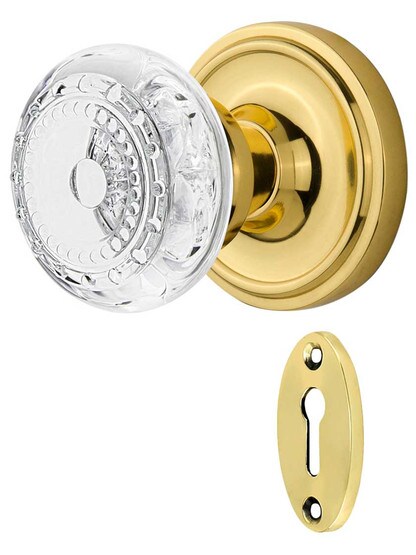

  Polished Brass
Item #: RS-01NW-753453
$206.90
Quantity discounts available
QuantityPrice

Description

The simple elegance of the Classic Rosette Mortise-Lock Set with Meadows Crystal-Glass Knobs complements a variety of architectural styles. The distinct knobs highlight a Greek Revival-inspired design, adding a touch of sparkle and a lifetime of beauty and performance. Finely crafted from solid brass, it comes in a host of period finish options.

Door set dimensions:
Doorknobs: 2 1/4" D.
Rosettes: 2 1/2" D.
Keyhole covers: 1 7/8" H x 1 1/8" W.
Projection: 2 5/8".

Mortise lock dimensions:
Backset: 2 1/4".
Lock case: 4" H x 3" W x 5/8" thick.
Lock face plate: 6" H x 7/8" W.
Strike plate: 4" H x 7/8" W.
Standard door range: 1 3/8" to 1 3/4" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit.
