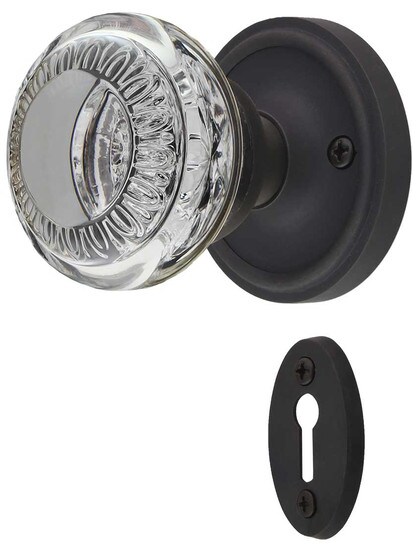

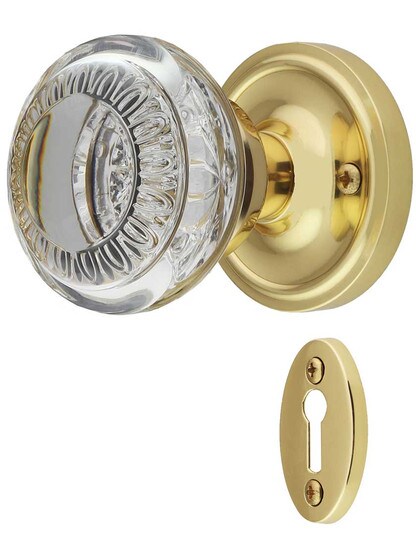

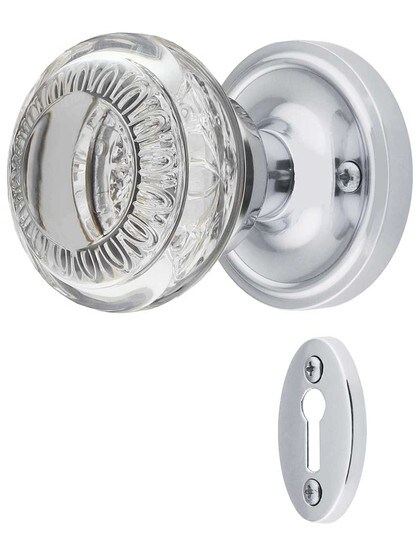

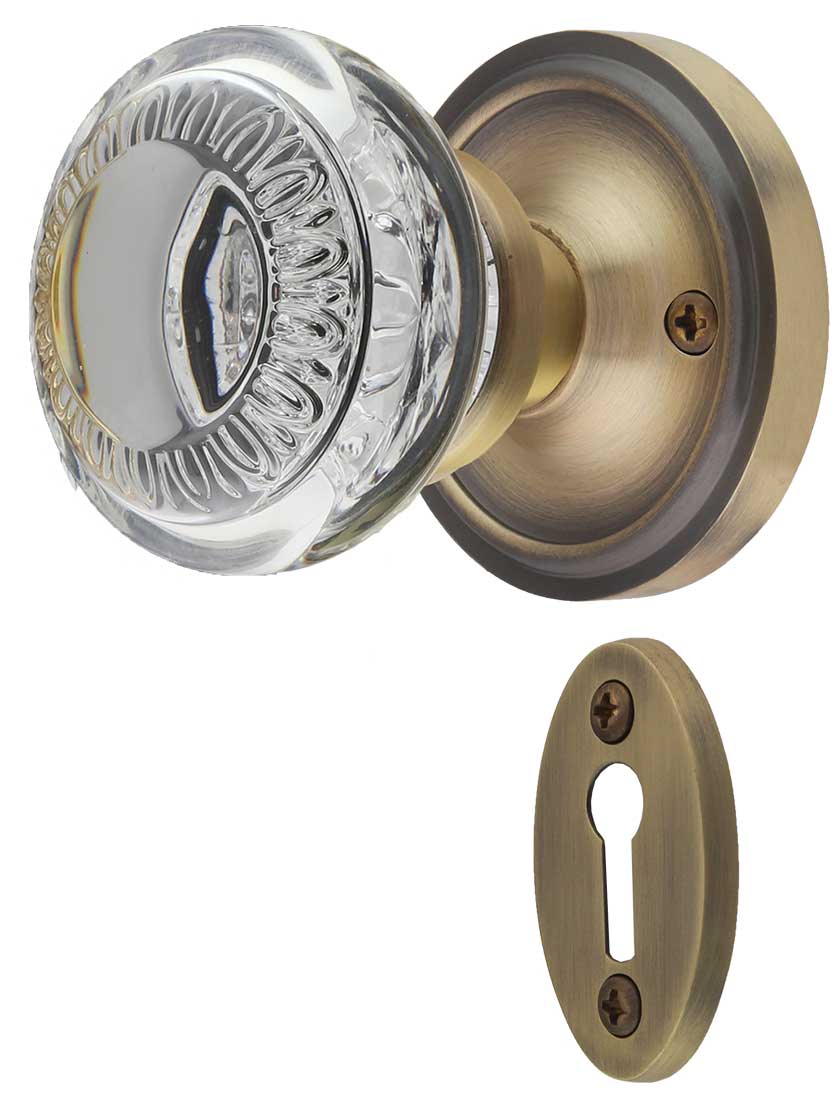

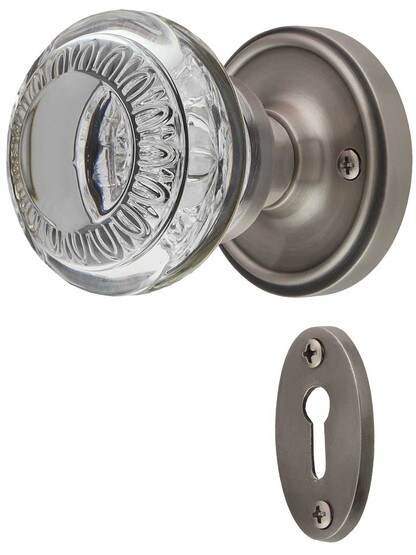

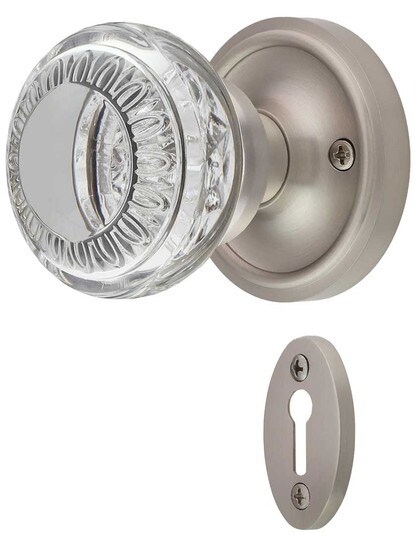

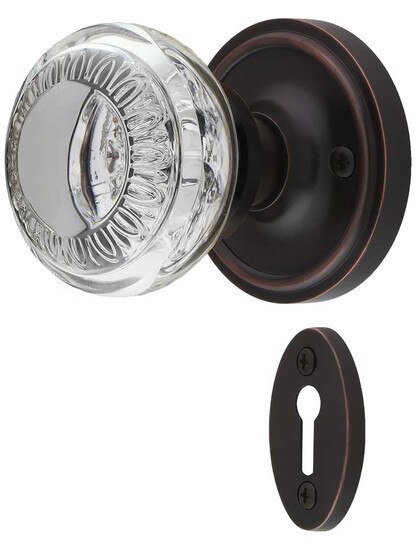

Classic Rosette Mortise-Lock Set with Ovolo Crystal-Glass Knobs and Keyhole
Description
Timeless, understated, and ever-so refined, our Classic Rosette Mortise-Lock Set with Ovolo Crystal-Glass Knobs and Keyhole is always a tasteful choice. This exceptional set is forged in solid brass, lending to its crisp pattern detail. Enduring quality and simple installation make this an excellent choice for restoration and new construction. Choose from an array of classic finish options.
Door set dimensions: Doorknobs: 2 3/16" D. Rosettes: 2 1/2" D.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: Doorknobs: 2 3/16" D. Rosettes: 2 1/2" D.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit.
