Features
  • Solid-Brass Construction for Durability
  • Available in 5 Finishes
  • Reversible for Left or Right Handing
  • Complete with Mortise Lock Designed for Vintage Doors
Details
Style Colonial / Arts & Crafts
Item Sold As Complete Set for One Door
Included Hardware All Necessary Mounting Accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers



Quantity:




Description & Dimensions

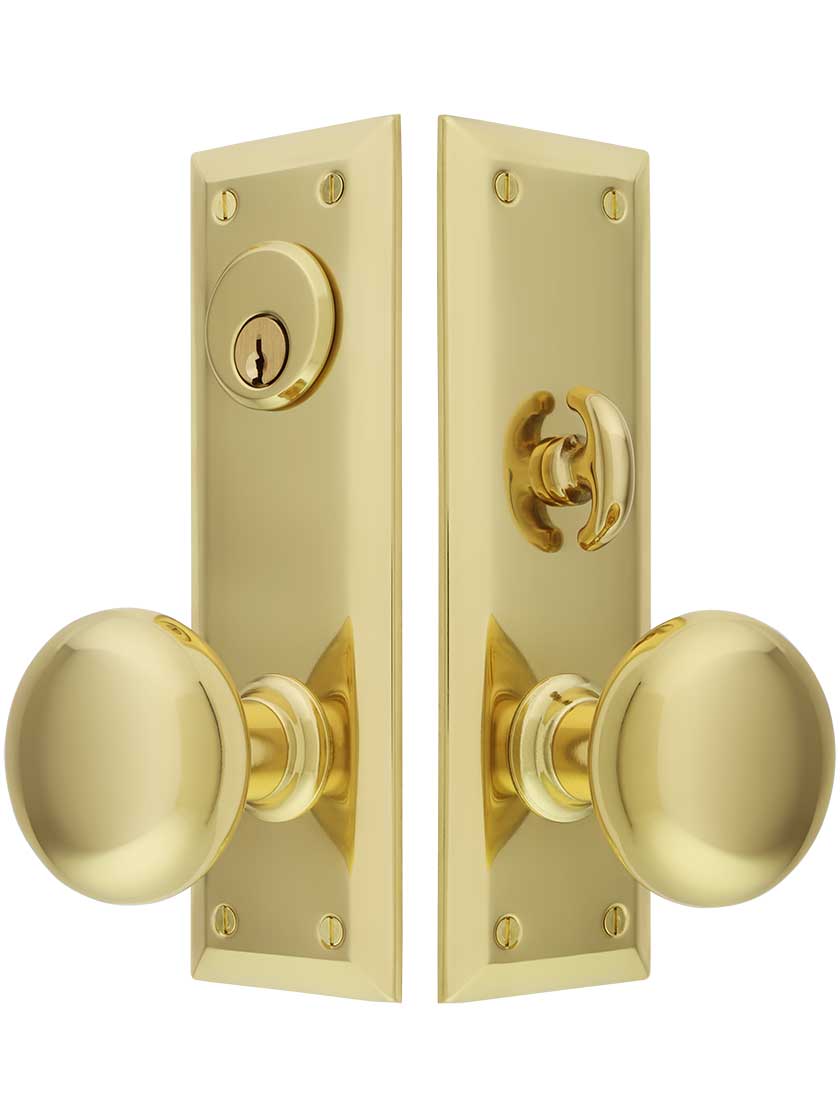

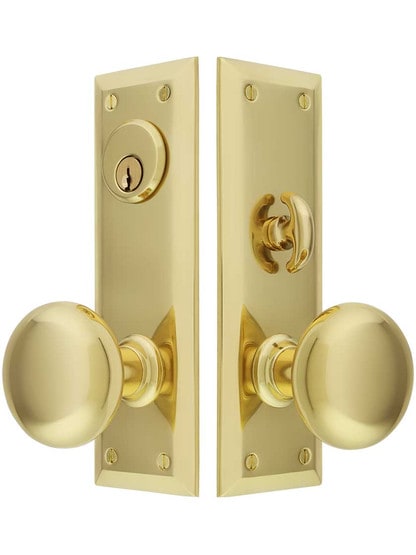

Our New York Small-Plate Mortise Entry Set is made the old fashioned way - from stamped and wrought sheet brass. The timeless combination of plain beveled plates and simple round knobs looks as good today as it did a hundred years ago. A premium quality, precision-made mortise lock completes the set. Choose from five period finish options.

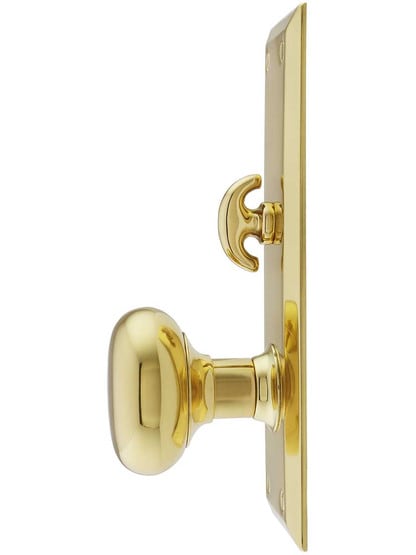

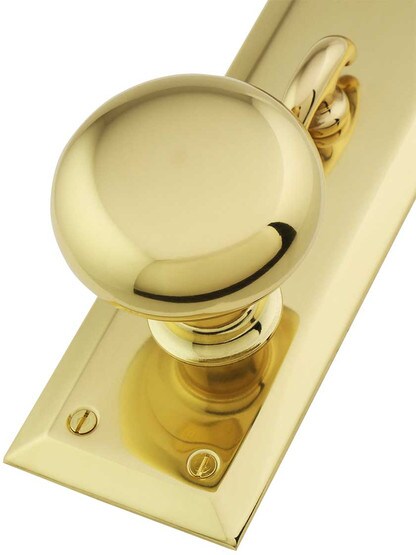

Dimensions. Interior & exterior door plates: 7" H x 2 1/4" W and projects 1/4". Knobs: 2 1/4" diameter.

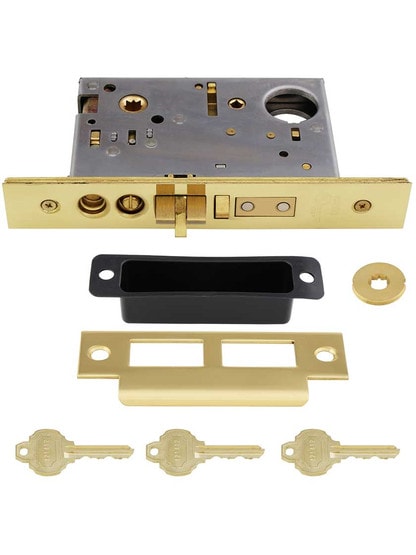

Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8"). For thicker doors please call for assistance.



Hardware Tip:
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories
