Solid-Brass Transom Window Latch with Box Strike

Select Your Finish:


Item #: R-09BM-8705X
$21.29 - $24.49
Quantity discounts available
QuantityPrice

Description

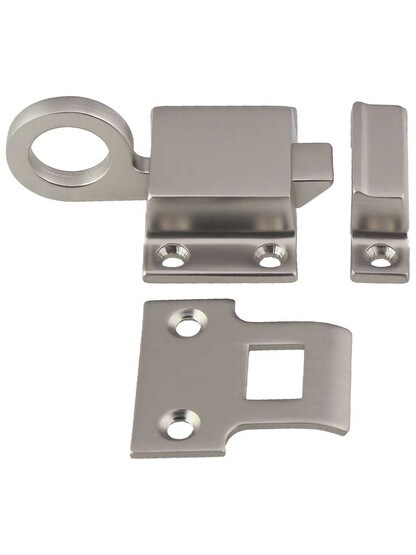

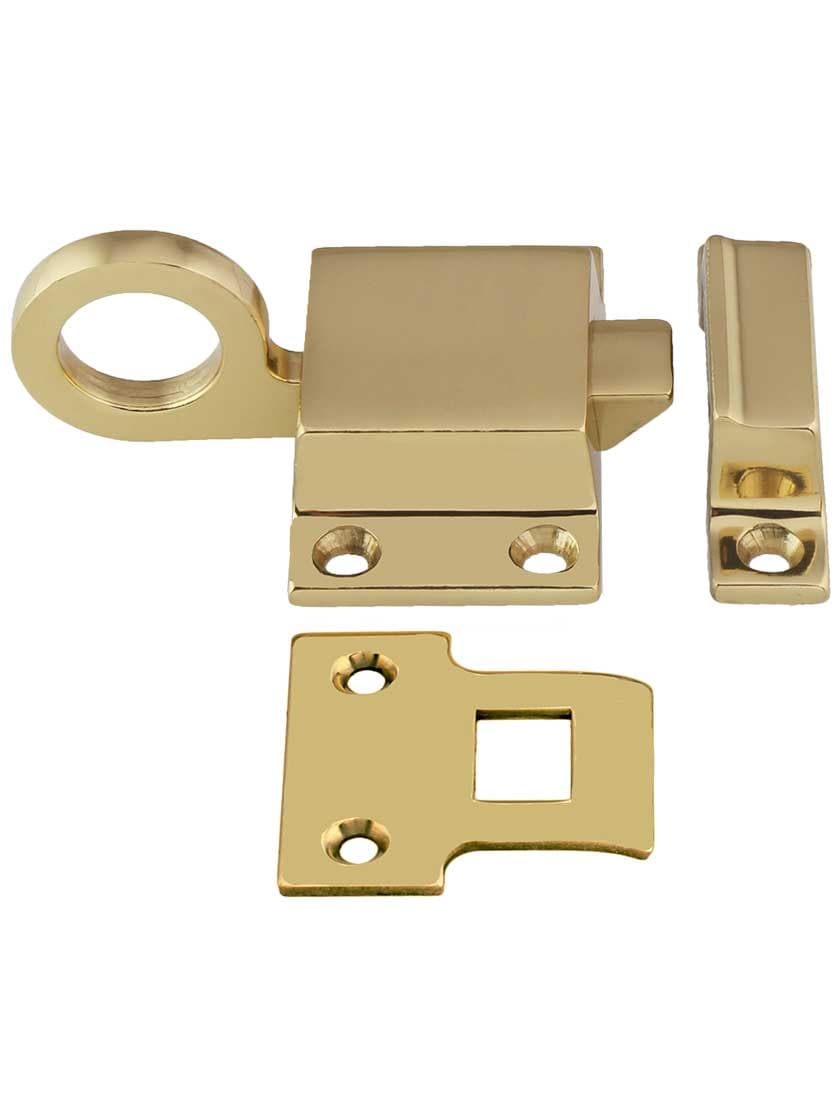

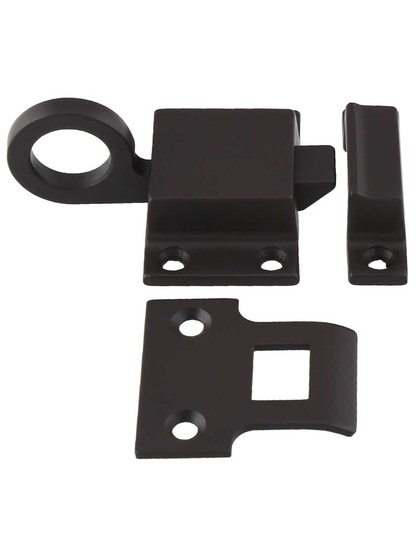

Square and simple in design, our versatile Transom Latch goes with everything, from Victorian to Mid-Century Modern. The circa 1900 design features all brass parts. The latch housing is stamped sheet brass, while the tongue, hook loop and strike plate are solid, cast brass. Choose from an array of popular finishes! This spring-loaded latch is typically installed at the top of the window sash and operated with a pull chain or pole-mounted transom hook (use transom chains to keep the sash from falling open). The base of the strike is mounted to the inside of the window frame and the catch portion protrudes over the sash, in order to engage the latch.

Dimensions: 1 7/8" L x 2 5/8" W x 1" Projection overall
Latch base: 1 7/8" L x 1 1/8" W x 1/2" Projection
Throw: 5/16"
Box Strike: 1 7/8" L x 7/16" W x 9/16" Projection
Rim Strike: 1 1/2" L x 1 1/2" W

Hardware Tip

Transom Window: Small window near the ceiling often above a door or other window that is typically hinged at the bottom and opens in.
