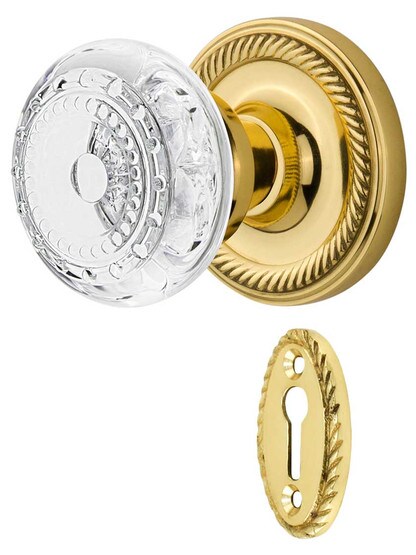

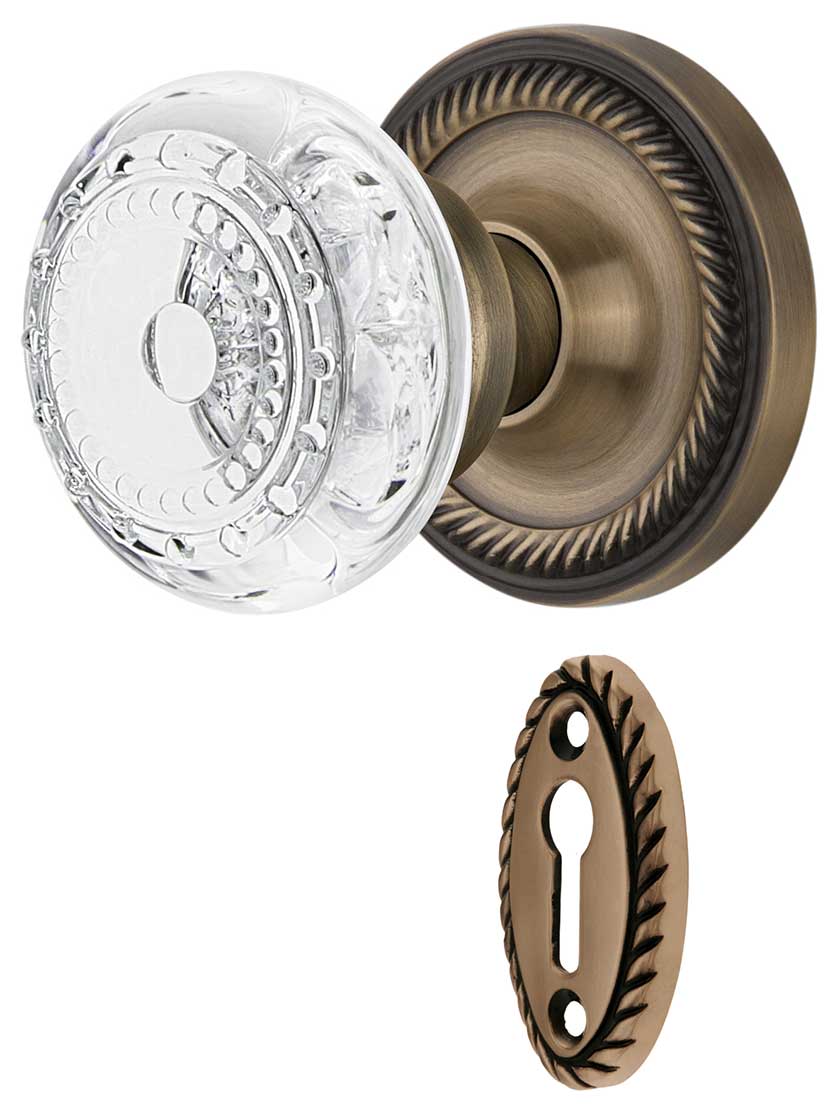

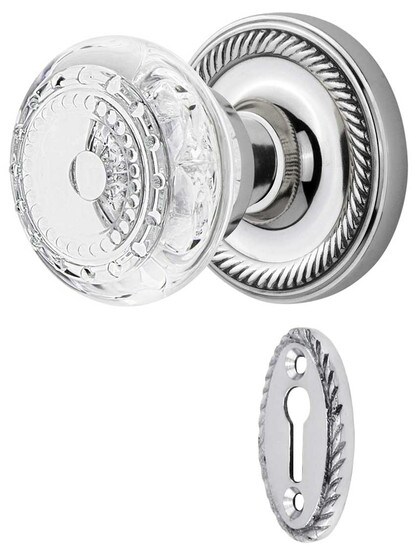

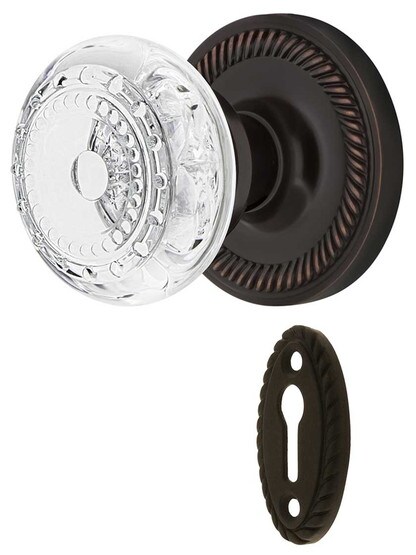

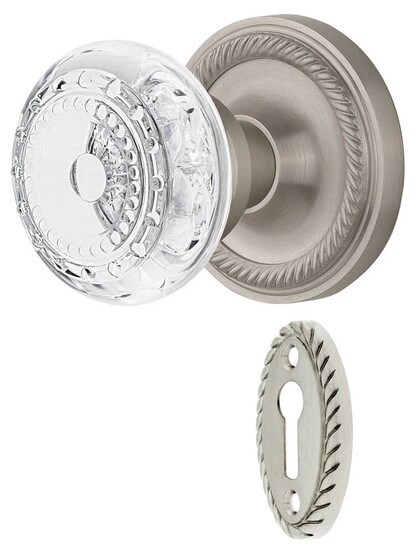

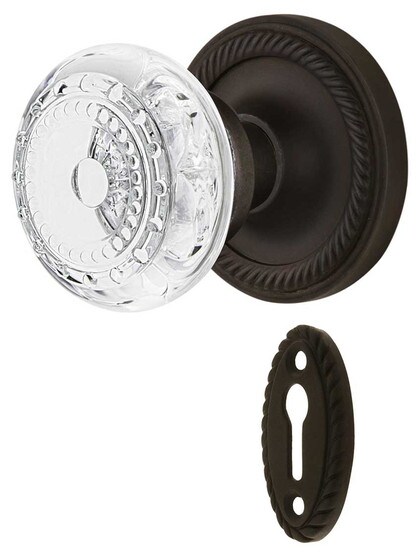

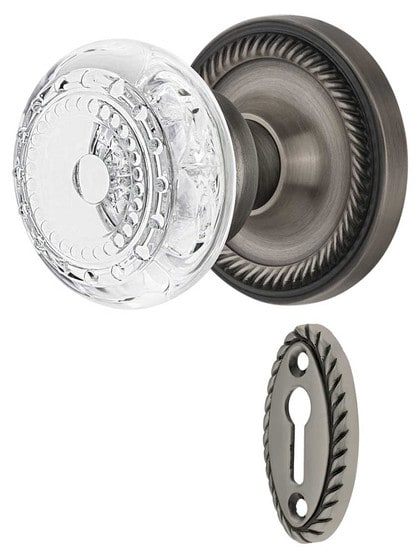

Rope Rosette Mortise-Lock Set with Meadows Crystal-Glass Knobs

Select Your Finish:

  Polished Brass
Item #: RS-01NW-752153
$206.90
Quantity discounts available
QuantityPrice

Description

Understated period style, combined with modern functionality, make the Rope Rosette Mortise-Lock Set with Meadows Crystal-Glass Knobs a fitting choice for any restoration or new construction. Inspired by P & F Corbin's elegant "Como" pattern of 1905, these lead-free crystal knobs add a lovely decorative accent to every door in your house. Finely crafted in solid forged brass, for years enduring quality and enjoyment. The lock itself is made to the highest standards, to ensure you trouble-free operation and reliable privacy.

Door set dimensions:
Doorknobs: 2 1/4" D.
Rosettes: 2 1/2" D.
Keyhole covers: 1 7/8" H x 1 1/8" W.
Projection: 2 5/8".

Mortise lock dimensions:
Backset: 2 1/4".
Lock case: 4" H x 3" W x 5/8" thick.
Lock face plate: 6" H x 7/8" W.
Strike plate: 4" H x 7/8" W.
Standard door range: 1 3/8" to 1 3/4" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit.
