Features
  • Solid-Brass Construction for Durability
  • Unlacquered Brass Finish for Natural Aging
  • Historic Pattern Appropriate for Restoration
  • Reversible for Left or Right Handing
  • Set Includes 2 Operational Skeleton Keys
Details
Style Victorian
Item Sold As Complete Set for One Door
Included Hardware All Necessary Mounting Accessories
Usually Ships In 2 to 3 Business Days More info >
Warranty 5 Year Warranty

Quantity:




Description & Dimensions

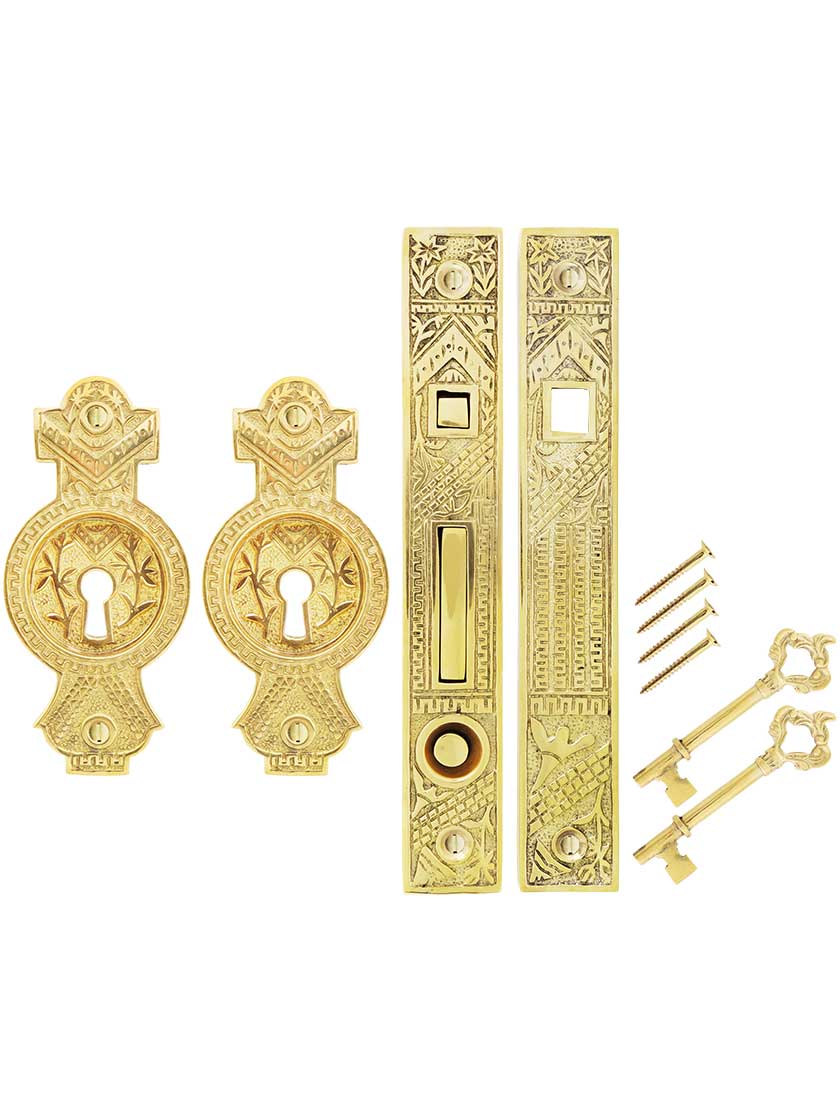

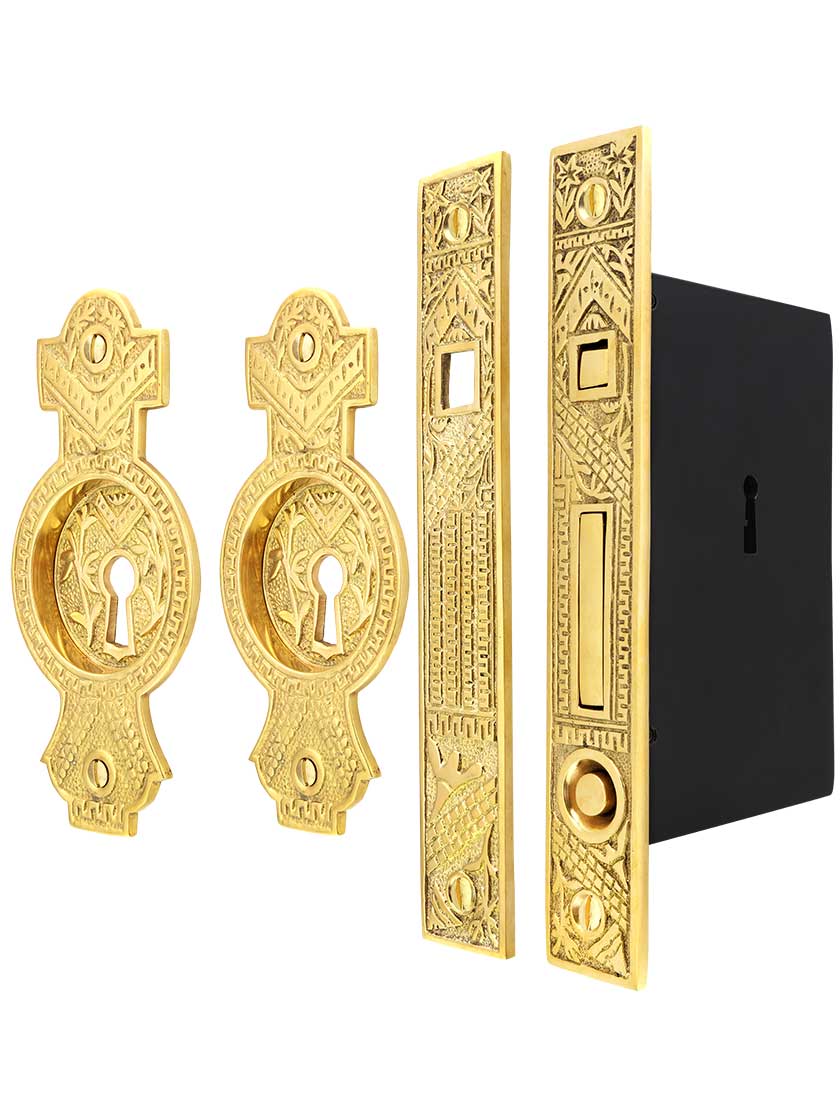

The centerpiece of our Oriental Single Pocket Door Mortise-Lock Set with Oriental Pulls features bold geometric markings surrounded by delightful floral patterns. Its circa 1880's Eastlake design is reproduced in solid, cast brass with all brass interior working parts. The faceplate and strike are left unlaquered and will develop highlights with use, just like period originals.

Door Thickness : Minimum 1 3/4"
Dimensions:
Pulls - Outer: 5 1/8" H x 2 3/8" W Inner: 1 3/4" D. Mortise depth: 9/32"
Surface plate: 1/8" thickness
Keyhole: 7/8" H
Screws: 2ea #6 1" wood
Lock Case: 5 7/16" H x 3 1/2" W x 11/16" Thick
Backset: 2 1/8"
Faceplate: 8" H x 1 3/16" W x 3/16" Thick
Finger Pull: 1 3/4" H x 1"W x 1/4" thick
Strike plate: 8" H x 1 3/16" W x 3/16" Thick
Screws: #8 x 1 3/8" wood
Skeleton key: Overall length: 3 3/4"
Barrel length (from bow to bit): 1 1/2"
Barrel diameter: 1/8"
Bit is 3/8" W x 1/2" H

Antique-by-Hand©

Our exclusive finish captures the warm patina of aged brass. More Info >>

See All Products in ABH Finish



Hardware Tip:
The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case. Learn about hardware >
