Oriental Bit-Key Single Pocket-Door Mortise Lock

Select Your Finish:


Item #: R-06SE-2030524LO-UL
$90.95
Quantity discounts available
QuantityPrice

Description

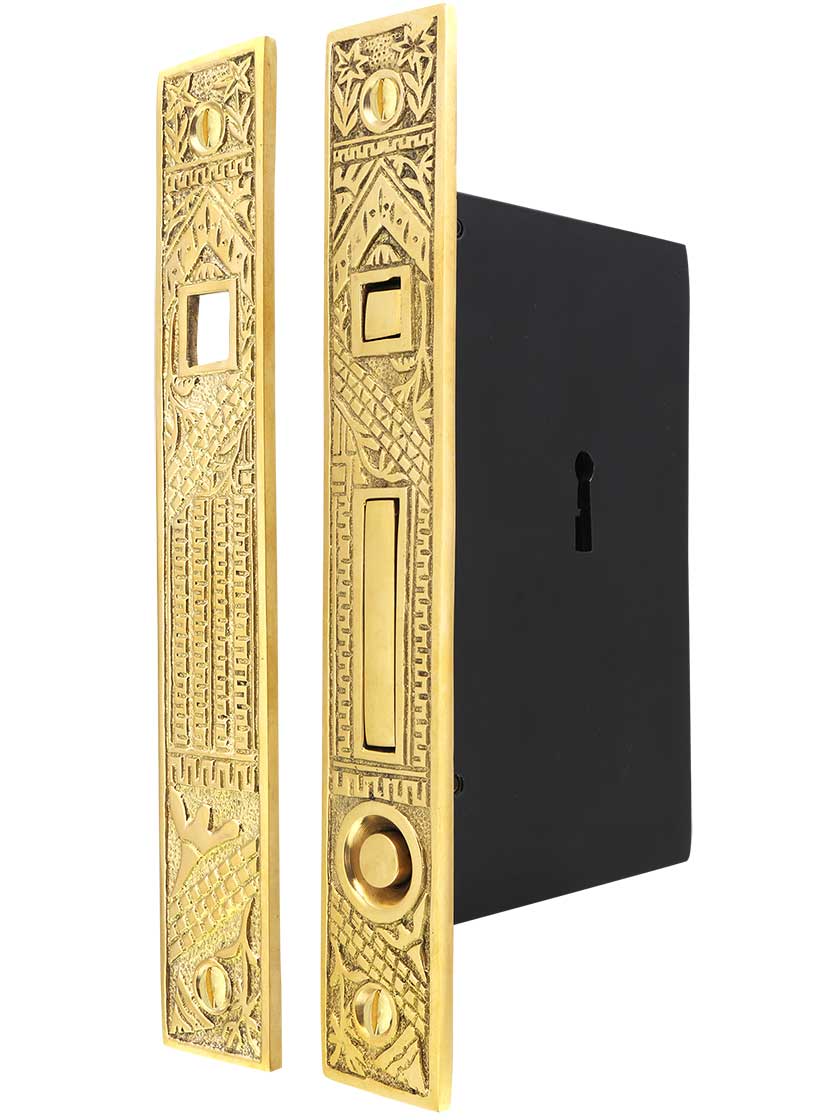

The centerpiece of this Single Lock Pocket-Door Mortise Set features bold geometric markings surrounded by delightful floral patterns. This circa 1880's Eastlake design is reproduced in solid, cast brass with all brass interior working parts. The faceplate and strike are left unlaquered and will develop highlights with use, just like period originals. Pair with our matching pocket-door pulls.

Dimensions: Lock Case: 5 7/16" H x 3 1/2" W x 11/16" Thick. Backset: 2 1/8". Faceplate: 8" H x 1 3/16" W x 3/16" Thick. Finger Pull: 1 3/4" H x 1"W x 1/4" thick. Strike plate: 8" H x 1 3/16" W x 3/16" Thick.

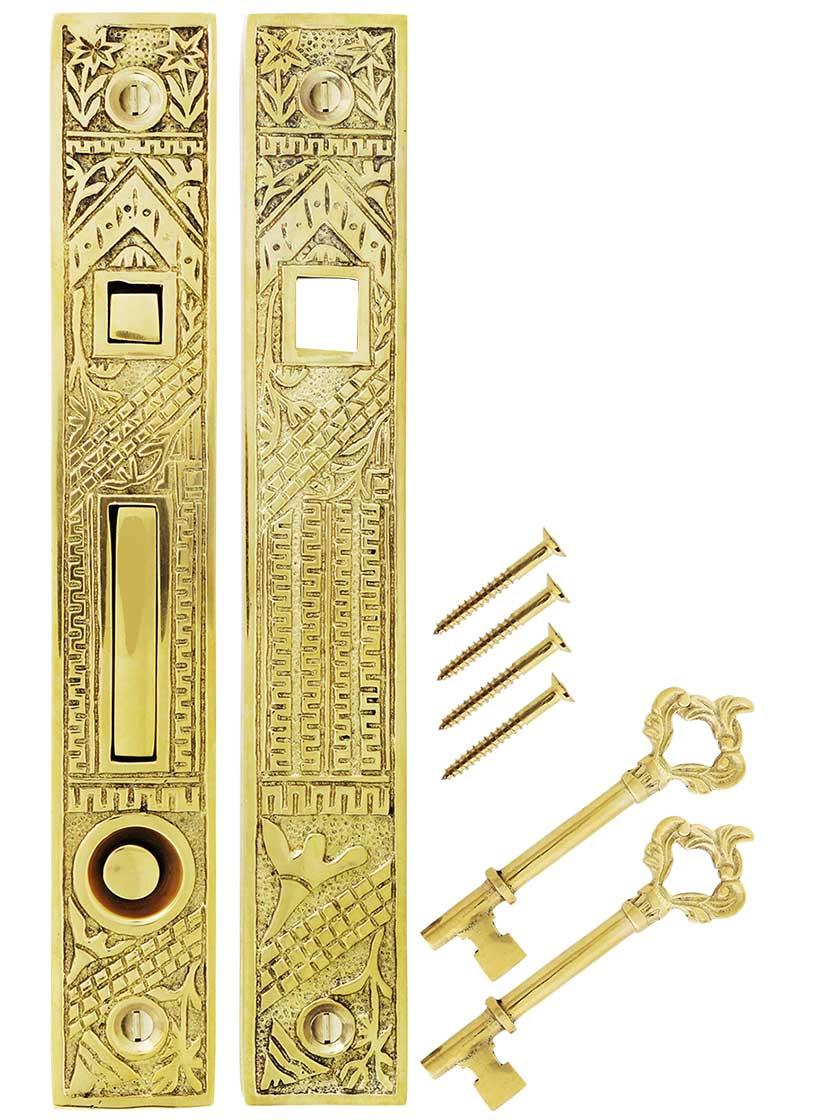

Skeleton key: Overall length: 3 3/4". Barrel length (from bow to bit): 1 1/2". Barrel diameter: 1/8". Bit is 3/8" W x 1/2" H.

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
