Oriental Bit-Key Single Pocket Door Mortise-Lock Set in Antique-by-Hand

Item #: R-06HH-524SET-ABH
$192.90
Quantity discounts available
QuantityPrice

Description

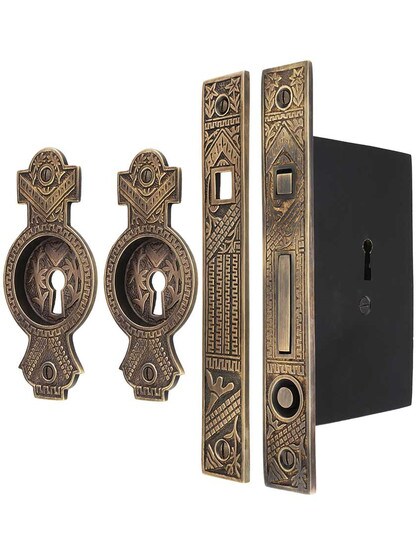

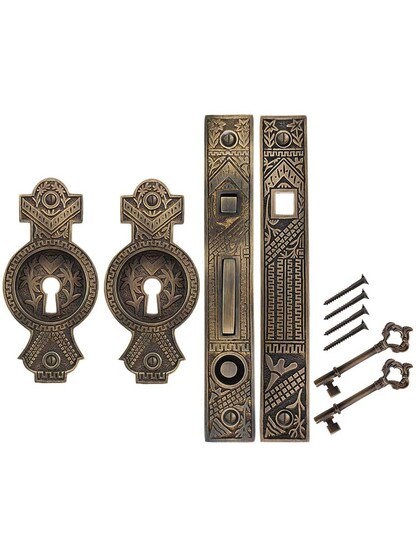

The centerpiece of our Oriental Single Pocket Door Mortise-Lock Set with Oriental Pulls features bold geometric markings surrounded by delightful floral patterns. Its circa 1880's Eastlake design is reproduced in solid, cast brass with all brass interior working parts. It comes in our exclusive Antique by-Hand finish which ages gracefully over time into a beautiful natural patina.

Door Thickness : Minimum 1 3/4"
Dimensions:
Pulls - Outer: 5 1/8" H x 2 3/8" W Inner: 1 3/4" D. Mortise depth: 9/32"
Surface plate: 1/8" thickness
Keyhole: 7/8" H
Screws: 2ea #6 1" wood
Lock Case: 5 7/16" H x 3 1/2" W x 11/16" Thick
Backset: 2 1/8"
Faceplate: 8" H x 1 3/16" W x 3/16" Thick
Finger Pull: 1 3/4" H x 1"W x 1/4" thick
Strike plate: 8" H x 1 3/16" W x 3/16" Thick
Screws: #8 x 1 3/8" wood
Skeleton key: Overall length: 3 3/4"
Barrel length (from bow to bit): 1 1/2"
Barrel diameter: 1/8"
Bit is 3/8" W x 1/2" H

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
