Pair Of 3/8 Inch Diameter New York Style 2 1/4 Inch Offset Center Hinge

$22.79 Sold Out
Quantity discounts available
QuantityPrice
Item #: R-09EH-EHNYC225

Description

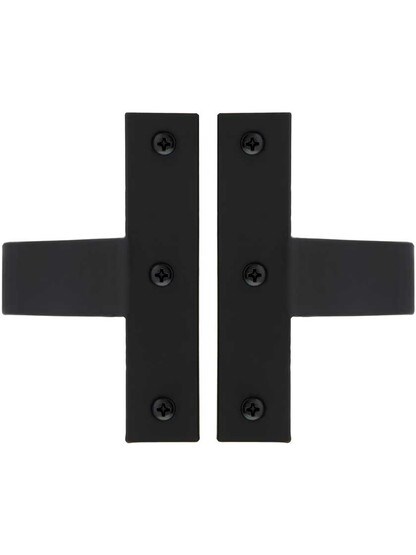

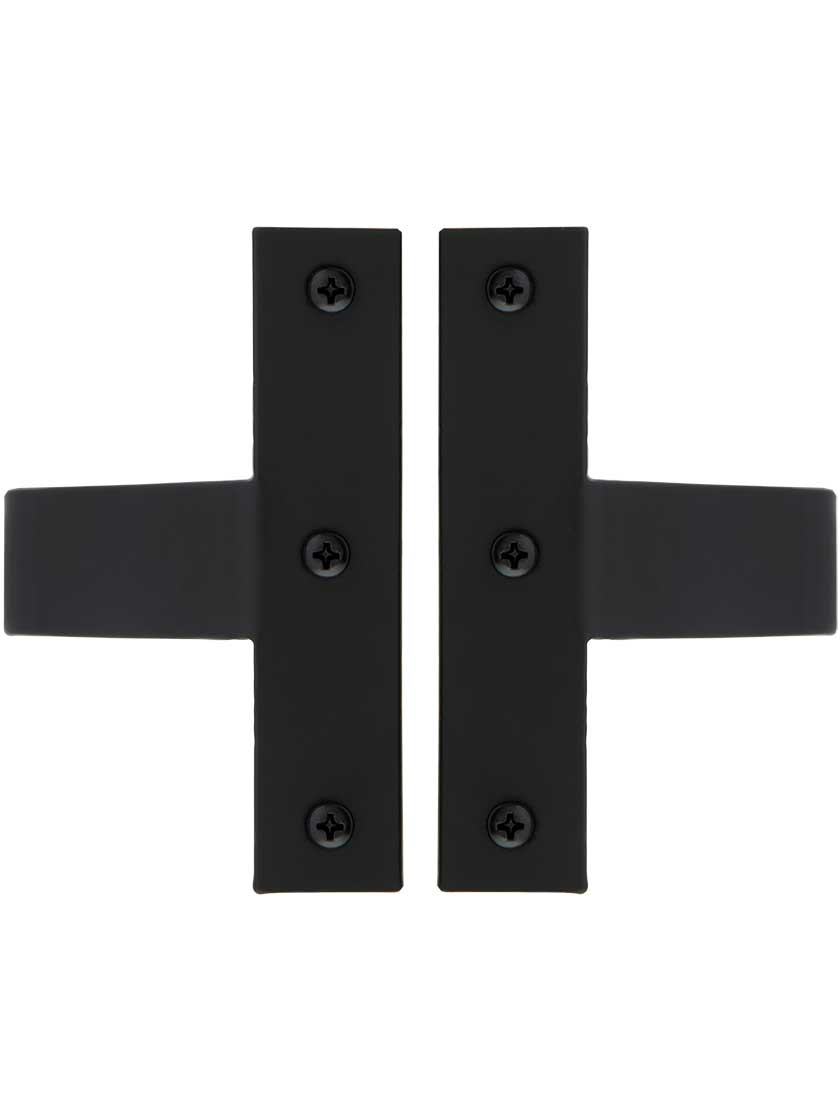

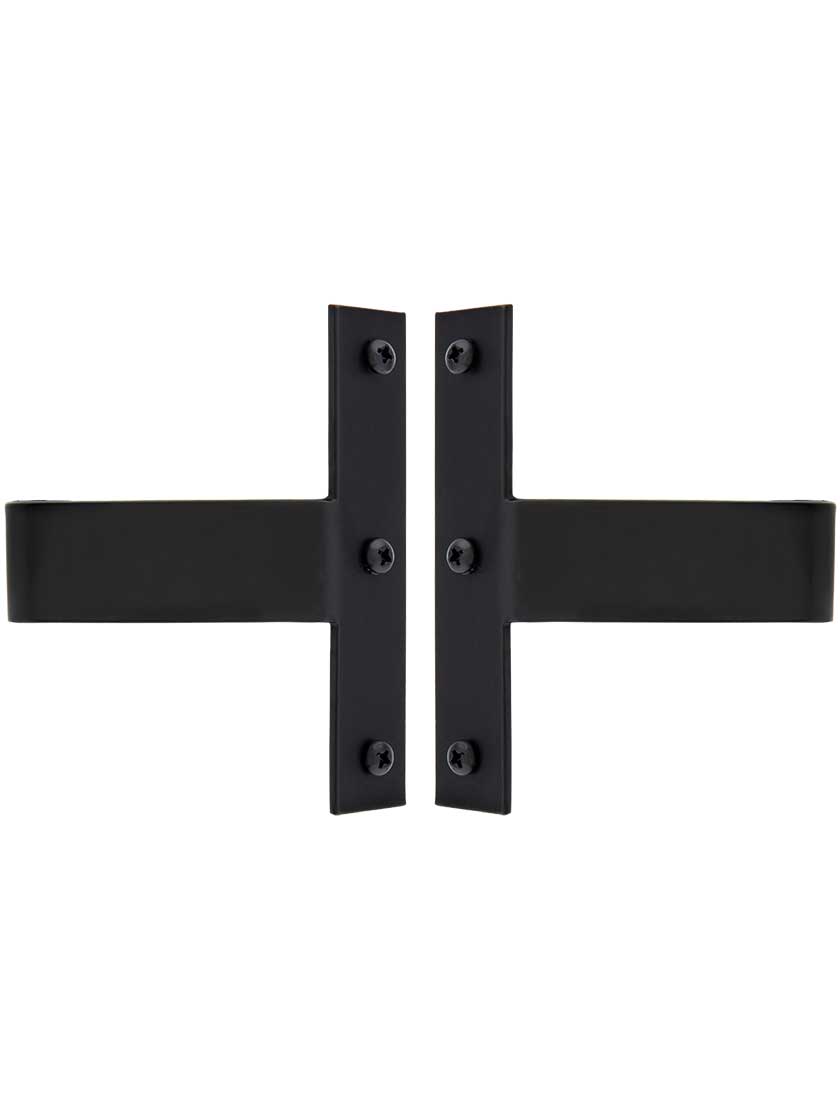

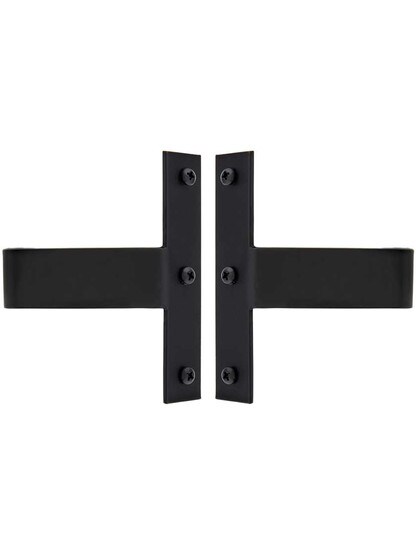

Use these traditional style shutter straps to replace worn or missing parts, or to build shutter hinges for your specific needs (mounting pintles sold separately). Usually used with New York or L style shutter hinges as a middle support. Made from 1/8 inch thick forged galvanized carbon steel with a black powder coating.

Dimensions:
Strap: 4 1/4" H x 2 1/2" W
Thickness: 1/8"
Stile: 1" W
Reveal 1 1/4"
Offset: 2 1/4"
Receives 3/8" Pintle Pin
Fastener/s: #8 x 3/4" wood screws

Hardware Tip

The offset on shutter hinges is approximately the depth measurement from the back of the strap to the center of the pintle hole. Sometimes the offset measurement does not include the strap thickness.
