Features
  • Forged Solid Brass for Crisp Detail
  • Match Any Decor with an Array of Popular Finish Options
  • Choose from Three Interior Knob/Lever Options
  • Heavy-Duty Spring Assisted Levers and Knobs
Details
Style Mid-Century
Item Sold As Complete Set for One Door
Included Hardware All Necessary Mounting Accessories
Usually Ships In 10 to 12 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers




Quantity:




Description & Dimensions

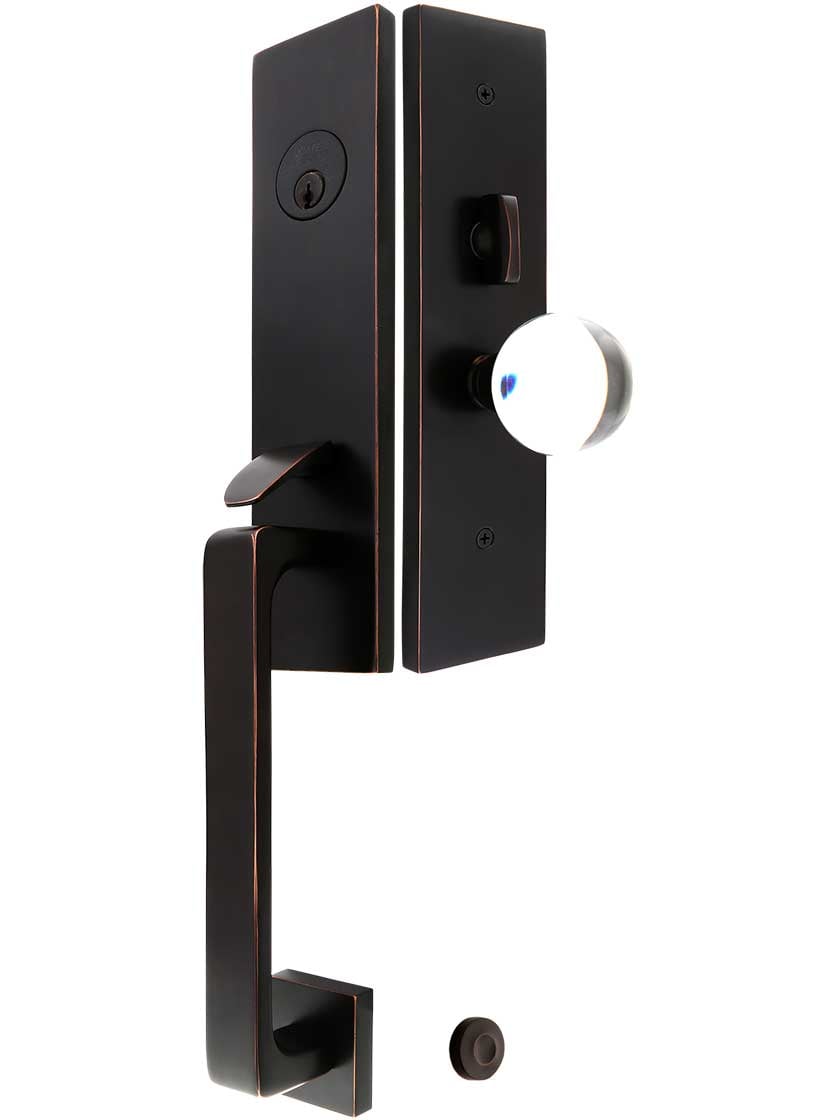

Give your door a contemporary look with the Mormont Mortise Thumblatch Entry Set. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from decorative knobs or levers made of glittering crystal glass or solid brass - so many ways to express your unique style!

Doorset dimensions:

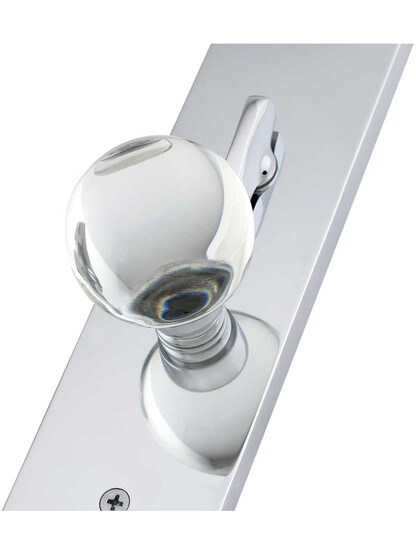

Bristol knob: 2 3/32"W

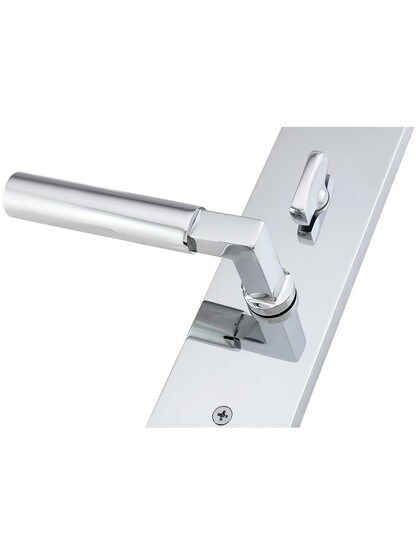

Hercules lever: 5" L

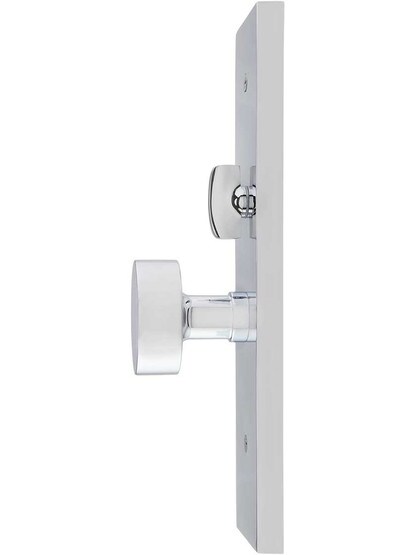

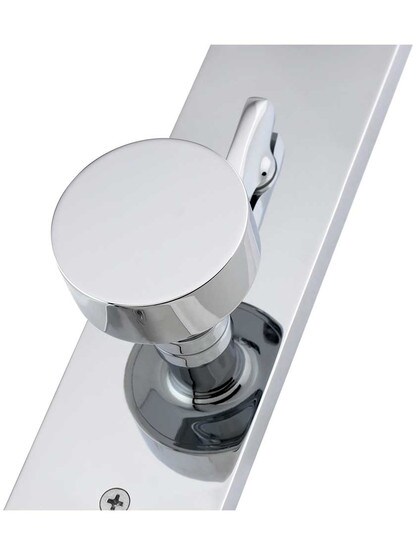

Round knob: 2 1/4" D
Exterior: 17 5/8" H overall, backplate 10 1/4" H x 2 1/2" W (top), 2" H x 1 3/4" W (bottom)
Exterior Projection: 2 1/2"
Interior: 10 1/4" H x 2 1/2" W
Interior projection depends on knob/lever style.
Plate thickness: 1/2"

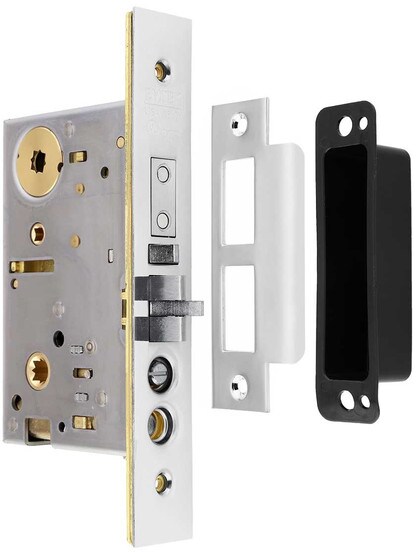

Mortise lock dimensions:
Backset: 2 1/2"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick.
Lock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W.
The lock includes a 1 1/2" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.



Hardware Tip:
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories
