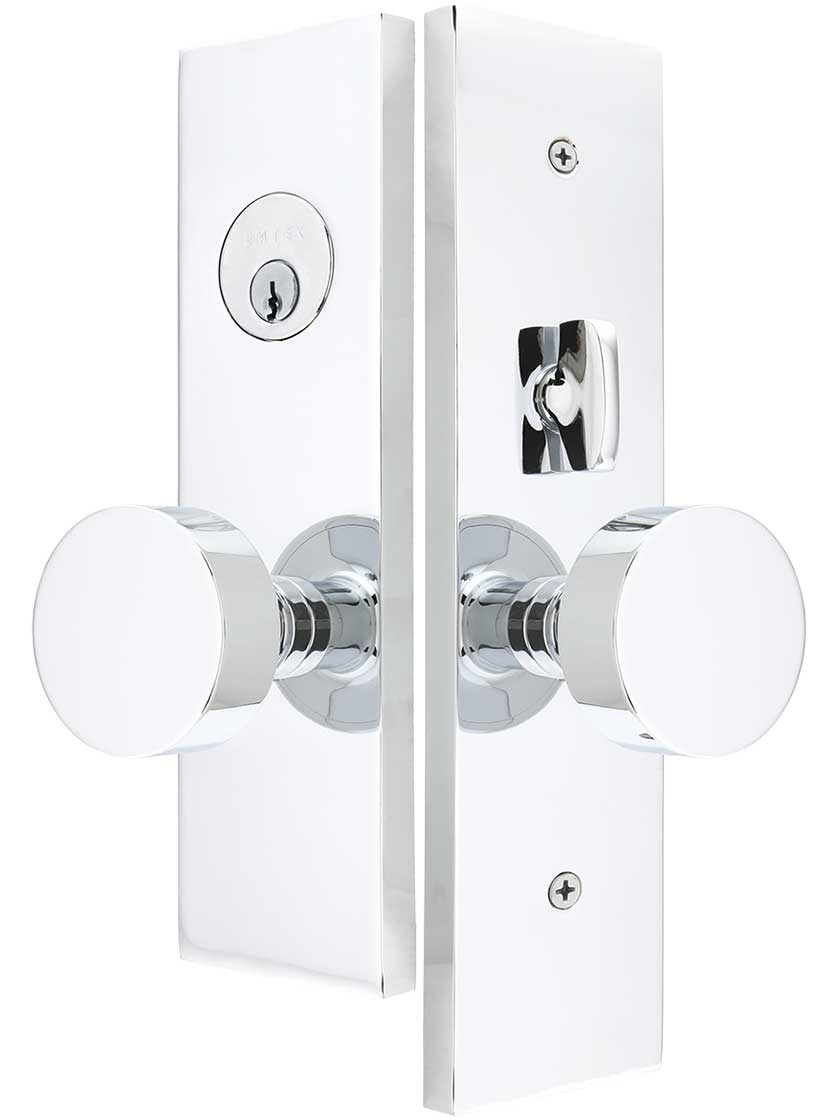

Mormont Mortise Entry Set with Round Knobs

Select Your Finish:


Item #: RS-05EM-3545ROUX
$716.90
Quantity discounts available
QuantityPrice

Description

Give your door a contemporary look with the Mormont Mortise Entry Set with Round Knobs. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from a host of popular finish options.

Doorset dimensions:

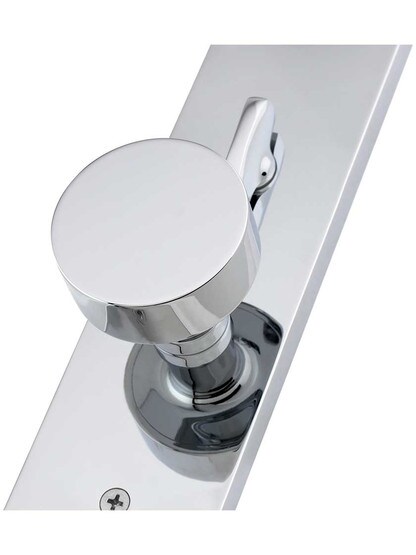

Round knob: 2 1/4" D
Exterior: 8 15/16" H x 2 1/2" W
Interior: 10 1/4" x 2 1/2"

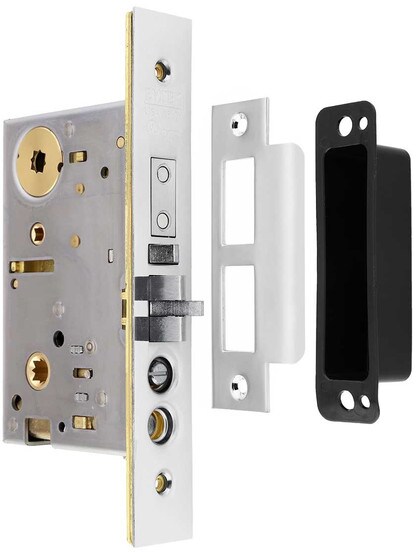

Mortise lock dimensions:
Backset: 2 1/2" or 2 3/4"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick
Lock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W
The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.

This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.

Specs

Product Specifications

Dimensions, specifications and detailed product info
