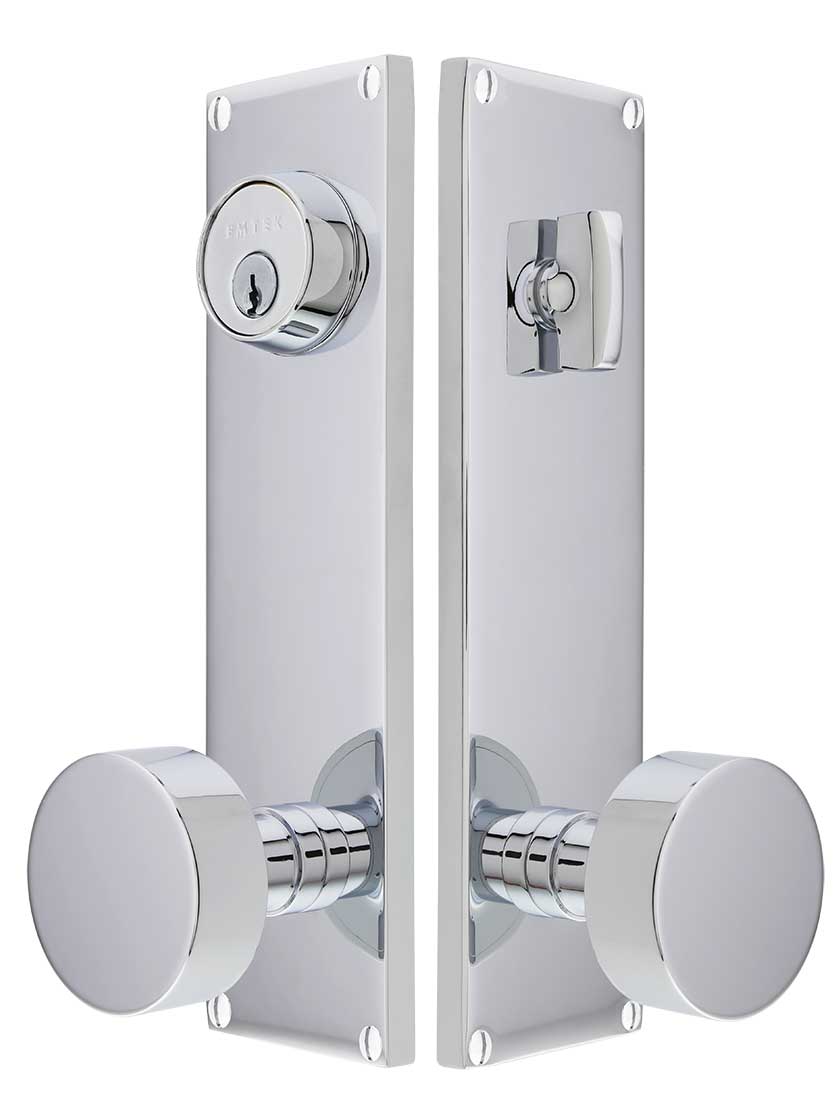

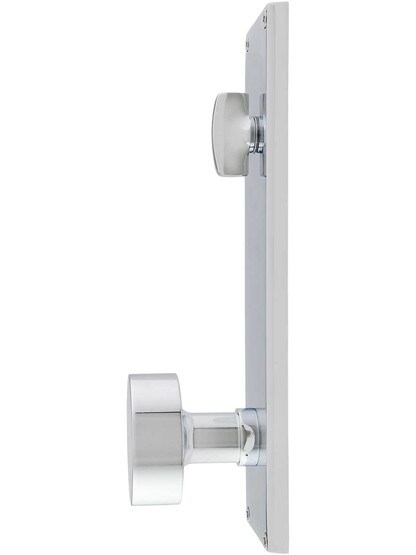

Modern Rectangular Entry Set with Disc Knobs

Your Selection:

Select Your Finish:


$259.90
Quantity discounts available
QuantityPrice
Item #: RS-05EM-8114ROUX

Description

Understated style and a minimal design make the Modern Rectangular Door Set with Disc Knobs a must for contemporary homes. Featuring high-tech mechanics, the result is silky smooth, trouble-free operation unlike anything you've ever experienced. Finely crafted from solid forged brass, this set guarantees you a lifetime of beauty and superior performance.

Dimensions:
Door set:

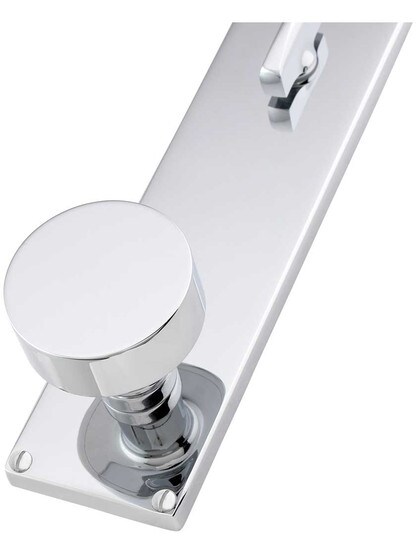

Knob: 2 1/4" D x 2 11/16" projection
Backplate: 9" H x 2 7/16" W
Plate thickness: 3/8

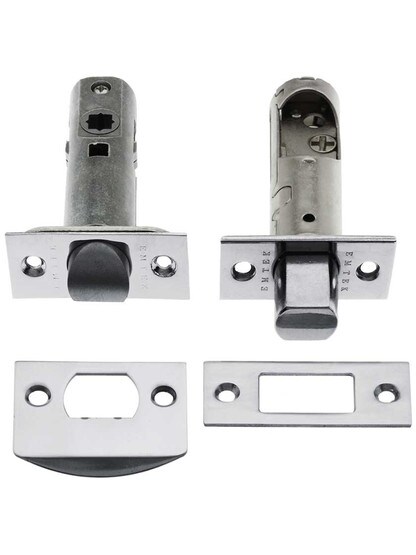

Latch:
Latch case: 7/8" D
Latch face plate: 2 1/4" H x 1" W

Deadbolt specs: Face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.

This set will fit doors from 1 1/4" - 1 3/4" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 2 3/4" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob styles, are available by special order. Please call to order.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Included Hardware

Pictured in Matte Black. Your hardware will match the finish selected. Hardware not included with Dummy Sets.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.

Specs

Product Specifications

Dimensions, specifications and detailed product info
