Passage Pocket Door Mortise Set With Rectangular Pulls
Description

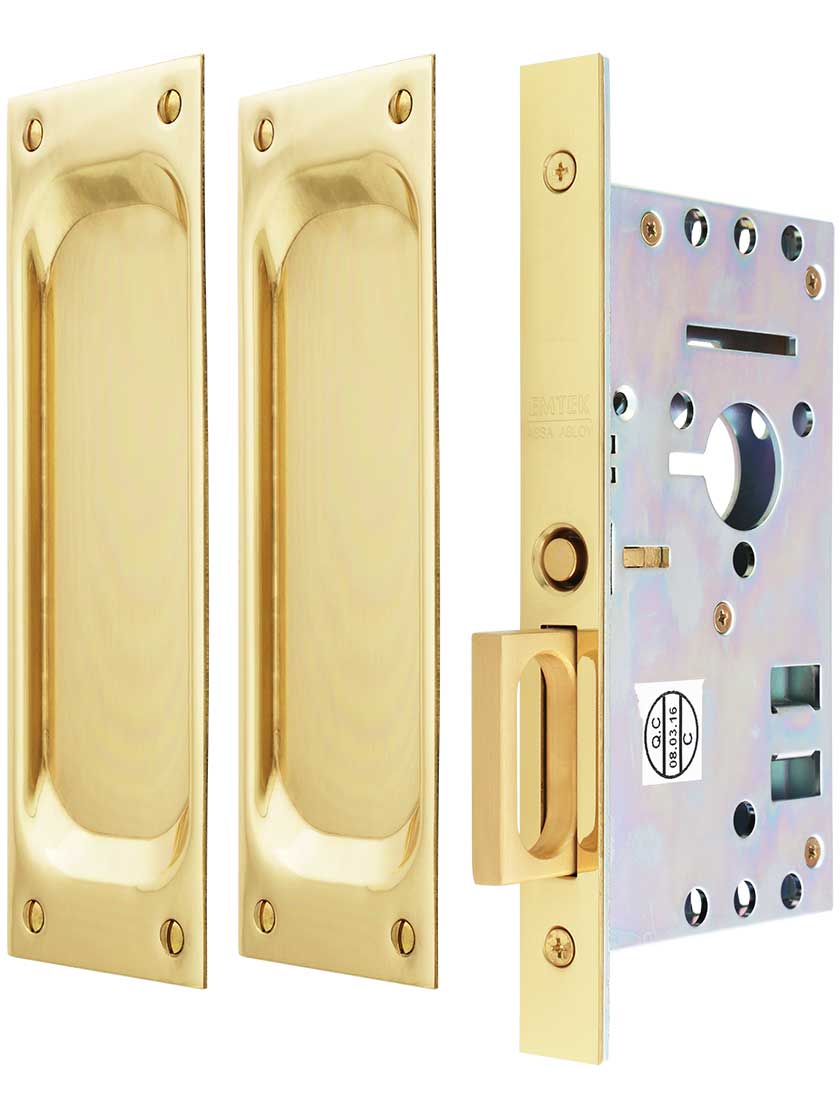

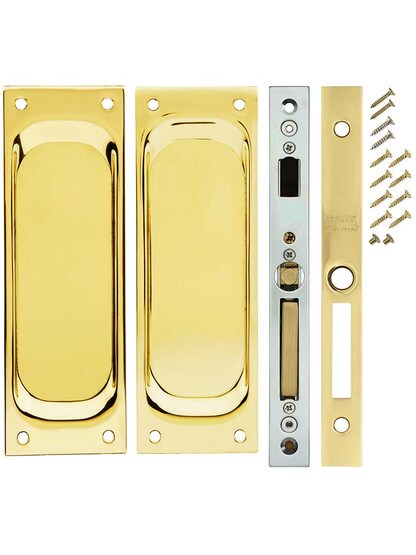

Outfit your pocket door in style with this premium quality passage lock set. The traditional rectangular pulls and oversized face plate are made from solid, wrought brass with your choice of popular finishes. A convenient spring-loaded ring pull completes the classic look. With its slim mortise case and nearly flush profile, this set is ideal for thin pocket doors or doors with a tight frame clearance. If you have non-locking double pocket doors, use one set on each door for a complete and balanced look.
Dimensions. Surface Trim: 7 1/2" H x 2 1/2" W x 1/16" T. The recessed portion of the pulls must be mortised 1/4" into the door. Lock Faceplate: 8" H x 7/8" W X 1/16" Thick. Mortise case: 5 3/4" H x 3 1/2" W x 9/16" thick.
What is PVD finish?
Dimensions. Surface Trim: 7 1/2" H x 2 1/2" W x 1/16" T. The recessed portion of the pulls must be mortised 1/4" into the door. Lock Faceplate: 8" H x 7/8" W X 1/16" Thick. Mortise case: 5 3/4" H x 3 1/2" W x 9/16" thick.
What is PVD finish?
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
Specs
Product Specifications
Dimensions, specifications and detailed product info
WARNING: California Proposition 65
ReviewsProduct Q & A
