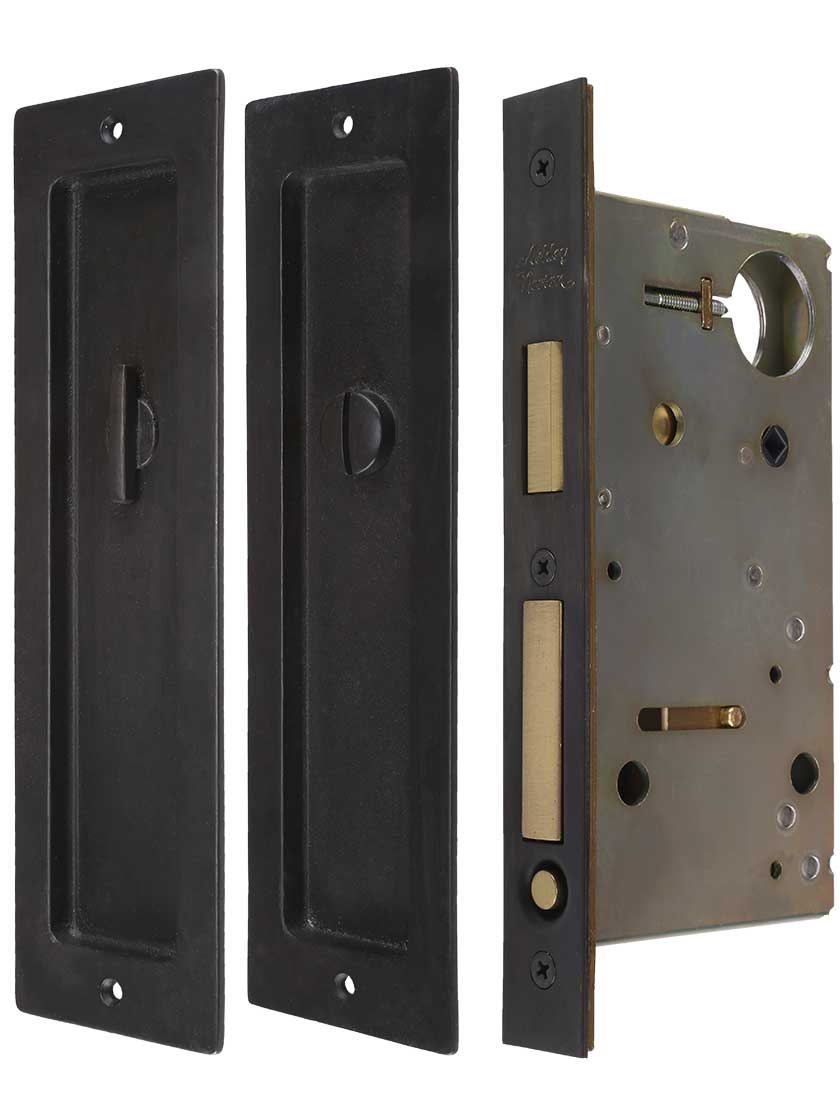

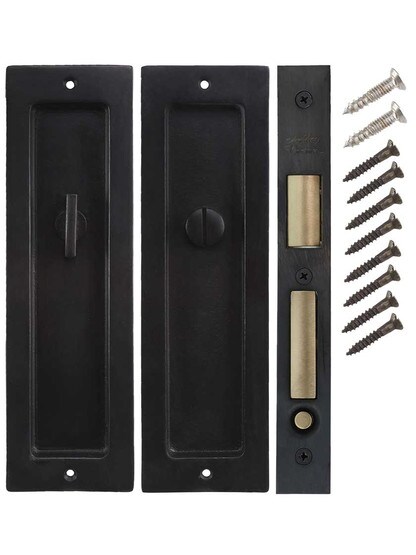

Solid Bronze Privacy Pocket Door Mortise-Lock Set with Rectangular Pulls

Select Your Finish:

  Dark Bronze
Item #: RS-06AN-1830-8-25X
$502.90
Quantity discounts available
QuantityPrice

Description

With its rustic, yet refined presence, our Solid Bronze Privacy Pocket Door Mortise-Lock Set with Rectangular Pulls suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. The lock is activated from the inside by the bow-shaped thumb turn. The latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately). An emergency release button on the exterior allows the door to be unlocked with a common screwdriver. To release the integrated edge pull, simply push the button above the pull.

Dimensions: Pulls - Outer: 8 1/2" H x 2 1/2" W. Inner: 7 1/4" H x 1 3/4" W. Mortise depth: 1/4". Surface plate: 1/8" thickness. Center-to-center: 7 3/4". Fasteners: M3x0.50 x 3/4" wood screws.
Lock Case: 6 1/2" H x 3 1/4" W x 3/4" Thick. Faceplate: 8" H x 1" W x 1/16" Thick(3/16" w/ case face plate). Finger Pull: 2" H x 1 1/8"W x 1/2" thick.
Standard door range: 1 3/4" thick.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
