Premium Passage Pocket-Door Mortise Lock Set with Round Pulls
Description

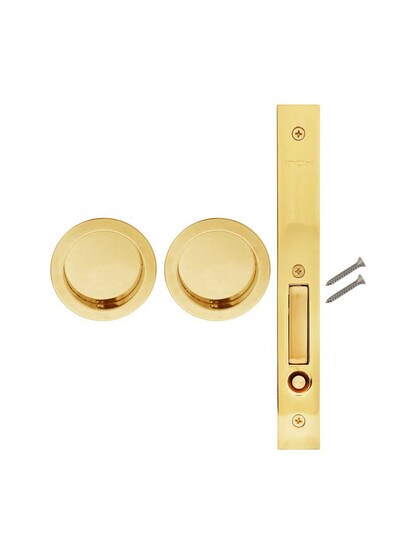

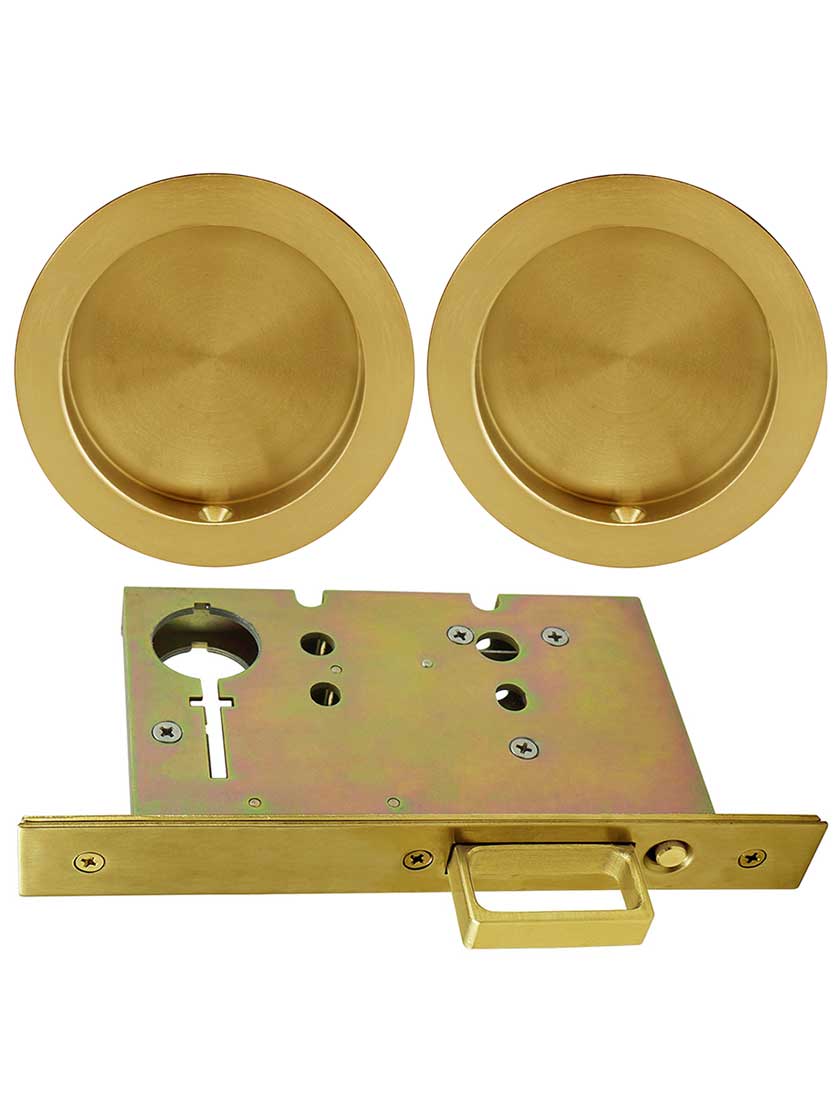

"Refined simplicity" defines the timeless style and charm of our Premium Passage Pocket-Door Mortise Lock Set with Round Pulls. Beautifully designed and crafted, it is suited for single and double non-locking pocket doors. To release the integrated edge pull, simply push the button located below the pull. Choose from a wide assortment of lustrous finishes.
Dimensions: Pulls - Outer: 2 1/2" Dia., Inner: 2 3/32" Dia.. Mortise Depth: 23/64" (9mm). Surface plate: 5/64" (2mm) thickness. Screws: 2ea #6 wood.
Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits and other backsets available, call for details. Lock Case: 6" H x 3 21/32" W x 11/16" Thick (152 x 93 x 17mm). Faceplate: 8" H x 1" W x 3/32" (2mm) Thick. Vertically Adjustable Strike: 3 1/2" H x 1" W x 1 3/32" depth.
NOTE: Not all visible parts of lock will match the finish of the set. For Oil-Rubbed Bronze, Aged Brass and Polished Brass sets, the spring loaded edge pull and push button will be in Satin Nickel finish.
Dimensions: Pulls - Outer: 2 1/2" Dia., Inner: 2 3/32" Dia.. Mortise Depth: 23/64" (9mm). Surface plate: 5/64" (2mm) thickness. Screws: 2ea #6 wood.
Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits and other backsets available, call for details. Lock Case: 6" H x 3 21/32" W x 11/16" Thick (152 x 93 x 17mm). Faceplate: 8" H x 1" W x 3/32" (2mm) Thick. Vertically Adjustable Strike: 3 1/2" H x 1" W x 1 3/32" depth.
NOTE: Not all visible parts of lock will match the finish of the set. For Oil-Rubbed Bronze, Aged Brass and Polished Brass sets, the spring loaded edge pull and push button will be in Satin Nickel finish.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
