Premium Keyed Pocket-Door Mortise Lock Set with Round Pulls

Your Selection:

Select Your Finish:


$367.90 - $407.90
Quantity discounts available
QuantityPrice
Item #: RS-06UN-FH22PD8450X

Description

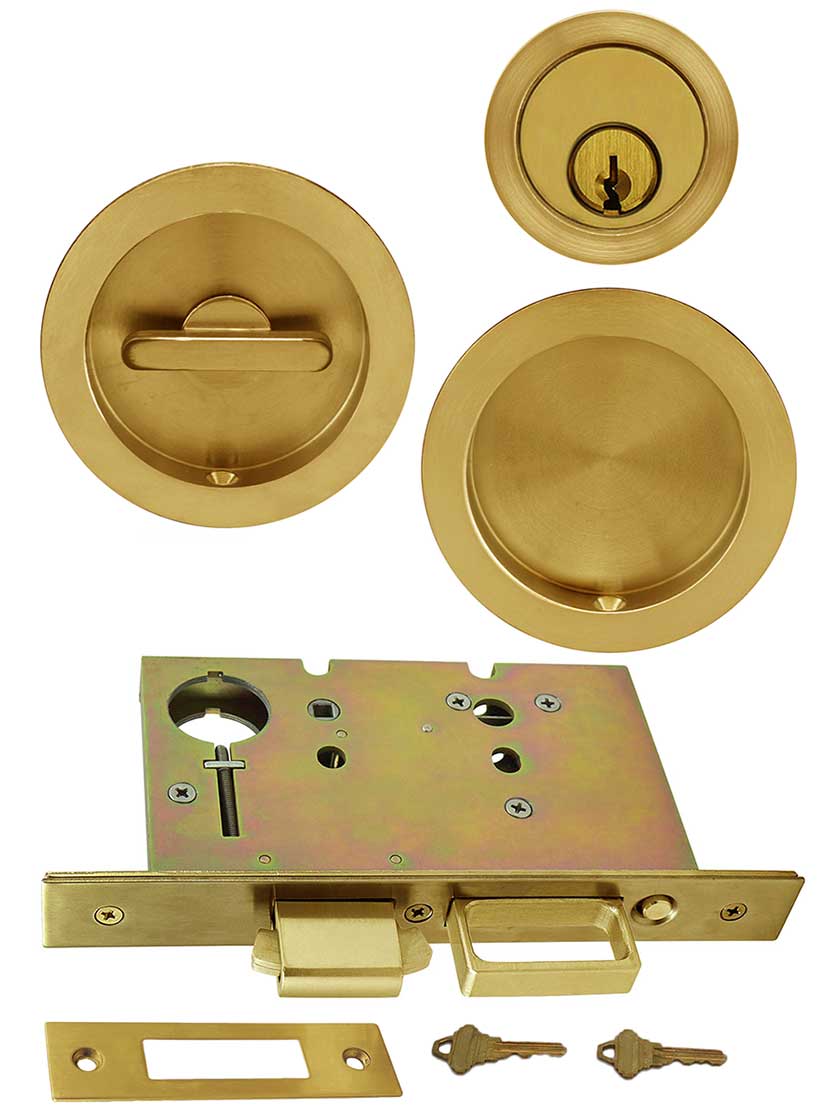

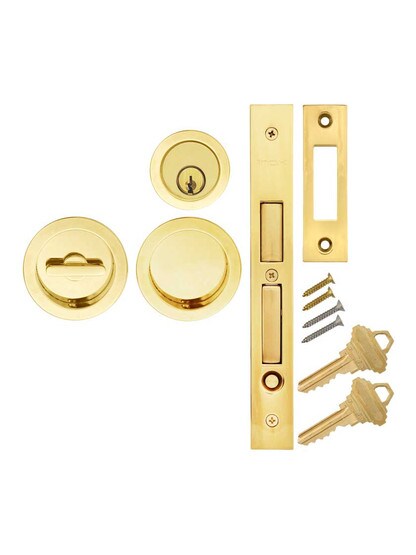

"Refined simplicity" defines the timeless style and charm of our Premium Keyed Pocket-Door Mortise Lock Set with Round Pulls is an excellent choice for a variety of interiors. Beautifully designed and crafted, it features a convenient spring-loaded edge pull for quiet, smooth operation. The depth-adjustable strike makes it easier to install, while self-retractable wing hooks on the latch prevent scratches to the opposite surface. For a complete double pocket door set, combine this locking set with our matching dummy set. Choose from a wide assortment of lustrous finishes.

The lock is activated from outside by a standard key and from inside by the thumb-turn. When locked, the latch bolt is held in place by the included strike or dummy mortise case (for double doors - purchase separately).

Dimensions: Pulls - Outer: 2 1/2" Dia., Inner: 2 3/32" Dia.. Mortise Depth: 23/64" (9mm). Surface plate: 5/64" (2mm) thickness. Screws: 2ea #6 wood.
Backset: 2 3/4". Standard Door Thickness: 1 3/4". Thick door kits and other backsets available, call for details. Lock Case: 6" H x 3 21/32" W x 11/16" Thick (152 x 93 x 17mm). Faceplate: 8" H x 1" W x 3/32" (2mm) Thick. Vertically Adjustable Strike: 3 1/2" H x 1" W x 1 3/32" depth. Deadbolt: 1" D. Trim ring: 1 13/16" D. Cylinder: 1 23/64" Dia. Schlage C keyware 5 pin mortise cylinder with 2 keys.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
WARNING: California Proposition 65
