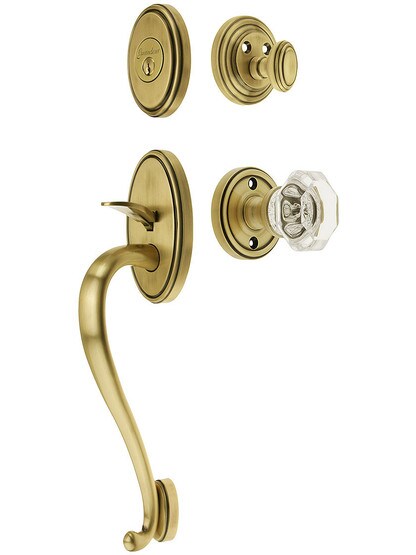

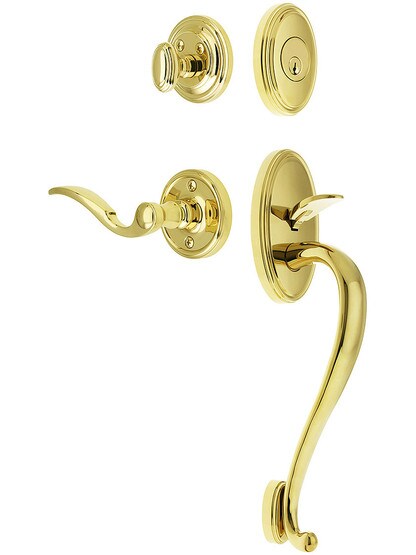

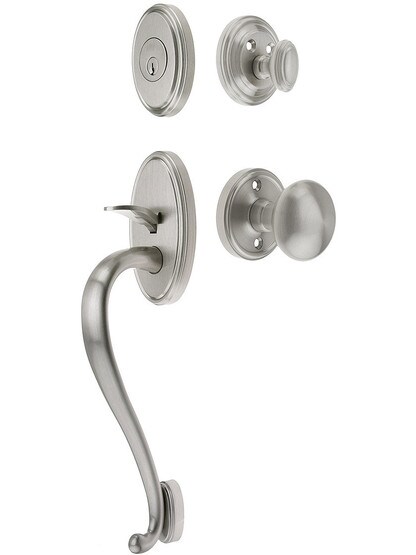

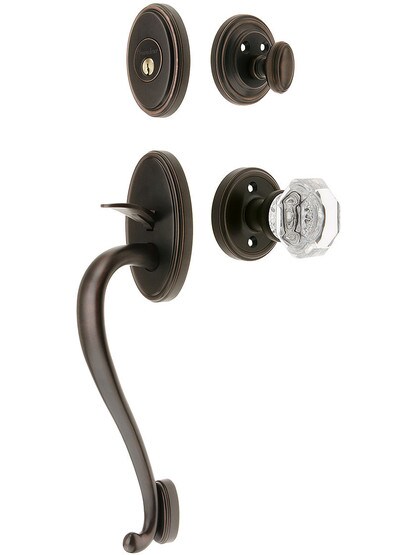

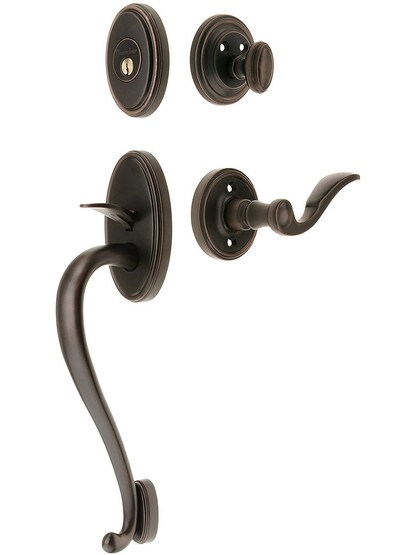

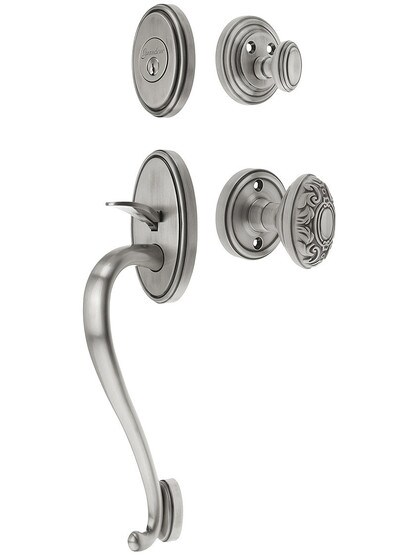

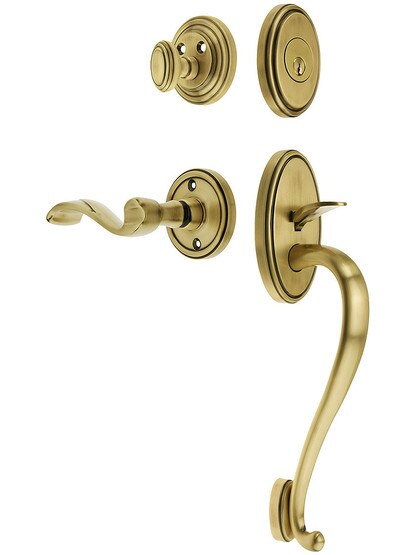

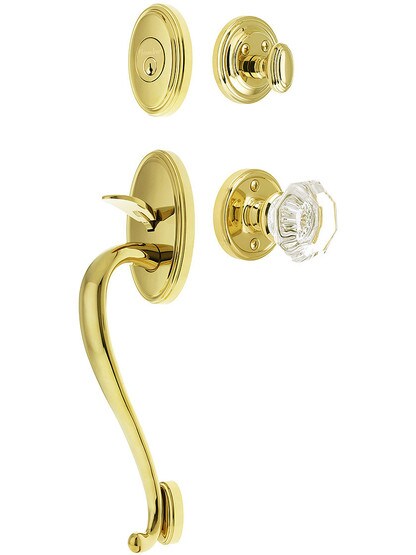

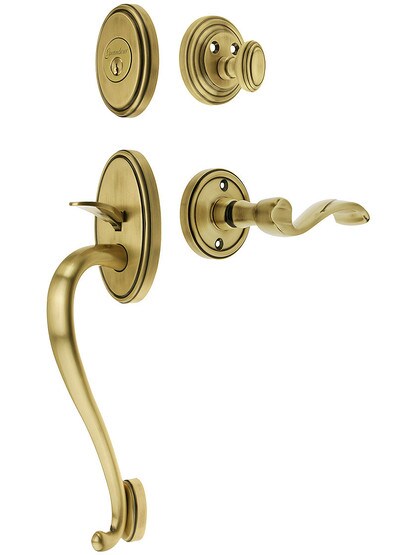

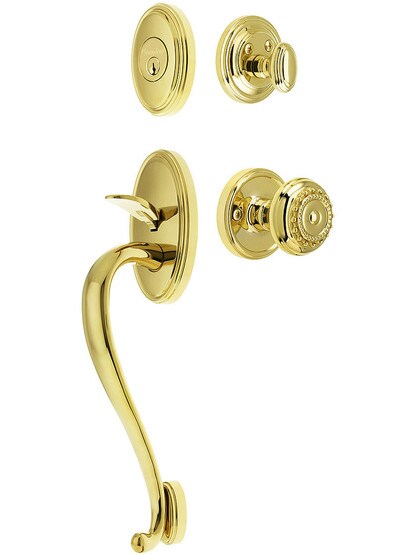

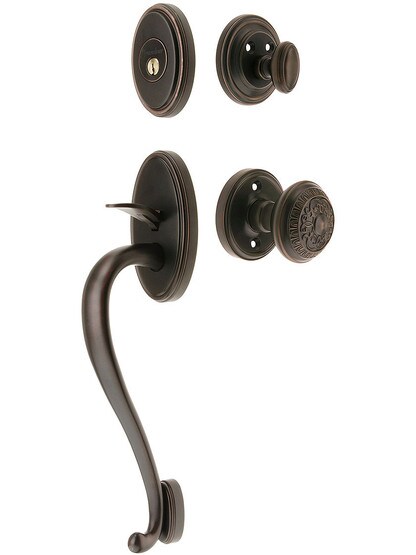

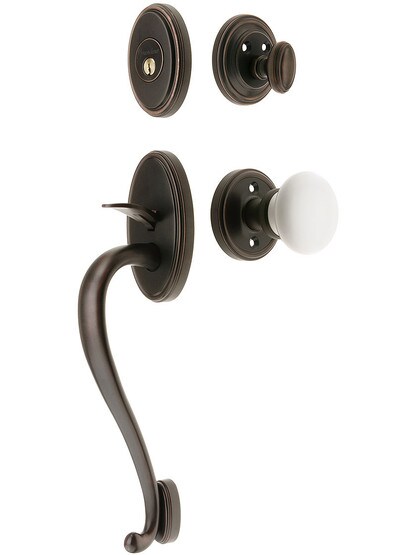

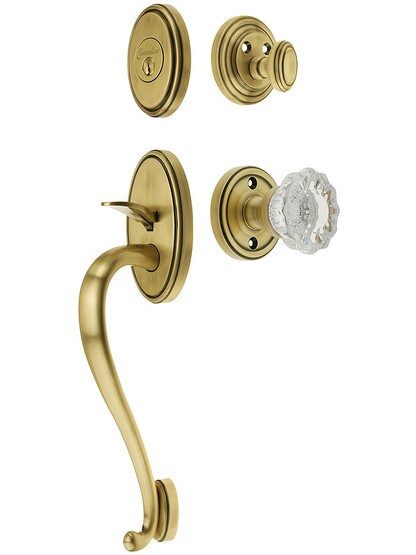

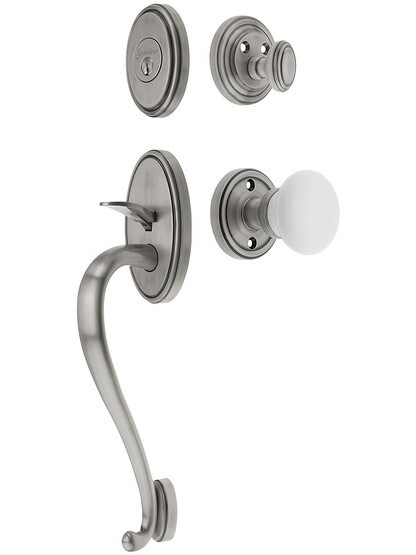

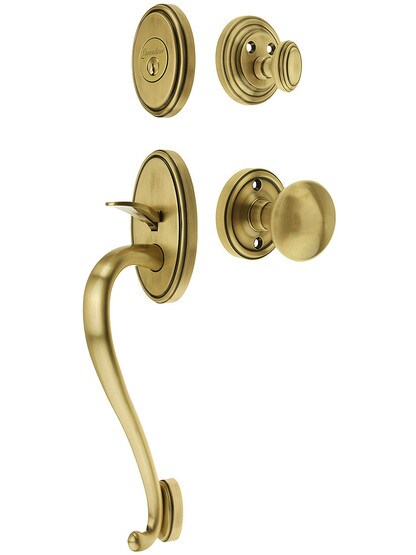

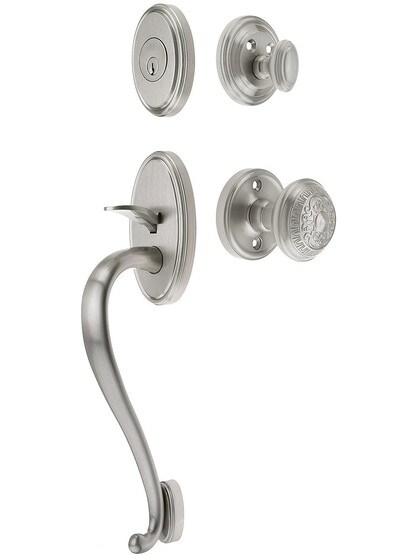

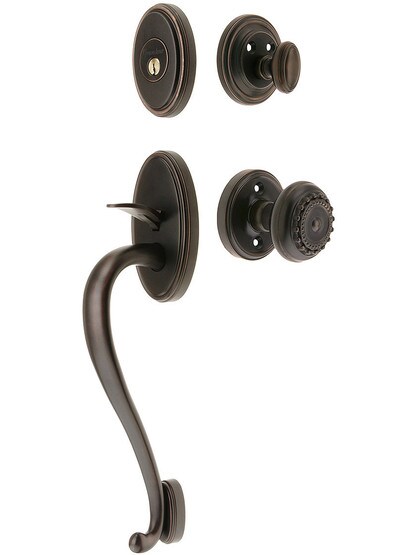

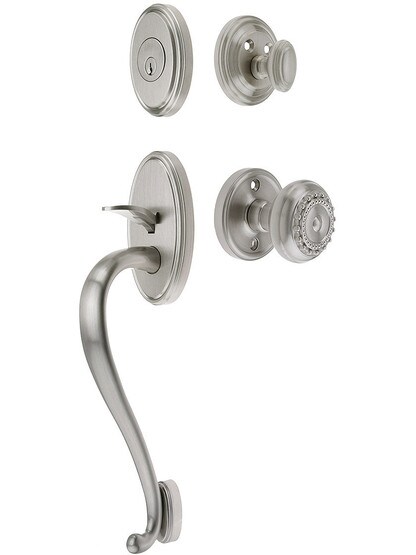

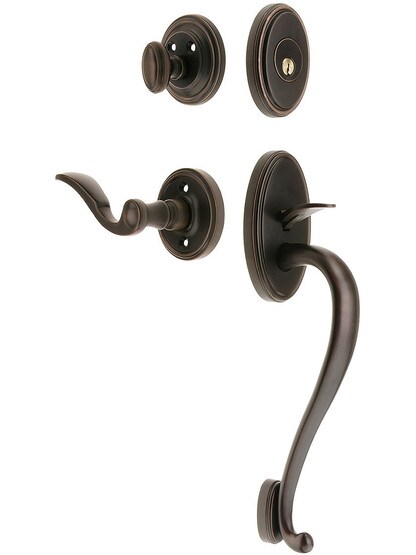

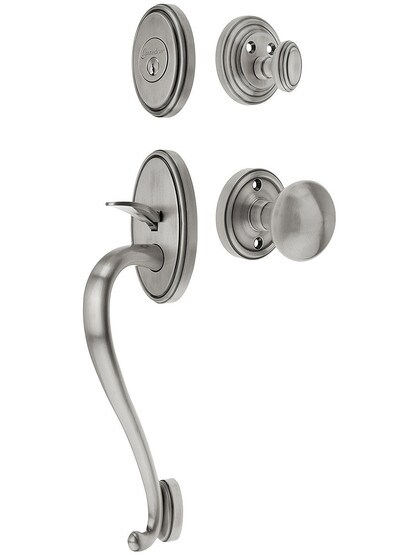

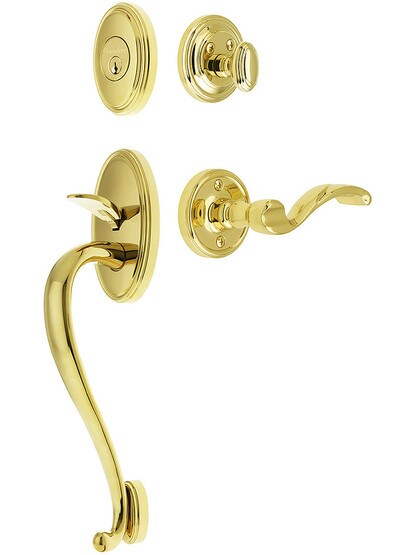

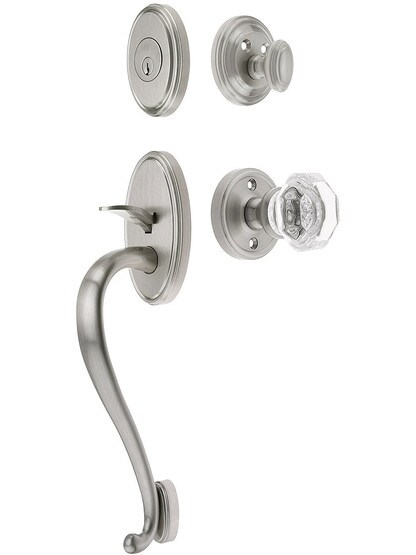

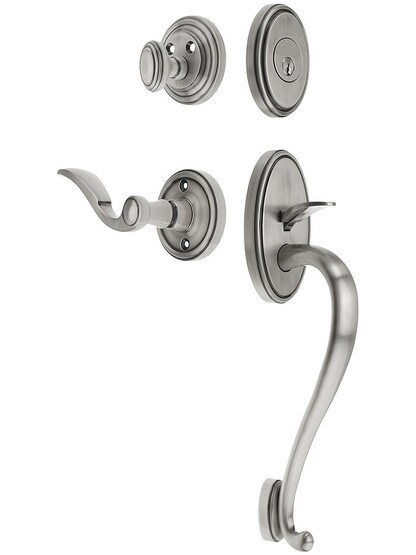

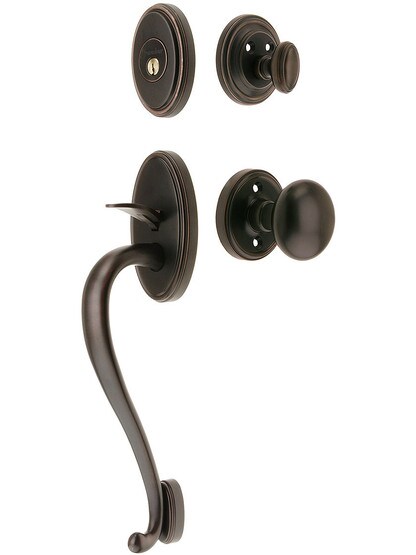

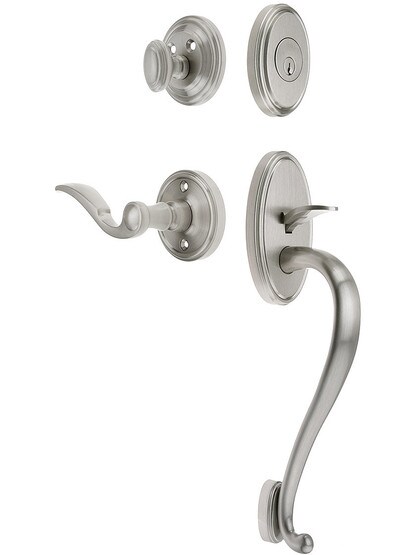

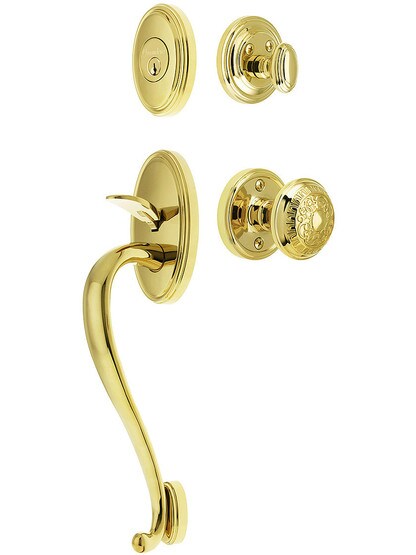

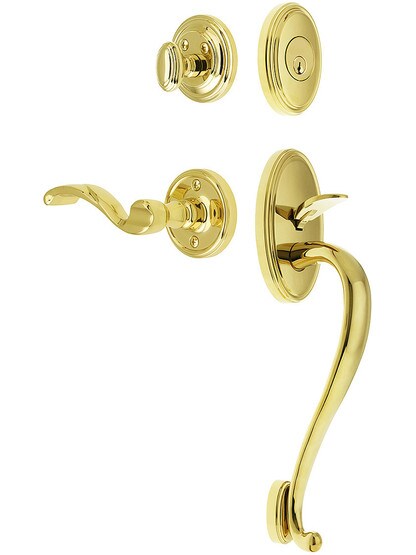

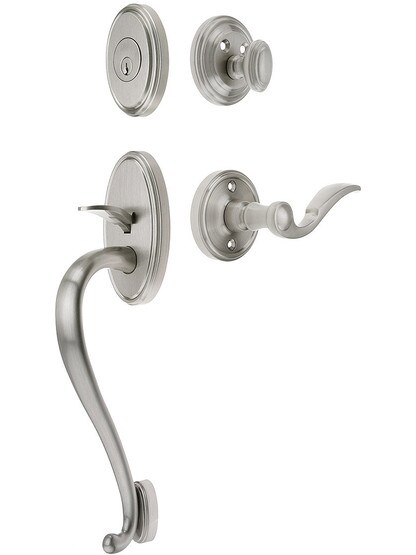

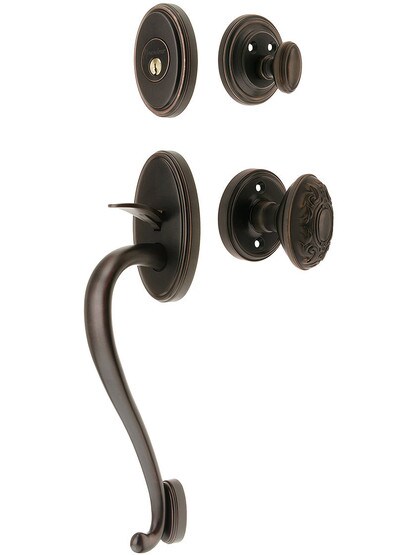

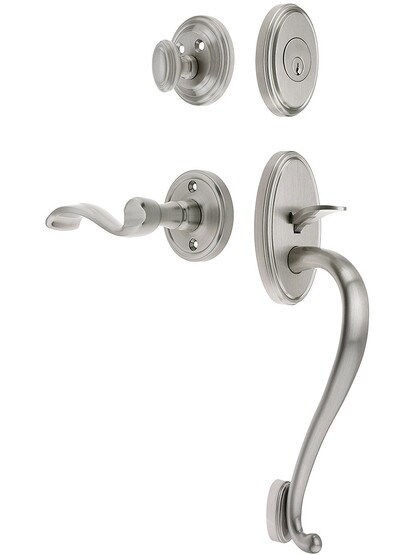

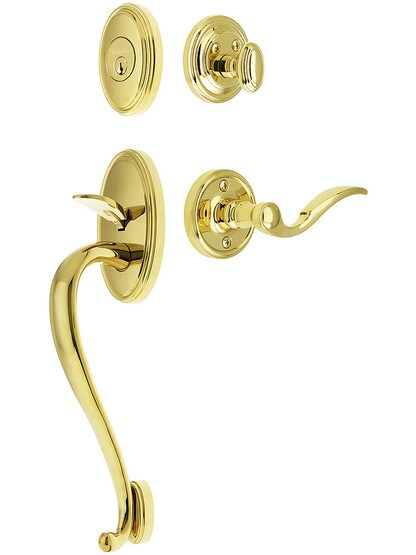

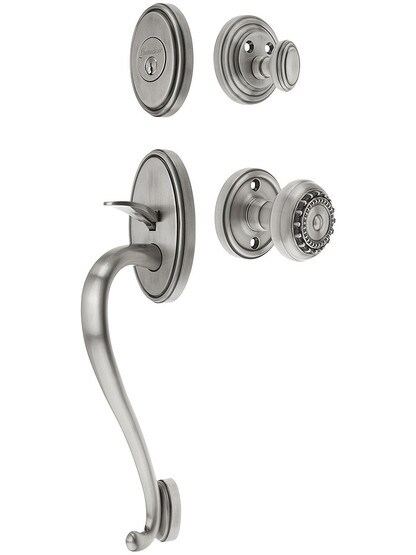

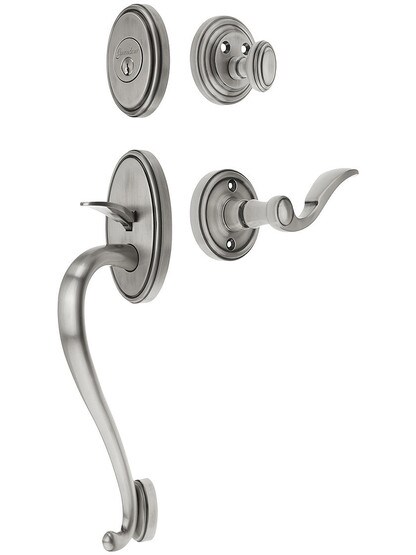

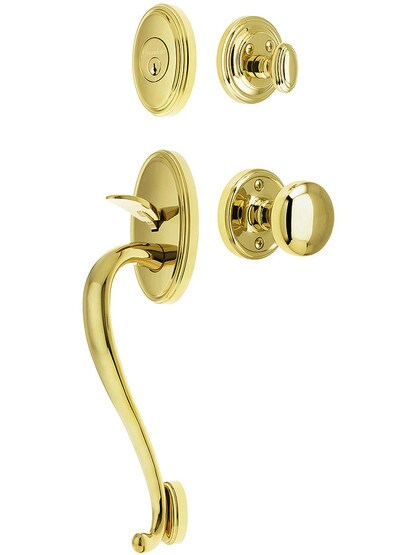

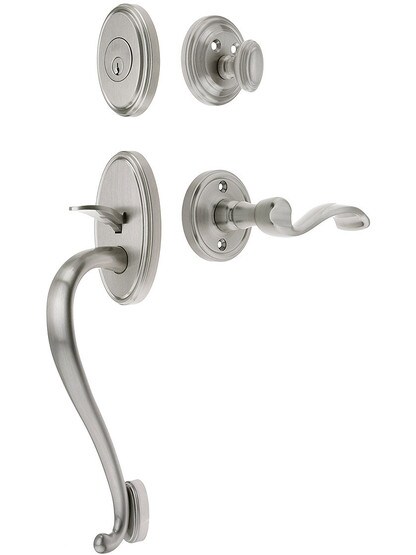

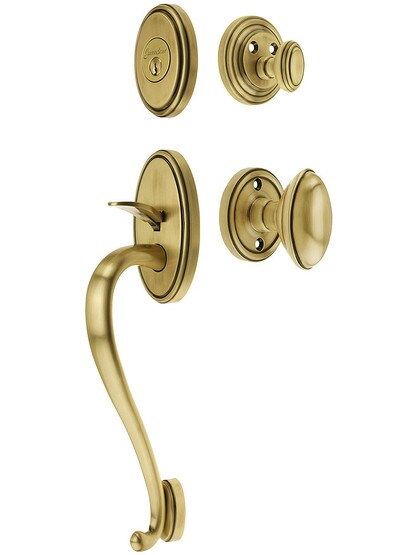

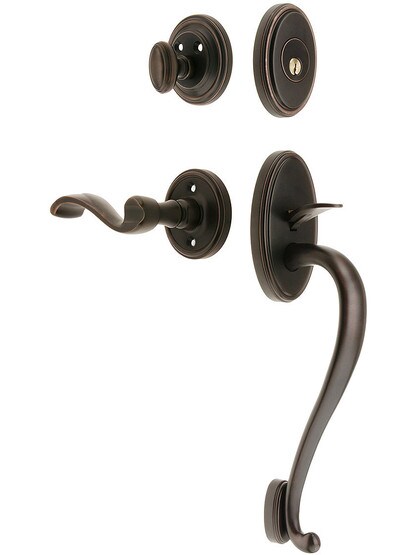

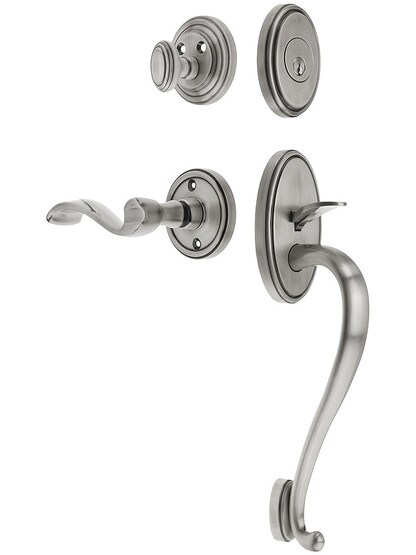

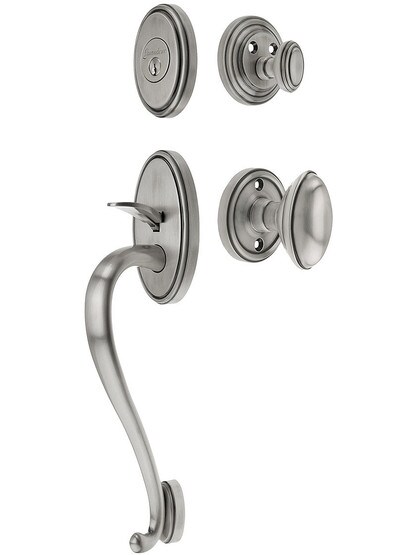

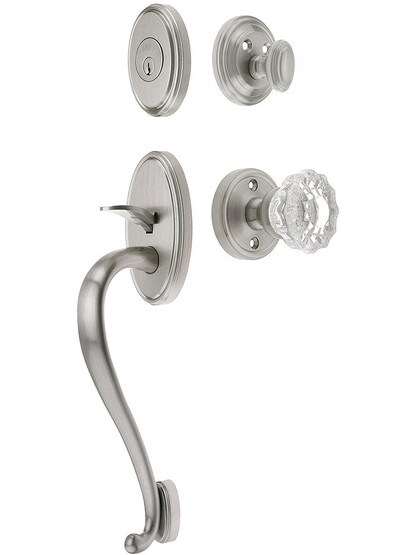

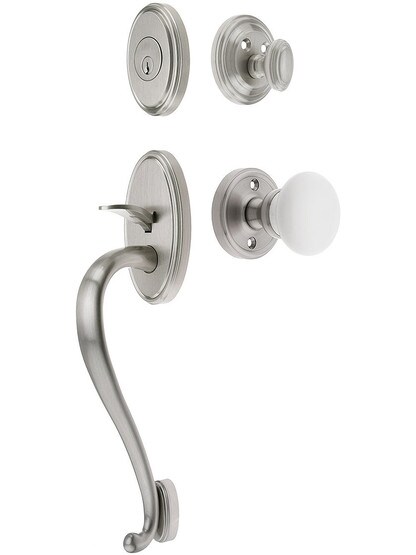

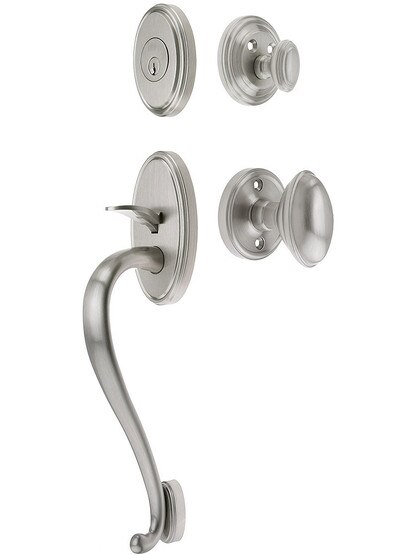

Grandeur "Georgetown" Thumblatch Entry Set With Georgetown Rosette Interior

Your Selection:

Select Your Finish:



Select Your Knobs - Handing:


$506.90
Quantity discounts available
QuantityPrice
Item #: RS-05NW-ENTRY-GEOX

Description

Simple, yet elegant in design, traditional, yet fresh in outlook, the "Georgetown" thumb latch entry set goes with everything, from Colonial Revival to Mid-Century Modern. And with 5 finishes and 10 interior knob / lever options, including solid brass, porcelain and 24% lead crystal, you can personalize this classic design to reflect your unique style!

Grandeur's vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional forgings, top quality materials, and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.

Door set dimensions: Exterior handle is 9 1/2" H. Exterior handle rosette is 4 7/8" x 2 3/4". Interior rosette is 2 5/8" in diameter.

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Diameter of face plate is 2 5/8". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.

This set will fit doors from 1 3/4" - 2 1/4" in thickness, with a minimum 4 5/8" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call for details.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Included Hardware

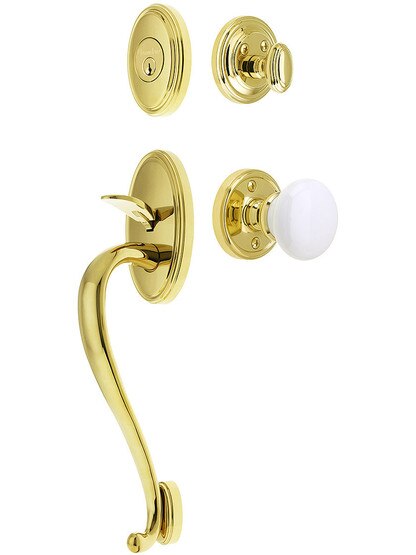

Pictured in PVD Finish. Your hardware will match the finish selected.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Thumblatch: Usually refers to an entry door set which has a lever above the handle, which when depressed by the thumb, unlatches the door.
