Polished Nickel Polished
Nickel
PVD PVD
Satin Nickel Satin
Nickel
Antique Brass Antique
Brass
Antique Pewter Antique
Pewter
Timeless Bronze Timeless
Bronze
ZOOM LARGE/ALTERNATE VIEWS LARGE/ALTERNATE VIEWS
Features
  • Premium Brass Forging for Exceptional Detail
  • Elegant Design for Luxurious Style
  • Pre-Attached Levers Offer Easy Installation
  • Precision Spring Assist Provides Smooth Operation
  • Lifetime Mechanical and 10-Year Finish Warranty
Details
Style Colonial
Item Sold As Complete Set for One Door
Included Hardware All Necessary Mounting Accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty Lifetime Mechanical & 10 Year Finish
Read Product Questions & Answers




Quantity:




Description & Dimensions

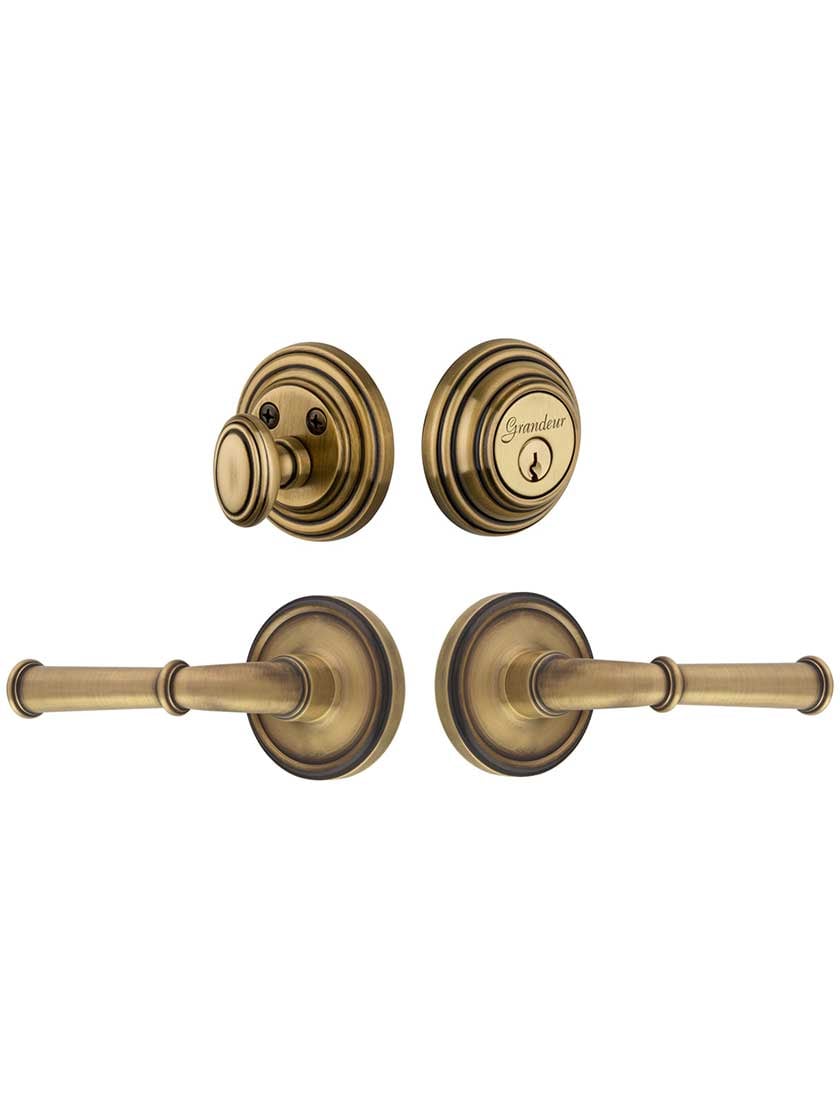

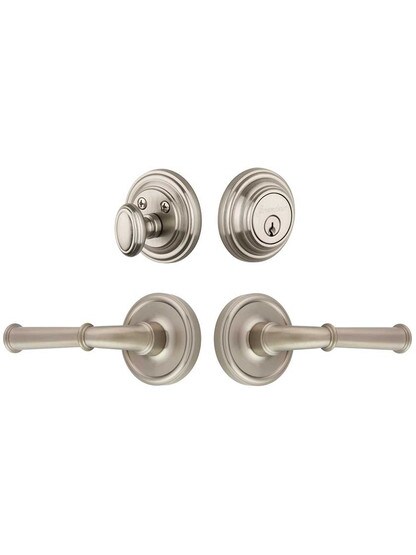

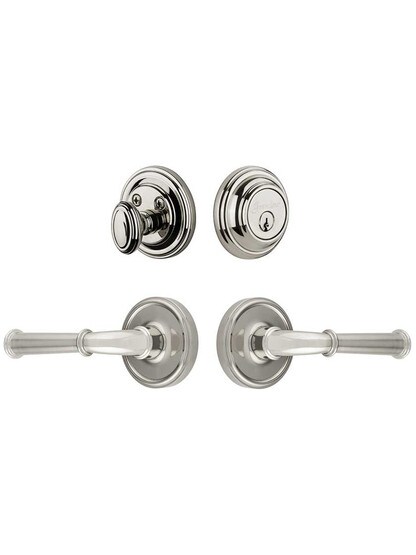

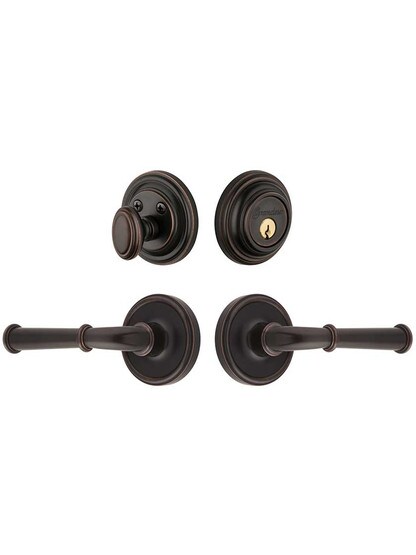

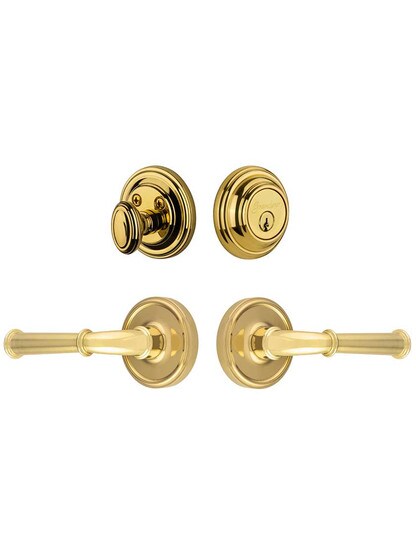

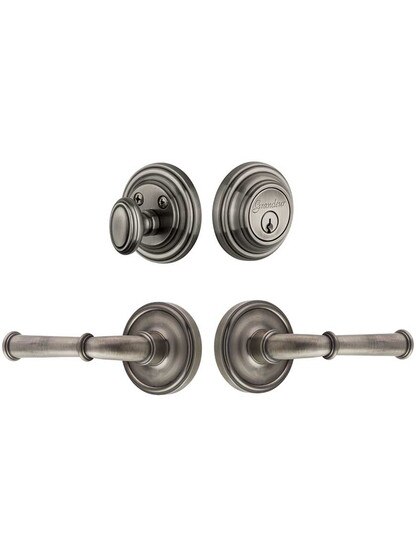

Refined simplicity defines the timeless style and charm of Grandeur's Georgetown Entry Door Set with Georgetown Levers. Constructed of solid forged brass, this elegant design is exhibited in refined detail, while smooth, yet sturdy mechanics offer silk-like operation. Easy and quick installation makes restoration or new construction efficient and exact.

Door set dimensions: Georgetown levers measure 4 3/4" W x 3/4" H x 2 5/8" projection. Georgetown rosettes are 2 5/8" in diameter.

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.

Deadbolt specs: Diameter of face plate is 2 5/8". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.

This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors from 2 1/4" - 2 1/2" in thickness is available for a small fee. Please call for details.



Hardware Tip:
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors. Learn about hardware >
Door Set Functions
Function Description Includes
Entry
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories
