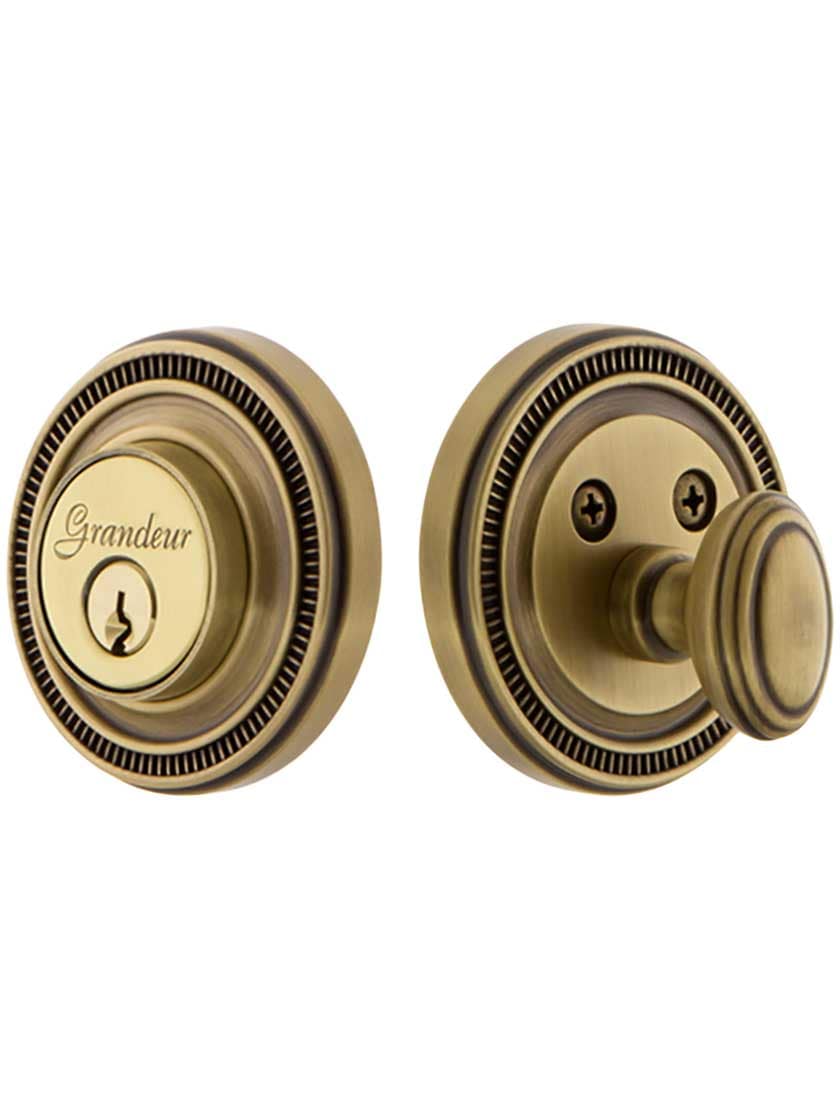

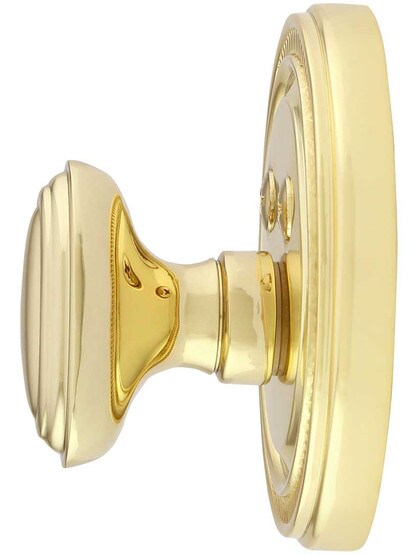

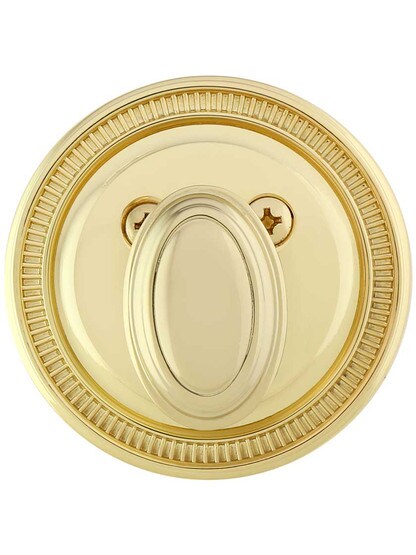

Grandeur Single-Cylinder Deadbolt with Soleil Plates
Description
The Grandeur Single-Cylinder Deadbolt with Soleil Plates is a delightful mix of traditional styles. Constructed of solid forged brass, this elegant design is exhibited in refined detail, while smooth, yet sturdy mechanics offer silk-like operation. Easy and quick installation makes restoration or new construction efficient and exact. Pair it with one of our matching interior door sets in your favorite finish for the perfect entry.
Dimensions: 2 3/4" D. Thumb turn: 1 3/4 projection.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Standard door range: 1 3/4" to 2" thickness.
Dimensions: 2 3/4" D. Thumb turn: 1 3/4 projection.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Standard door range: 1 3/4" to 2" thickness.
Included Hardware
Pictured in PVD finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Forged: Process of forming brass or other metals into a particular shape by heating the metal and hand pounding or cutting with high pressure dies. Items made in this way are very strong and heavy.
WARNING: California Proposition 65Ratings & Reviews
1 review
Tops in quality and beauty
Comments:
This is an amazing product in terms of its design, beauty, quality and functionality! Assuming that the door has been properly bored, this is an easy and quick install. The ability to key it and other locks alike is a fantastic feature. Design is elegant yet simple enough that it can be matched with a number of different style knobs and escutcheons.
