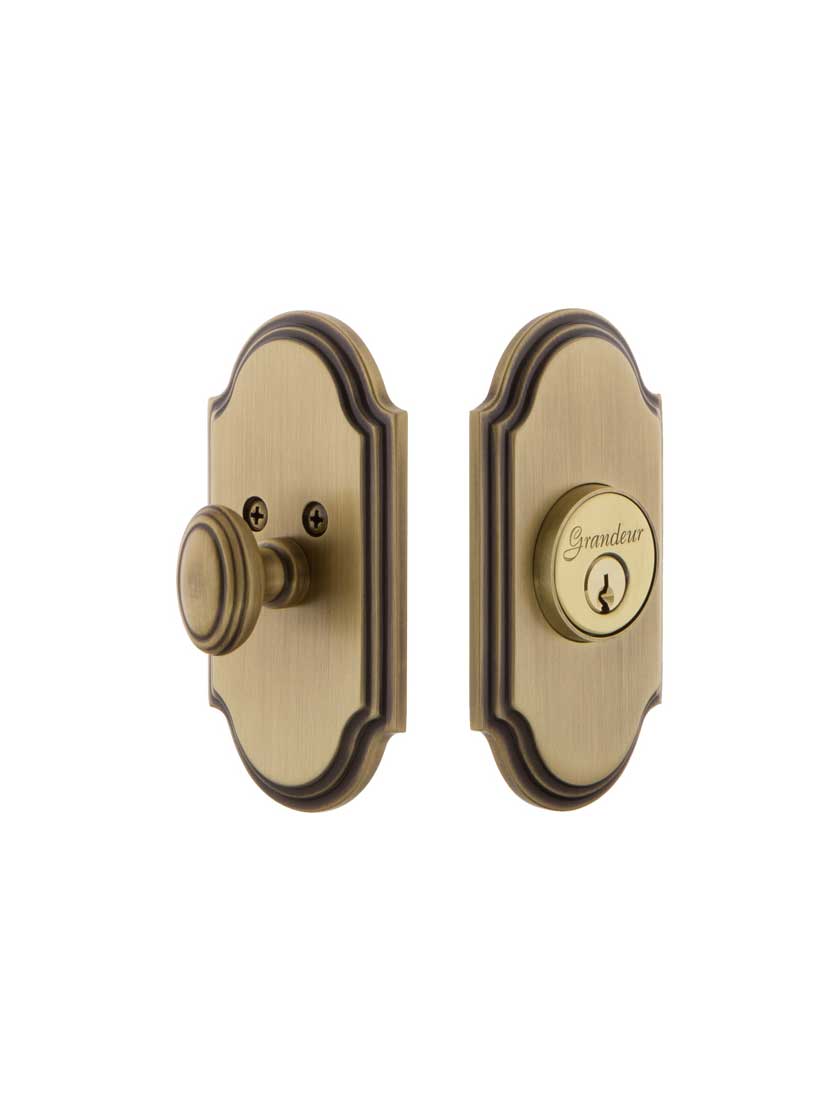

Grandeur Single-Cylinder Deadbolt with Arc Plates
Description
The Grandeur Single Cylinder Deadbolt with Arc Plates is a fresh alternative to standard round rosettes or long escutcheons. Constructed of solid forged brass, each design is exhibited in refined detail, while smooth, yet sturdy mechanics provide silk-like operation. Easy and quick installation makes restoration or new construction efficient and exact. Pair it with one of our matching interior door sets in your favorite finish for the perfect entry.

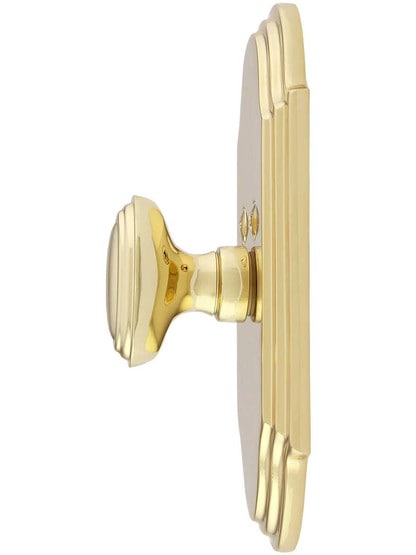

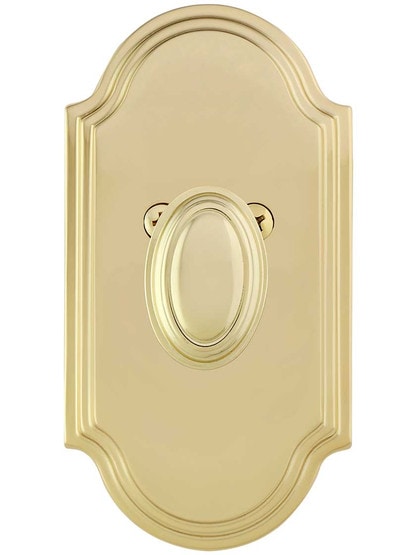

Dimensions: 4 3/4" H x 2 1/2" W. Thumb turn: 1 3/4 projection.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Door thickness range: 1 3/4" to 2" thickness.
Dimensions: 4 3/4" H x 2 1/2" W. Thumb turn: 1 3/4 projection.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Door thickness range: 1 3/4" to 2" thickness.
Included Hardware
Pictured in PVD finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
