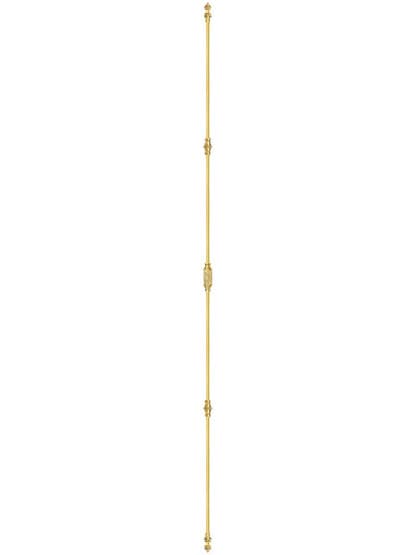

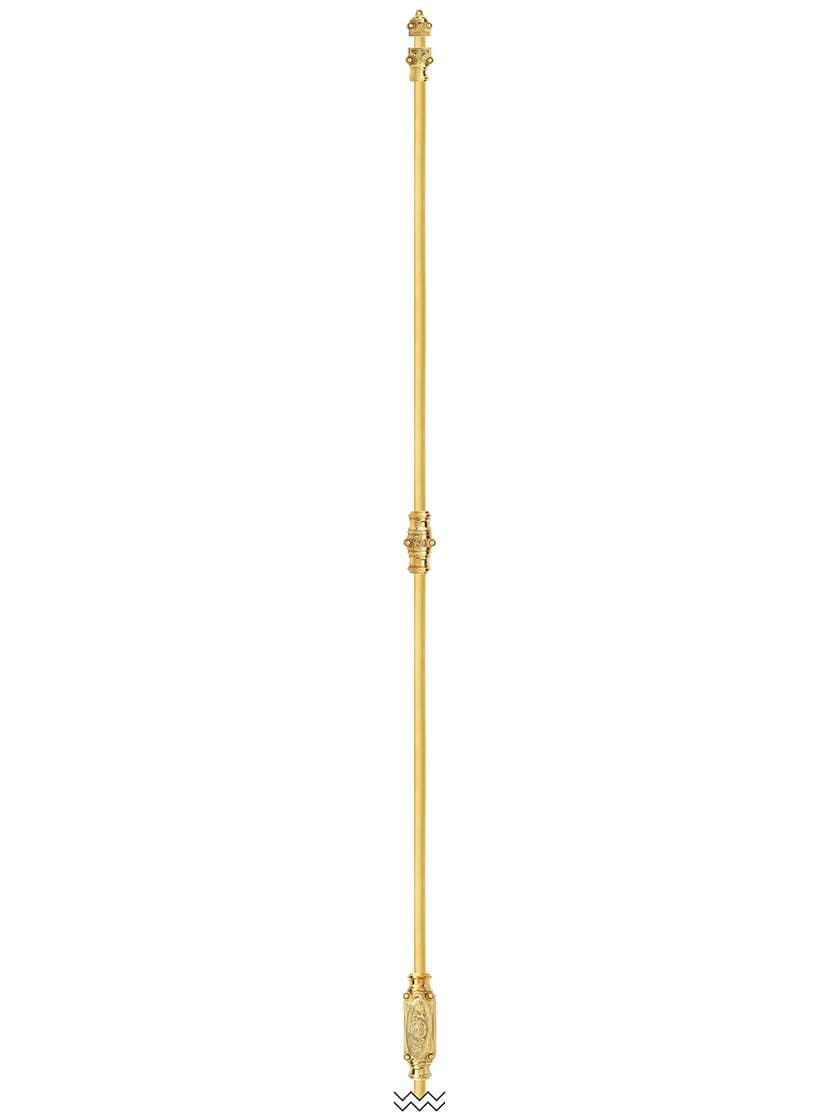

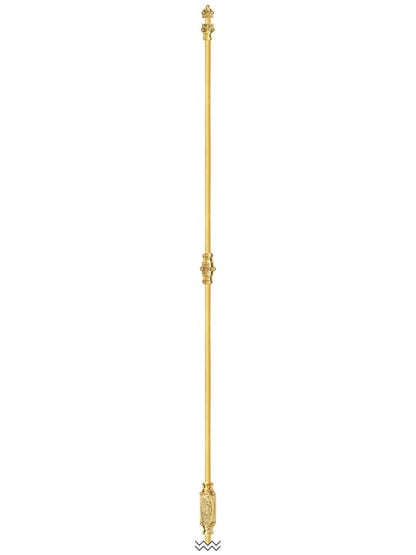

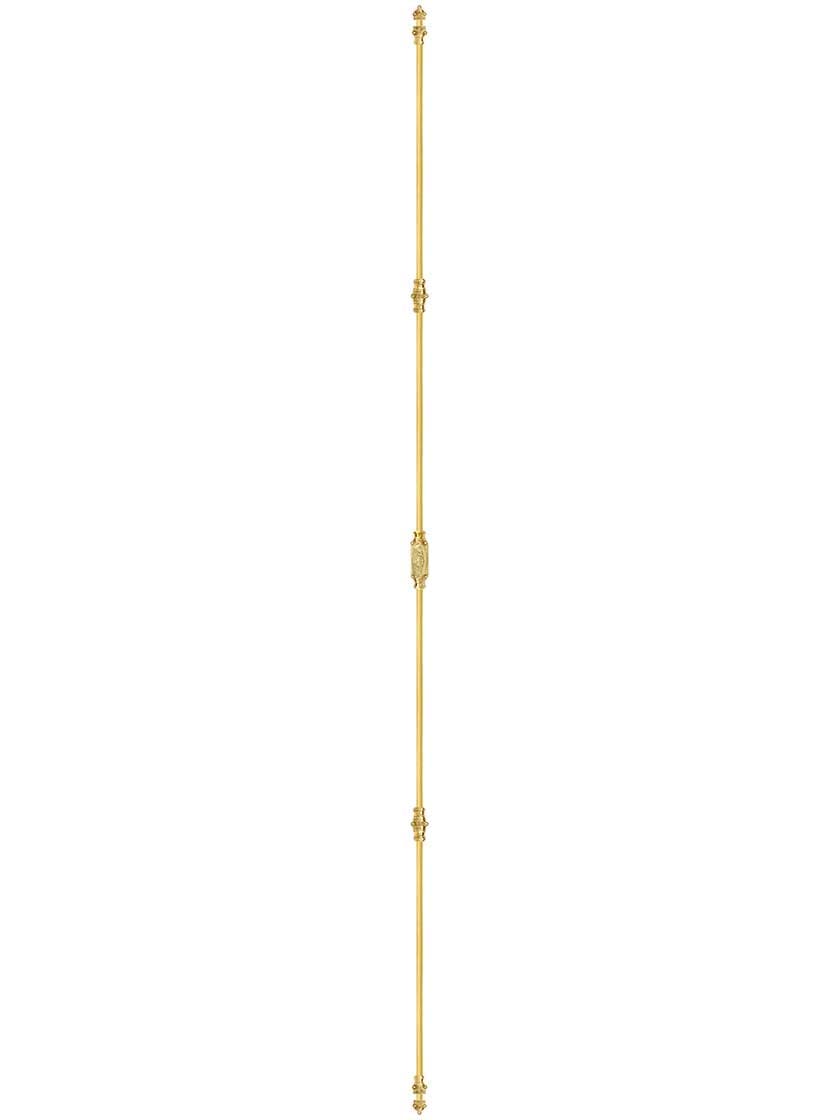

Filigree Brass Cremone Bolt - 9-Foot Length
Description
Decorative functionality defines this Filigree 9-foot cremone bolt. The intricate patterns reflect both Classical and Victorian elements. Made from solid brass, it is well suited to French doors, tall casement windows, cabinets, and armoires.
Dimensions:
Bolt rods: 52 1/2" L x 5/8" W
Gearbox: 5 5/8" H x 1 13/16" W x 2 3/4" Projection
Knob: 3" L x 1 3/16" W
Center guides: 3 1/8" H x 1 11/16" W
End guides: 1 13/16" H x 1 9/16" W
Surface strikes: 1 9/16" H x 1 1/2" W
Mortise strikes: 2 3/8" x 3/4" W
Fastener/s: #6 x 3/4" and 1 3/8" wood screws
Dimensions:
Bolt rods: 52 1/2" L x 5/8" W
Gearbox: 5 5/8" H x 1 13/16" W x 2 3/4" Projection
Knob: 3" L x 1 3/16" W
Center guides: 3 1/8" H x 1 11/16" W
End guides: 1 13/16" H x 1 9/16" W
Surface strikes: 1 9/16" H x 1 1/2" W
Mortise strikes: 2 3/8" x 3/4" W
Fastener/s: #6 x 3/4" and 1 3/8" wood screws

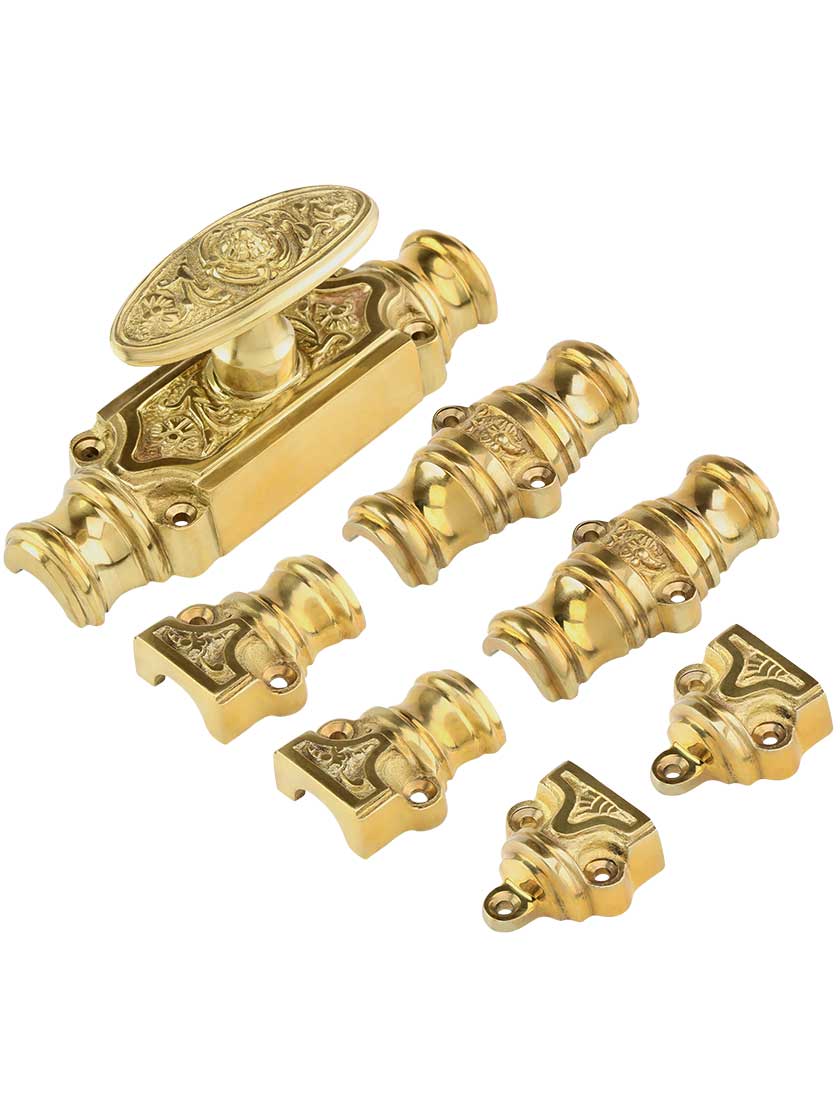

Included Hardware

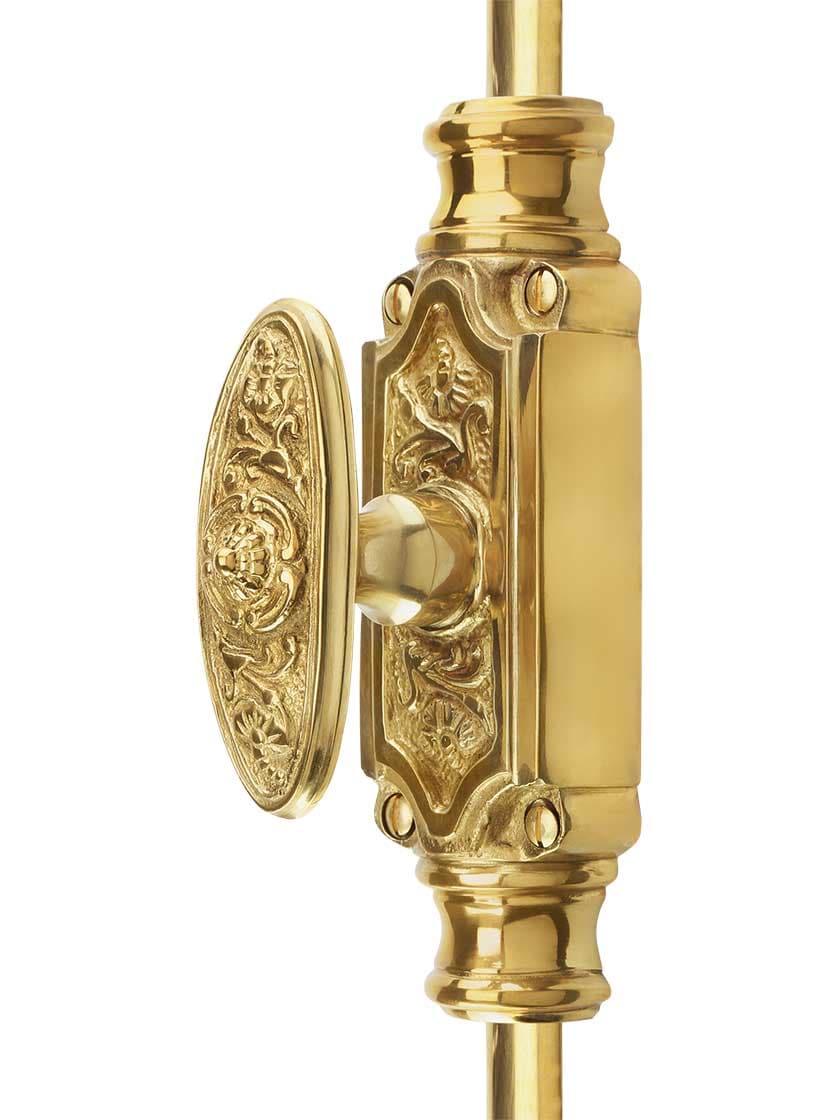

Pictured in Un-Lacquered Brass.(click to close)
Hardware Tip
Cremone bolts, surface mounted and spanning the height of a door or window, have upper and lower rods which extend to lock into the top and bottom of the frame when the knob or lever is turned.
