Filigree Brass Cremone Bolt - 6-Foot Length in Antique-By-Hand

Your Selection:

Quantity discounts available
Item #: R-09SE-501-ABH

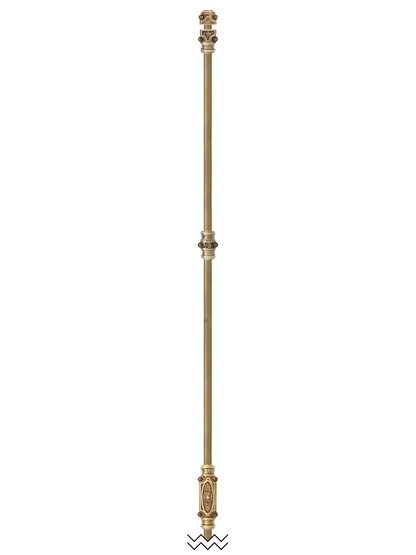

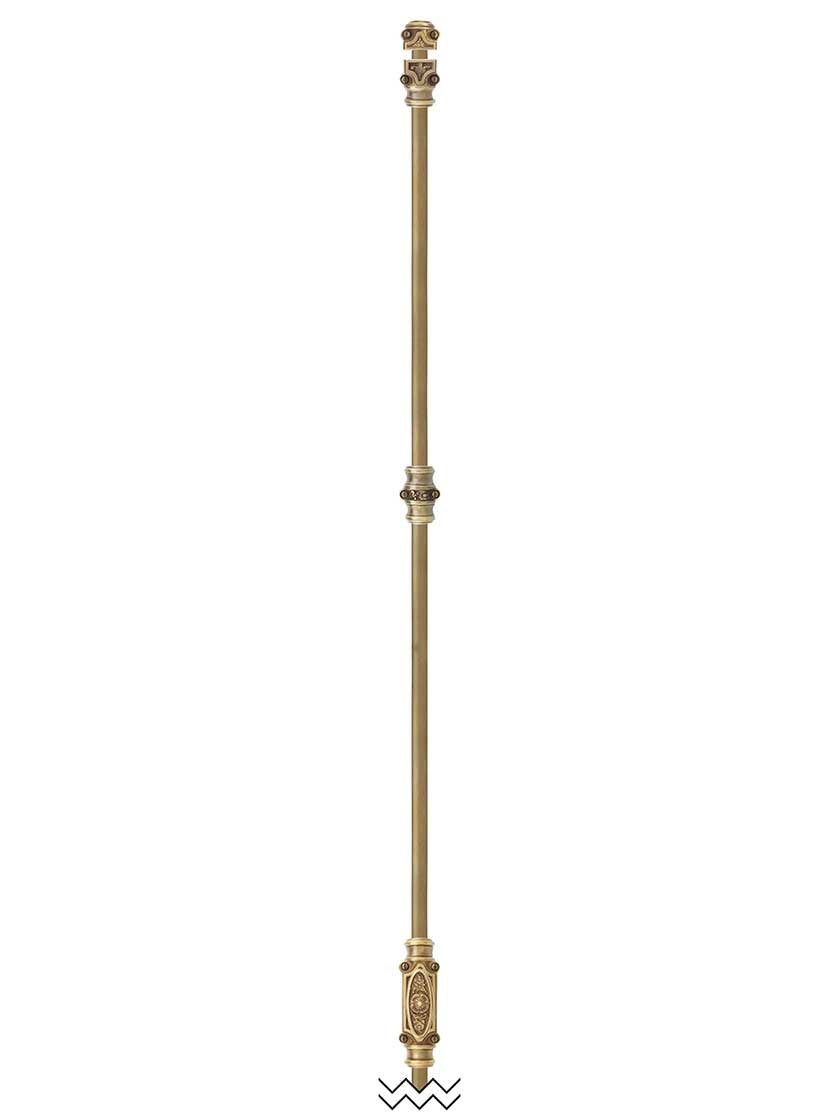

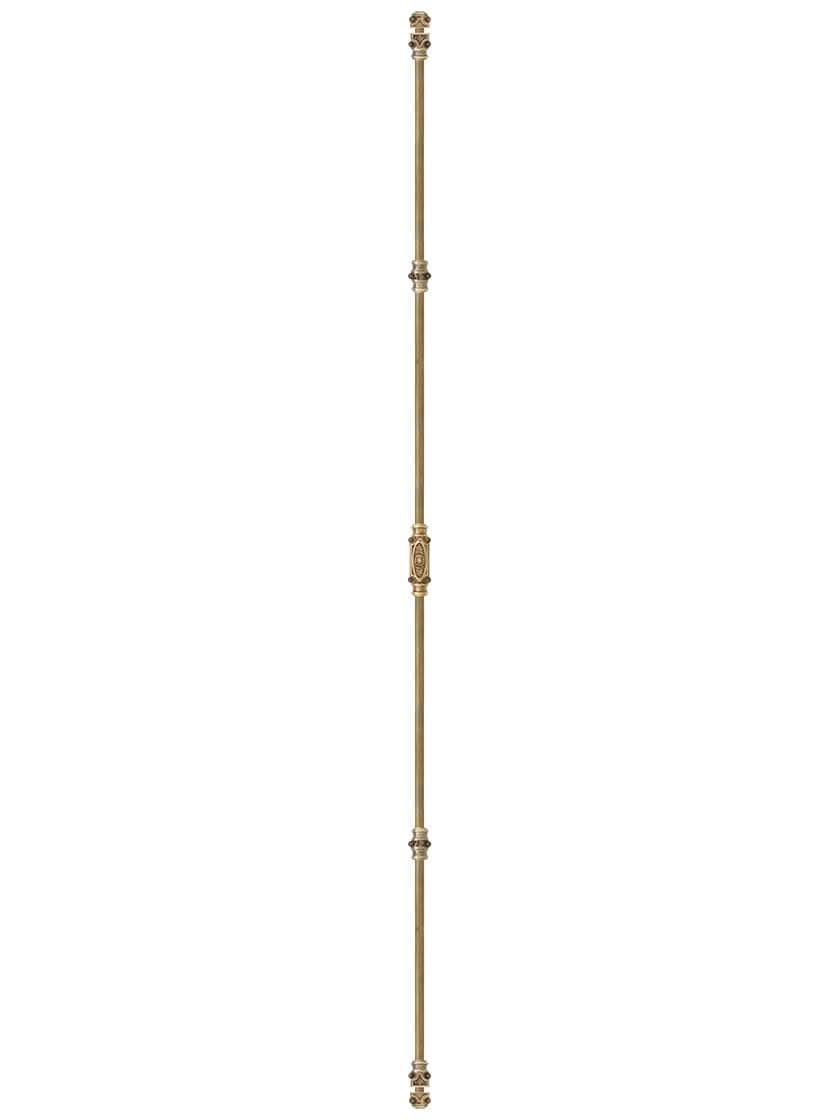

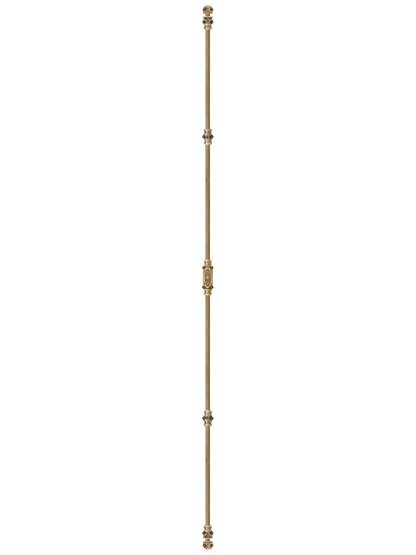

The Filigree 6-foot cremone bolt features embossed Victorian patterns, and is ideal for casement windows, cabinets, and armoires. Made from solid brass, it's available in our Antique-By-Hand finish which ages gracefully over time.

Bolt rods: 36" L x 5/8" W

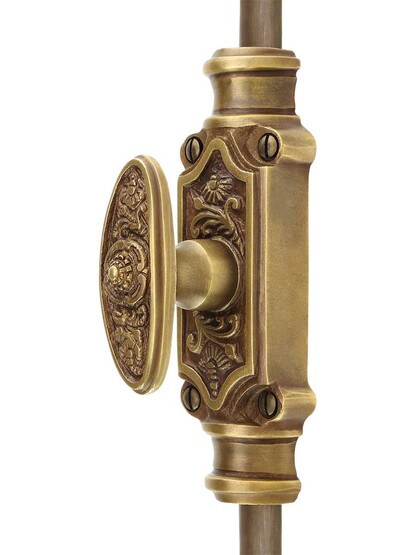

Gearbox: 4 7/8" H x 1 5/8" W x 2 1/4" Projection
Knob: 2 1/2" L x 1" W
Center guides: 2 1/16" H x 1 9/16" W
End guides: 1 13/16" H x 1 5/8" W
Surface strikes: 1 1/16" H x 1 3/8" W
Mortise strikes: 1 3/4" x 5/8" W
Fastener/s: #6 x 3/4" and 1 3/8" wood screws

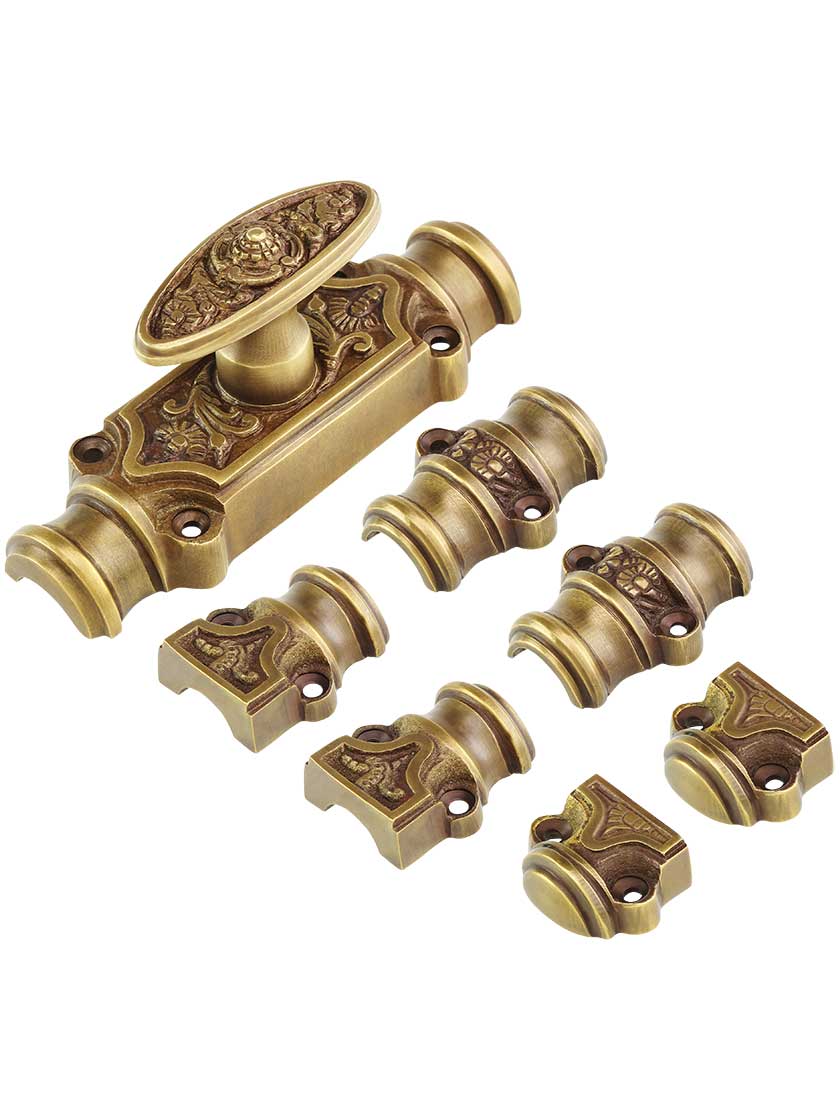

Included Hardware

Pictured in Antique-by-Hand.(click to close)

Hardware Tip

Cremone bolts, surface mounted and spanning the height of a door or window, have upper and lower rods which extend to lock into the top and bottom of the frame when the knob or lever is turned.
