Features
  • Heavy Cast Brass
  • Includes Privacy Function
  • Reversible for Left or Right Handing
  • Key Operated Deadbolt

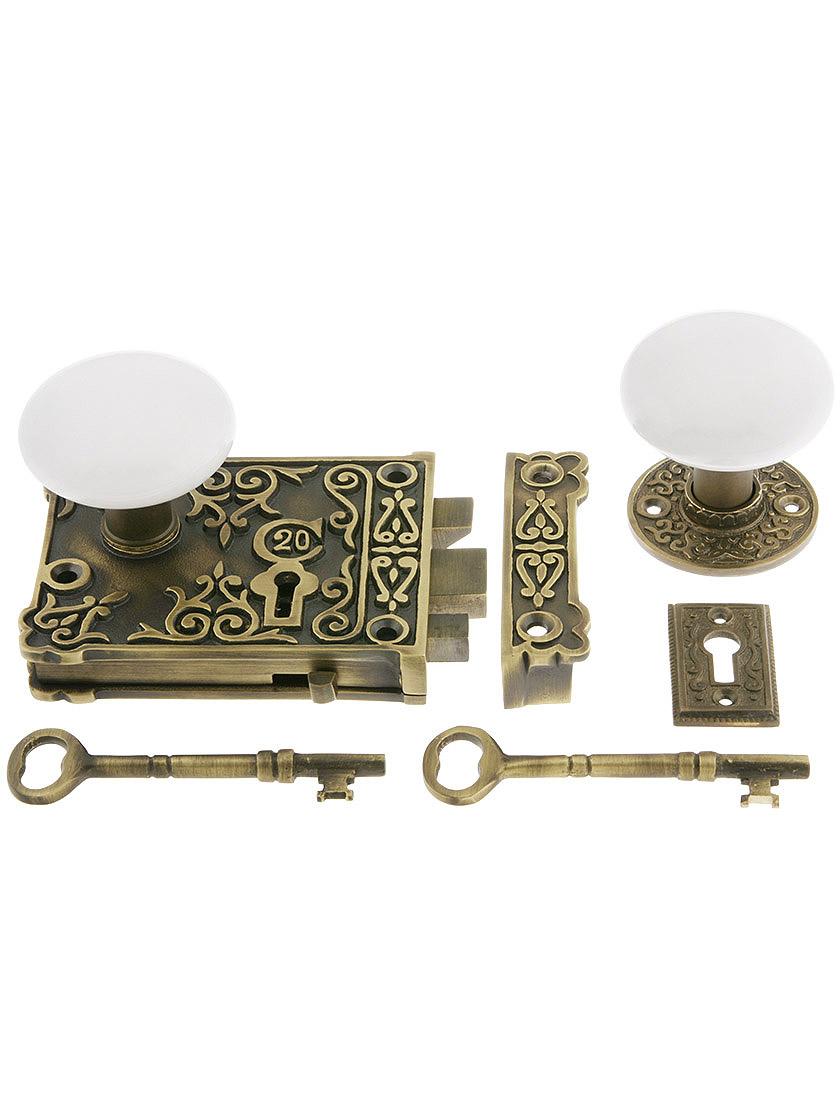

  • Includes Knobs, Rosette, Key Cover and 2 Keys
Details
Style Victorian
Item Sold As Complete Set for One Door
Included Hardware Matching Slotted Screws
Usually Ships In 2 to 3 Business Days More info >
Warranty 5 Year Warranty
Read Product Questions & Answers


Quantity:




Description & Dimensions

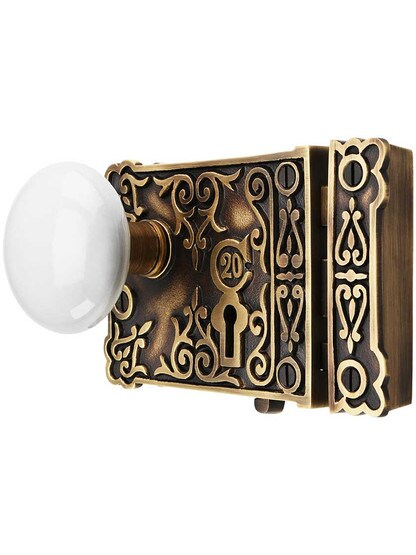

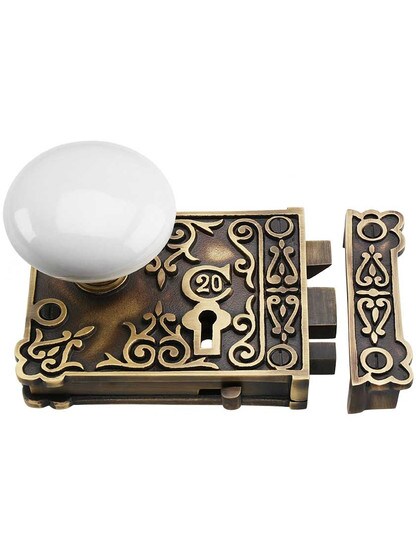

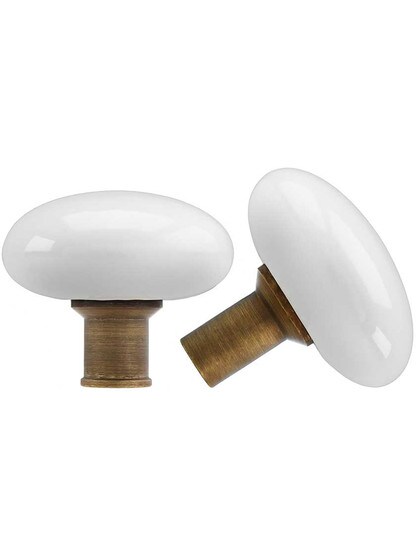

The elegant design of this circa 1900 brass rim lock set, with its delightful "C-20" motif, commemorates the beginning of the 20th century. This historic reproduction features gleaming white porcelain knobs, as well as a brass rosette, keyhole and skeleton keys. The case and matching trim are solid brass with an antiqued and lacquered finish. Heavy-duty interior parts ensure smooth operation and lasting performance. In addition to the key-operated dead bolt, there is a handy privacy lock (sliding tab on bottom of case). Easily reversible for right or left handed doors.

Lock body: 4 1/8" W x 3 1/4" H x 3/4" Thick. Keeper: 13/16" W x 3 1/4" H x 5/8" Thick. Knobs: 2 3/8" Diameter. Rosette: 2" Diameter. Keyhole cover: 1 3/4" H x 1" W. Backset: 3". Door Thickness: 1 1/4" to 2". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1 1/4" to 1 5/8" thick doors, use 4" for 1 3/4" to 2" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.

Please note: the privacy latch can not be disengaged from outside the room.



Hardware Tip:
Rim Lock: An antique style box type door lock which is mounted to the surface of a door and typically uses a skeleton key to operate the lock bolt. Learn about hardware >
Door Set Functions
Function Description Includes
Skeleton Key
Skeleton Key Function
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.
  • 2 Knobs
  • 1 Rosette and 1 keyhole cover
  • 1 Skeleton key rim lock
  • 1 Matching rim keeper
  • Matching screws
  • 1 Spindle and 2 keys
