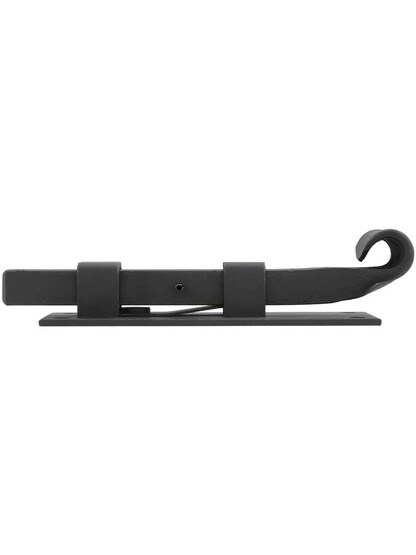

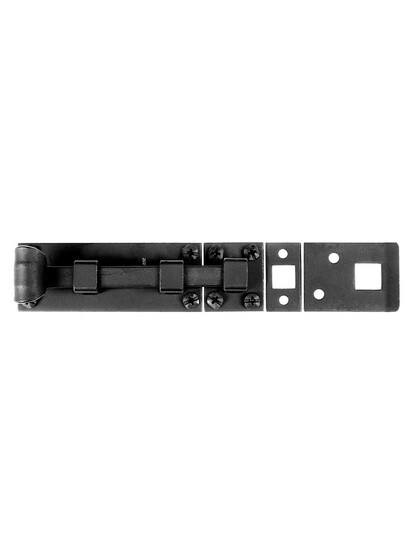

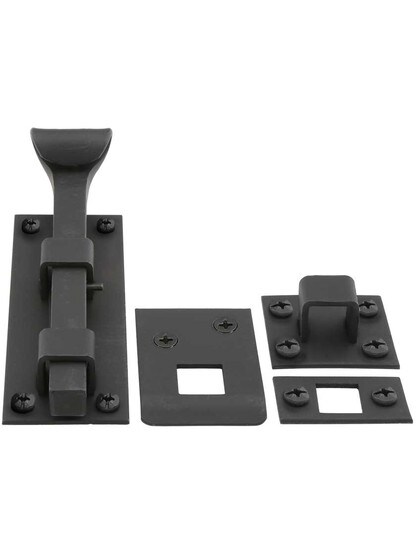

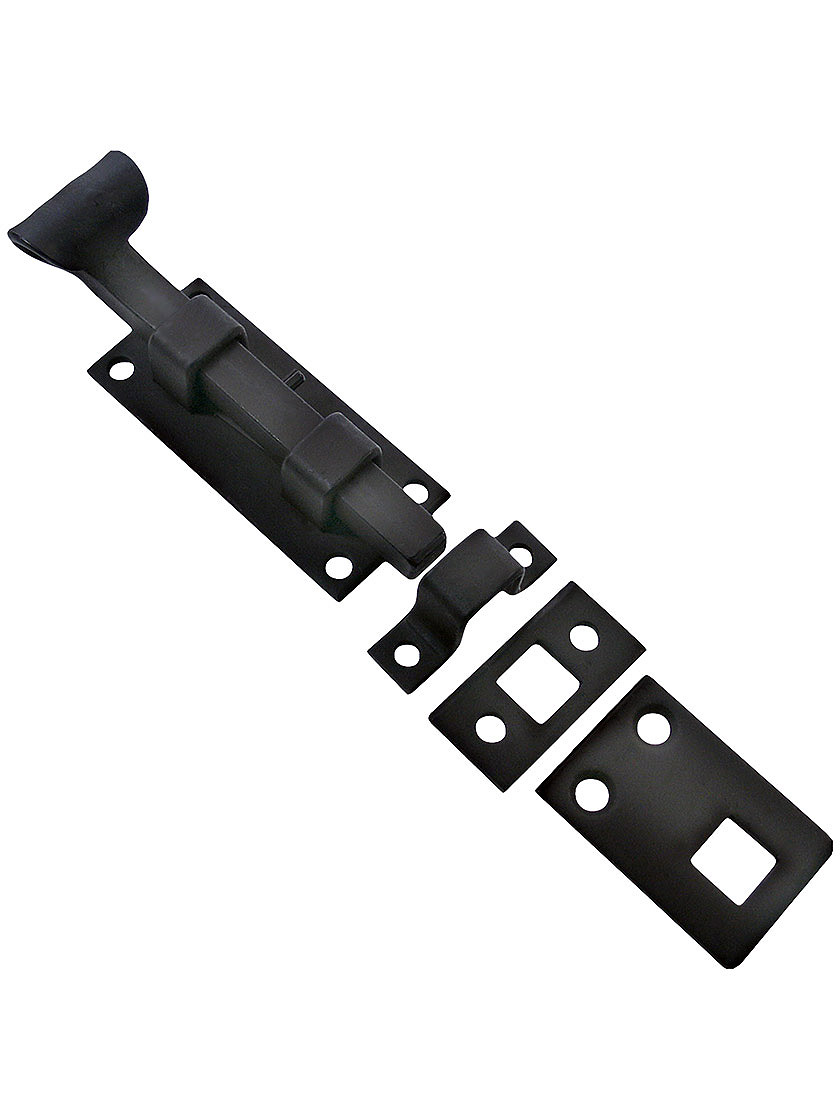

A gently rolled handle adds an artisan touch to this sturdy Forged-Iron Surface Door Bolt. Ideal for Colonial or other rustic home styles, it comes with a smooth black finish and strike plates for three mounting options.
Dimensions: 3.25": Bolt length (including handle*) 3 1/4" ~ 3 1/2". Back Plate: 2 1/4" W x 1" H. Throw: 3/4". Strike Plates - Mortise = 1 1/4" X 5/8", Rim 1 1/2 " X 1", Surface 1 1/4" X 1 1/4"
5": Bolt length (including handle*) 4 3/4" ~ 5". Back Plate: 4" W x 1 1/2 " H. Throw: 1 1/2". Strike Plates - Mortise = 1 1/2" X 3/4", Rim 2 " X 1 1/2", Surface 1 1/2" X 1 1/2"
6 7/8": Bolt length (including handle*) 6 1/2" ~ 6 7/8". Back Plate: 6" W x 1 3/4" H. Throw: 1 5/8". Strike Plates - Mortise = 1 1/2" X 1", Rim 2 1/8" X 1 1/2", Surface 1 3/4" X 1 3/4"
*Due to the nature of hand forging measurements may vary, especially the bolt length with the rolled handle.
Door bolts are used to hold shut doors, windows, cabinets or shutters by sliding the bolt into the catch or in some cases turning a knob to extend the bolt. Learn about hardware >
Product Videos
Reviews
Product Q & A
Adding Items to Cart...
Step 1 Choose Your Function
Passage
Complete non-locking latch set used on most interior doors
Privacy
Complete locking latch set for bedroom and bathroom doors
Double Dummy
Non-latching set with two handles for non-bored closet and double doors
Single Dummy
Non-latching handle for non-bored closet and pantry doors
Step 2 Choose Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
Choosing a Keying Option for Your Entry Door Set
Single Cylinder Lock:
Key operated from the outside, thumbturn operated from the inside.
Double Cylinder Lock:
Key operated from both inside and outside. Note: Key required for egress.
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2⅜" (standard) or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Your Backset
The "backset" is the distance from the edge of your door to the center of the hole bored in your door. Choose from 2½" or 2¾". Measure carefully to ensure proper fit.
or
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
RIGHT HANDED (RH)
LEFT HANDED (LH)
How to Determine Handing
Stand in the frame of the door with your back to the hinges. If the door swings to your right, it is a RIGHT HAND door. If the door swings to your left, it is a LEFT HAND door.
