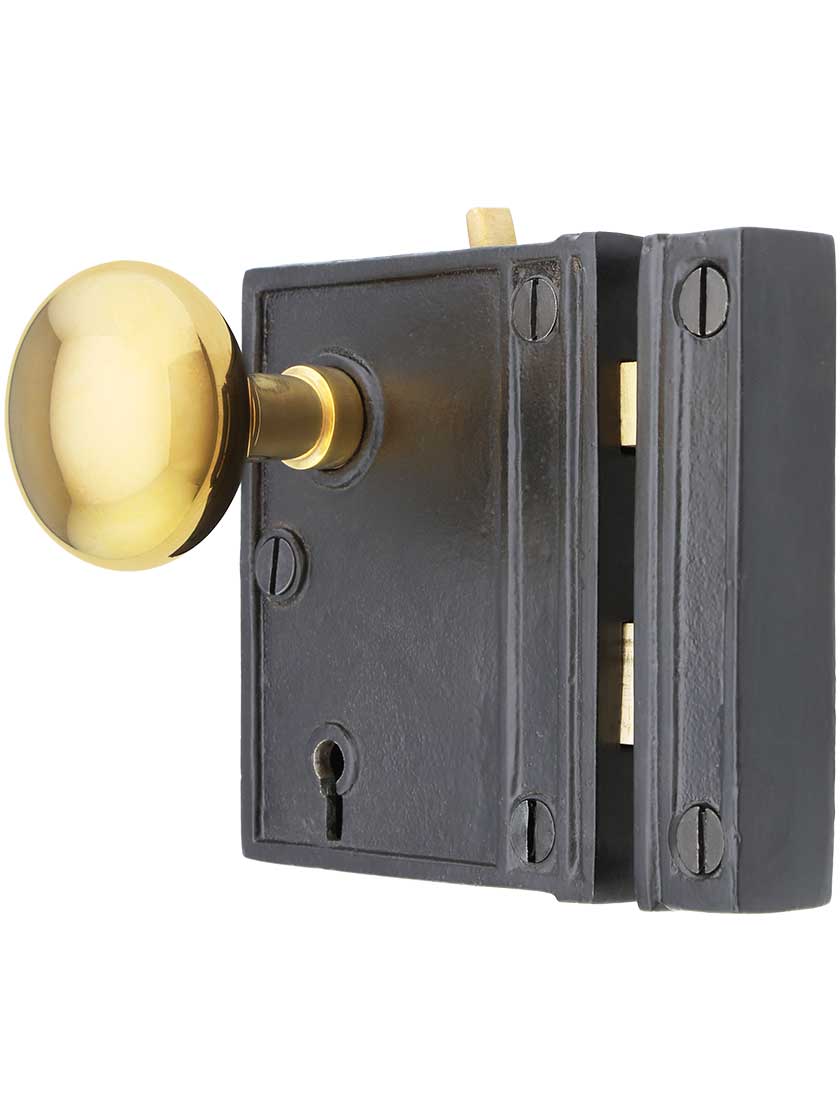

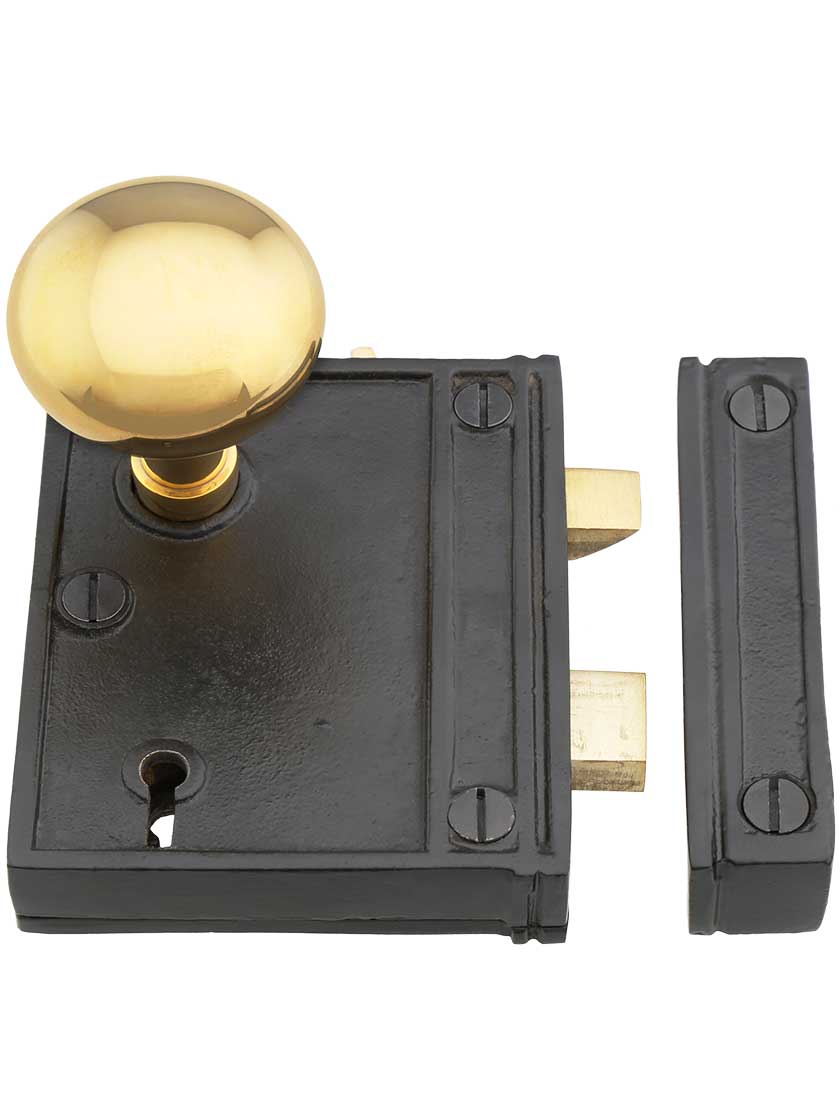

Cast Iron Vertical Rim Lock Set with Small Brass Knobs

Your Selection:

Select Your Finish:


$95.95 - $97.95
Quantity discounts available
QuantityPrice
Item #: R-01HH-1023V-B153X

Description

Dating from the late 19th century, this handsome vertical rim lock suits Victorian, Craftsman, or Colonial Revival interiors. Finely crafted from cast iron and available in two vintage finishes, it features mostly brass interior parts for long-lasting quality. Paired with unlaquered brass knobs & trim, it's a period perfect set, ideal for both rustic and refined interiors. Comes complete with two fancy brass skeleton keys. In addition to the key-operated dead bolt, there is a handy privacy lock (toggle on top of case). Easily reversible for right or left handed doors.

Dimensions: Lock body: 3 3/16" W x 3 3/4" H x 3/4" Thick. Keeper: 3/4" W x 3 3/4" H x 3/4" Thick. Backset: 2 1/4". Rosette: 1 7/8" diameter. Keyhole Cover: 1 11/16" tall by 15/16" wide. Knobs: 1 7/8" diameter. Spindle: 20 TPI measuring 4" L x 9/32".

Door Thickness: 1" to 1 3/4". Includes an Allen wrench and set screws for mounting knobs to spindle.

Please note: the privacy latch can not be disengaged from outside the room.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Skeleton Key
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.

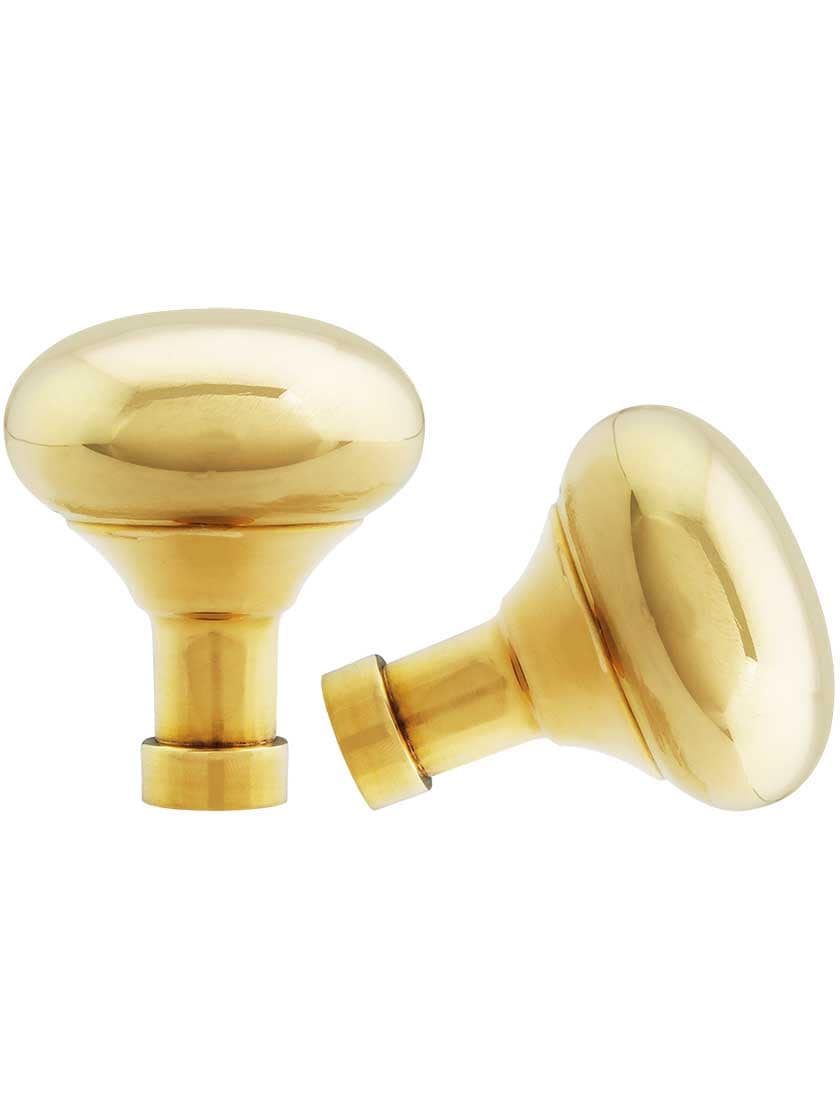

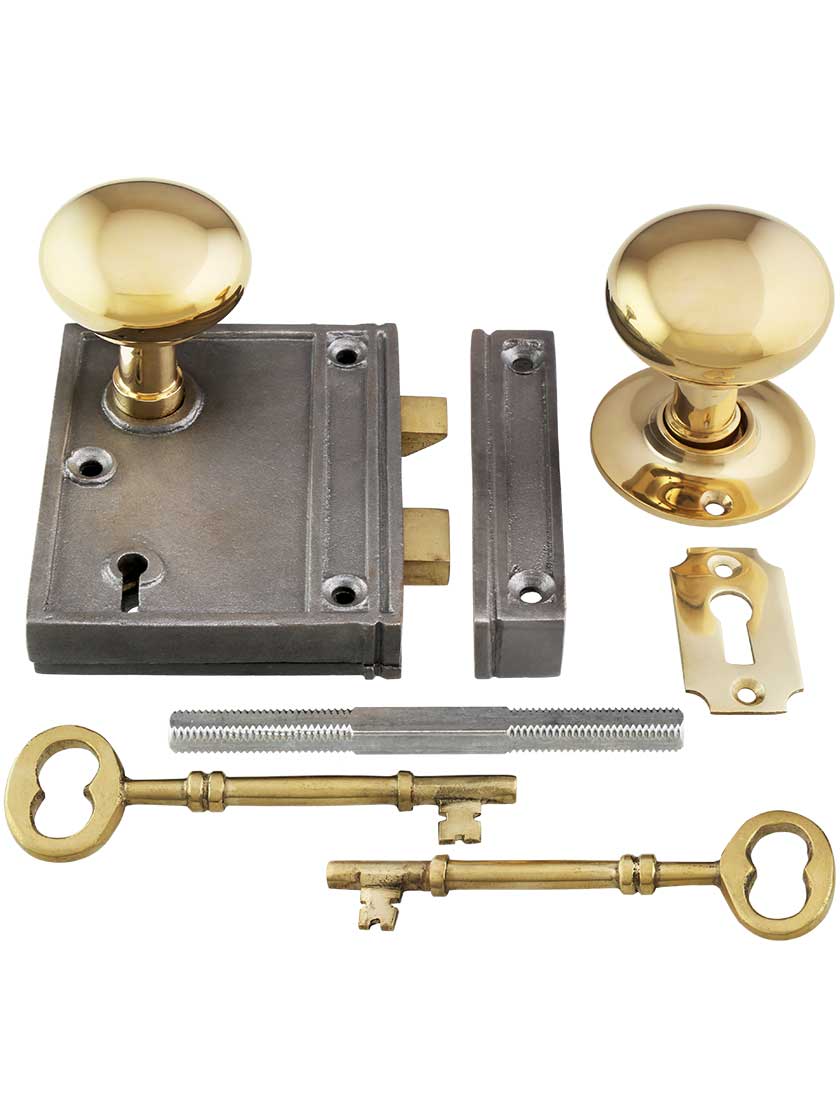

  • 2 Knobs
  • 1 Rosette and 1 keyhole cover
  • 1 Skeleton key rim lock
  • 1 Matching rim keeper
  • Matching screws
  • 1 Spindle and 2 keys

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock.
