Streamline Moderne Mortise Lock Set with Round Crystal Glass Knobs with Keyhole
Description

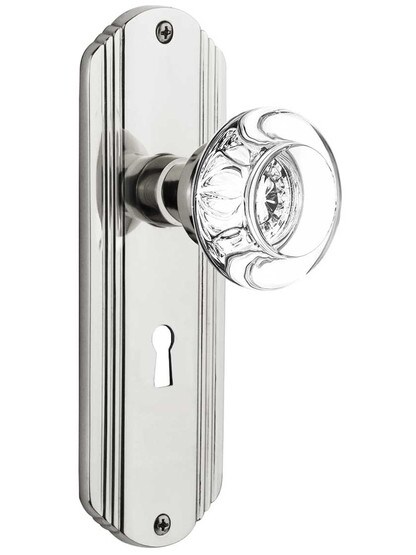

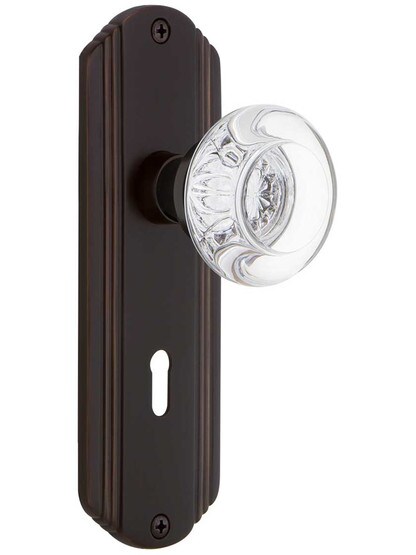

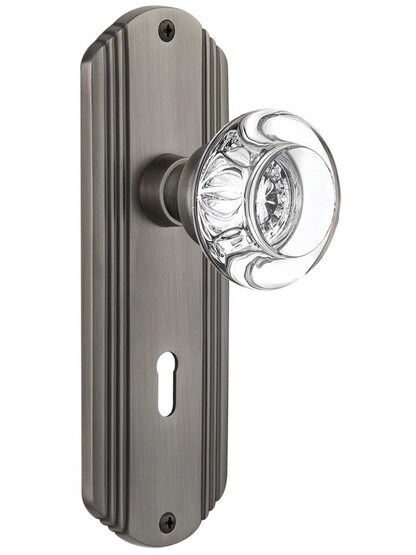

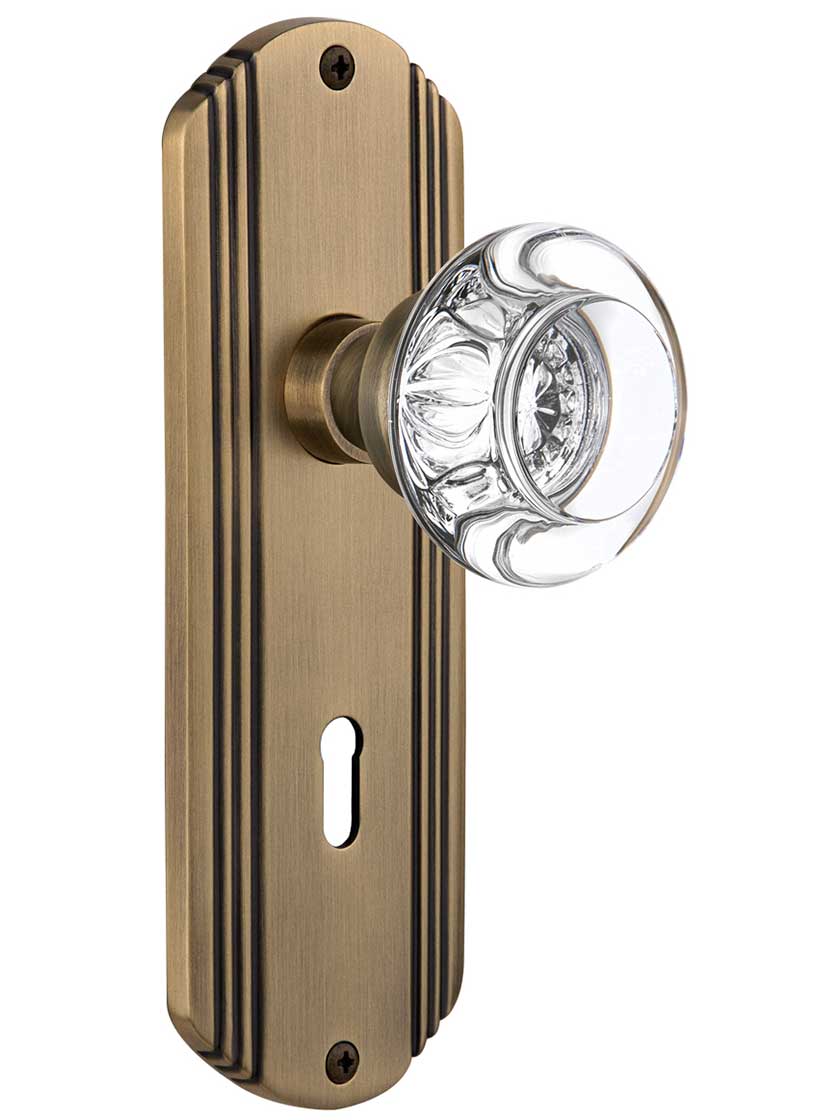

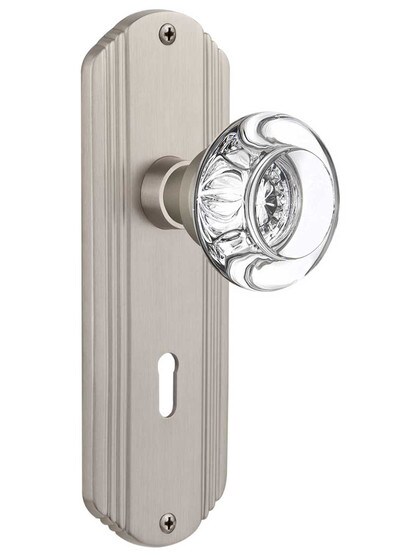

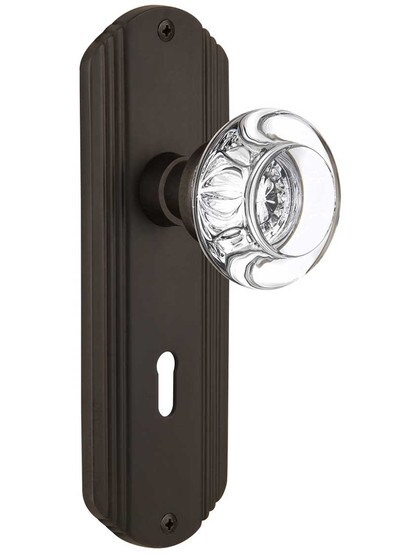

Inspired by a 1930s original, our top-quality Streamline Modern door set features crystal clear crystal glass knobs, forged brass plates and a heavy-duty mortise lock - perfect for your vintage Deco or Mid-Century home. The lock itself is made to the highest standards, ensuring trouble-free performance and reliable privacy. Enduring quality, authentic period style, and our five year warranty make this an excellent choice for new construction as well. Choose from seven popular finishes.
Dimensions: Round Crystal knobs measure 2 1/4" in diameter. Back plates are 7" H x 2 1/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Dimensions: Round Crystal knobs measure 2 1/4" in diameter. Back plates are 7" H x 2 1/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

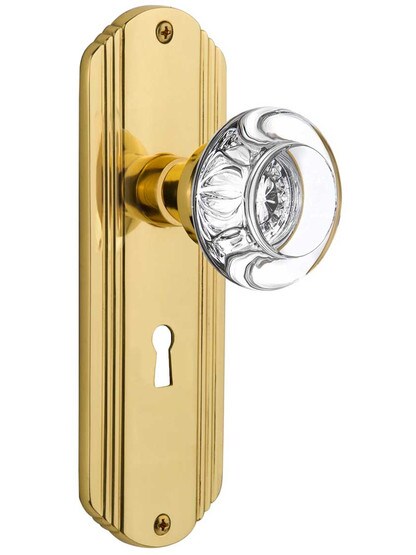

Pictured in Polished Brass.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
WARNING: California Proposition 65Ratings & Reviews
1 review
looks good in person
Comments:
The lock is set in an old repurposed door in an outdoor application with a small covered overhang entrance. This door opens into an insulated enclosed 4 season Gazebo with removable thermal pain windows, skylights, gas fireplace with mantel and slate surround, built in Humidor, and refrigerator. We chose that style because it fits with the charm and the 100 year old plus leaded glass windows on either side of the door.
