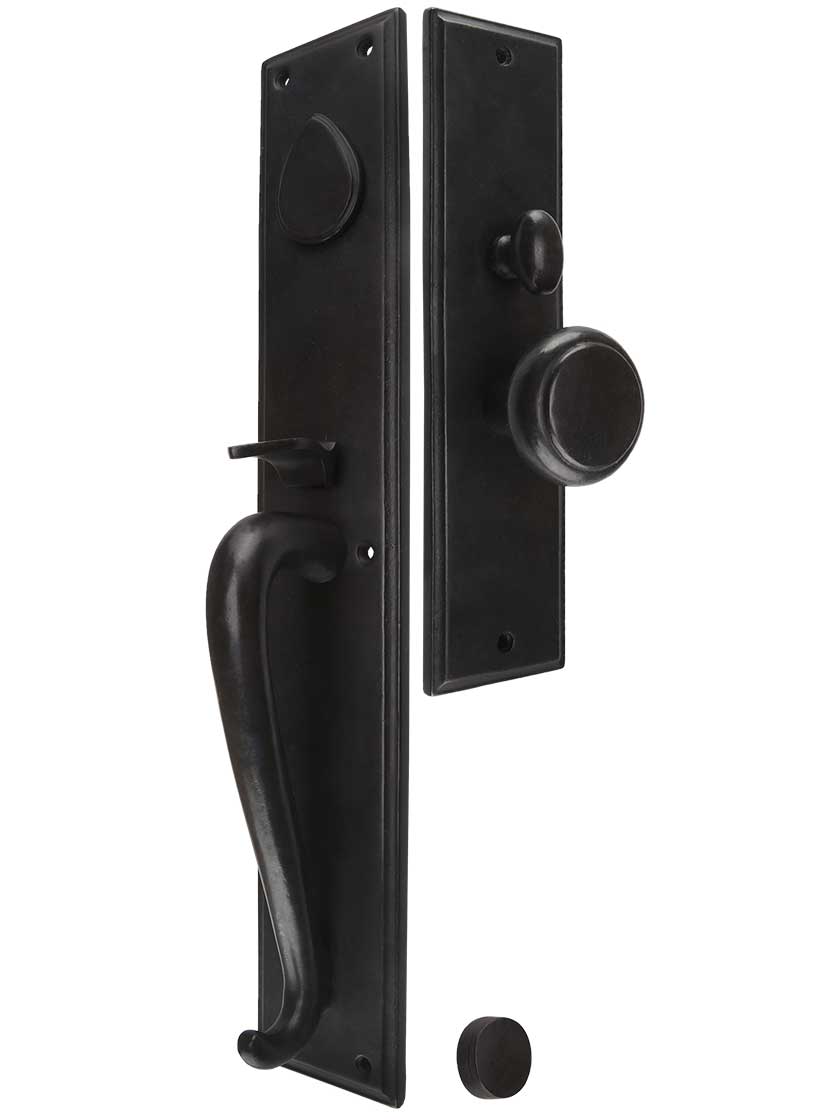

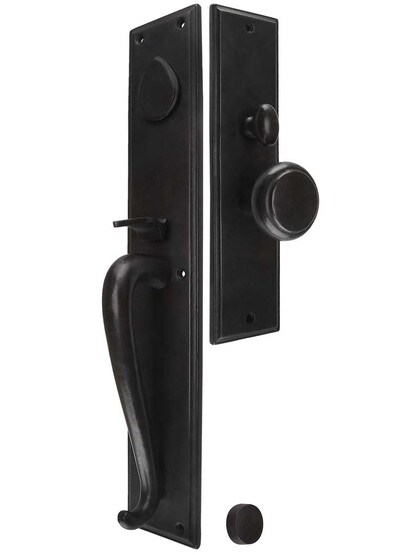

Solid Bronze Rectangular Thumb-Latch Mortise Entry Set

Select Your Knobs - Handing:


Item #: RS-05AN-SQSGL-10X
$1,253.90
Quantity discounts available
QuantityPrice

Description

With its rustic, yet refined presence, our Solid Bronze Rectangular Thumb-Latch Mortise Entry Set suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. This entry set boasts high-tech mechanics, resulting in silky smooth, trouble-free operation and zero lever sag. Created expressly for vintage and non-drilled doors.

Door set dimensions:
Churchill Lever: 4 5/8" L overall (4 1/4" to center) x 2 3/8" projection.
Colonial Lever: 5 3/8" L overall (4 7/8" to center) x 2 3/8" projection.
Newport Knob: 2 1/4" Dia. x 2 1/4" projection.
Backplates: Exterior handle is 8 7/8" H. Exterior handle backplate is 18 1/8" H x 3" W. Interior backplate is 10" H x 2 1/2" W x 4 1/8" Bottom to lever/knob center.

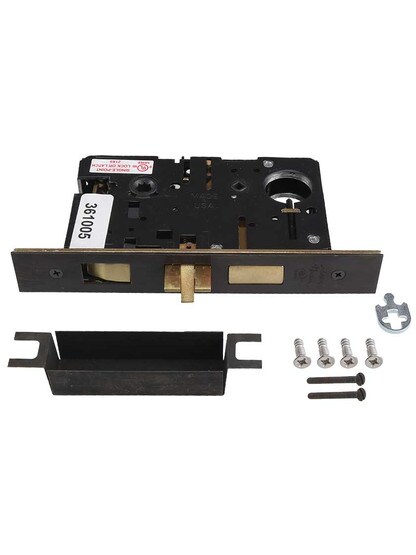

Mortise lock dimensions: Backset: 2 1/2". Lock case: 6 1/16" H x 3 5/8" W (2 1/2" backset) x 8/8" thick. Face plate: 8" H x 1 1/4" W. "T" Strike: 4 7/8"H .
Standard door range: 1 3/4" thick.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.

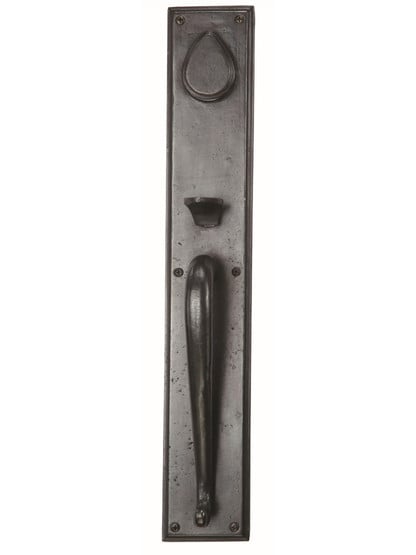

  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette

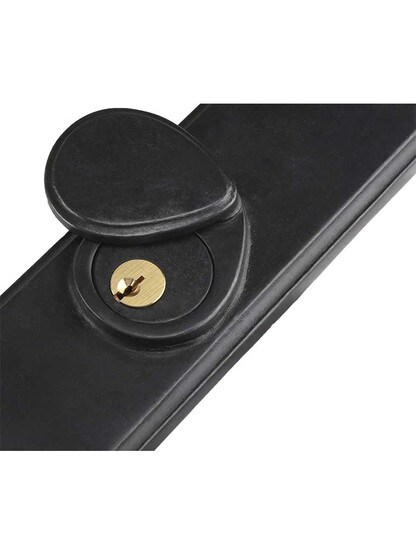

  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
