Features
  • Premium Sand-Casted Bronze for Exceptional Detail
  • Hand-Applied Patina Ages Gracefully Over Time
  • 28-Degree Knob Rotation for Easy Opening
  • Precision Spring Assist Provides Smooth Operation
Details
Style Colonial / Romantic
Item Sold As Complete Set for One Door
Included Hardware All necessary mounting accessories
Usually Ships In 3 to 5 Business Days More info >
Warranty 10 Year Mechanical & 5 Year Finish
Read Product Questions & Answers



Quantity:




Description & Dimensions

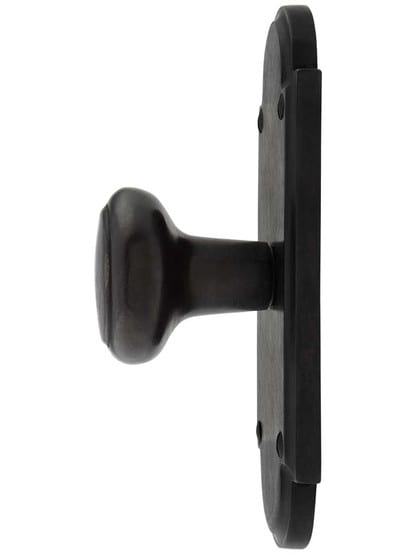

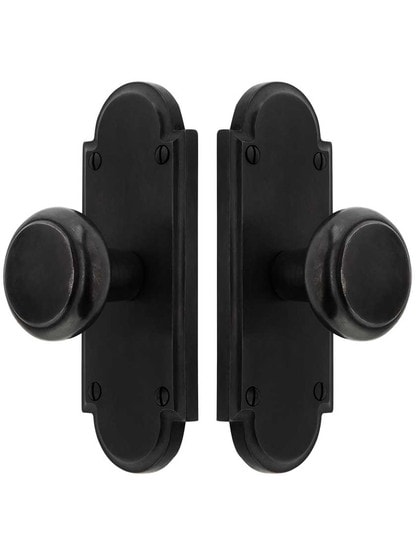

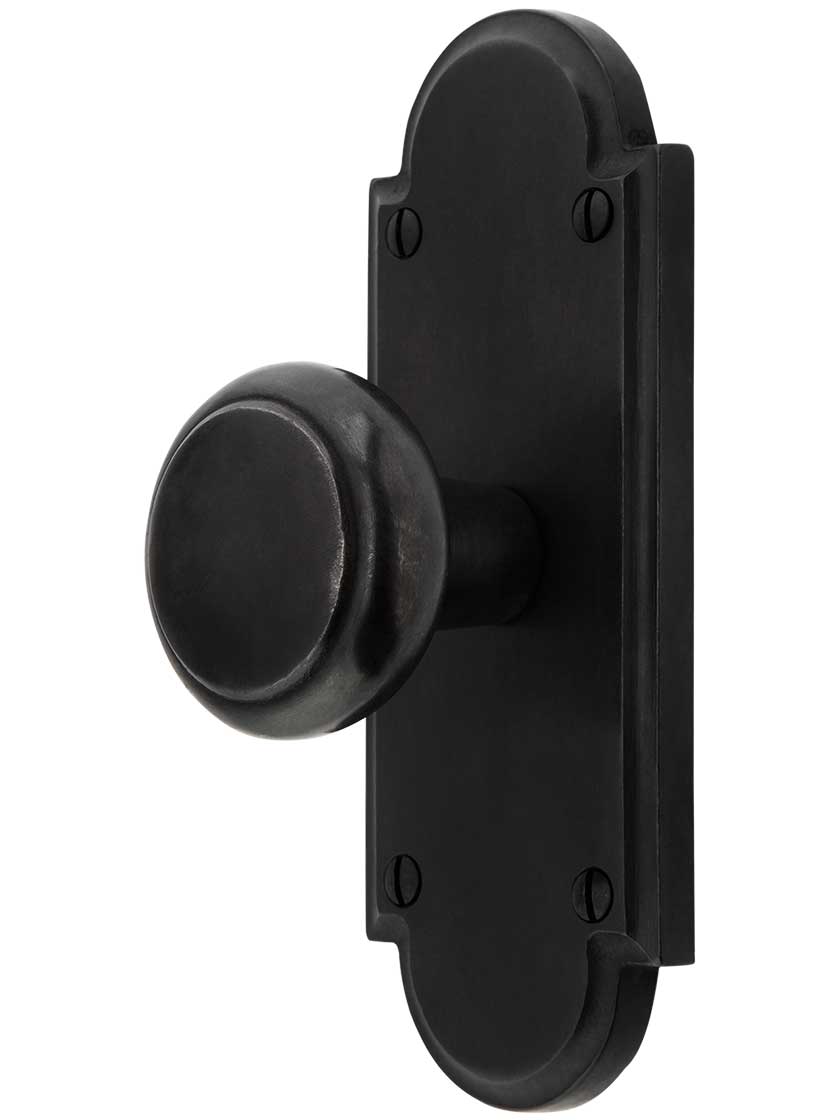

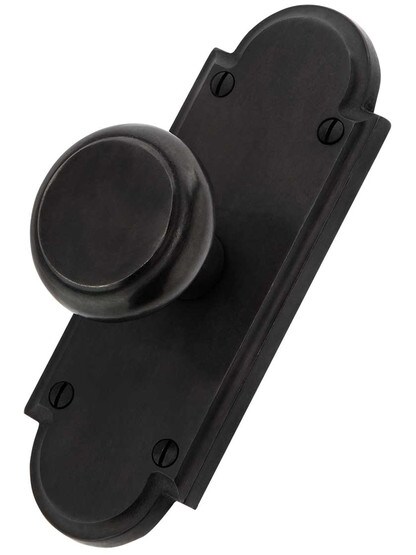

With its rustic, yet refined presence, our Solid Bronze Arched-Plate Door Set with Newport Knobs suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. This door set boasts high-tech mechanics, resulting in silky smooth, trouble-free operation. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals and home owners alike.

Door set dimensions: Knob: 2 1/4" Dia. x 2 1/4" projection. Backplates: 7" H x 2 1/2" W x 3 1/2" Bottom to lever center.

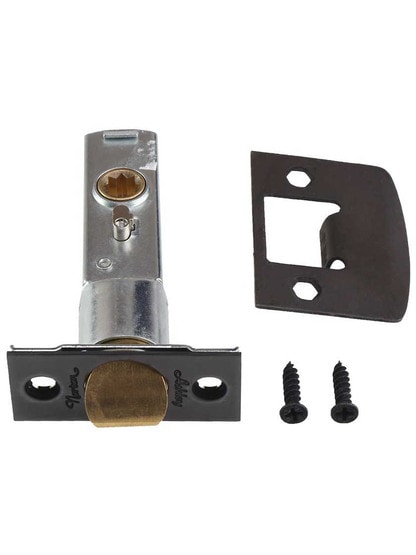

Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W. Full liped strike: 2 1/4" H x 2 1/4" W.
Standard door range: 1 3/8" to 1 3/4" thick.



Hardware Tip:
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. Learn about hardware >
Door Set Functions
Function Description Includes
Passage
Passage Function
Latch but no lock - The knobs or levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
  • 2 Knobs or Levers
  • 2 Backplates or Rosettes
  • 1 Passage Latch with matching face plate
  • 1 Matching strike plate
  • Matching screws
  • 1 Passage Spindle
Privacy
Privacy Function
Latch and lock - This set has a privacy pin next to the inside knob or lever which is pushed in to lock. The door is unlocked by turning the knob or lever on the inside and can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
  • 2 Knobs or Levers
  • 2 Backplates or Rosettes
  • 1 Privacy Latch with matching face plate and privacy pin
  • 1 Matching strike plate
  • Matching screws
  • 1 Privacy Spindle
Double Dummy
Double Dummy
No latch or lock - the knobs or levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
  • 2 Knobs or Levers
  • 2 Backplates or Rosettes
  • Matching Screws
  • 2 Dummy Spindles
Single Dummy
Single Dummy
No latch or lock - Like a cabinet knob, the knob or lever mounts on one side of the door and doesn't turn or operate a latch. Typically found on closet or pantry doors. This set can't be installed on a pre-drilled door.
  • 1 Knob or Lever
  • 1 Backplate or Rosette
  • Matching screws
  • 1 Dummy Spindle
