Solid Bronze Angular Entry Set with Alessa Levers

Your Selection:

Select Your Finish:


$663.90 Sold Out
Quantity discounts available
QuantityPrice
Item #: RS-05AN-AGLES-830-50X

Description

With its rustic, yet refined presence, our Solid Bronze Angular Entry Set with Alessa Levers suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. This entry set boasts high-tech mechanics, resulting in silky smooth, trouble-free operation and zero lever sag. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals and home owners alike.

Door set dimensions: Lever: 4 7/8" L overall (4 1/2" to center) x 2 1/8" projection. Backplates: 11" H x 2 1/2" W x 3" Bottom to lever.

Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W. Full liped strike: 2 1/4" H x 2 1/4" W.
Standard door range: 1 3/4" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Included Hardware

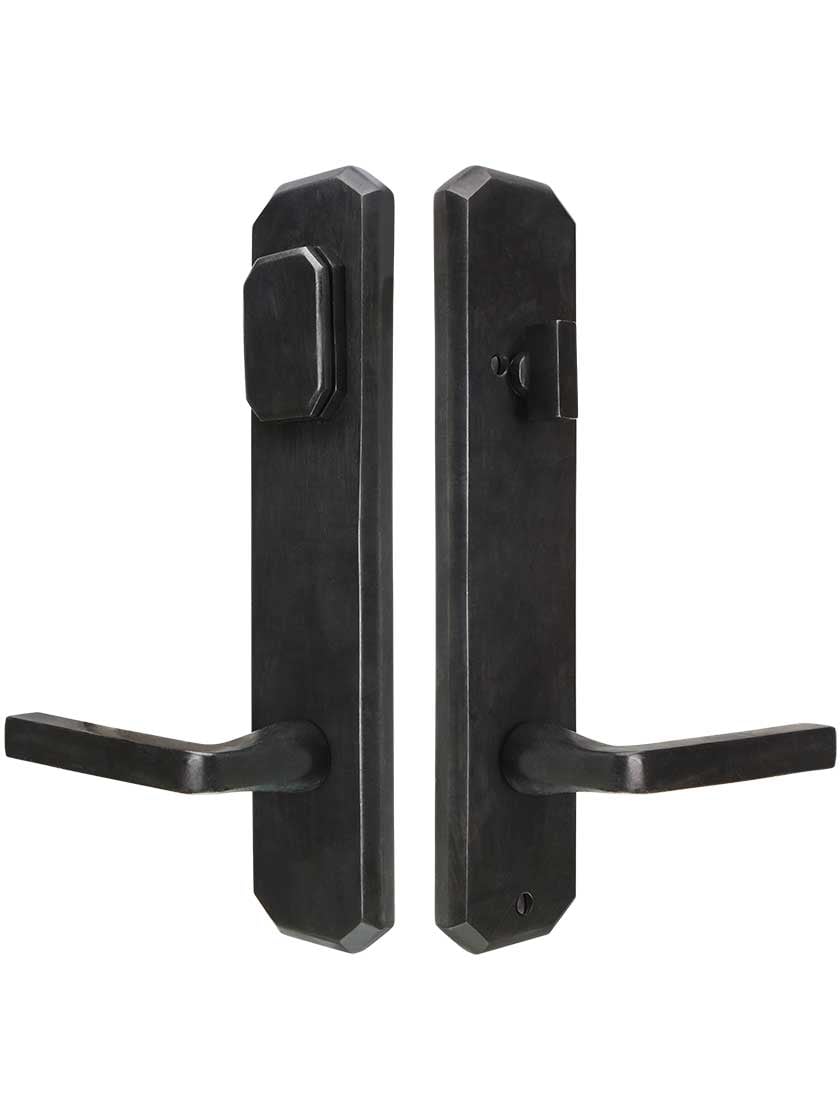

Pictured in Dark Bronze Finish. Your hardware will match the finish selected.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
